SKU: ASS4904155SC
Lockwood 4904 Square Handle End Plate With Turn & 155 Lever Satin Chrome 4904/155SC
RRP: $245.96
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

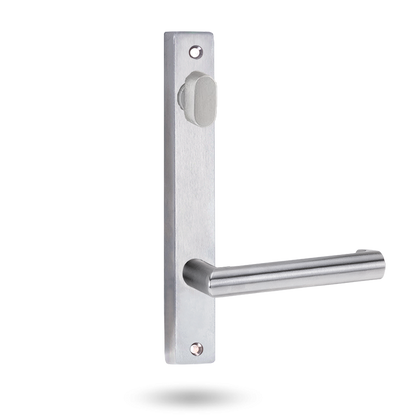

Lockwood 4904 Square Handle End Plate With Turn & 155 Lever Satin Chrome
4904/155SC
PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.
Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings
Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping
Features:
- Made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice
- The culmination of decades of experience in the design and manufacture of high quality door furniture
- Evolved as the product of choice for leading architects in commercial, institutional and industrial applications
- Provides distinct movement with its full face lever design punctuated by a right angle, thus making a strong and purposeful statement
- A classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements
- Internal plate with visible fixing (screws not included)
- Non-handed
- Supplied in trade pack
Specification:
-
Lever Type: 155
Plate Length: 185mm - Plate Width: 26mm
- Plate Thickness: 11.5mm
- Lever Length: 128.8mm
- Lever Projection: 57.5mm
- Finger Clearance: 40mm
- Finish: Satin Chrome
When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
Handing
- Symmetrical levers may be reversed by removing the stop screw.
Fixing
- Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 50mm.
