Lockwood 5603 Round End Plate with Emergency Turn and 70 Lever - Available in Various Finishes

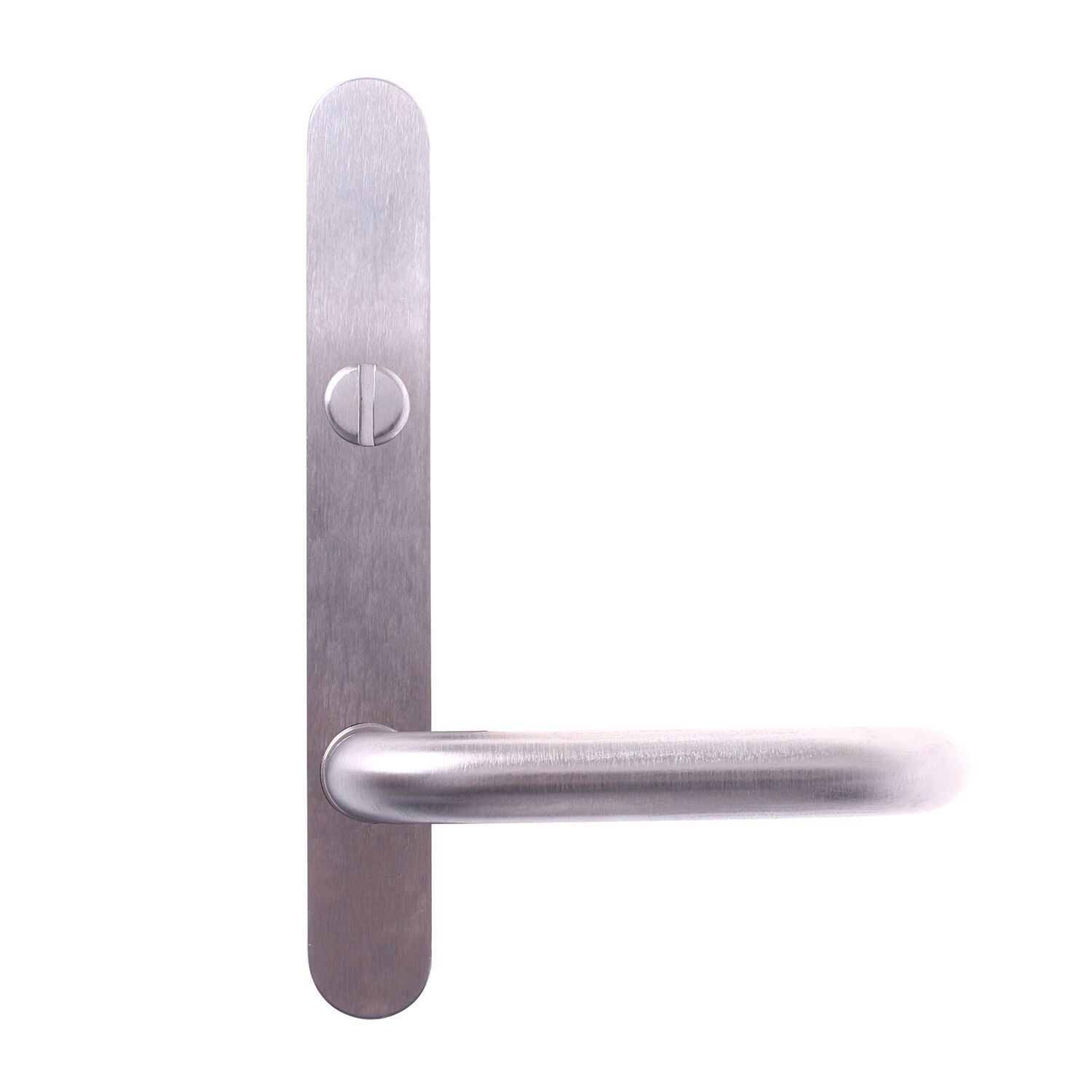

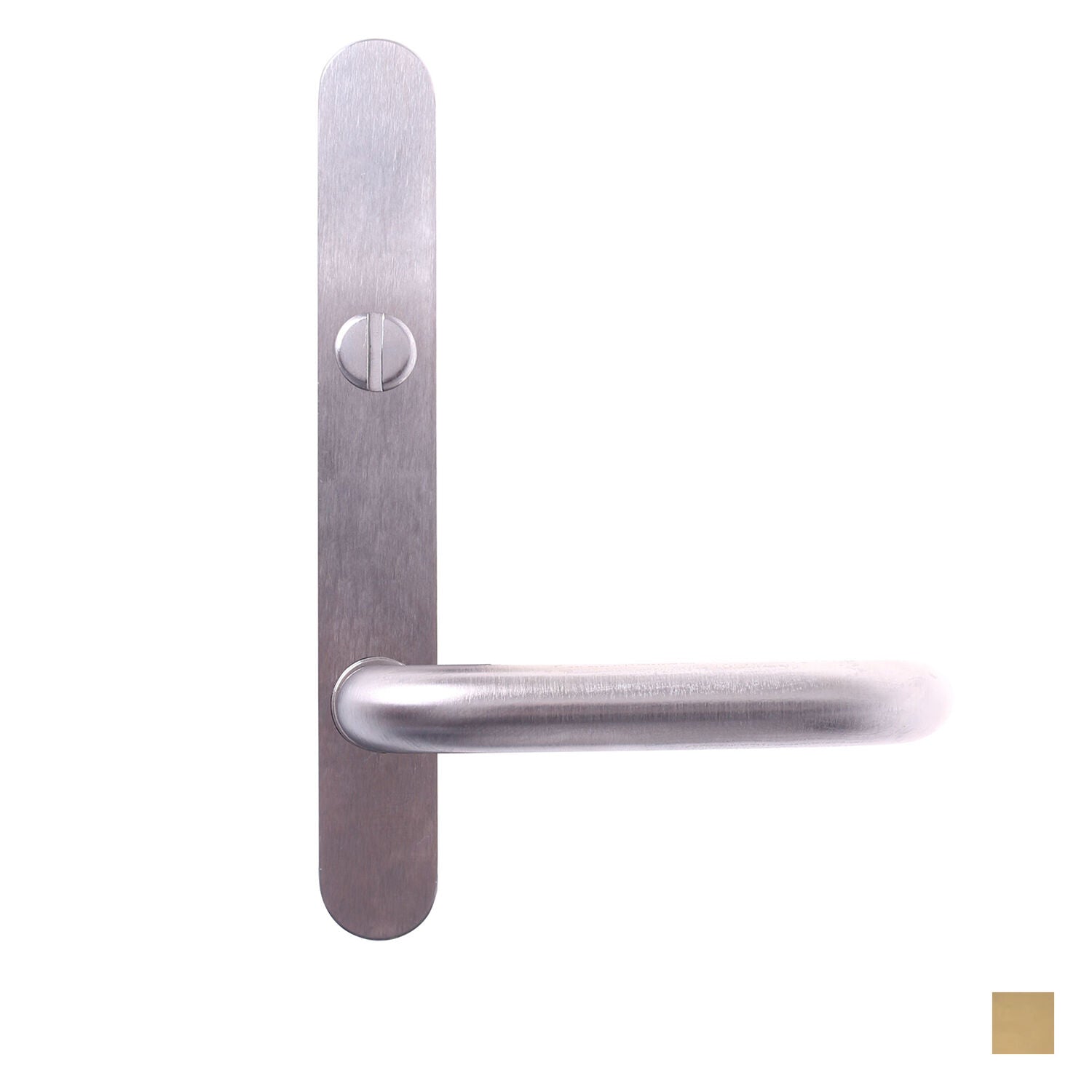

Lockwood 5603 Round End Plate with Emergency Turn and 70 Lever

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Functional, yet elegant, the soft lines of this round-ended brass plate complement a wide range of levers which give you the flexibility to mix and match to suit the aesthetics of every application
• Made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice
• The culmination of decades of experience in the design and manufacture of high quality door furniture.
• Evolved as the product of choice for leading architects in commercial, institutional and industrial applications
• The timeless design of this tubular shaped lever signifies quality and strength

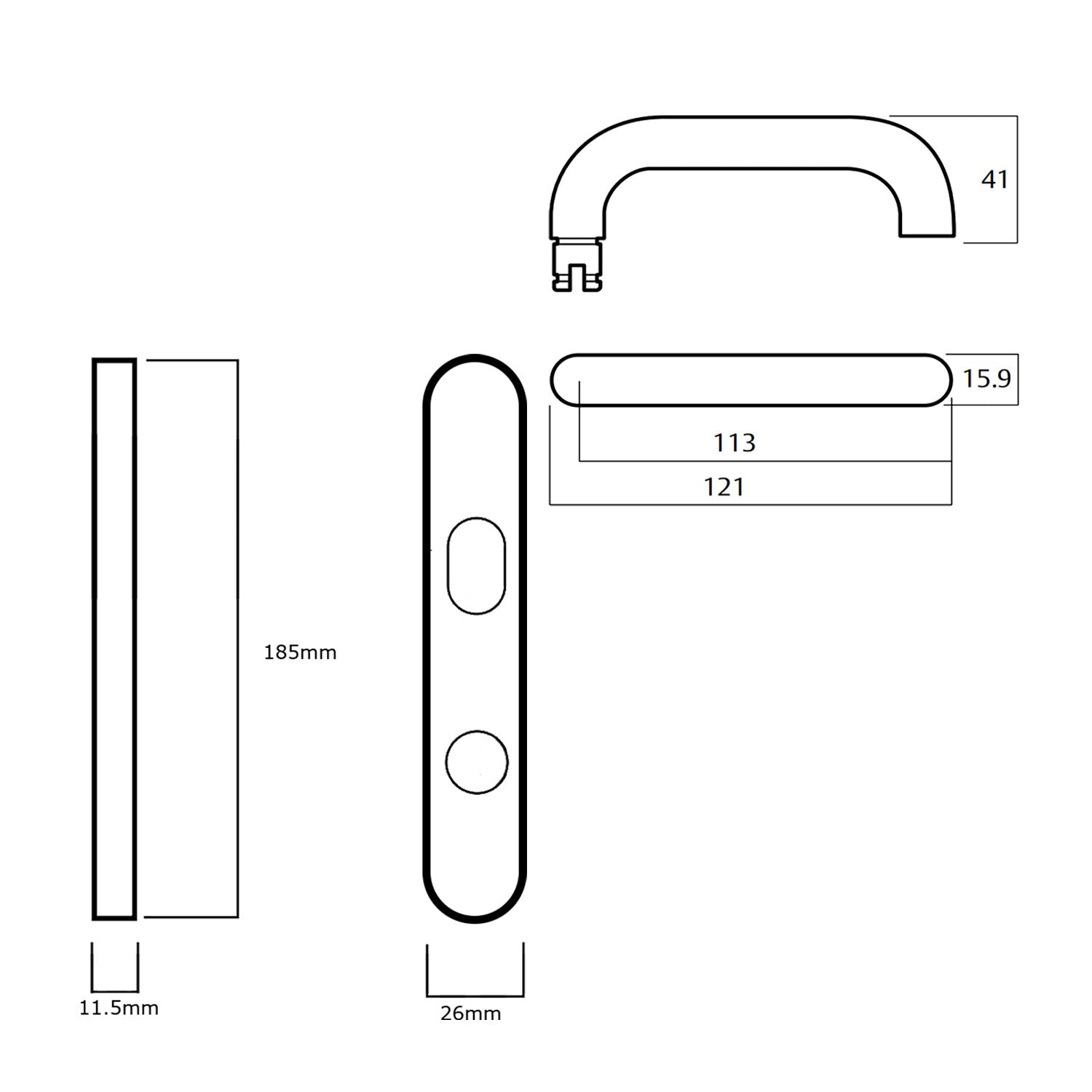

Specification:

• Lockwood lever: 70
• Cylinder Pitch: 64mm
• Fixing Centres: 160mm
• Plate Height: 185mm
• Plate Width: 26mm
• Plate Depth: 11.5mm
• Lever Length: 121mm
• Lever Projection: 53mm
• Lever Finger Clearance: 37mm
• Available Finish:

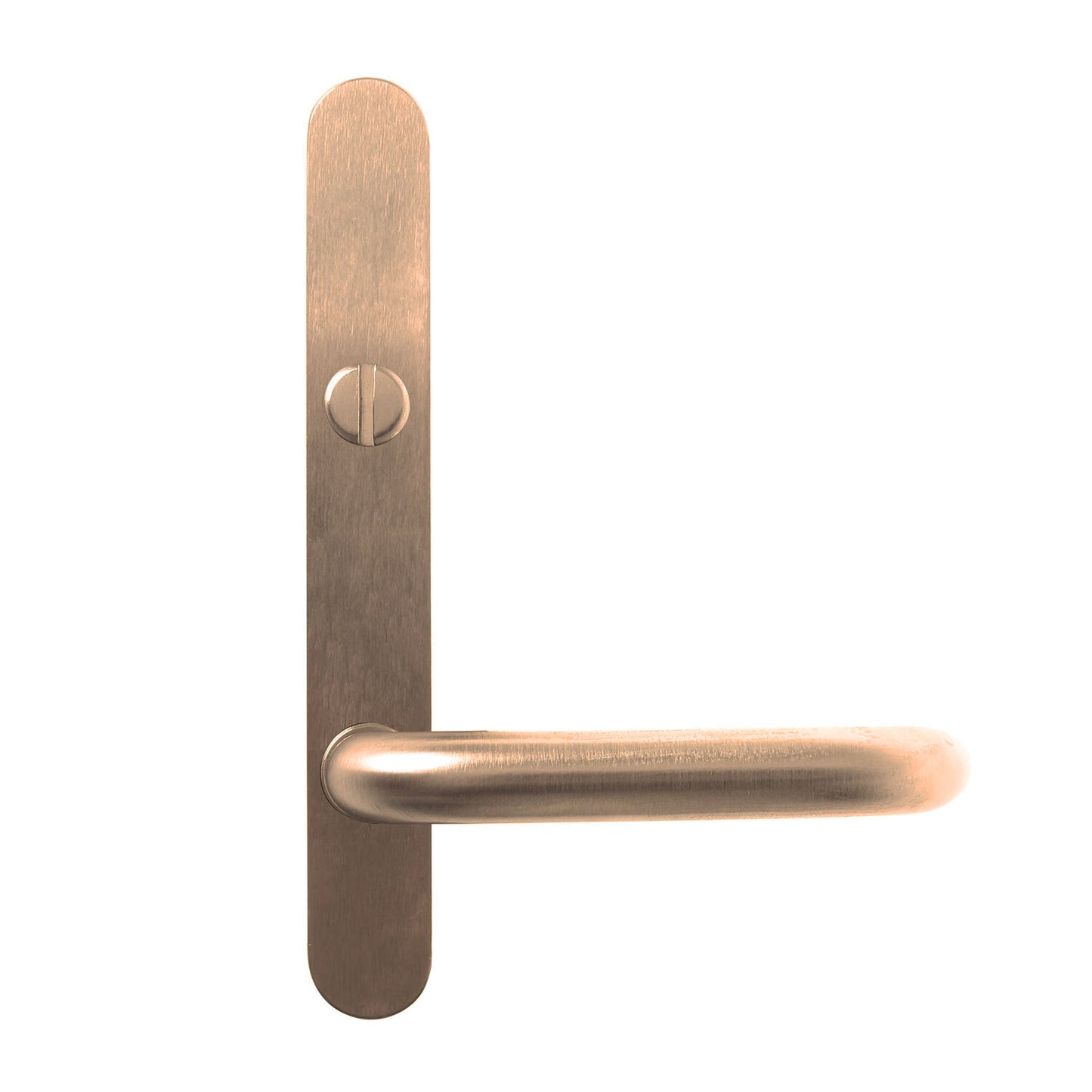

  • Architectural Bronze
  • Satin Chrome
