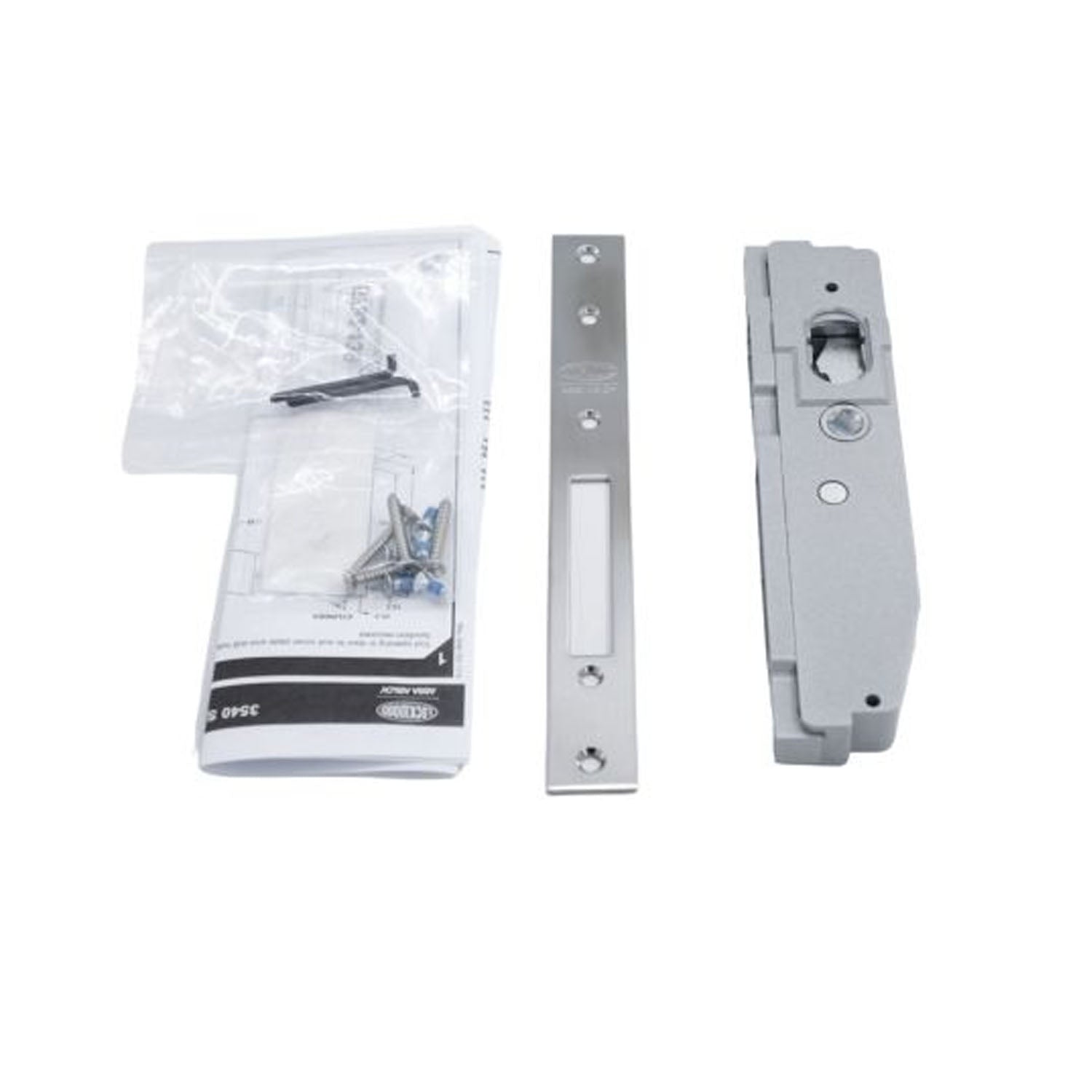

Lockwood 5741 Short Backset Primary Lock 30mm Satin Chrome 5741SC

Lockwood 5741 Short Backset Primary Lock
5741SC

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 13 business days after payment is made.

Short Backset Primary Lock is a door lock designed with a shorter backset distance (typically 23–30 mm, depending on the manufacturer) than a standard lock. It is commonly used on sliding doors, aluminum-framed doors, screen doors, and narrow-stile doors where there is limited space for the lock mechanism.

Short Backset Primary Lock Function - allows secure locking on doors with limited stile width, making it ideal for modern aluminum and glazed door systems where standard locks are too large.

Features:

• Positive deadlocking action for enhanced security
• Suitable for both sliding and hinged door applications
• Rear support mechanism helps prevent the lock and strike from being pushed into the frame on sliding doors
• Compatible with a wide range of Lockwood cylinders, escutcheons, lever furniture, and turn snibs

Specifications:

• Backset: 30mm
• Bolt Type: Sintered stainless steel hook bolt
• Bolt Projection: 28mm
• Door Type: Narrow stile timber, aluminum hinged and sliding doors
• Door Thickness: 32mm to 58mm
• Finish: Satin Chrome
