Lockwood 5782 Narrow Double Cyl Mortice Lock Kit Inc Furniture Cylinder 5782KIT01

Lockwood 5782 Narrow Classroom Mortice Lock Kit with Furniture and Cylinder
5782KIT01

Cylinder Mortice Lock Kit provides more security on exterior doors that have windows. (e.g. When intruders attempt to break into a building through a window, the key lock on the inside of the door will stop them from entering)

Cylinder Mortice Lock Kit Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is operated on the interior and exterior by a knob or lever.

The new Selector 3780 series mortice lock was designed to incorporate a greater range of lock functions into one primary lock.
In addition to industry first holdback capable lock, the Selector 3780 series also includes an selectable anti-lockout feature.

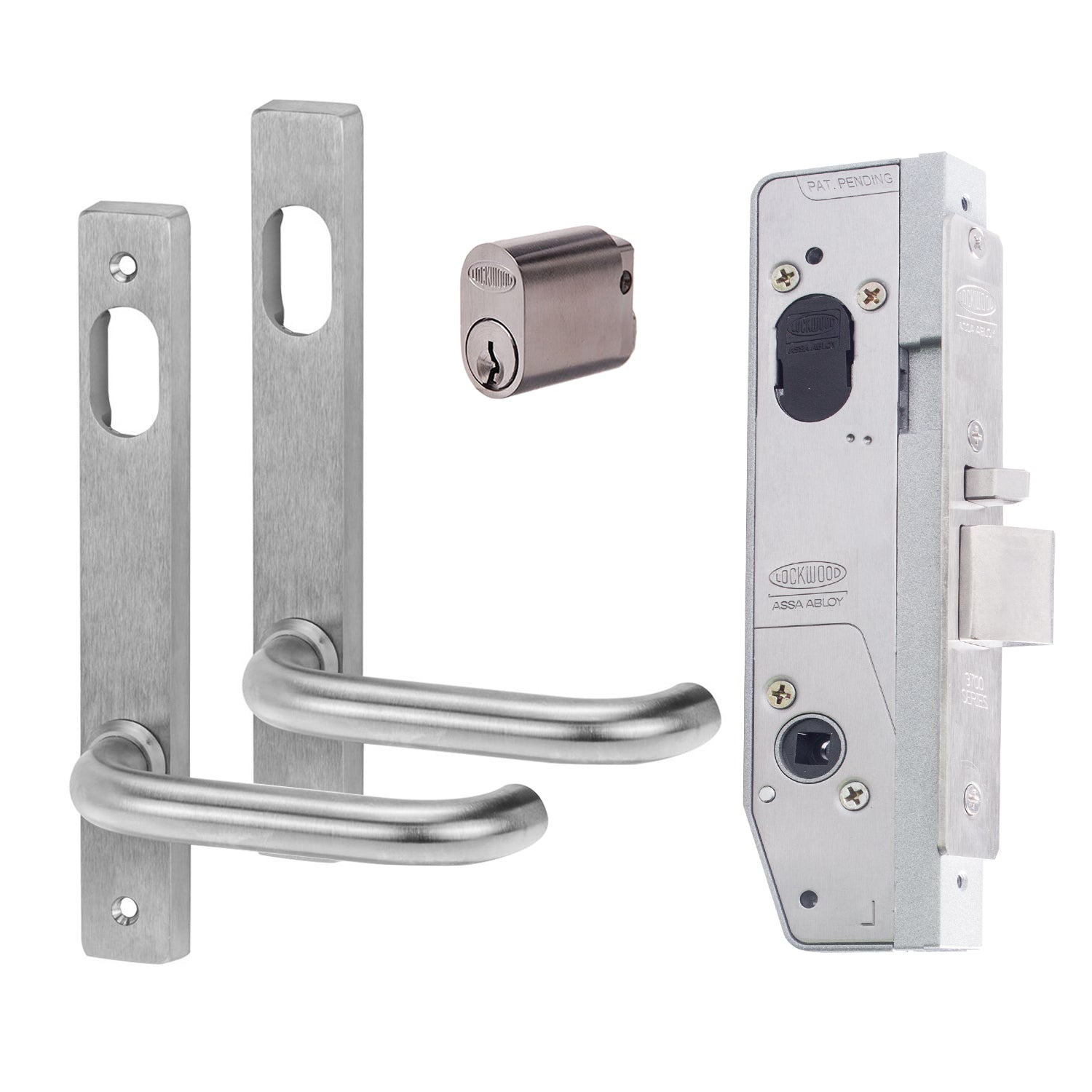

Includes:

• 1 x Lockwood Selector Mortice Lock 30mm Backset (5782SS)
• 1 x Lockwood 4800 Series Square End Narrow Plate Internal Furniture (4801/70SC)
• 1 x Lockwood 4800 Series Square End Narrow Plate External Furniture (4901/70SC)
• 2 x Lockwood 570 Oval Cylinder (570C4/VSC)

Lockwood Universal Backset Mortice Lock

Features:

• Short backset universal primary mortice lock
• Easy Red /Green function setting.
• All lock settings are made from under the faceplate allowing for simple in-door configuration
• Standard primary locks include holdback and anti-lockout capabilities
• Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected
• Operated by key or handle outside or by turn snib, key or handle inside
• Electric Strike compatibility
• Supplied with cylinders
• Supplied with Selector 'V' cam
• Compatible with most restricted keying systems

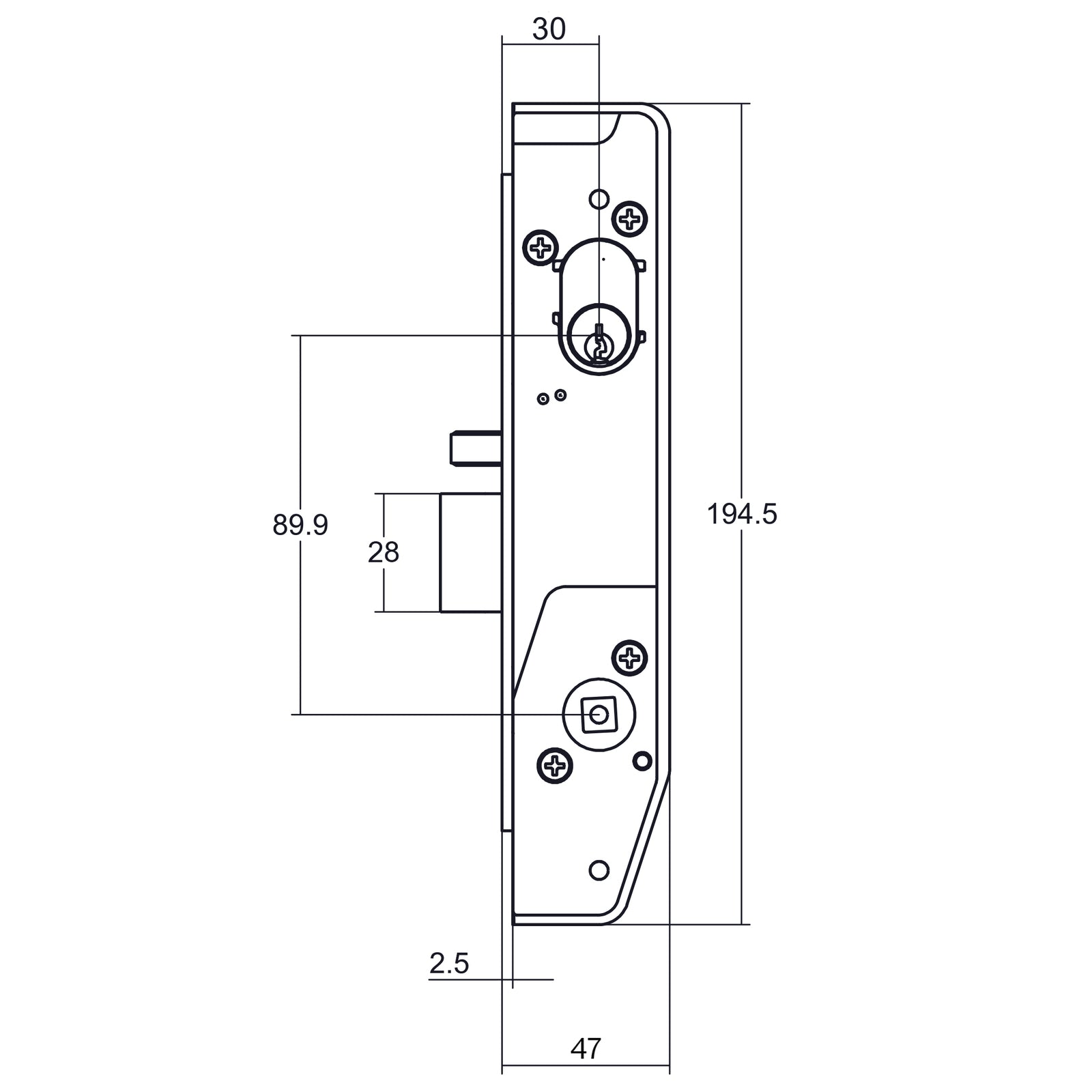

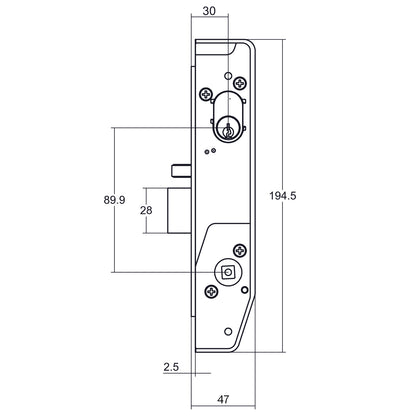

Specifications:

• Backset: 30mm
• Door Thickness: 35mm - 50mm
• Latch Bolt: Reversible 15mm Stainless Steel
• Material:
  • Body: Zinc Diecast
  • Chassis: Stainless Steel plates
• Finish: Stainless Steel

Approvals/Rating:

• Security - Cylinder Mortice Locks conform with Level S7 (Physical Security) Australian Lock Standard (AS-4145.2-2008). Conforms to Level S8 (Physical Security) when fitted with door furniture and anti-drill cylinder.
• Durability - Cylinder Mortice Locks conform with Level D8 (Durability) Australian Lock Standard (AS4145.2-2008).
• Fire Rating - Cylinder Mortice Locks have been successfully tested up to 4 hours (depending on type of doorsets) on fire door assemblies in accordance with Australian Standard AS 1905.1-2015, Part 1: Fire Resistant Doorsets.
• Anti-Corrosion - Cylinder Mortice Locks conform with Level C6 (168 hours) Australian Standard (AS4145.2-2008).

Lockwood External and Internal Lever on Plate

Features:

• Narrow stile exterior square end plate
• Cylinder hole and 70 series tubular lever
• Plates are designed to fit back-to-back
• External plates supplied with fixing screws

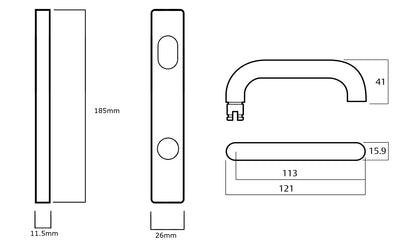

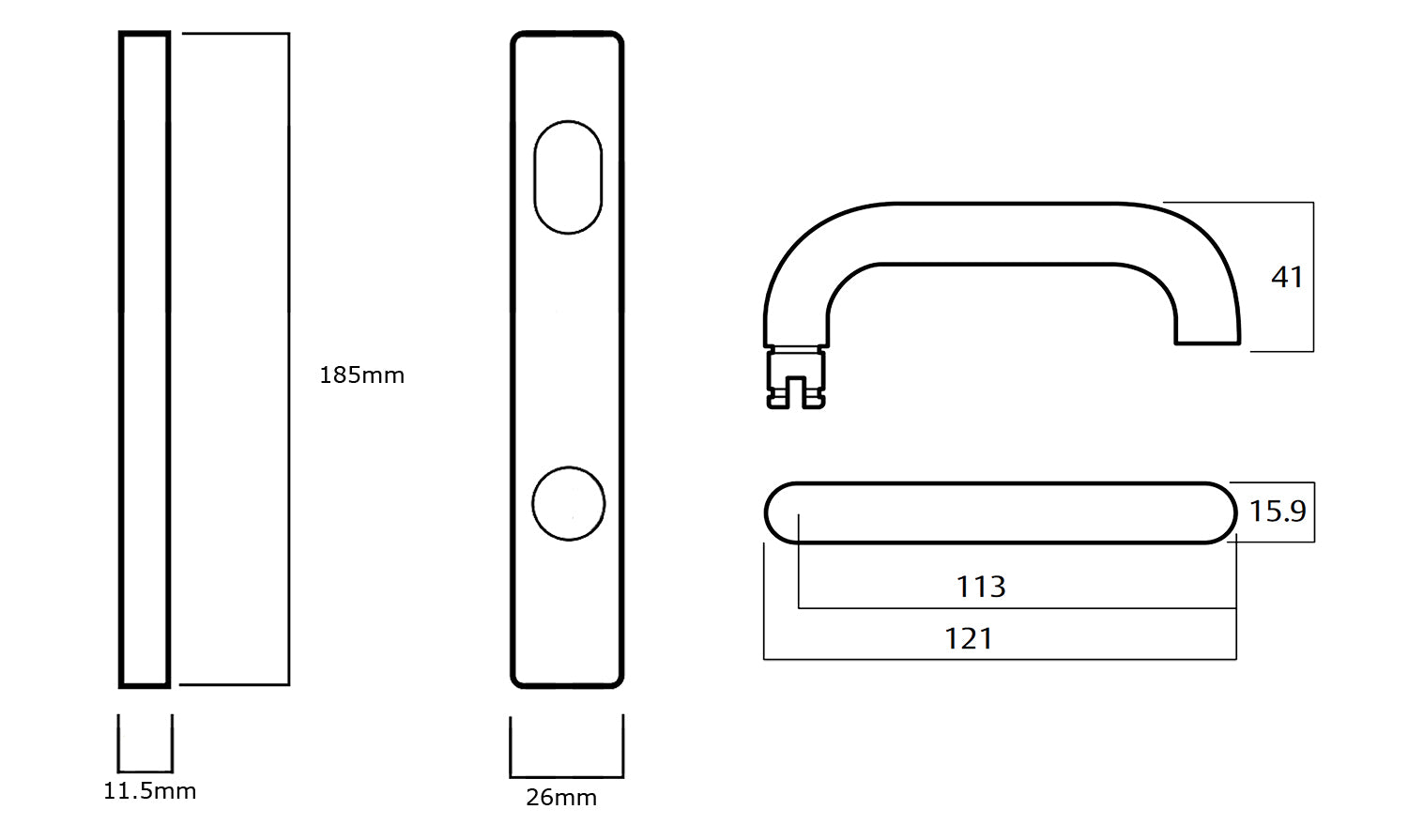

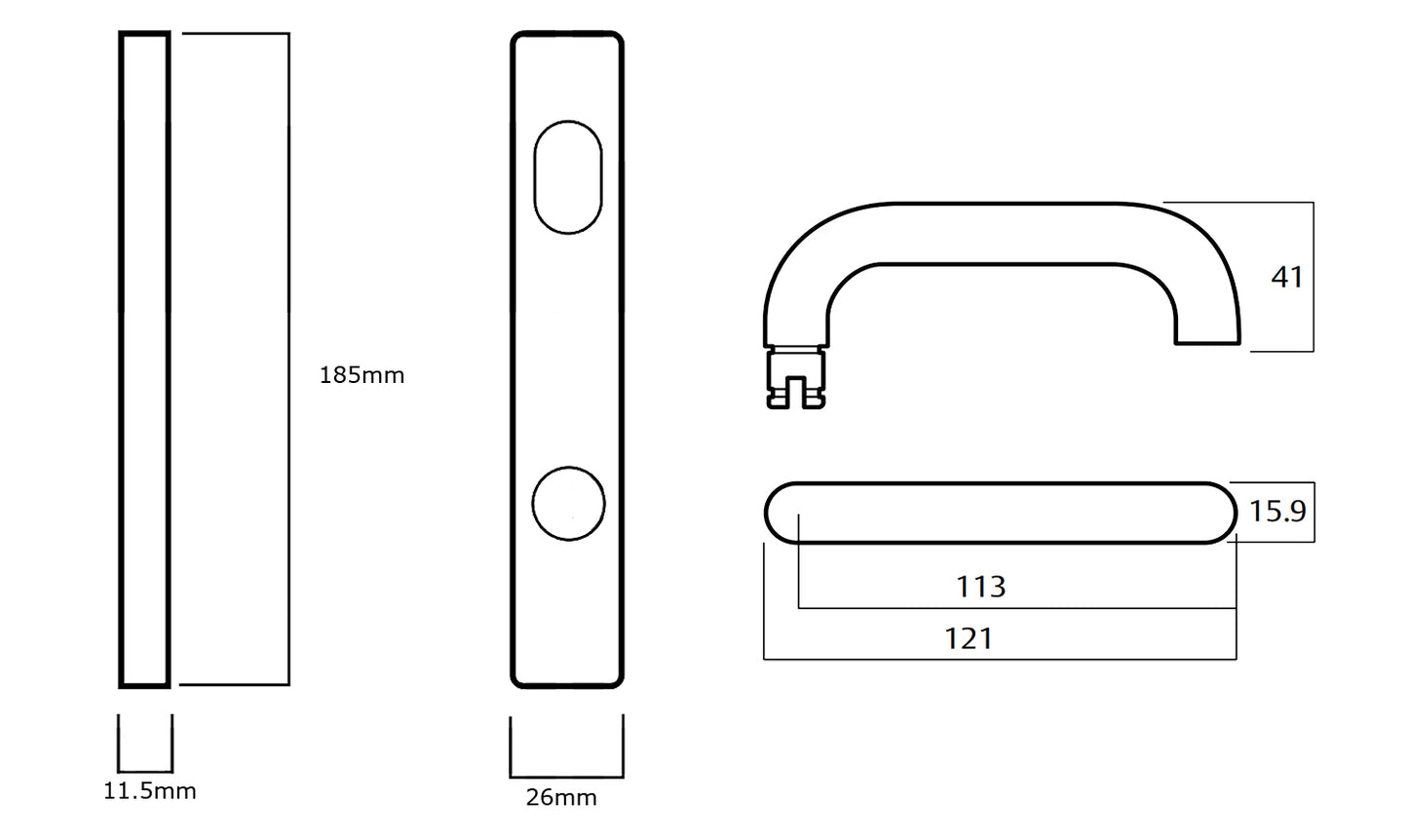

Specifications:

• Fixing: Concealed
• Plate Size:
  • Height: 185mm
  • Width: 26mm
  • Depth: 11.5mm
  • Cylinder pitch: 89.9mm
  • Fixing centres: 160mm
• Lever Size:
  • Length: 121mm
  • Projection: 53mm
  • Finger clearance: 37mm
• Door Thickness: 32mm to 50mm
• Screw Fixing Centres: 160 mm
• Disabled Access: AS1428.1 Compliant Lever
• Finish: Satin Chrome

Lockwood 570 Oval Cylinder

Features:

• Keyed Cylinder single side only
• Standard V cam included
• Securiturn compatible
• Supplied keyed as random
• Cylinders can be keyed alike allowing one key to operate a range of different products
• Accepts Lockwood Generation 6 BG6570 plug/barrel

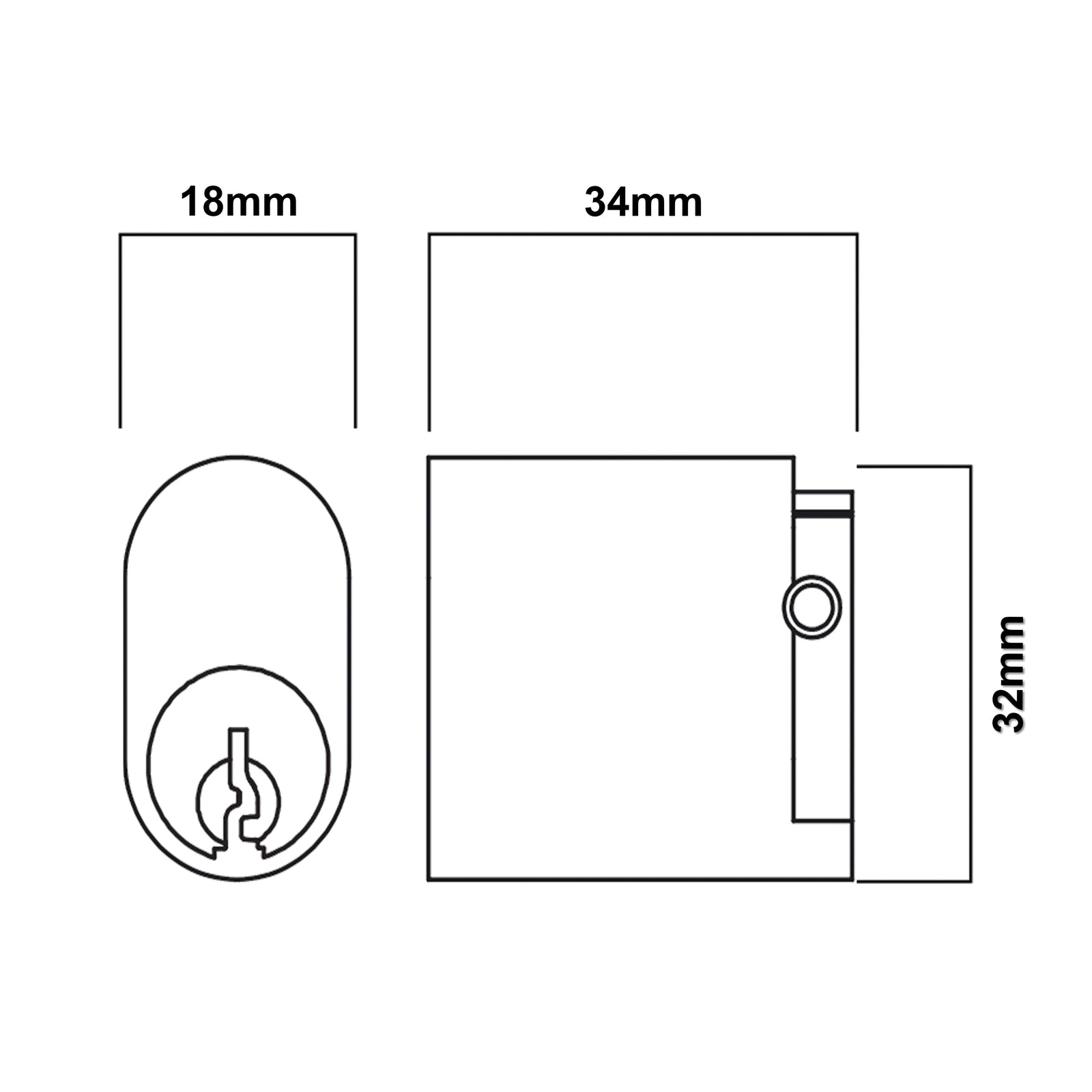

Specifications:

• Material: Brass cylinder
• Width: 18mm
• Length: 34mm
• Height: 32mm
• Finish: Satin Chrome
