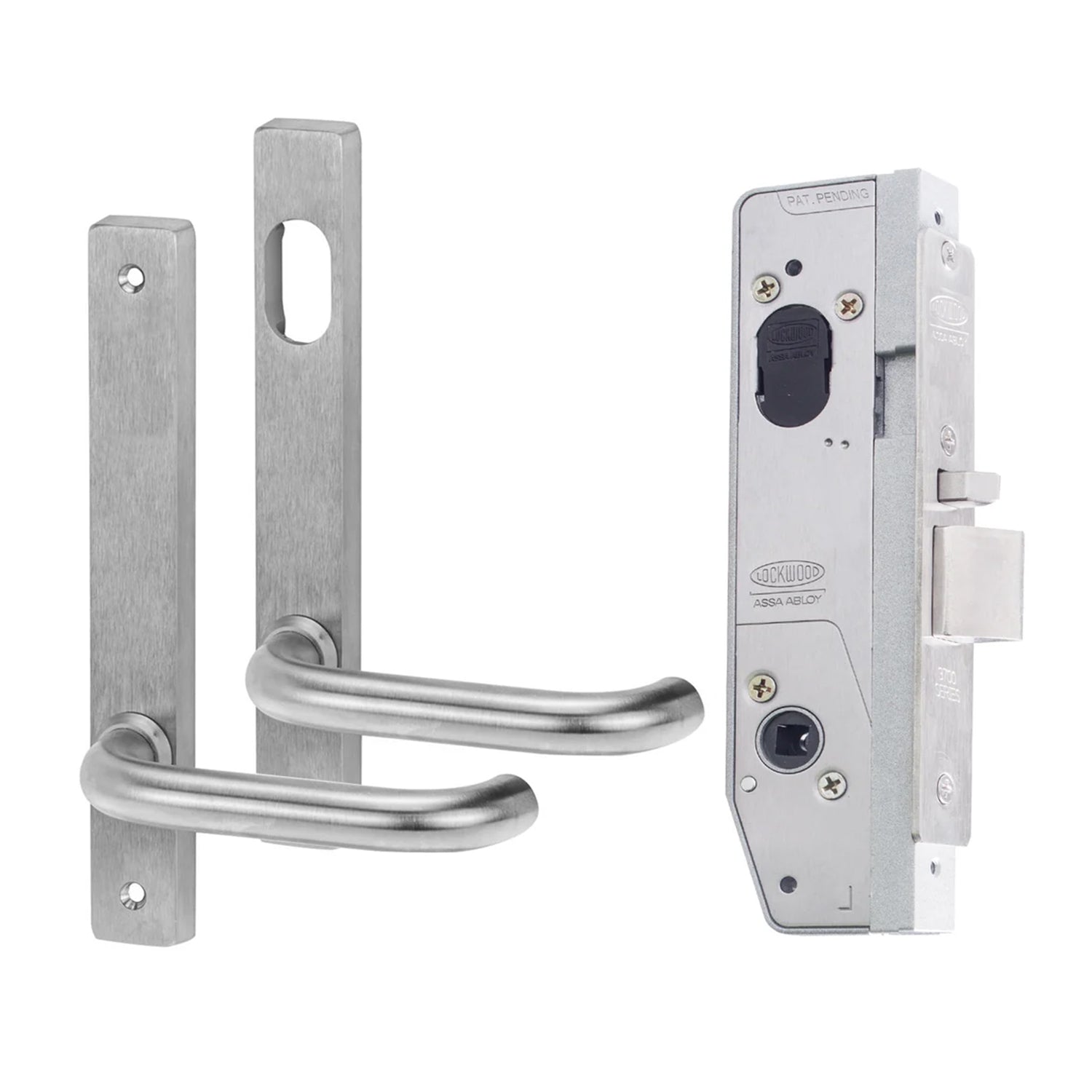

Lockwood 5782 Universal Lock Brass Furniture With Cylinder Hole No Cylinder Satin Chrome 5782KIT05NOCYL

Lockwood 5782 Universal Lock Brass Furniture With Cylinder Hole No Cylinder
5782KIT05NOCYL

Mortice Lock is commonly used in doors. It is known for its durability, security, and classic design. It consist of several components that work together to provide effective locking and unlocking functions.

Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted.

Features:

• Cylinder Hole Only: Supplied without a cylinder, allowing flexibility for custom keying or integration with existing systems.
• Universal Functionality: Lock body supports multiple configurations, adjustable via the faceplate.
• Holdback & Anti-lockout Capabilities: Built-in features enhance safety and user control.

Specifications:

• Plate Height: 185mm
• Plate Width: 26mm
• Plate Projection: 11.5mm
• Centre to Centre: 160mm
• Backset: 30mm
• Lever Length: 121mm
• Lever Projection: 53mm
• Finger Clearance: 37mm
• Finish: Satin Chrome
