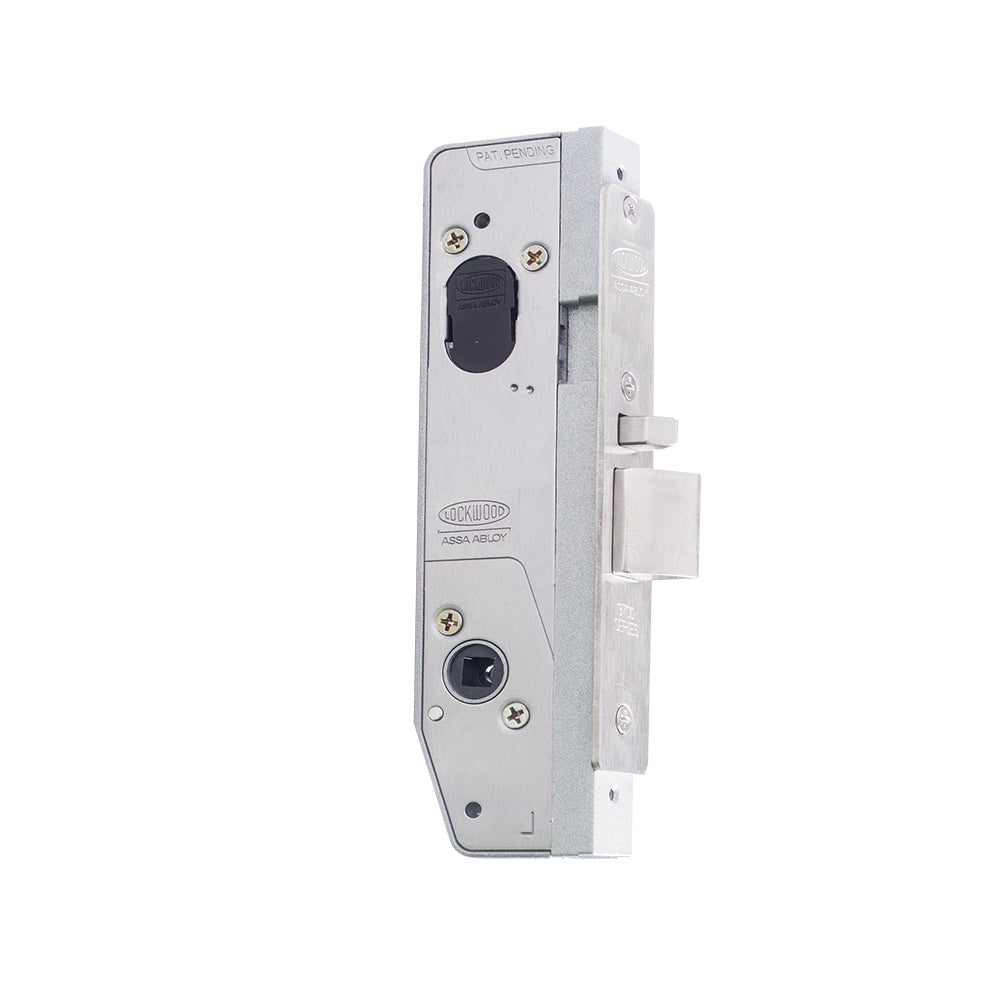

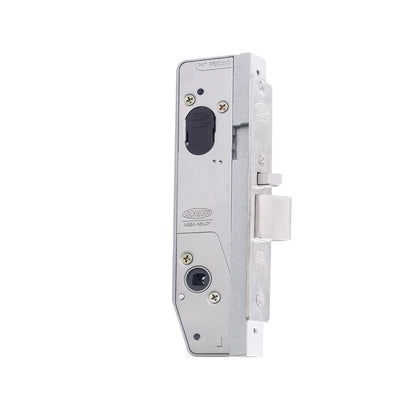

Lockwood Universal Primary Mortice Lock 30mm Backset Stainless Steel 5782SS

Lockwood Selector 5782 universal 30mm backset mortice lock.

Mortice Lock a pocket cut into the short edge of the door, allows a longer and thicker mortise box to slide into the door itself, providing superior protection.

Mortice Lock Function - latch retracted by knob / lever from either side. Deadbolt extended or retracted by key from outside or turn knob from inside.

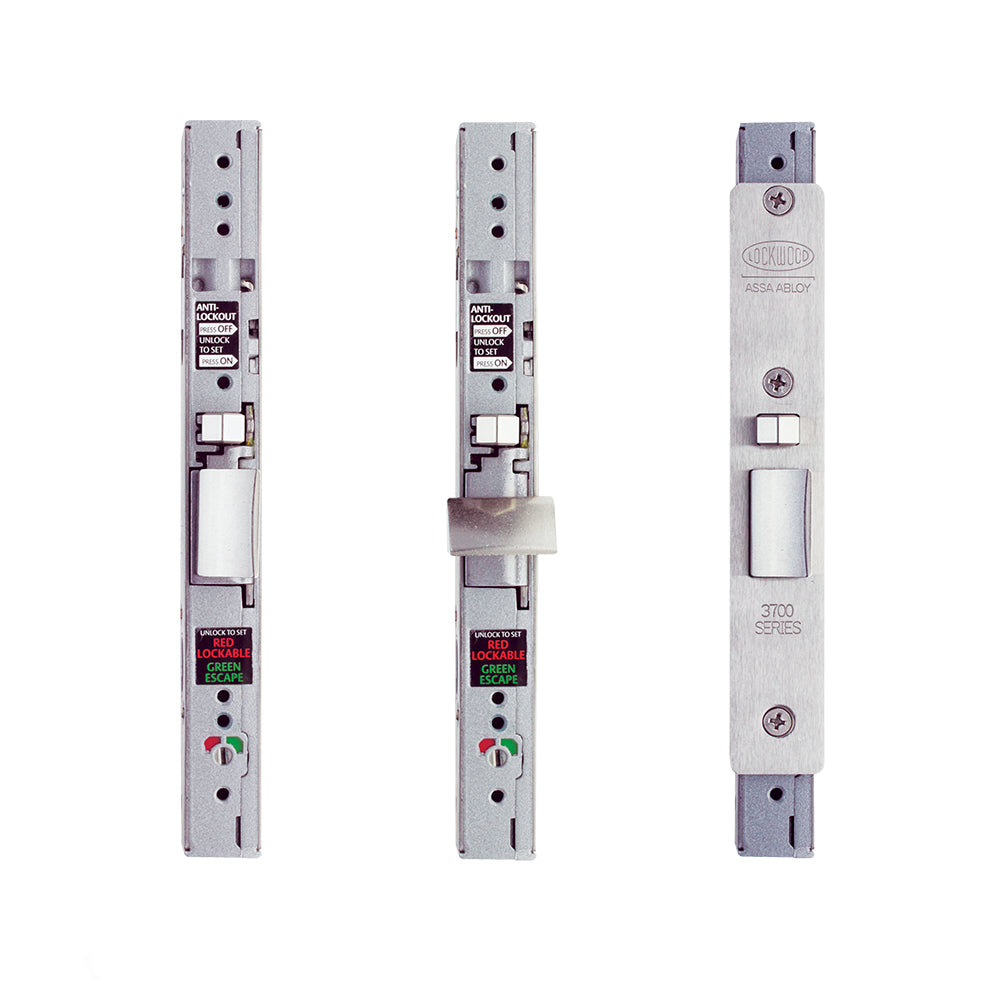

• All handing setting (Passage, Combination or Escape) can be adjusted via the hub selector located under the face plate.

Features:

• Short backset universal primary mortice lock.
• Easy Red /Green function setting.
• All lock settings are made from under the faceplate allowing for simple in-door configuration.
• Standard primary locks include holdback and anti-lockout capabilities.
• Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
• Operated by key or handle outside or by turnsnib, key or handle inside.
• Zinc diecast body with stainless steel chassis plates for improved strength.
• Electric Strike compatibility.
• Supplied less cylinder.
• Supplied with Selector 'V' cam.
• Compatible to most restricted keying systems.

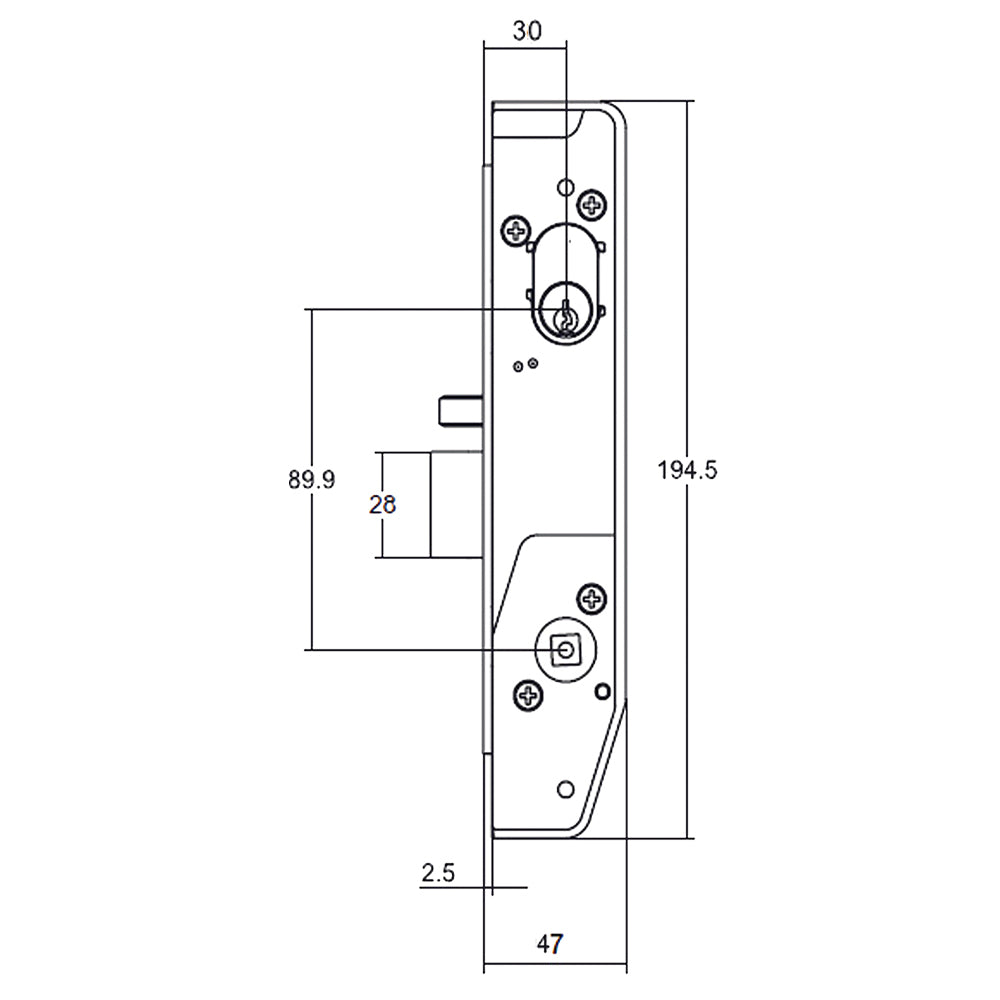

Specifications:

• Anti-lockout Function: Yes
• Door Thickness: 32mm - 50mm
• Lock Pitch: 89.9mm
• Backset: 30mm
• Fire Rated: No
• Face Plate Length: 156mm
• Face Plate Thickness: 2.5mm
• Face Plate Width: 25mm
• Handing: Reversible
• Mortice Lock Case Depth: 47mm
• Mortice Lock Case Height: 194.5mmm
• Mortice Lock Case Thickness: 20mm
• Spindle Type: 7.6mm Square Split Spindle
• Finish: Satin Stainless Steel
