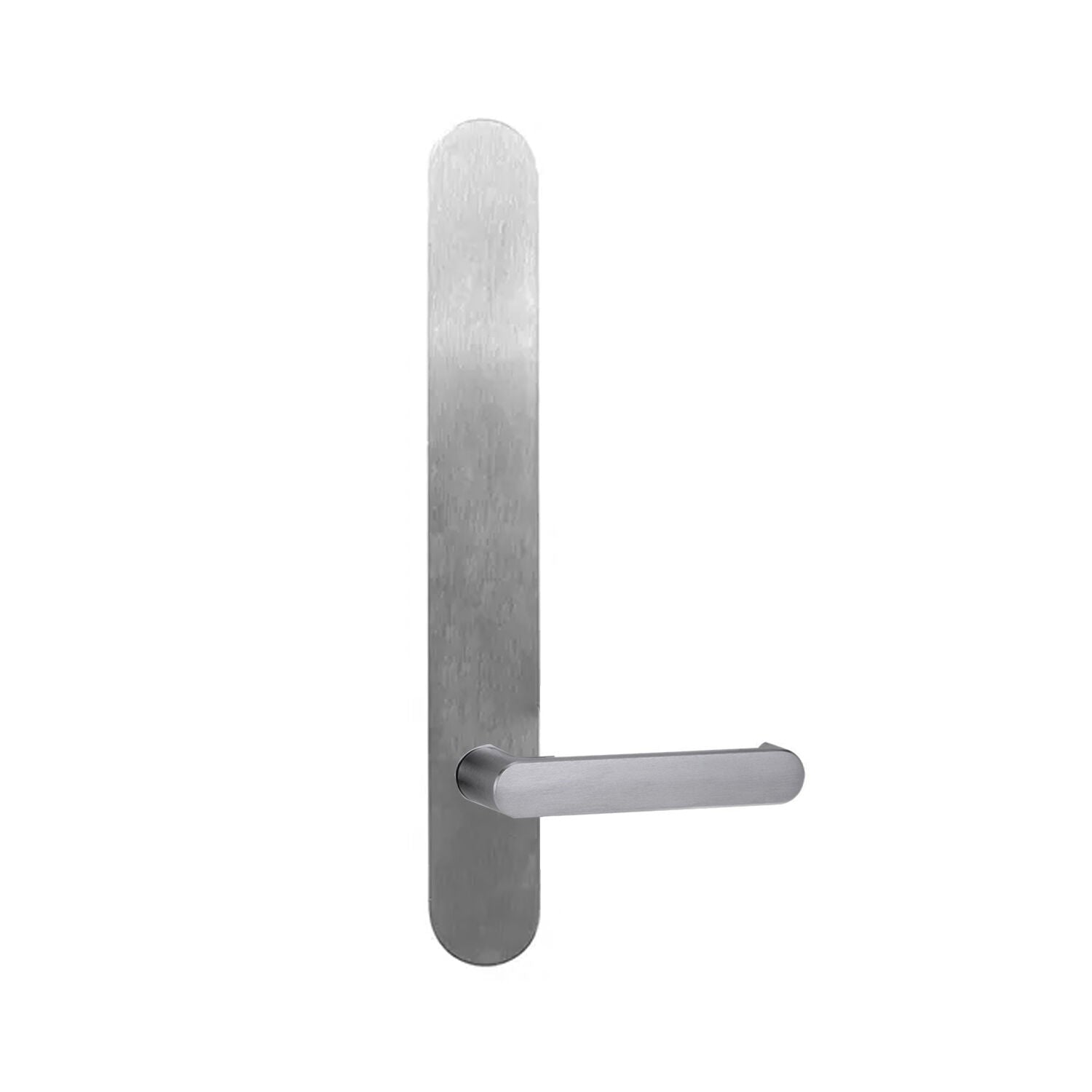

Lockwood 5805 Round End Plate With 166 Lever Satin Chrome 5805/166SC

Lockwood 5805 Round End Plate With 166 Lever
5805/166SC

PLEASE NOTE: This item is Non returnable. Upon placing your order, it N'T be ncelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• External Plain Plate with Lever
• Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every applition
• Made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice
• The Lockwood Brass Door Furniture range is the culmination of dedes of experience in the design and manufacture of high quality door furniture
• Plates are designed to fit back to back
• If outside plate is specified with concealed fixing, then the inside plate must be visible fixed

Specifitions:

• Handle Type: Lever 166
• Door Thickness: 32mm to 50mm
• Fixing: Concealed fixing

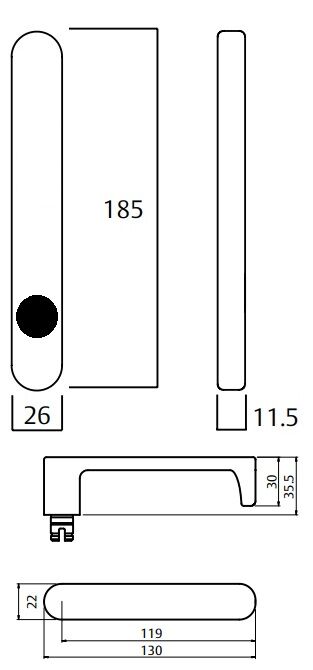

• Plate Dimension:
  • Height: 185mm
  • Width: 26mm
  • Depth: 11.5mm
• Lever Dimension:
  • Length: 130mm
  • Projection: 48mm
  • Finger clearance: 28.4mm
• Finish: Satin Chrome
