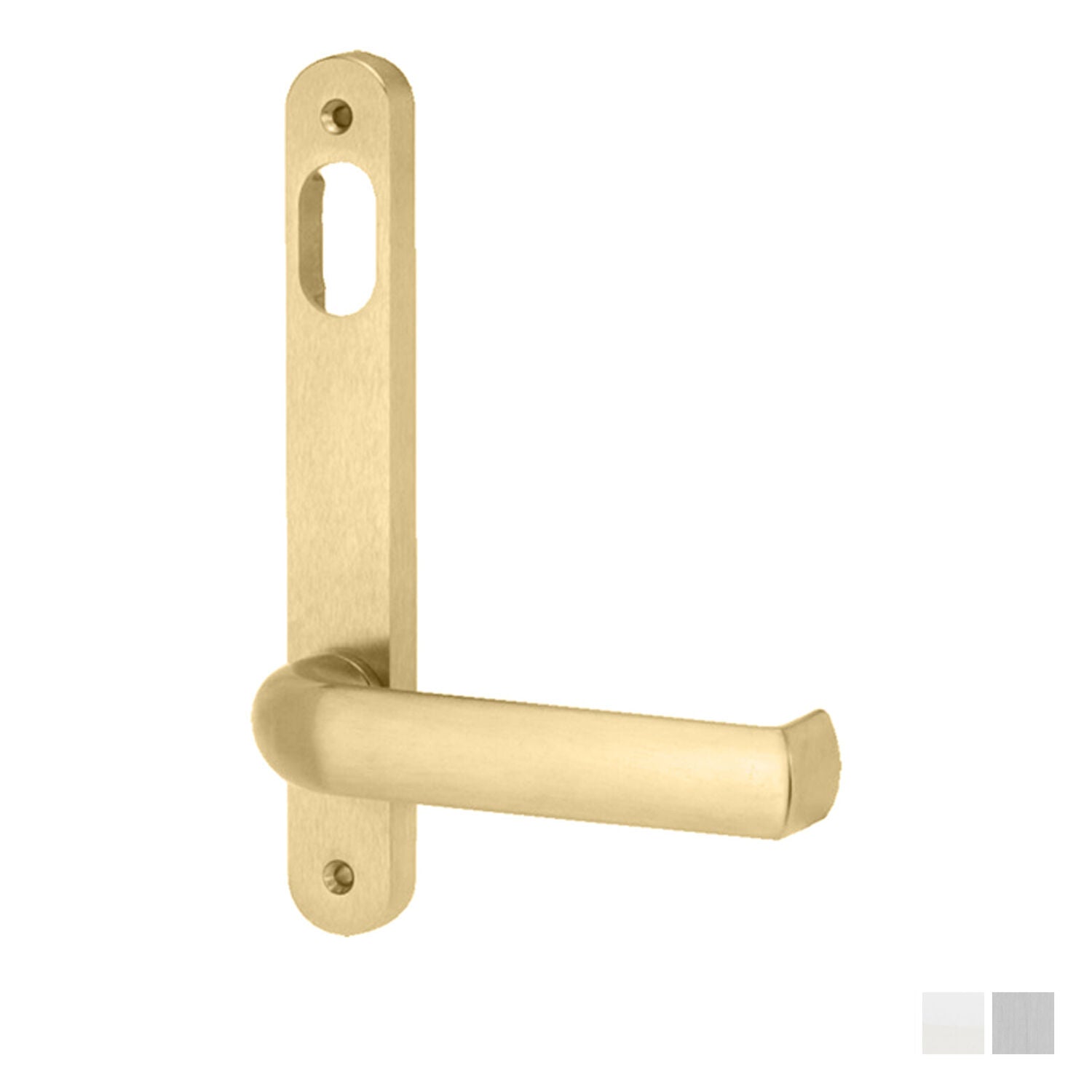

Lockwood 5901 Round End Plate with Cylinder Hole and 77 Lever - Available in Various Finishes

Lockwood 5901 Round End Plate with Cylinder Hole and 77 Lever
5901/77SC

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Functional, yet elegant, the soft lines of this round-ended brass plate complement a wide range of levers
• Designed for use with Lockwood 3770/3570 Series Mortice Latches (5600/5700 Series) and 3780/3580 Series Mortice Latches (5800/5900). Additionally there are functions that are designed to work with Lockwood 3540 Series short backset mortice deadbolts
• The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the
• Lockwood brass door range has evolved as the product of choice for leading Australian architects in commercial, institutional and industrial applications

Specifications:

• Handle Type: Lever 77
• Door Thickness: 32mm to 45mm
• Height: 185mm
• Width: 26mm
• Depth: 11.5mm

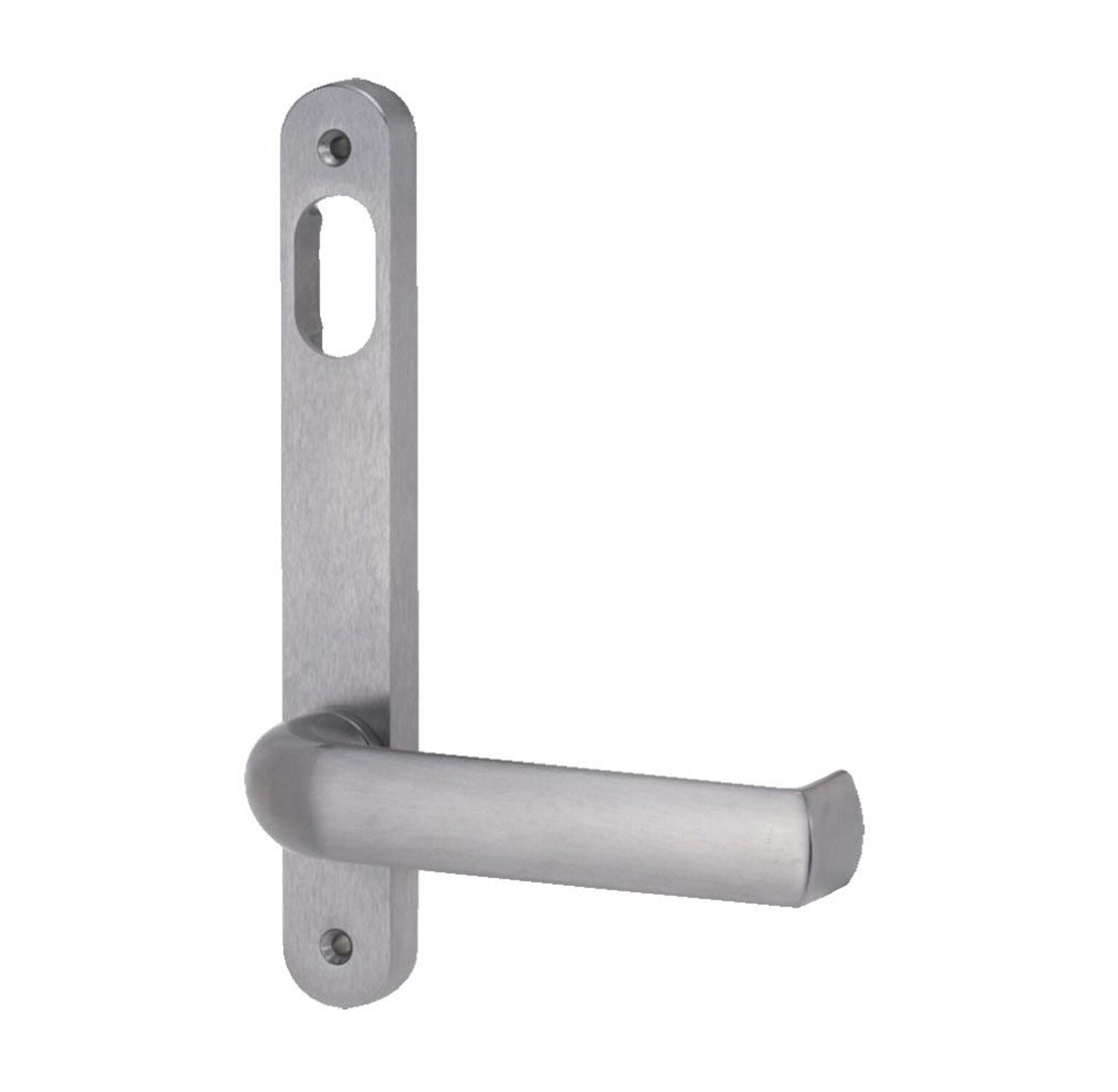

• Finish: Satin Chrome

Standard and Compliance:

• Fire Rating: Successfully tested up to 4 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets
• D8: Successfully tested to conform with Level D8 (500,000 cycles) under Australian Standard AS4145.2-2008, Locksets and hardware for doors and windows
• Disabled Compliant: meet the requirements of AS1428.1-2009, Design for access and mobility
