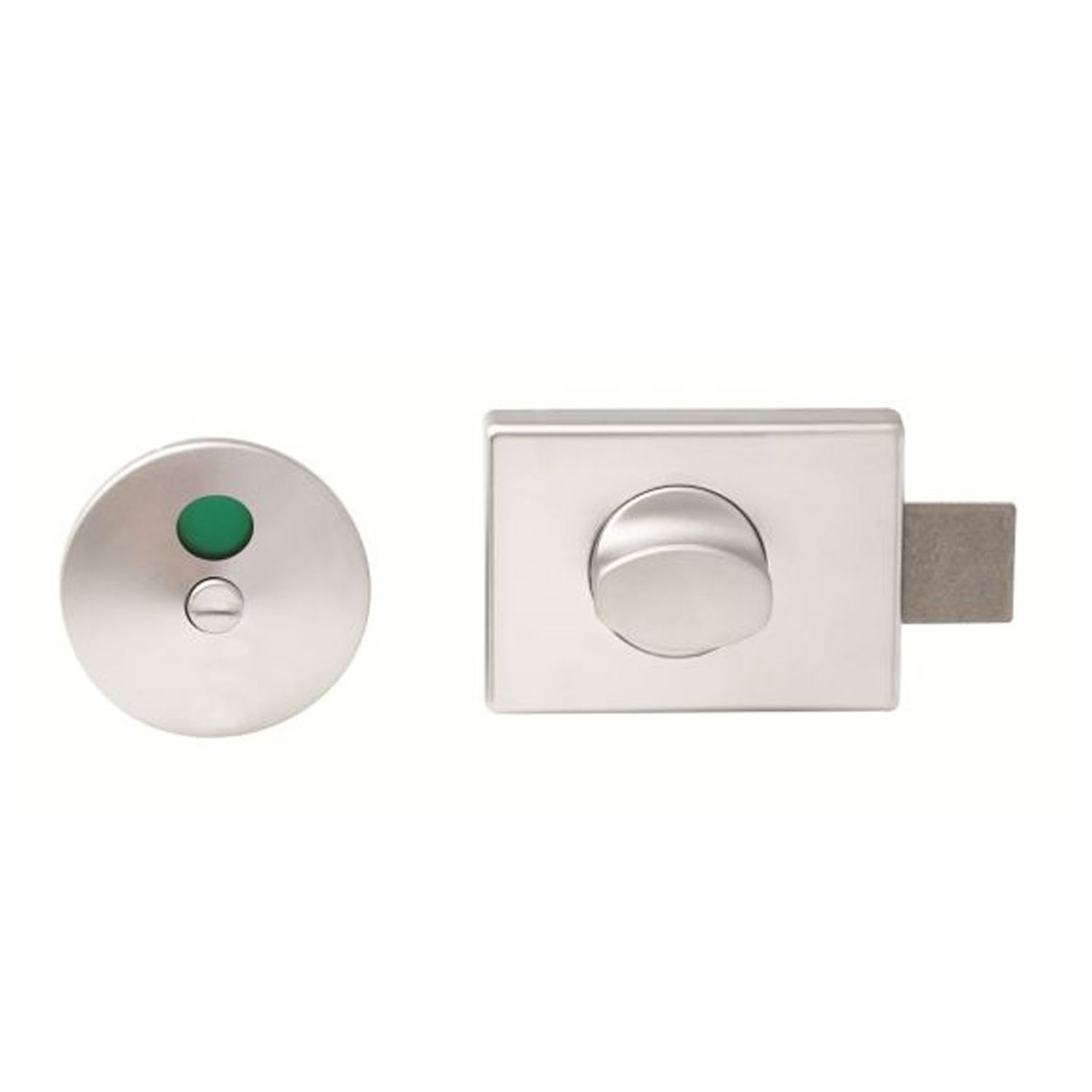

Lockwood 801 Toilet Indicator Bolt With Emergency Release 801SP

Lockwood 801 Toilet Indicator Bolt With Emergency Release TP
801SP

Toilet Indicator Bolt with Emergency Release is a privacy locking device commonly installed on toilet, bathroom, and changing room doors. It combines a privacy bolt with an occupancy indicator and an emergency release mechanism.

Toilet Indicator Bolt Function - Provides secure privacy by allowing the occupant to lock the door from the inside. Displays a clear Vacant/Engaged (or Green/Red) indicator so others can easily see if the cubicle is occupied anda llows authorized personnel to unlock the door from the outside in an emergency without damaging the lock or door.

Features:

• Surface mounting
• Brass ibolt & indicator
• Zinc roses, knob, strike

Specifications:

• Width: 68mm
• Height: 49mm
• Diameter: 50mm
• Material: Zinc Alloy
• Bolt/Latch: Material Brass
• Bolt Throw: 20mm
• Fixing Concealed: Visible Fixed
• Includes Fixing Screws: Yes
• Includes Strike Plate: Yes
• Square/Round Face: Round
• Min Door Thickness: 28mm
• Max Door Thickness: 52mm
• Finish: Satin Pearl
