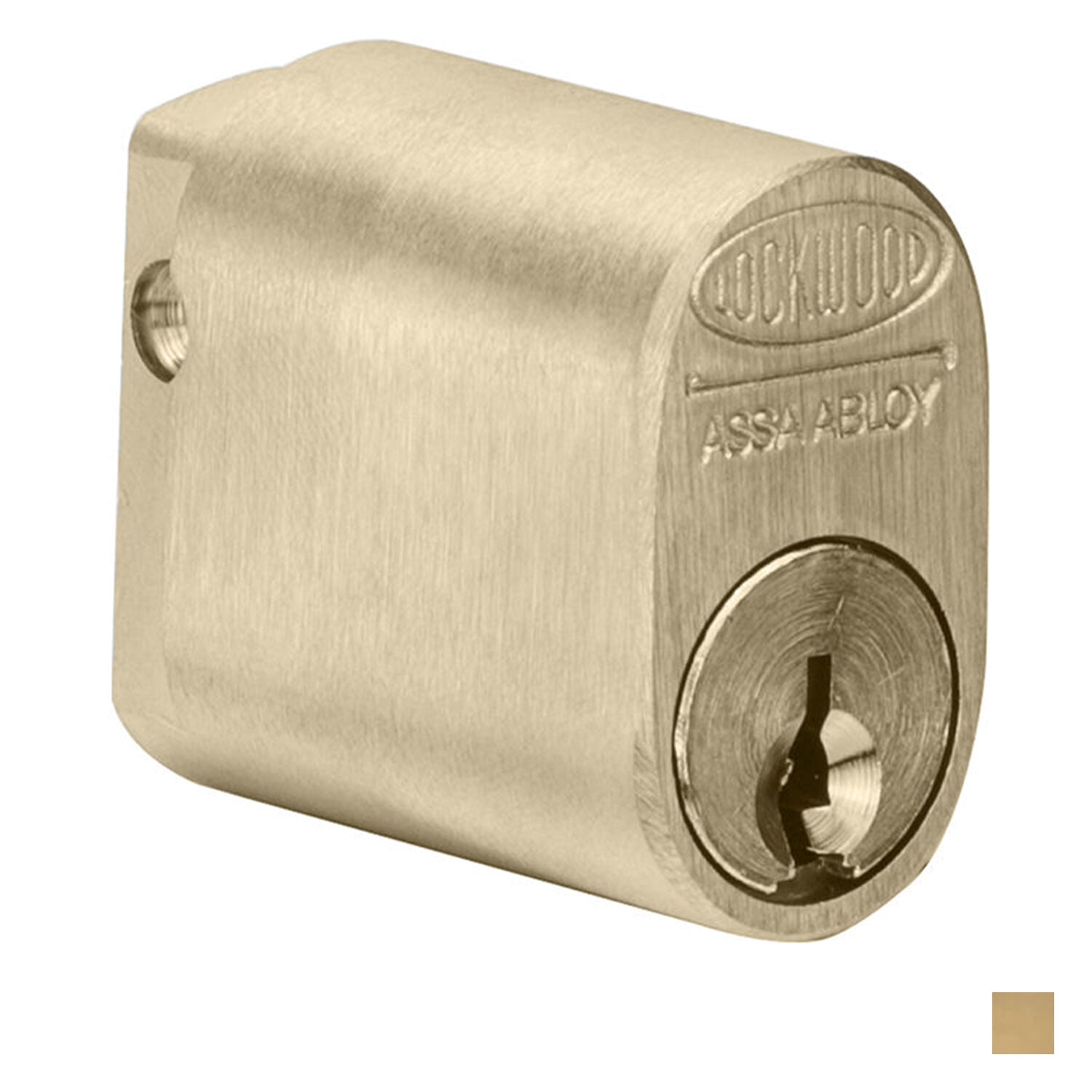

Lockwood C4 570 Australian Oval Cylinder with Y Cam 5KD - Available in Various Finishes

Lockwood C4 570 Australian Oval Cylinder with Y Cam 5KD

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 13 business days after payment is made.

Oval Cylinder Ideal for circumstances such as storage rooms or IT server rooms, or when one side of the door must be locked and unlocked while the other is controlled by an access control system or device.

Oval Cylinder Function - enable the door to be locked with only one key from one side.

Features:

• Keyed Cylinder single side only
• Standard U cam included (For other cylinder cam variants the end U cam can be removed and the required cam fitted. These additional cams are to be ordered separately)
• Securiturn compatible
• Brass cylinder construction
• Supplied as keyed random
• All cylinder can be keyed alike allowing one key to operate a range of different products
• Construction key and master key systems are available upon request
• Accepts Lockwood Generation 6 BG6570 plug / barrel

Specifications:

• Keying: Keyed to Differ
• Handing: Non-handed
• Cam: Y
• Cylinder Length: 34mm
• Cylinder Width: 18mm
• Cylinder Height: 32mm
• Available Finish:

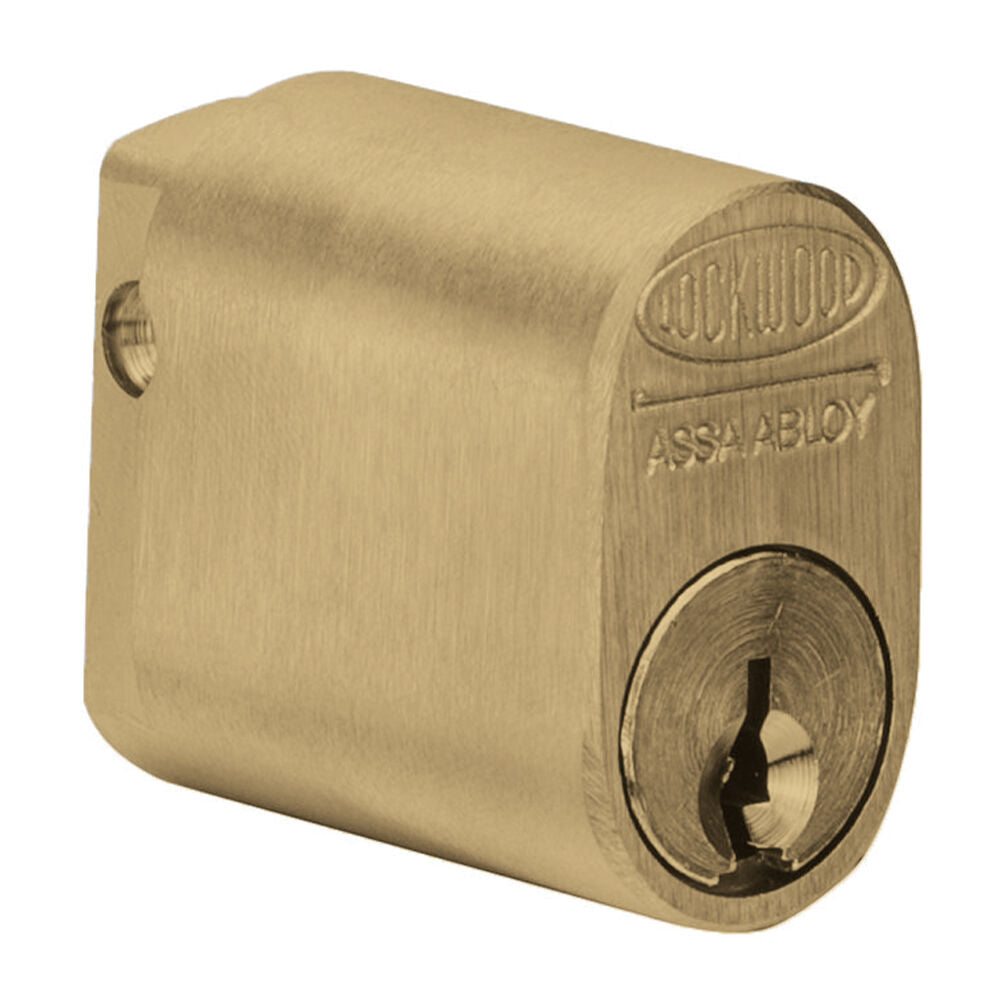

  • Architectural Bronze

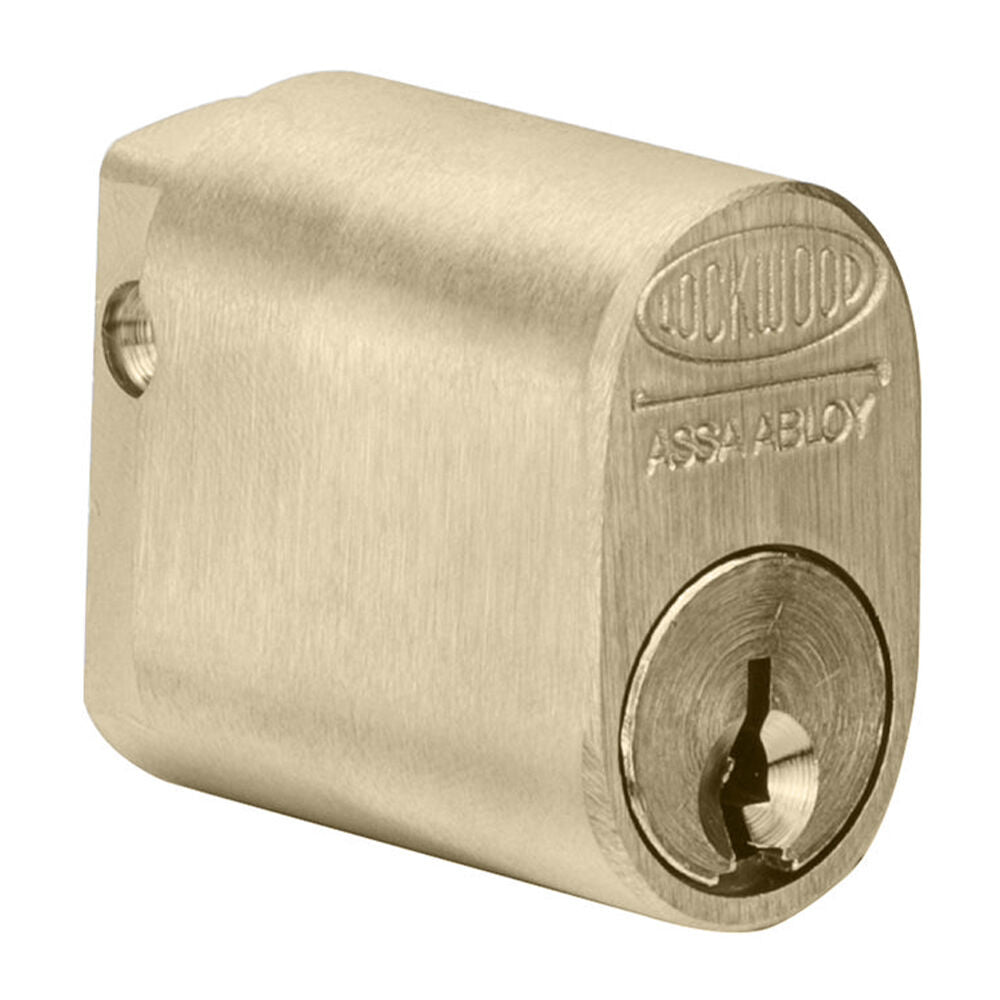

  • Satin Brass

Note: Assembly screws ordered separately: There are four lengths of assembly screws that are available to hold the extension kit/s to the extended base cylinder, depending on the overall length required
