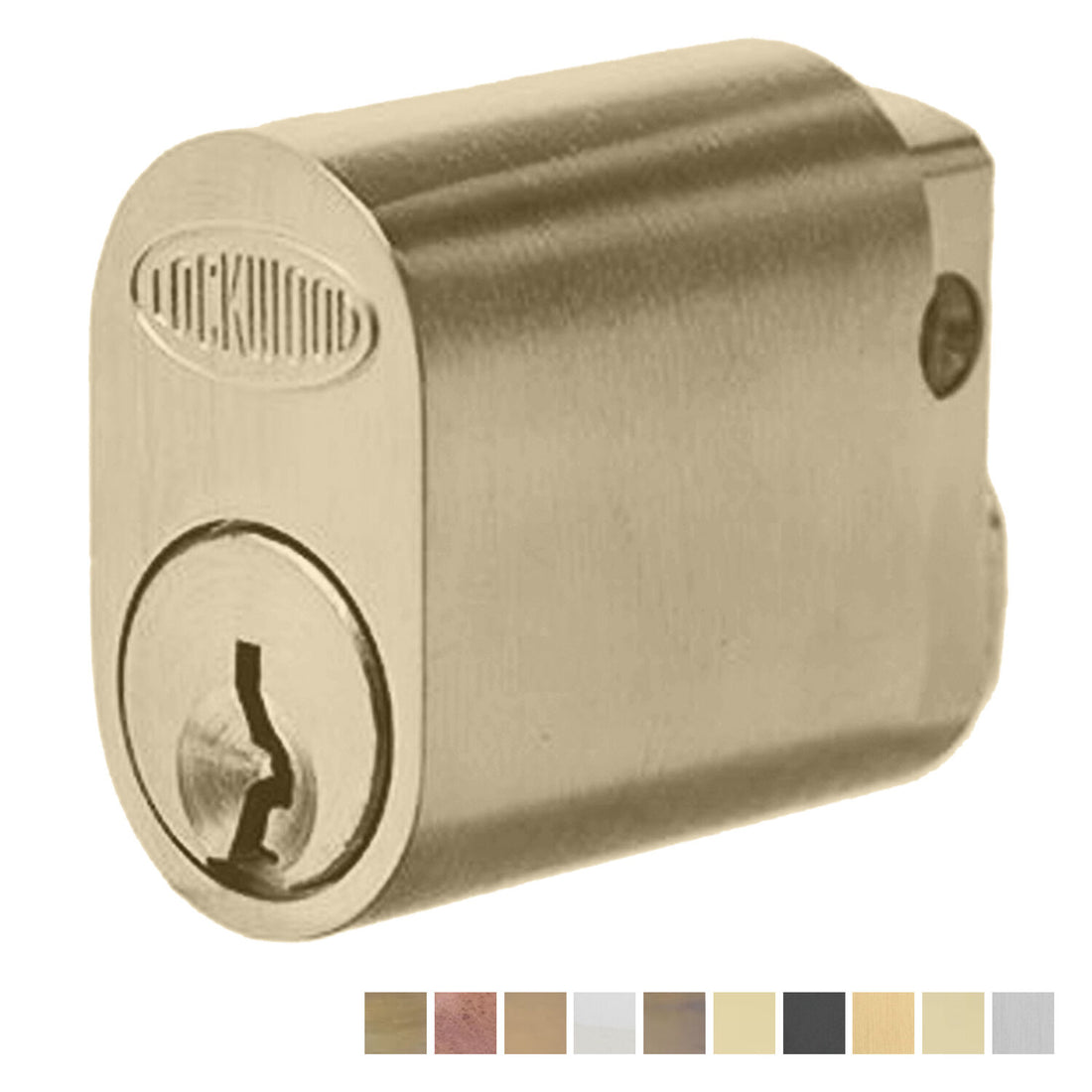

Lockwood C4 570E Extendable Base Cylinder with U Cam 5KD

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Extendable Base Cylinder used and required where a door thickness of 50mm or greater is present, or when the mortice lock is mounted off centre in the door.

Extendable Base Cylinder -  extra length in the cylinder is required to bring the face of the cylinder out from the door and escutcheon to enable use of the key.

• Provide a simple and effective method of producing an extended cylinder.
• The onsite flexibility of this solution will save both time and money in all applications where extended cylinders are required.
• Extended cylinders are often required where a door thickness of 50mm or greater, or when the mortice lock is mounted off centre in the door.
• The extra length in the cylinder is required to bring the face of the cylinder out from the door and escutcheon to enable use of the key.
• Virtually any length cylinder can be made by stacking as many or as few extension pieces as required together and screwing them into the back of a special extended cylinder base.
• Desired cam required for the special lock function is attached to the end of the extended cylinder and then it is ready for installation.

Cylinder

• A special extended base cylinder is required as it has two tapped holes in the back of the cylinder to accept the assembly screws to retain the extension kits. These cylinders use the standard 570 type barrel.

Extension Kits

• There are three different size extension kits that can be mixed and matched with the extended cylinder base to make up the desired length cylinder. They come in 7mm, 10mm and 24mm sizes. Each kit comes complete with the cylinder extension, barrel extension and universal barrel adaptor screwed to the barrel extension. Once the cylinder is assembled the rear barrel adaptor is removed and the standard locking cam (X, Z, Y, etc.) is fitted to operate the mortice lock.

Assembly Screws

• There are four lengths of assembly screws that are available to hold the extension kit/s to the extended base cylinder, depending on the overall length required

How to Order

• You will need to order the extended base cylinder, the extension kit or kits needed to make up the cylinder length and the assembly screws to hold the extension kits to the extended base cylinder. The end cam will then need to be changed for the required cam needed for the function of the mortice lock.

Features:

• Keyed Cylinder single side only
• Standard U cam included (For other cylinder cam variants the end U cam can be removed and the required cam fitted. These additional cams are to be ordered separately)
• Securiturn compatible
• Brass cylinder construction
• Supplied as keyed random
• All cylinder can be keyed alike allowing one key to operate a range of different products
• Construction key and master key systems are available upon request
• Accepts Lockwood Generation 6 BG6570 plug / barrel

Specifications:

• Keying: Keyed to Differ
• Handing: Non-handed
• Cam: U

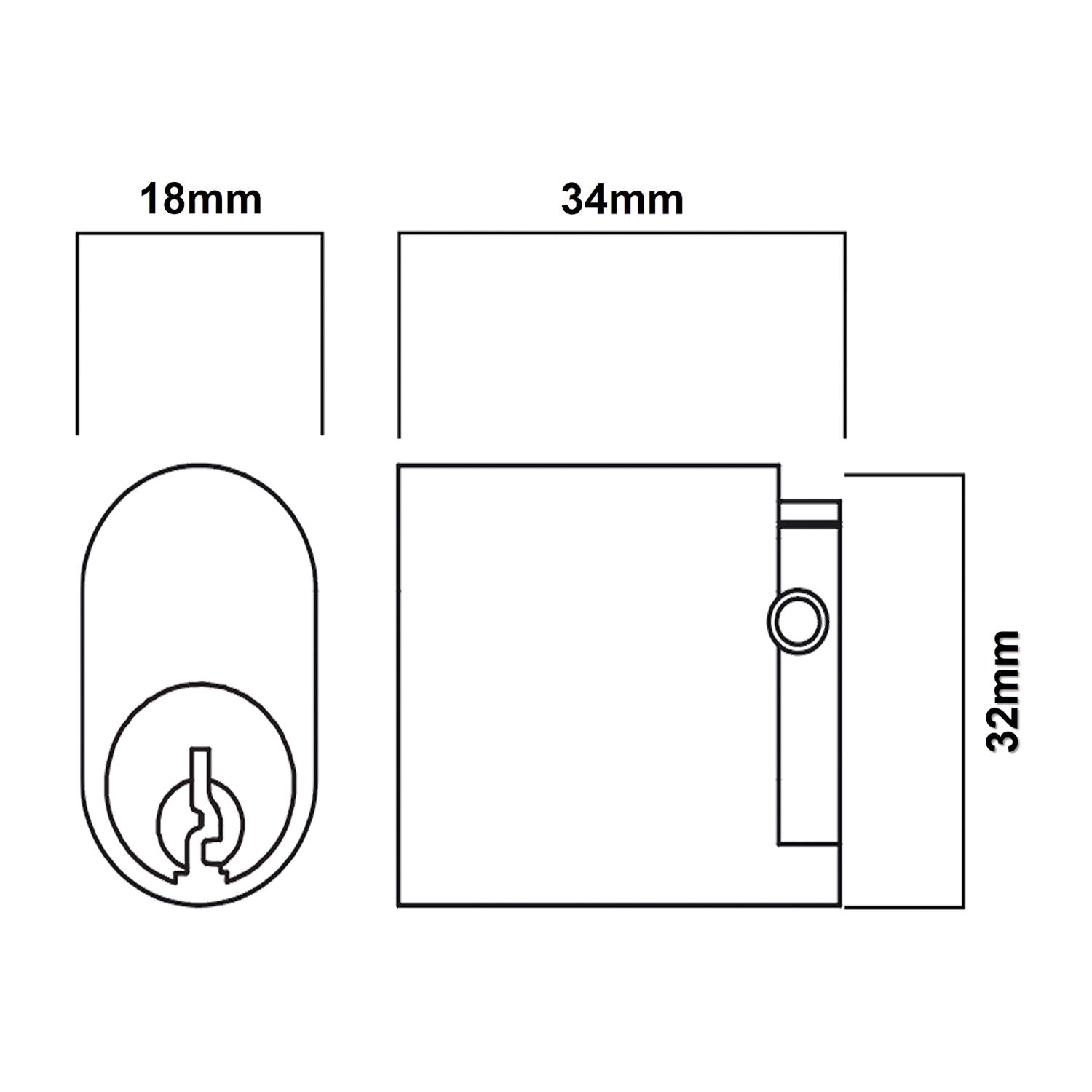

• Cylinder Length: 34mm
• Cylinder Width: 18mm
• Cylinder Height: 32mm

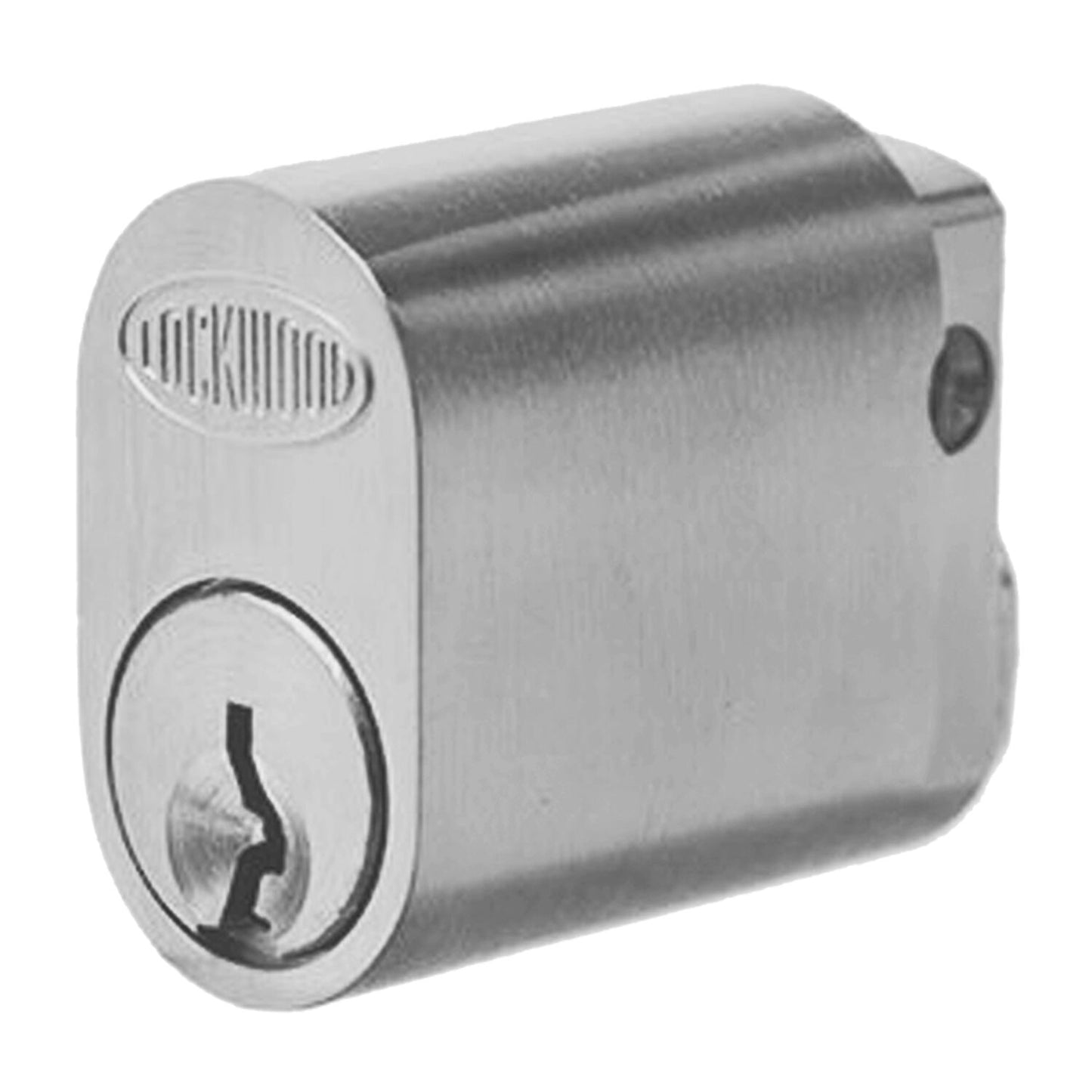

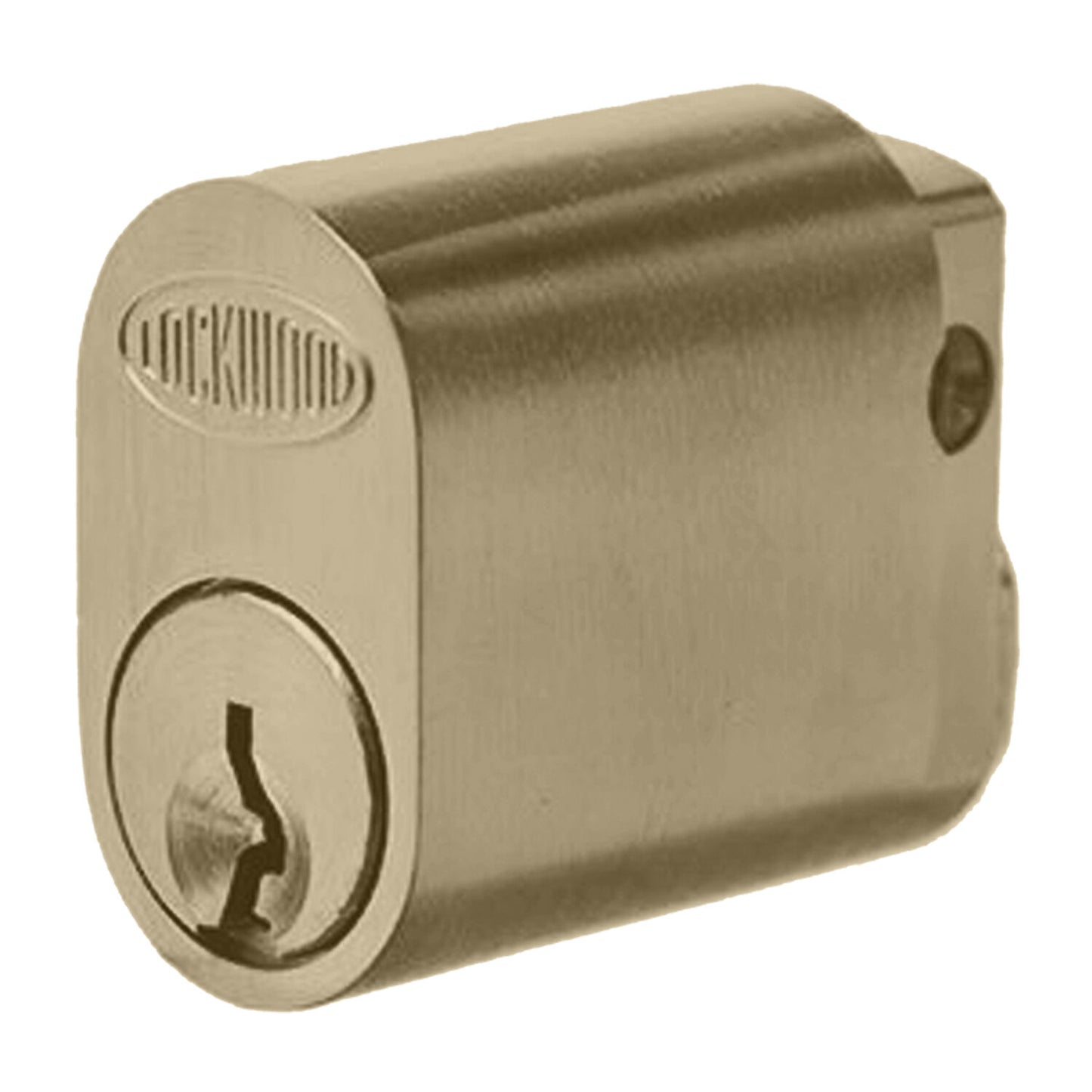

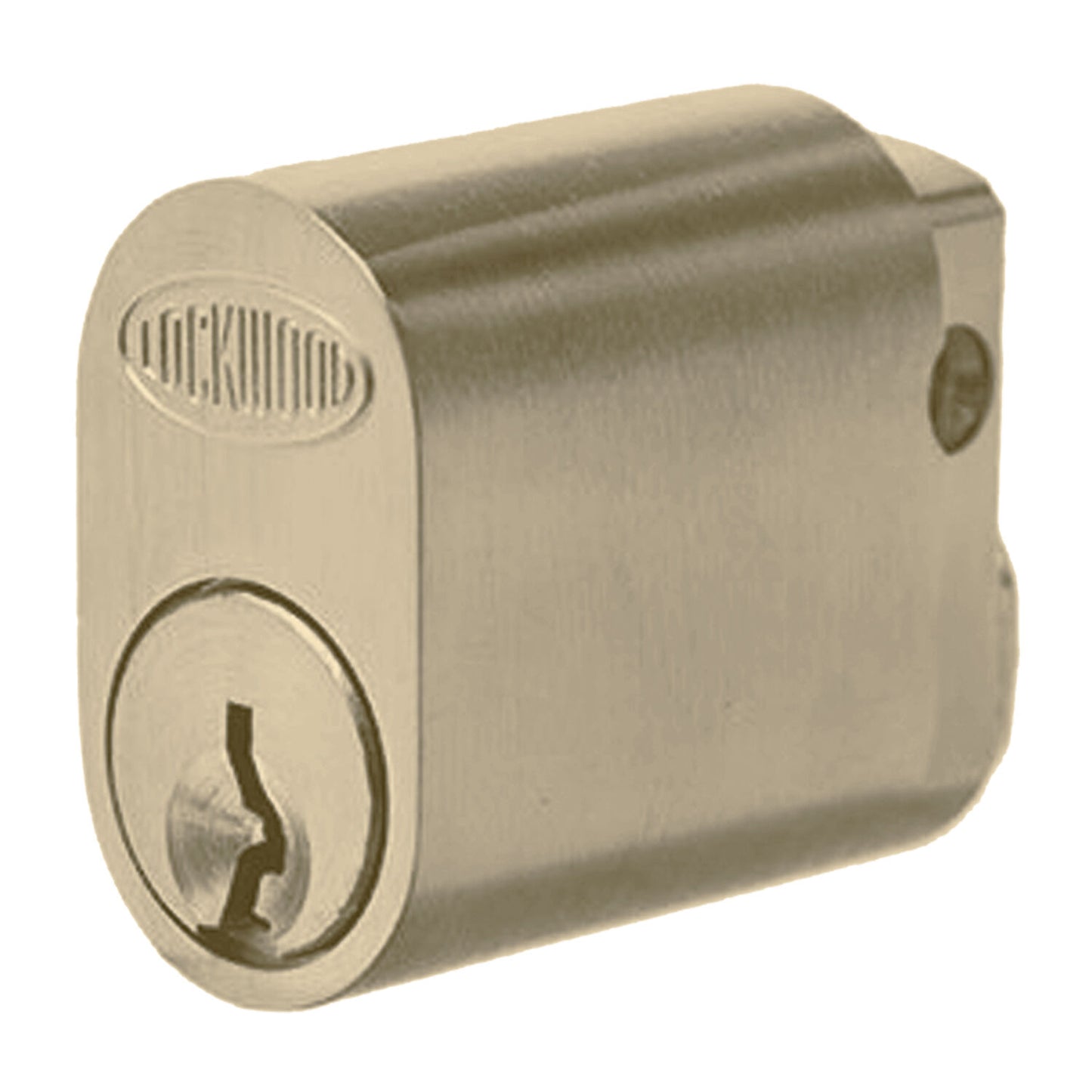

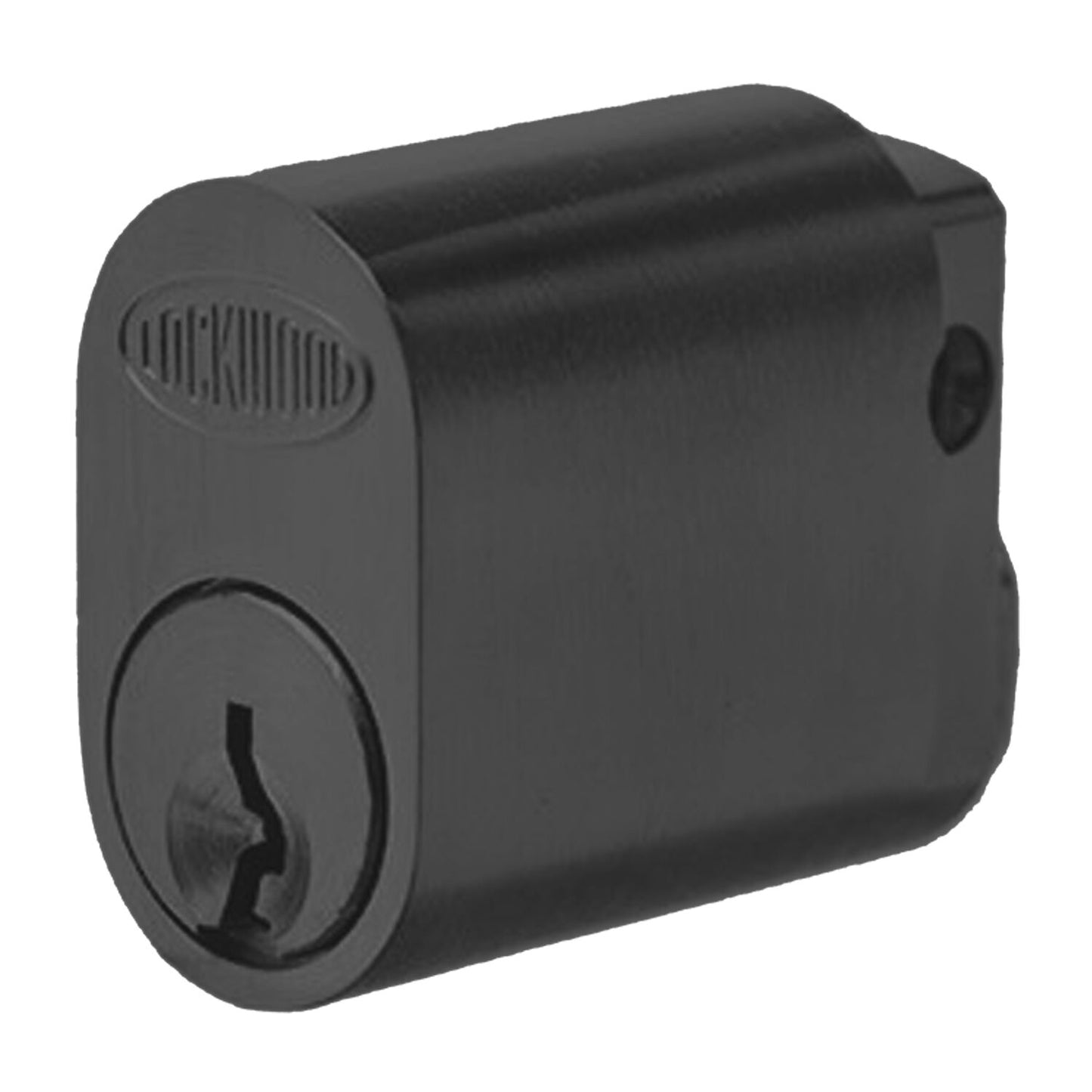

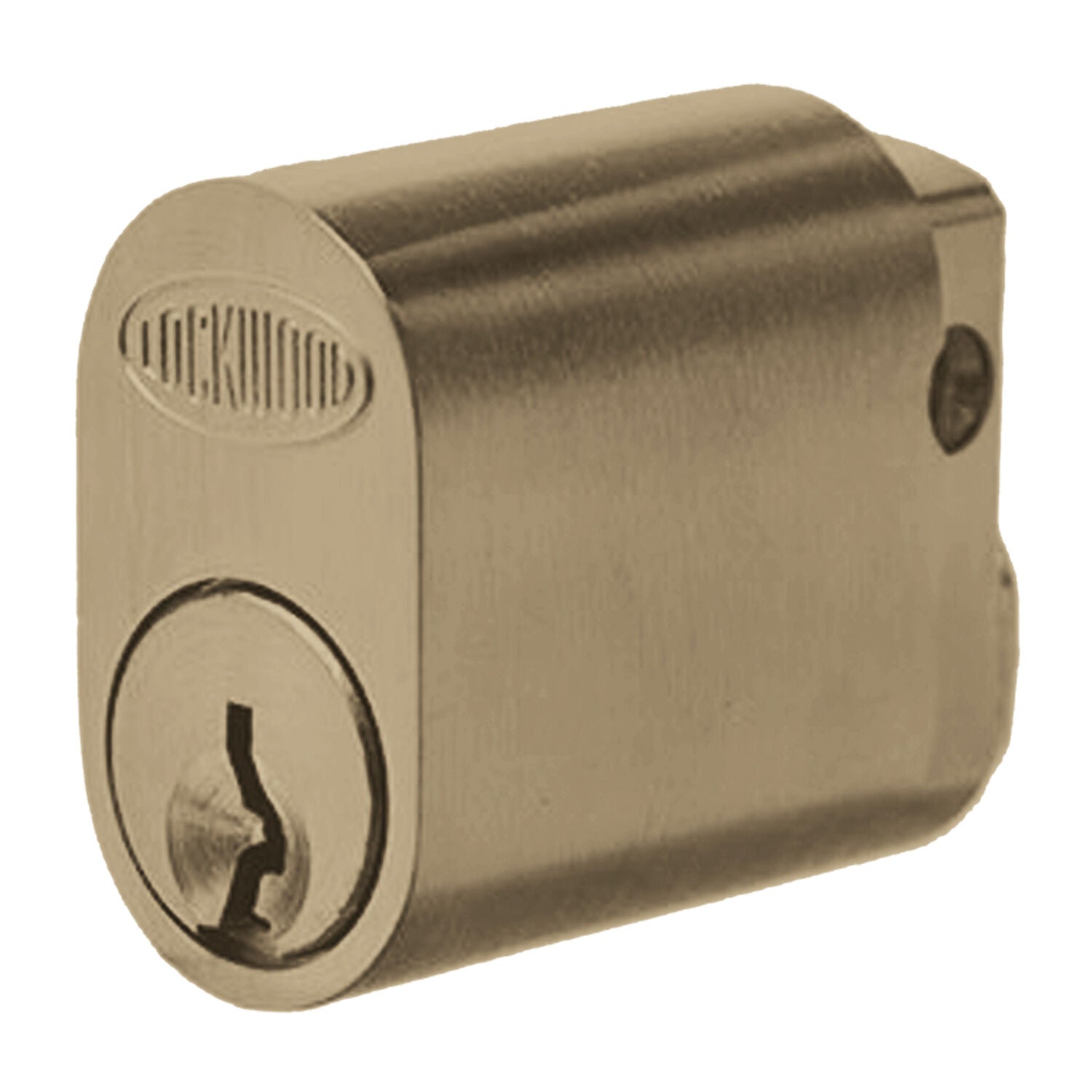

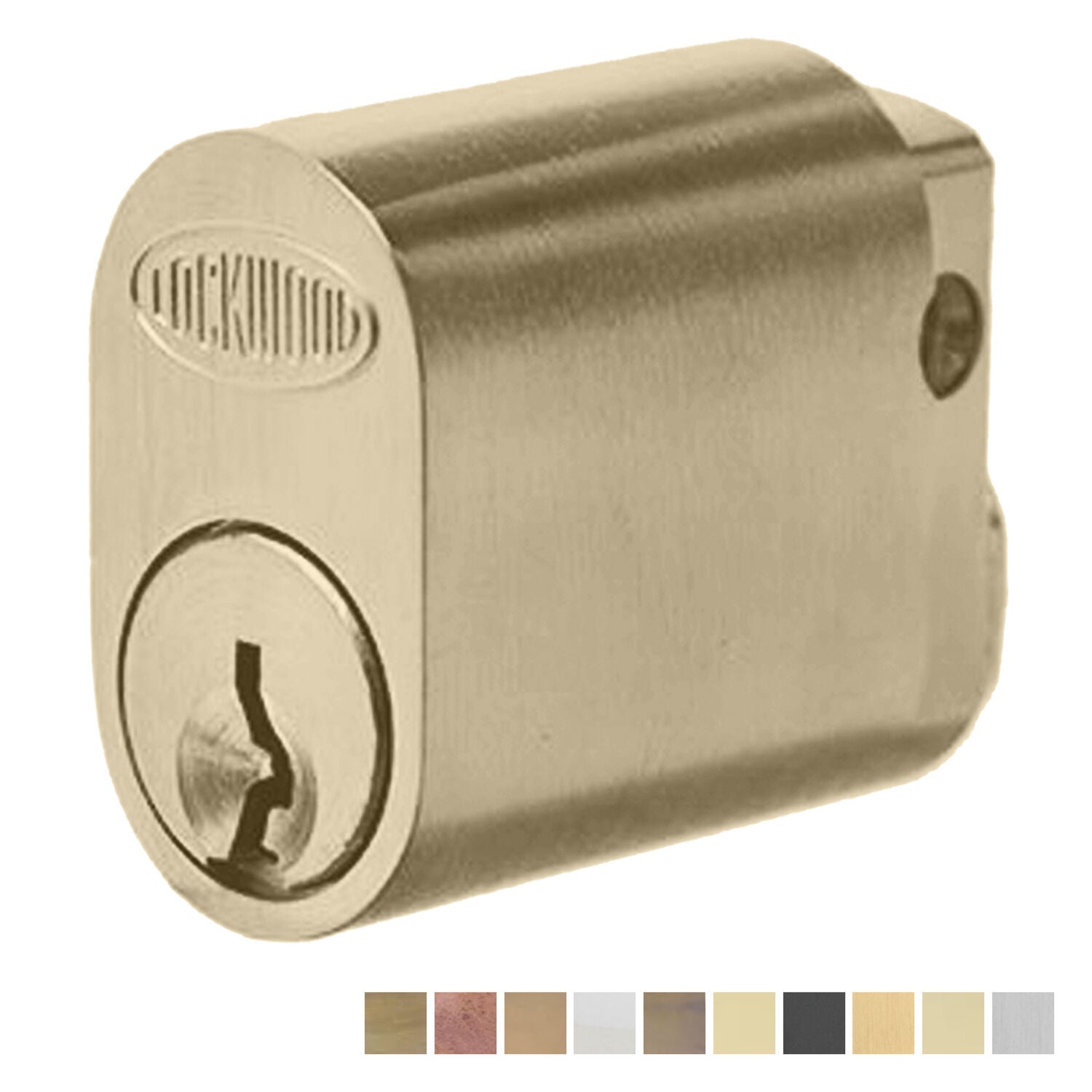

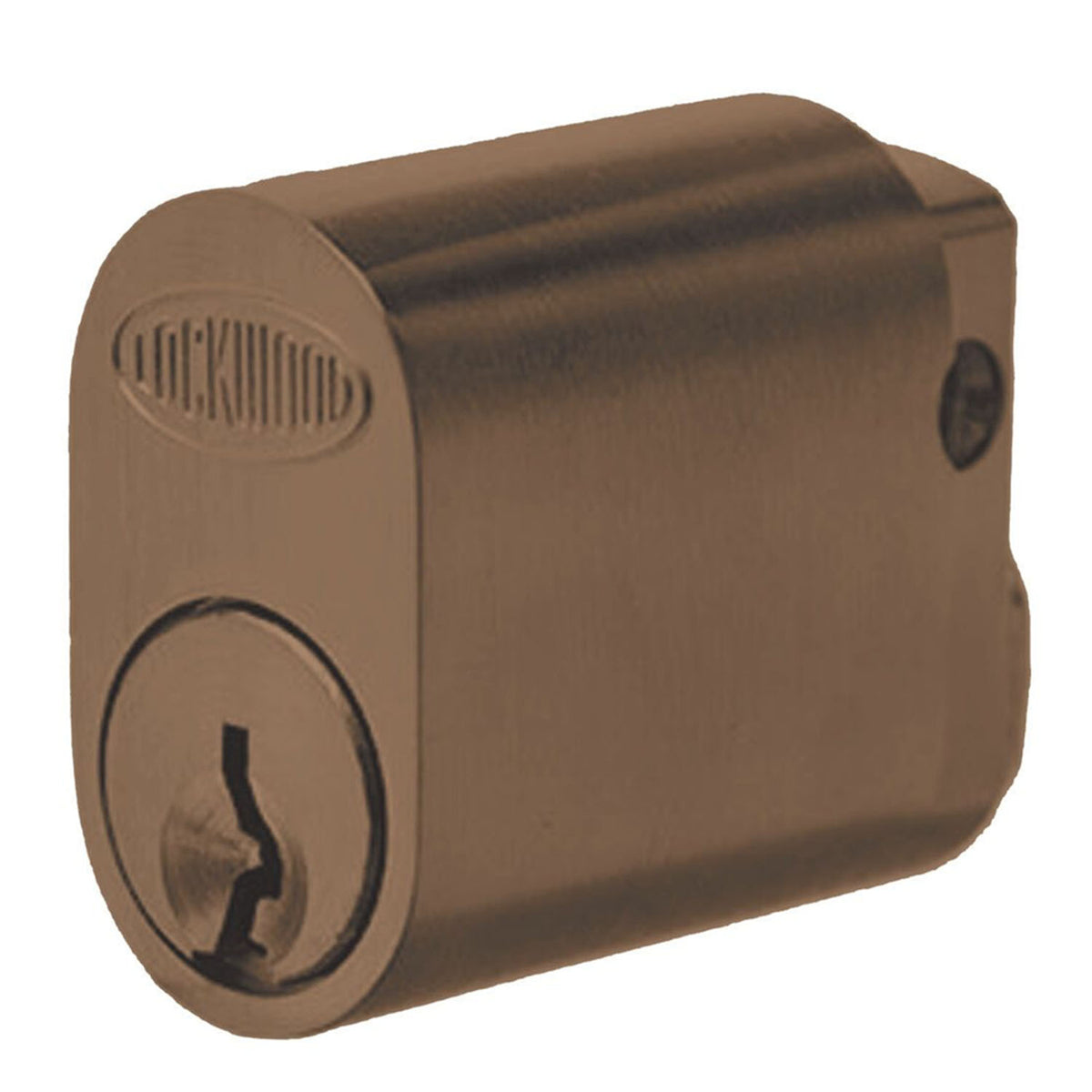

• Available Finish:
  • Aged Brass
  • Antique Copper
  • Architectural Bronze Unlacquered
  • Chrome Plate
  • Matt Black
  • Oil Rubbed Bronze
  • Polished Brass
  • Polished Brass Unlacquered
  • Satin Brass
  • Satin Brass Unlacquered
  • Satin Chrome

Note: Assembly screws ordered separately: There are four lengths of assembly screws that are available to hold the extension kit/s to the extended base cylinder, depending on the overall length required
