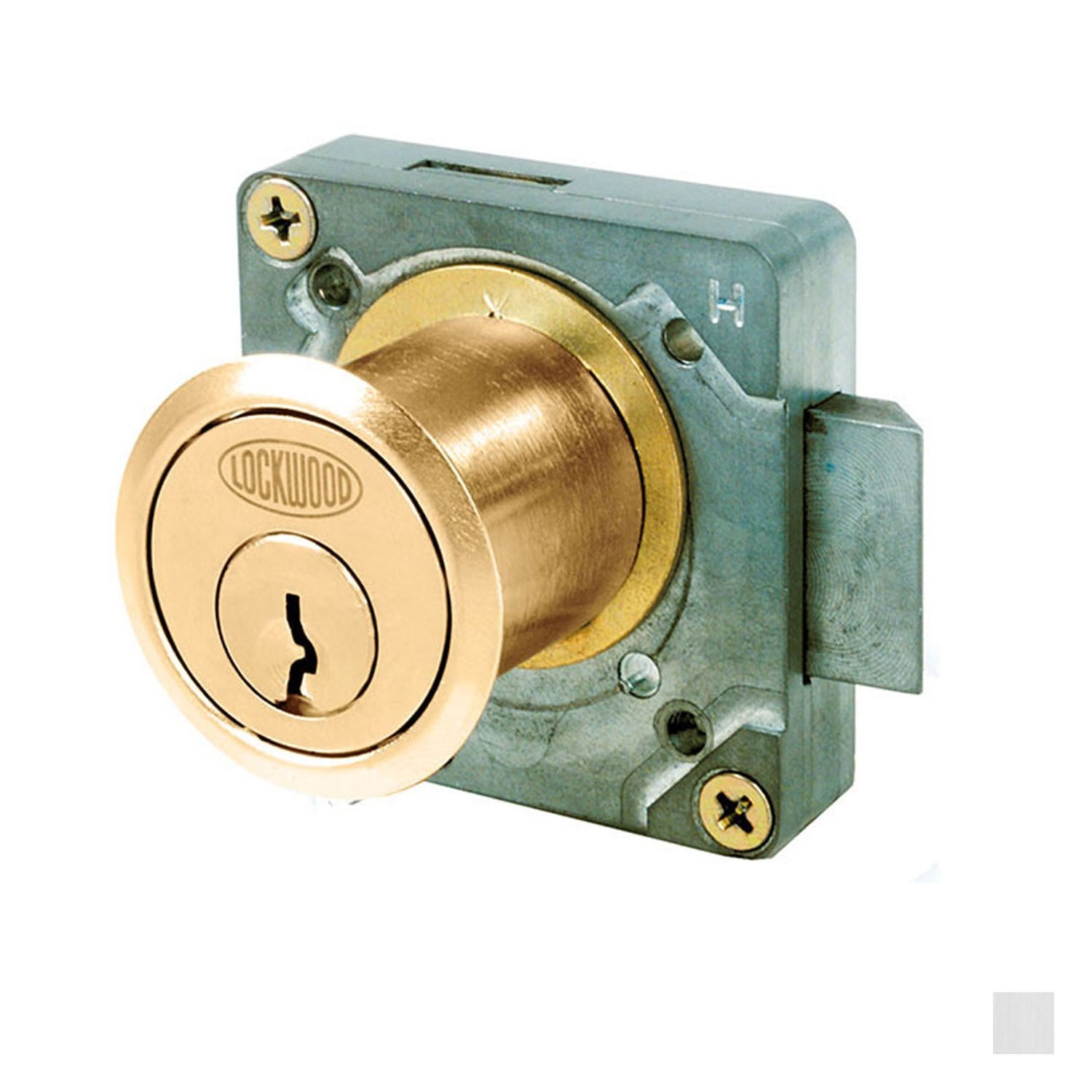

Lockwood Cabinet Cupboard Lock "B" Configuration - Available in Various Finishes

Lockwood Cabinet Cupboard Lock "B" Configuration

Cupboard Lock is a small locking mechanism used to secure cabinets, cupboards, and drawers. Its main purpose is to restrict access and keep contents safe or private.

Cupboard Lock Function - Keep cupboard contents safe, private, and properly secured from unwanted access.

Features:

• Multi-positional cylinder installation
• Selectable latchbolt deadbolt
• 10 and or 9.5mm throw depending on deadbolt or latch function used. projection
• 4 Pin tumbler cylinder, 4 pin may reduce your master keying options check with yr keying representative

Specifications:

• Height: 50mm
• Width: 50mm
• Diameter: 22mm
• Depth: 37mm
• Projection: 24mm
• Material: Cast Alloy
• Includes Fixing Screws: No
• Bolt / Latch Material: Zinc Alloy
• Can Be Rekeyed: Yes
• Includes Cylinder: Yes
• Number of Pins / Wafers: 4 Pin
• Includes Strike Plate: No
• Cylinder Keyway: C4
• Lockable: Yes
• Suits Rebated Doors: No
• Number of Keys Included: 2 Keys
• Number of Locking Points: 1
• Available Finish:

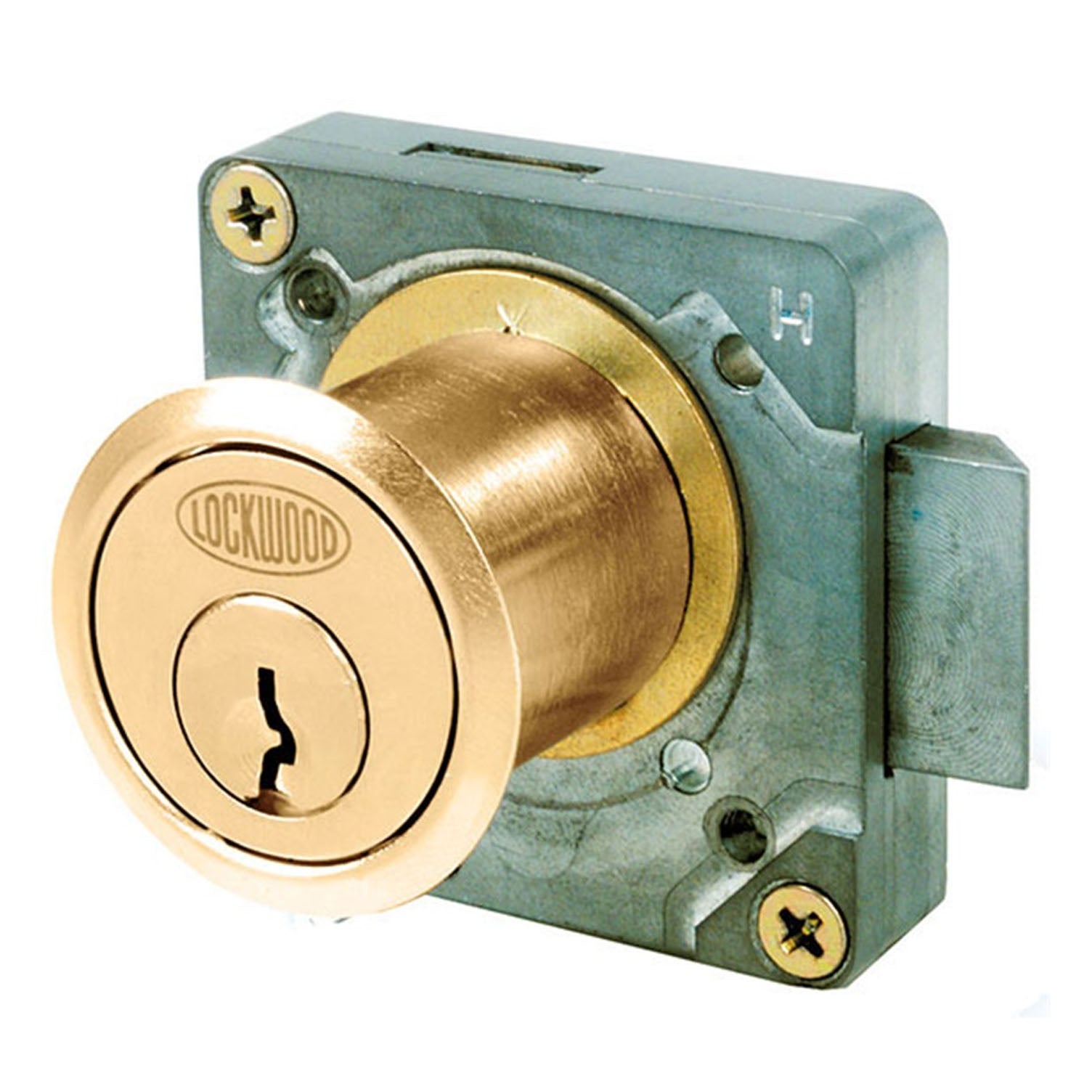

  • Polished Brass

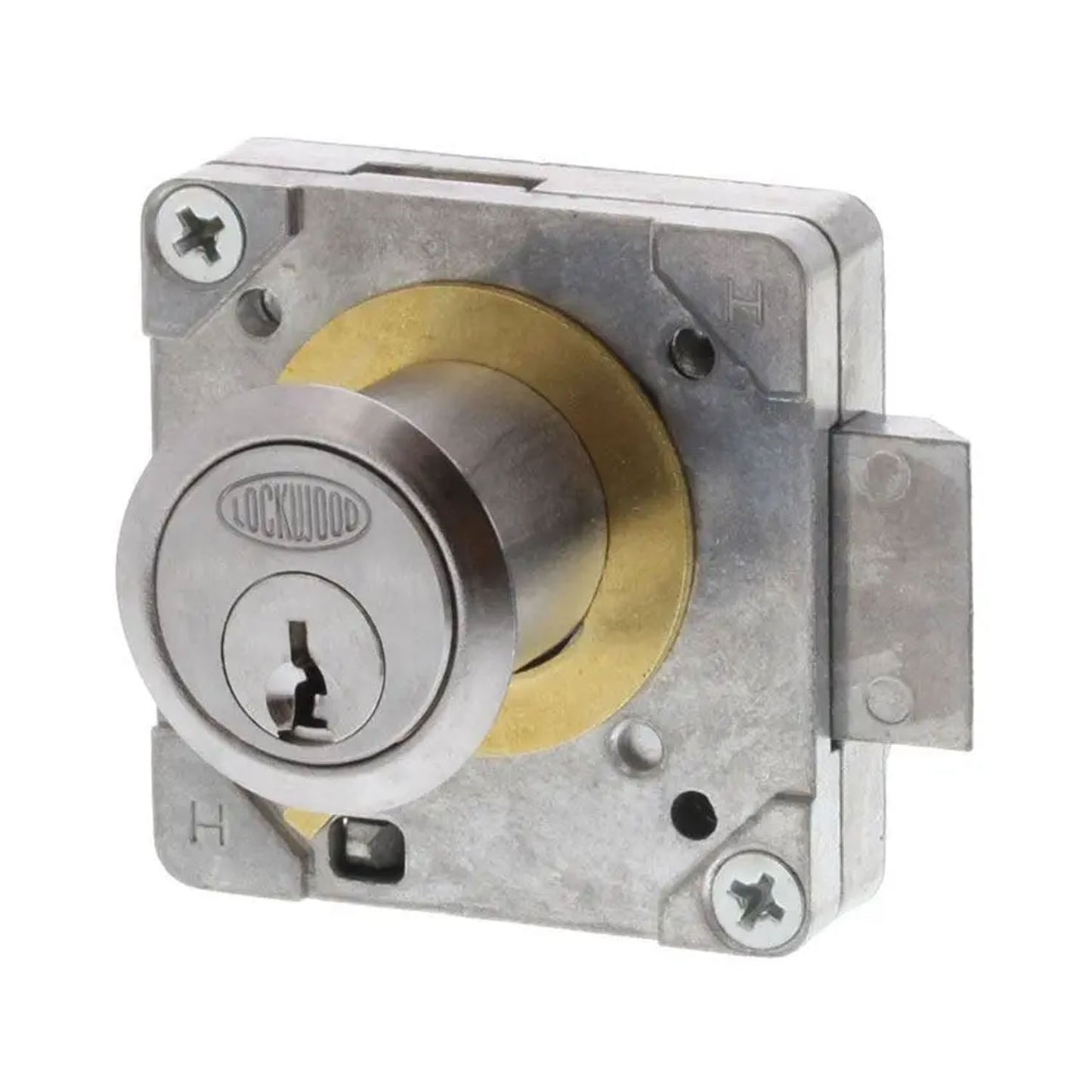

  • Satin Chrome
