Lockwood Cortex Card & Pin 5782 30mm Backset Satin Chrome With 5782 Lock CTX5782SC/5782

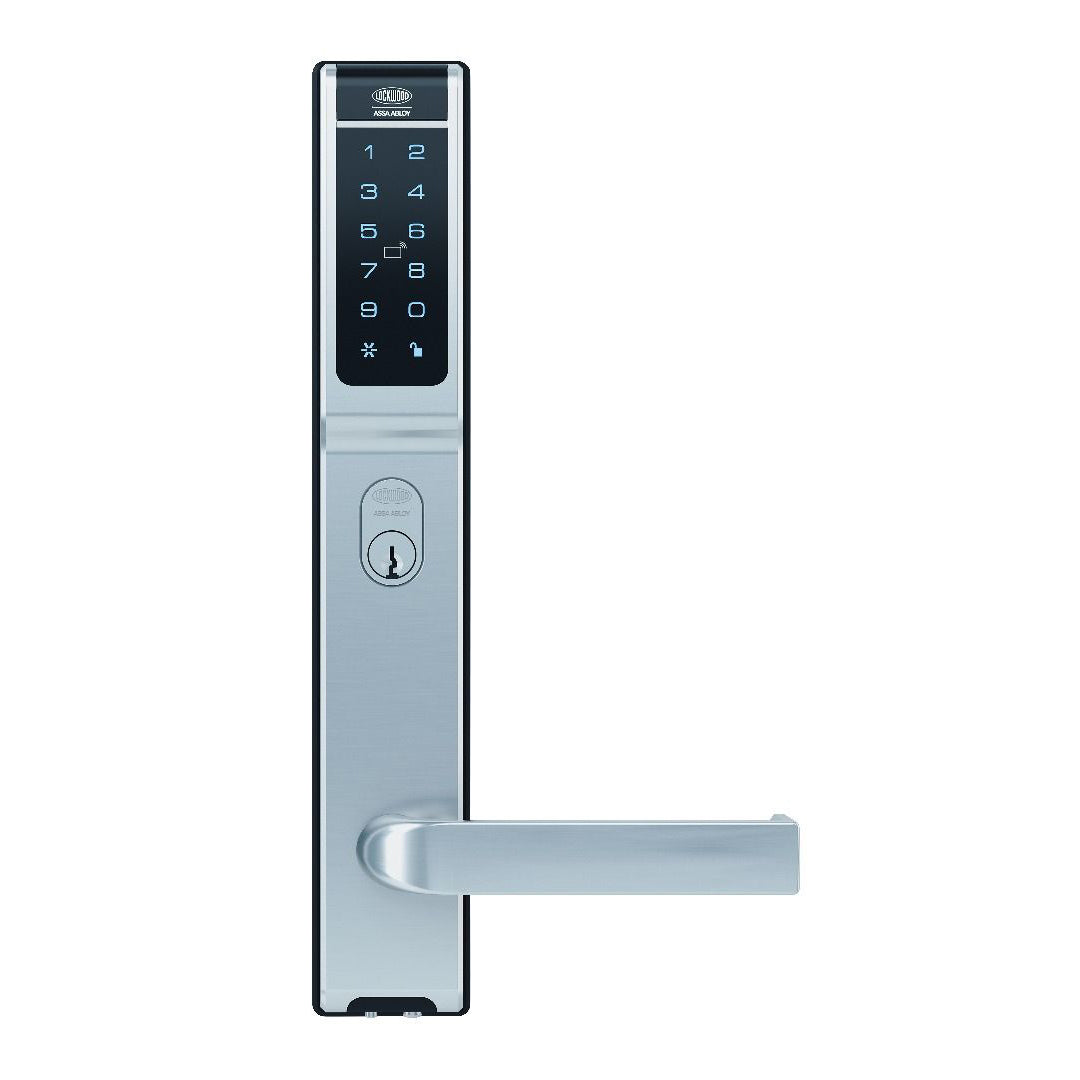

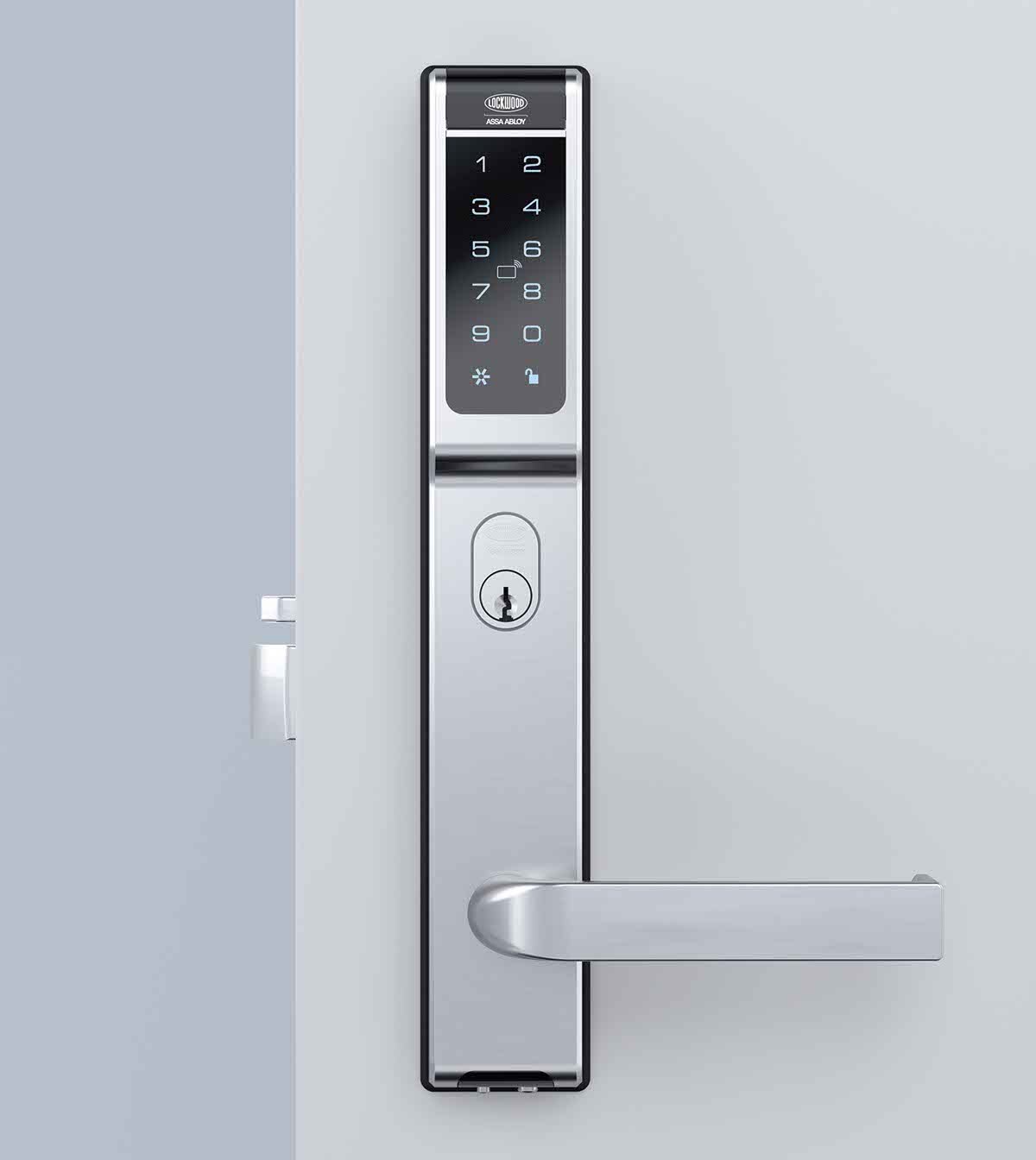

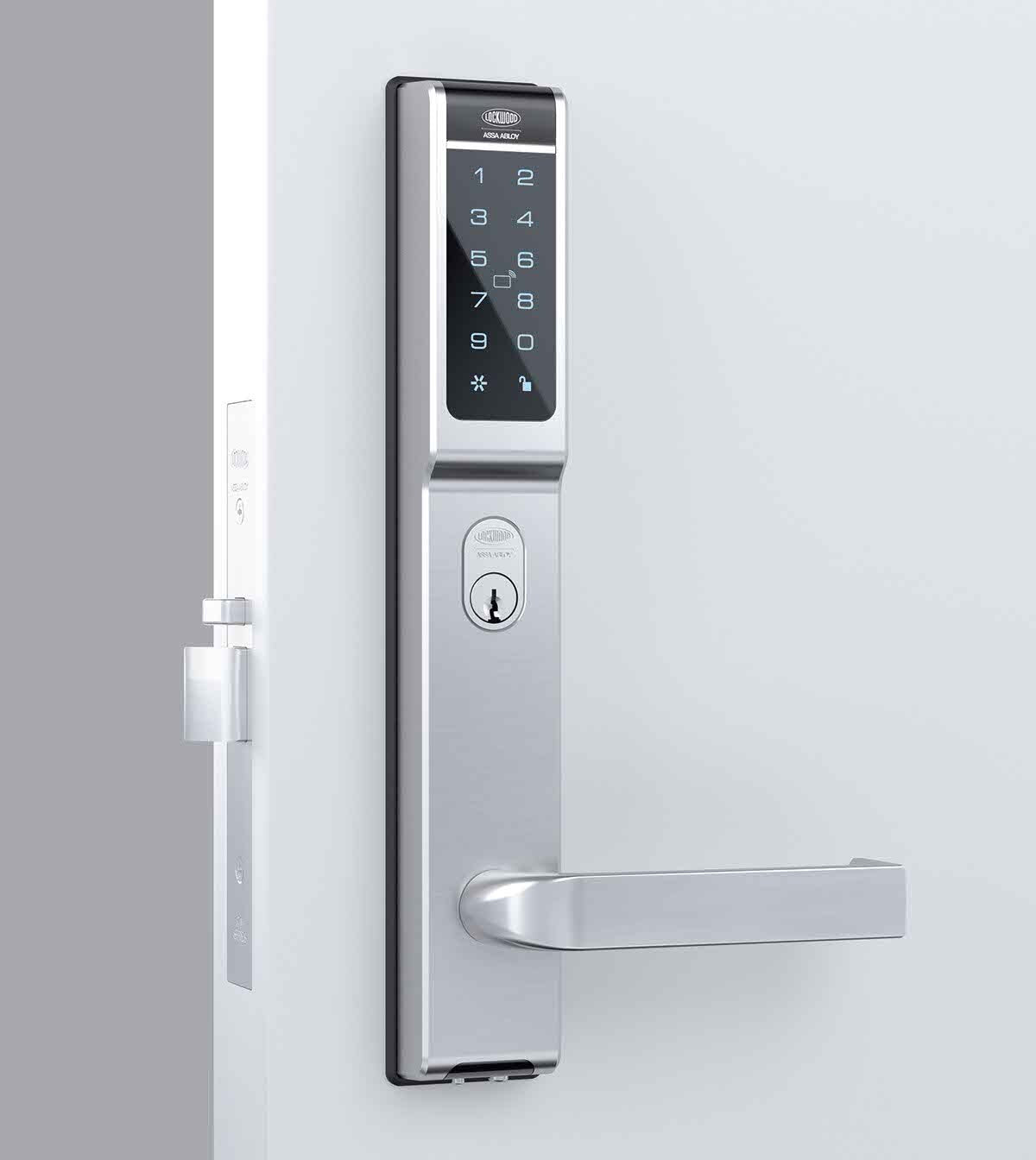

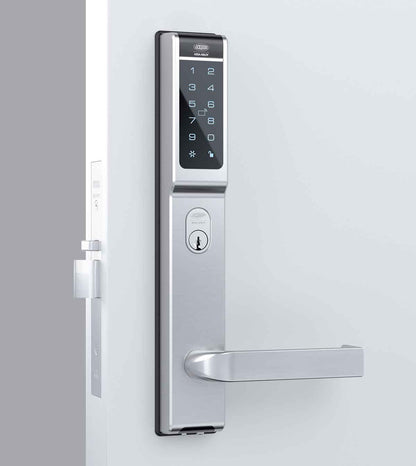

Lockwood Cortex Digital Door Lockset with 5782 Lock
CTX5782SC/5782

Digital Door Lock designed for medium to heavy-duty applications. Its full-size lever handles and its large 10-digit keypad enables control access in a wide variety of applications.

Digital

Lockwood Cortex Digital Door Lockset with 5782 Lock
CTX5782SC/5782

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 5 business days after payment is made.

Digital Door Lock designed for medium to heavy-duty applications. Its full-size lever handles and its large 10-digit keypad enables control access in a wide variety of applications.

Digital Door Lock Function - The door can be unlocked by entering the correct code on the digital keypad (allowing keyless entry).

Features:

• Easy Mode or Advance Mode function
• Up to 40,000 operations battery life (Card)
• Add/delete individual users with Master Code
• 40 Card users and 20 PIN Code users
• Cryptic Code function
• The lockset includes 2 Access Cards (can add up to 40)
• Dual Security Credential requires that two users are present to unlock the door. One user will have a PIN Code and the other user will have the Card
• Delayed Unlocked State allows the user extra time to open the door - ideal for the elderly or disabled
• Time & Date function allows preference for various Time & Date-based features. This has full calendar support including leap year etc.
• Visitor Code allows a PIN Code to be programmed for a particular date period
• One Time PIN is designed to be used once and then automatically expires
• Smart Battery Check function; allows users to check the battery level and ignores the false recovery condition of the batteries
• This allows the user to determine when a battery replacement is needed accurately
• Dual Card format allows compatibility with 90% of the world’s access control systems. If your existing access control uses Mifare or iClass it can be programmed into CORTEX with no effect on your current system
• Passage Mode allows the users to toggle between standard and passage mode as required
• Timed Passage Mode allows users to keep the door unlocked or locked for certain parts of the day
• Includes 30 mm 5782 mortice lock

Specifications:

• Door Thickness: 35mm - 48mm
• Height: 298mm
• Width: 49mm
• Depth: 32mm
• Backset: 30mm
• Code Lockout or Privacy Function: For use on Mortice versions only; use the cylinder to lockout all electronic users (V cam required)
• Latch Holdback Function: For use on Mortice versions only; use the cylinder to activate the holdback function for high-traffic doors that need to remain open for a part of the day ( V cam required and activate the holdback function under mortice faceplate).
• Accepts PIN, RFID Cards/Fobs: Yes
• AS1428.1 Compliant Lever (AS1428.1CO): Yes
• Battery Operated Digital Lock: Yes
• Has Key Override: Yes
• Has Passage Function: Yes
• On-door Code Change: Yes
• Finish: Satin Chrome
