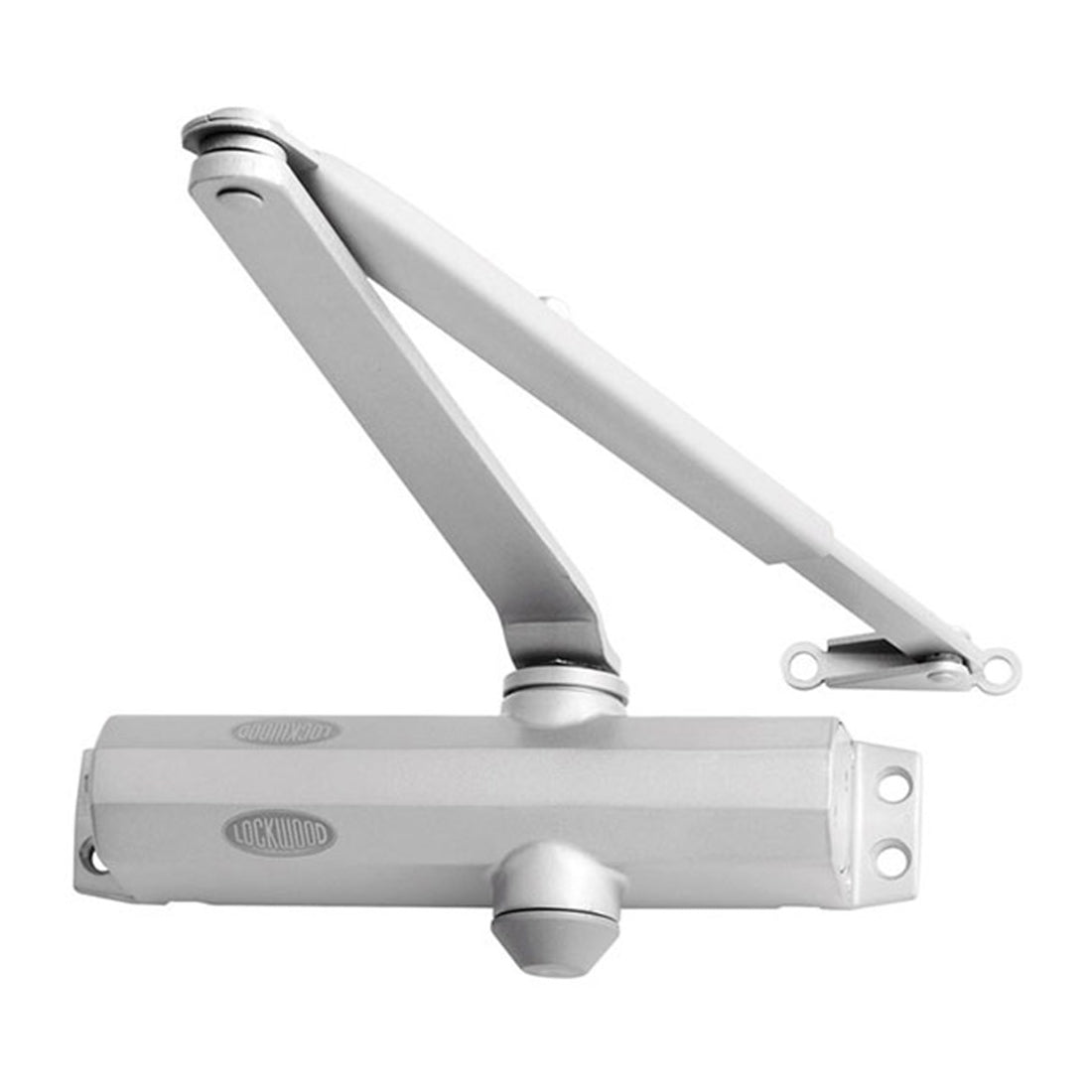

Lockwood Door Closer Fire Rated Back Check
2024BCSIL
The Lockwood range of economy door closers is particularly quick and easy to install on most applications, ideally suitable where cost is a high priority. Multi position mounting template enables adjustment on site to meet most conditions also low stock holding as one model will cover 3 power sizes. Suitable for doors up to 1100 mm in width.
Features:
- Backcheck cushions or slows the door prior to reaching final opening position.
- Non handed. Suitable for left or right hand doors.
- Independent valves control closing and latching speeds which can be readily adjusted on site when required.
- Approved on fire door assemblies up to 4 HR, in accordance with Australian Standards AS1905 Part 1 - Fire Resistant Doors 1984. Backcheck is required for all fire door applications.
- Hold open available in this series, please see our store.
Specifications:
- Mechanism: Rack and pinion design.
- Materials: High purity die cast aluminium housing with hardened steel rack and pinion mechanism.
- Finish: Silver baked enamel.
Power Selection Charts
- The power of the door closer is altered by adjusting the position of the door closer body on the mounting template.
Functions in Detail
- All products include parallel arm bracket; Multi strength mounting (one model covers size 2, 3, and 4); Parallel Arm Size 2 and 3; 4HR Fire Rating (backcheck version).
