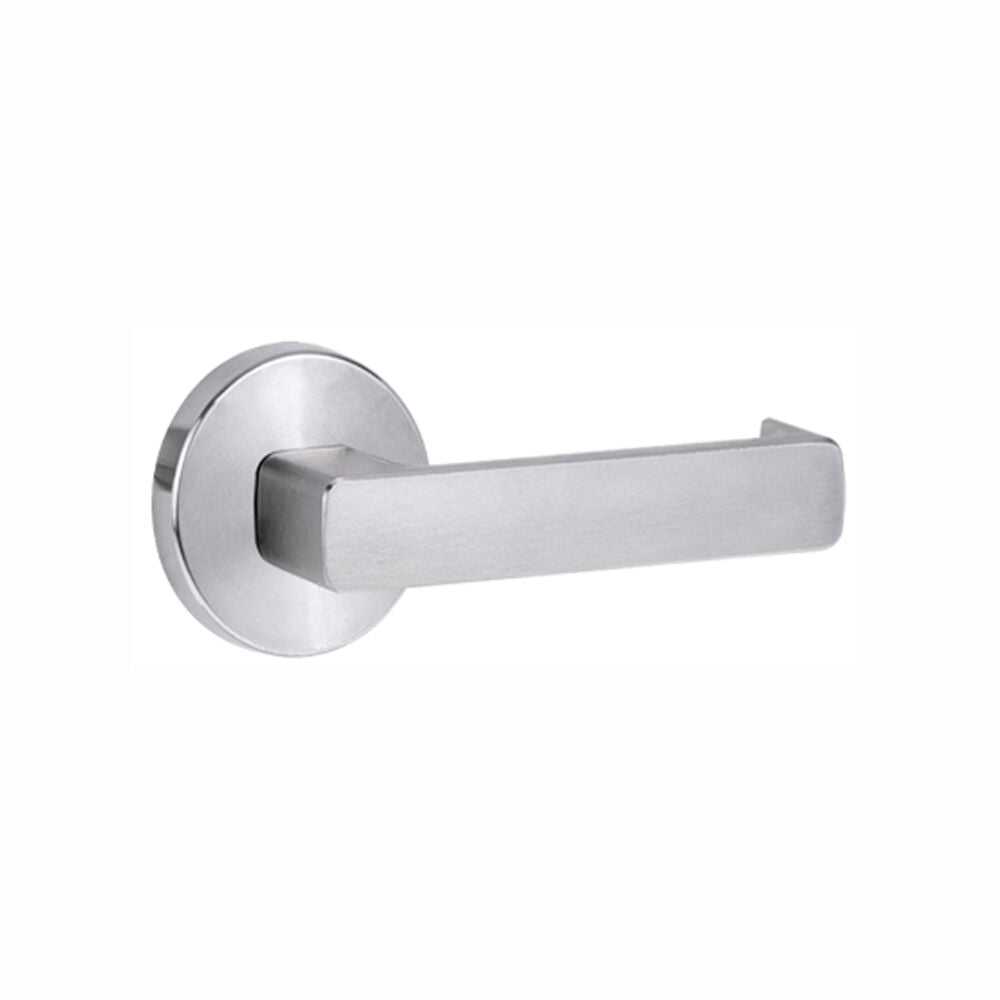

Lockwood Door Handle 1370 Series 76 Lever on Round Rose Full Set Satin Chrome 1370/1371/76SC

Lockwood Door Handle 1370 Series 76 Lever on Round Rose Full Set
1370/1371/76SC

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• The Lockwood 1370 Series door furniture is manufactured from high quality solid brass material.
• The comprehensive lever range matched with concealed screw fixings by way of threaded rose trims, provides a stylish look for the most elegant interiors. Proudly made to the highest quality standards for strength, durability and corrosion resistance.
• Lockwood Brass Furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.
• The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture.
• Over the years the Lockwood Brass Door Furniture range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
• The 1370 Series rose furniture features a 62mm solid brass rose with diagonal screw fixings, concealed on the outside and visible on the inside.
• The square lines of the Lockwood Lever 101 provide a perfect blend of subtlety and style.
• Minimalism enhanced.
• Levers of symmetrical design may be reversed by removing stop screw.
• 2 x M4 x 65mm SS screws supplied (SP1220-119)
• Full set with interior and exterior roses
• Lever Only
• Supplied in trade pack
• Non-handed

Application:

• Designed for use with Lockwood 5260 Latches, Synergy 3570 and Selector 3770 Series Mortice Locks.

Specification:

• Lockwood lever: 76
• Finish: Satin Chrome
• Material: Solid Brass
• Fixing Centres: 51mm

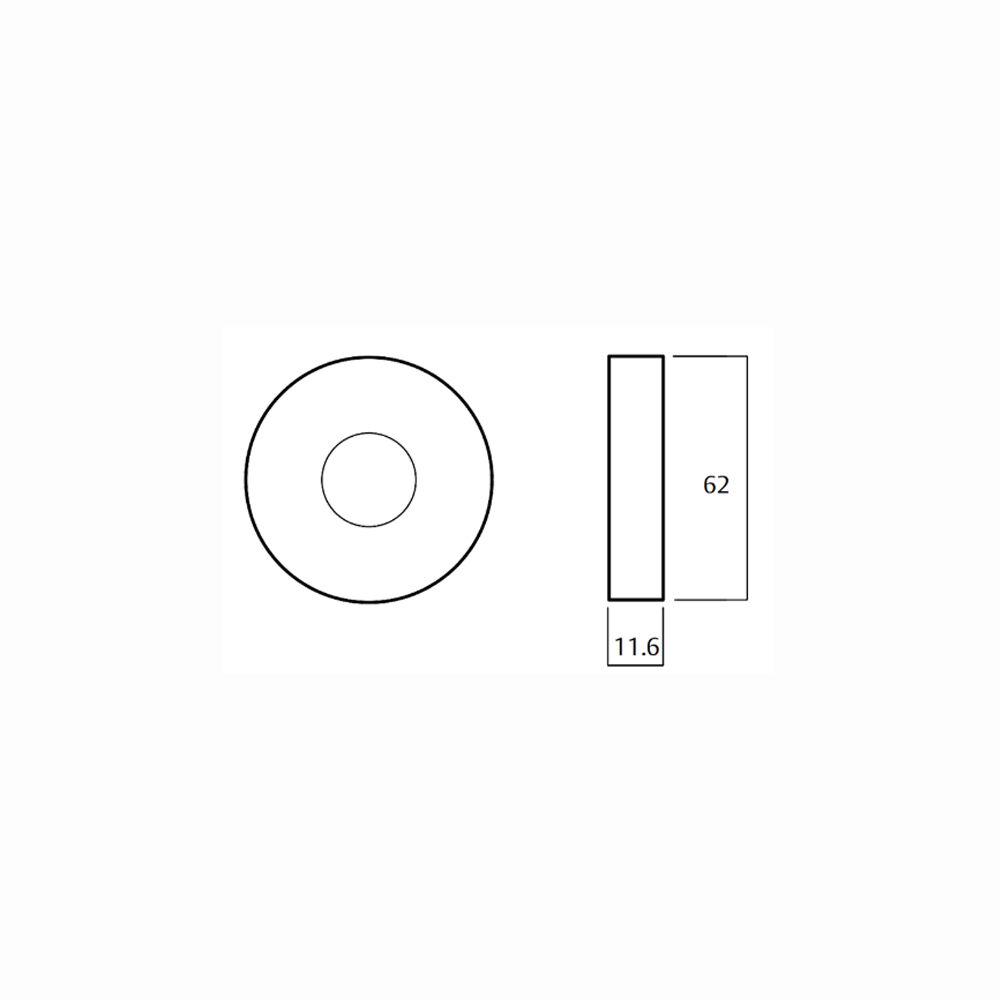

• Rose Dimension: 62.5mm x 11.6mm

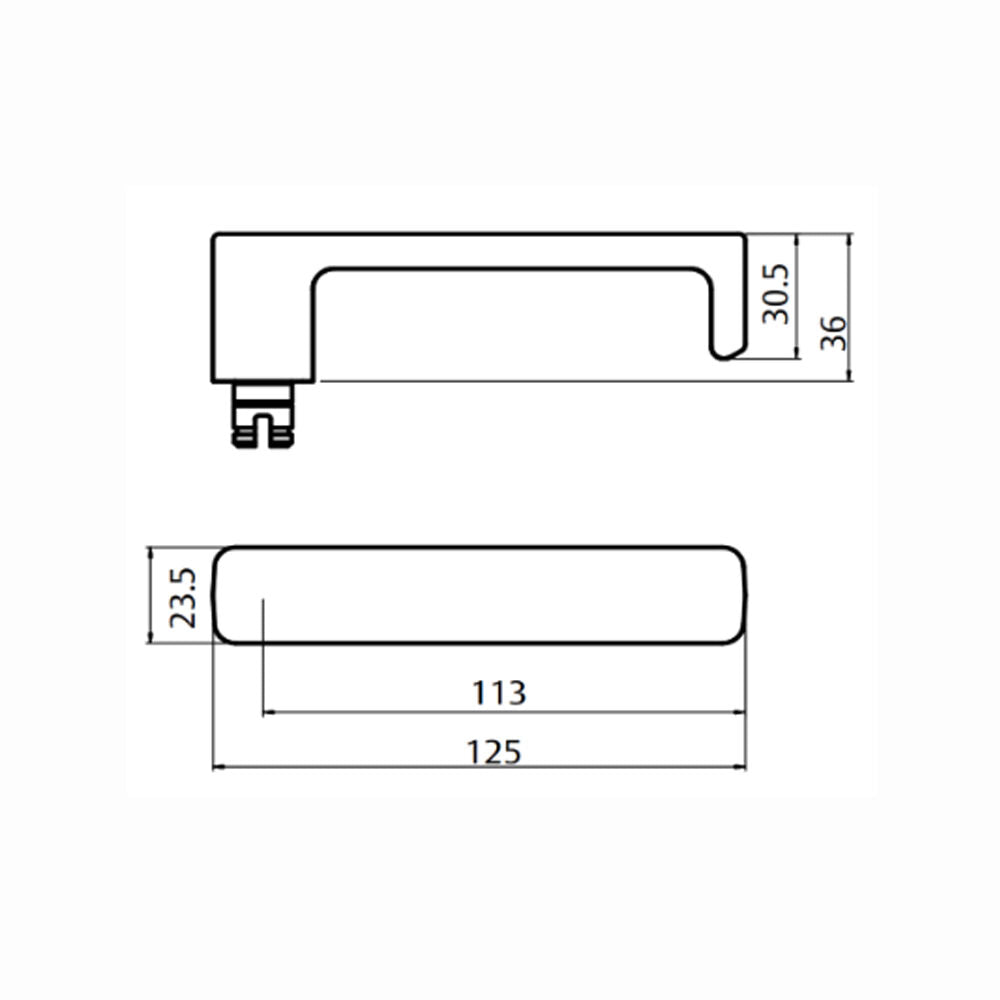

• Lever Dimensions
  • Length: 125mm
  • Projection: 48.5mm
  • Finger Clearance: 40mm
• Door Thickness:
  • 33mm minimum for 5260 Latches.
  • 32mm minimum for Lockwood 3770 Selector and 3570 Synergy series mortice latches.
  • 50 maximum door thickness.
  • Note latches and locks are sold separately

Note:

• Fixing Roses are designed to fit back to back. If outside rose is specified with concealed fixing, then the inside rose must be visible fixed. Roses numbered 1370, 1372, and 1374 are concealed fixed, roses numbered 1371, 1373 and 1375 are visible fixed.
  The 1370 Series rose furniture features a 62mm solid brass rose with diagonal screw fixings, concealed on the outside and visible on the inside
