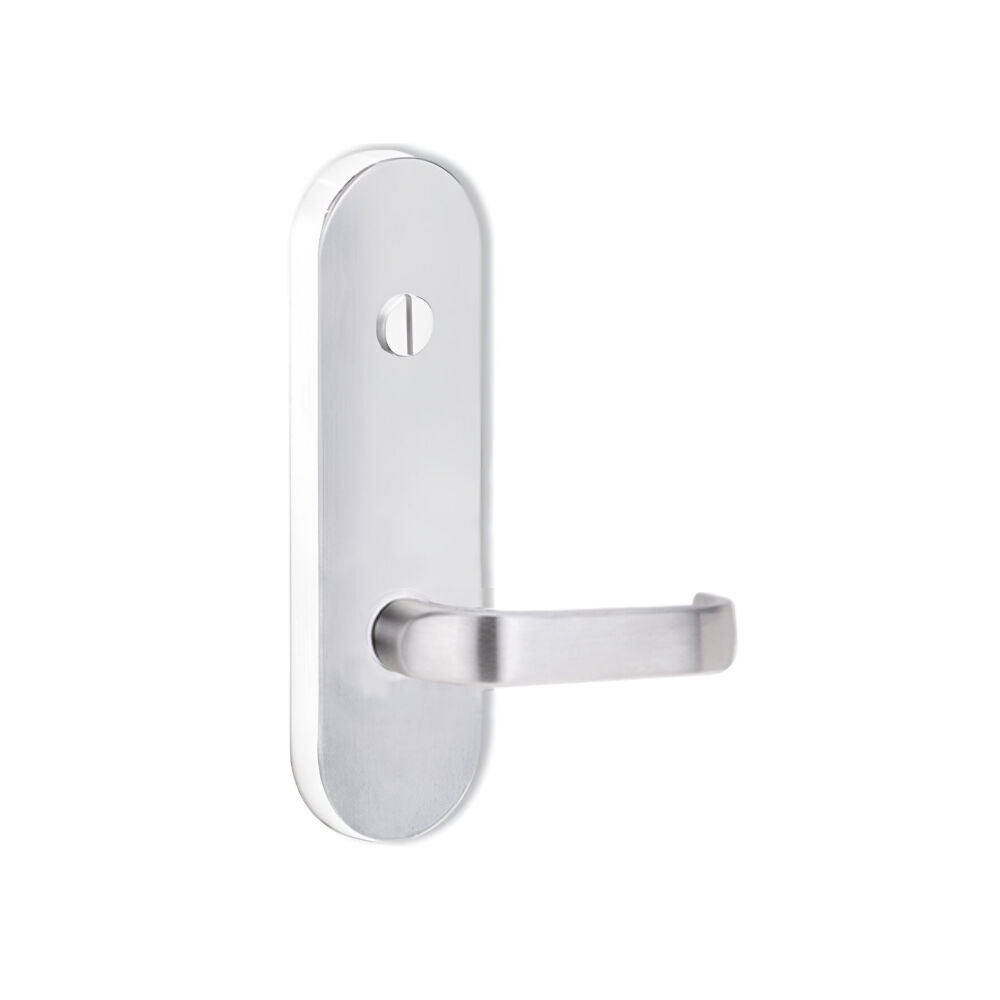

Lockwood Door Handle Round End Plate With Emergency Turn & 74 Lever Satin Chrome 2803/74SC

Lockwood Door Handle Round End Plate With Emergency Turn
2803/74SC

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8-10 business days after payment is made.

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application
• Made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice
• The culmination of decades of experience in the design and manufacture of high quality door furniture
• A distinctly modern approach combining elegant lines and an offset lever action
• External plate with concealed fixing (screws included)
• Non-handed
• Supplied in trade pack

Specifications:

• Handle Type: Lever 74
• Door Thickness: 32mm to 45mm

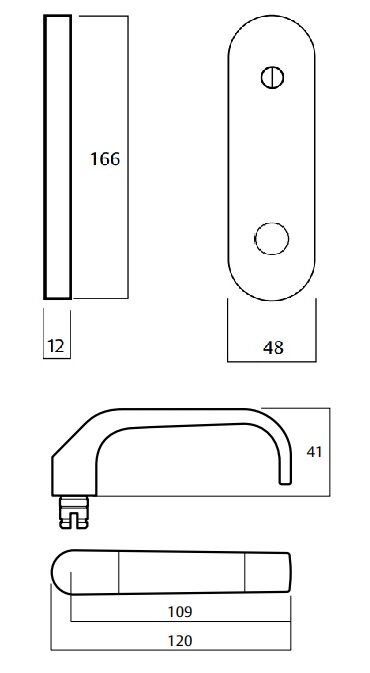

• Plate Dimension:
  • Height: 166mm
  • Width: 48mm
  • Depth: 12mm
• Lever Dimension:
  • Length: 120mm
  • Projection: 65mm
  • Finger clearance: 48mm
• Cylinder pitch: 64mm
• Finish: Satin Chrome

Standard and Compliance:

• Fire Rating: Successfully tested up to 4 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets
• D8: Successfully tested to conform with Level D8 (500,000 cycles) under Australian Standard AS4145.2-2008, Locksets and hardware for doors and windows
• Disabled Compliant: meet the requirements of AS1428.1-2009, Design for access and mobility

Note:

• When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
• Handing Symmetrical levers may be reversed by removing the stop screw.
• Fixing Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
