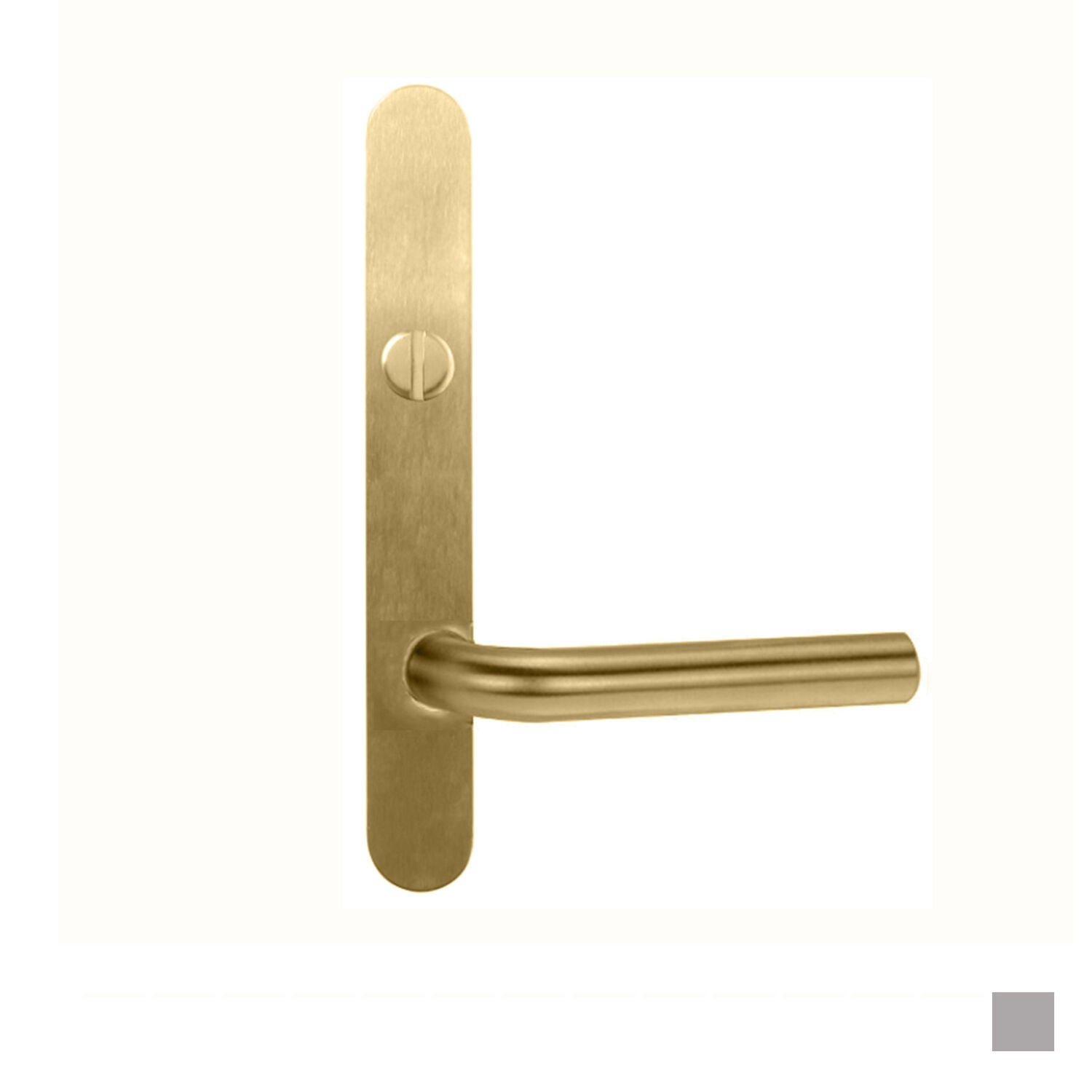

Lockwood Door Handle Round End Plate With Emergency Turn & 97 Lever Available in Various Finishes

Lockwood Door Handle Round End Plate With Emergency Turn & 97 Lever
5603/97

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• External plate with concealed fixing (screws included)
• Emergency turn
• Non-handed
• Plated finish
• Supplied in trade pack

Specifications:

• Handle Type: Lever 97
• Door Thickness: 32mm to 45mm
• Plate Dimension:
  • Height: 185mm
  • Width: 26mm
  • Depth: 11.5mm

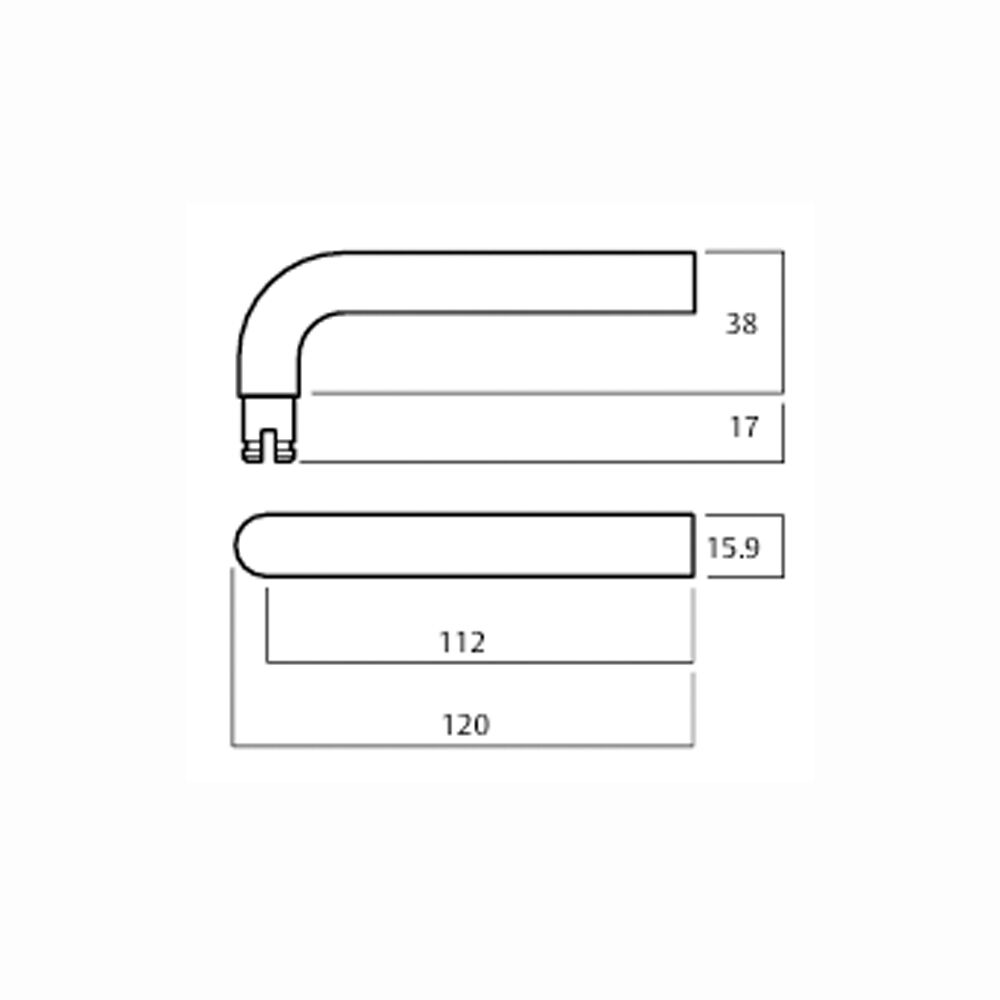

• Lever Dimensions:
  • Length: 120mm
  • Projection: 50.5mm
  • Finger clearance: 34.6mm
• Cylinder pitch: 64mm
• Fixing centres: 160mm
• Available Finishes:

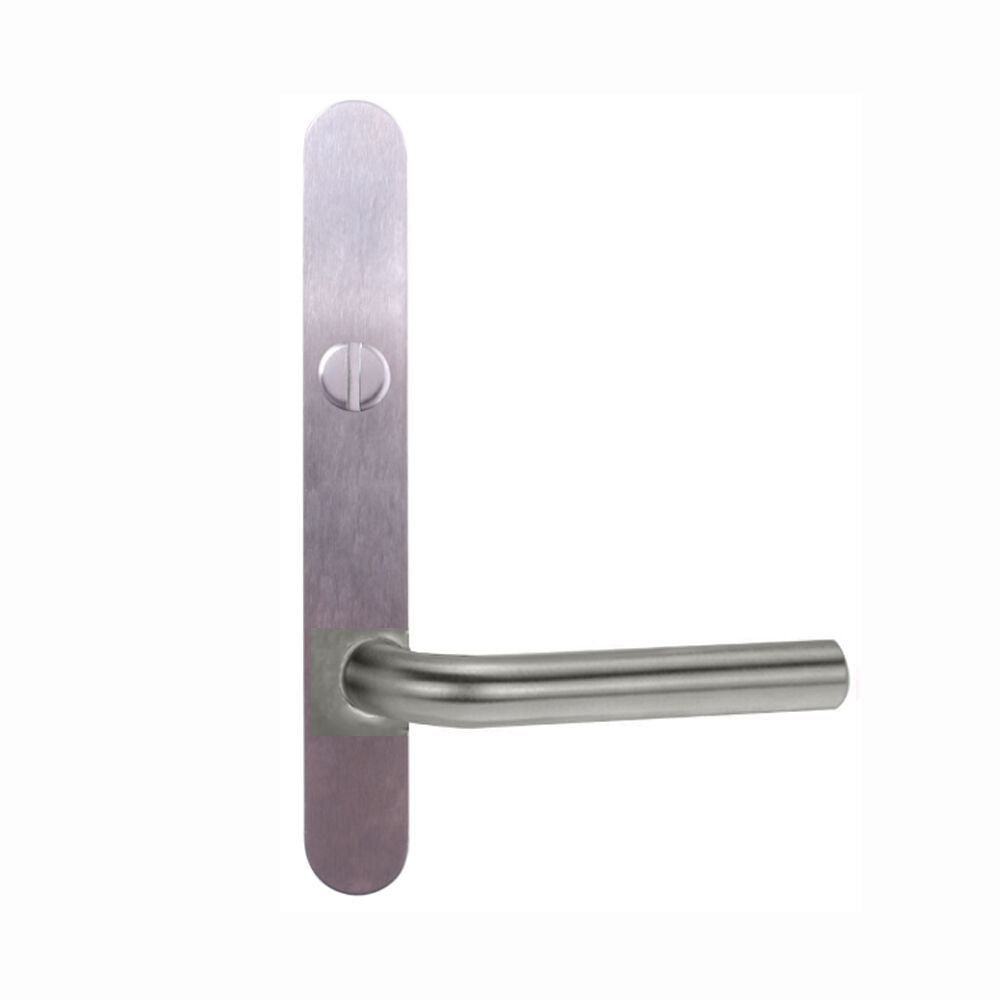

  • Satin Chrome

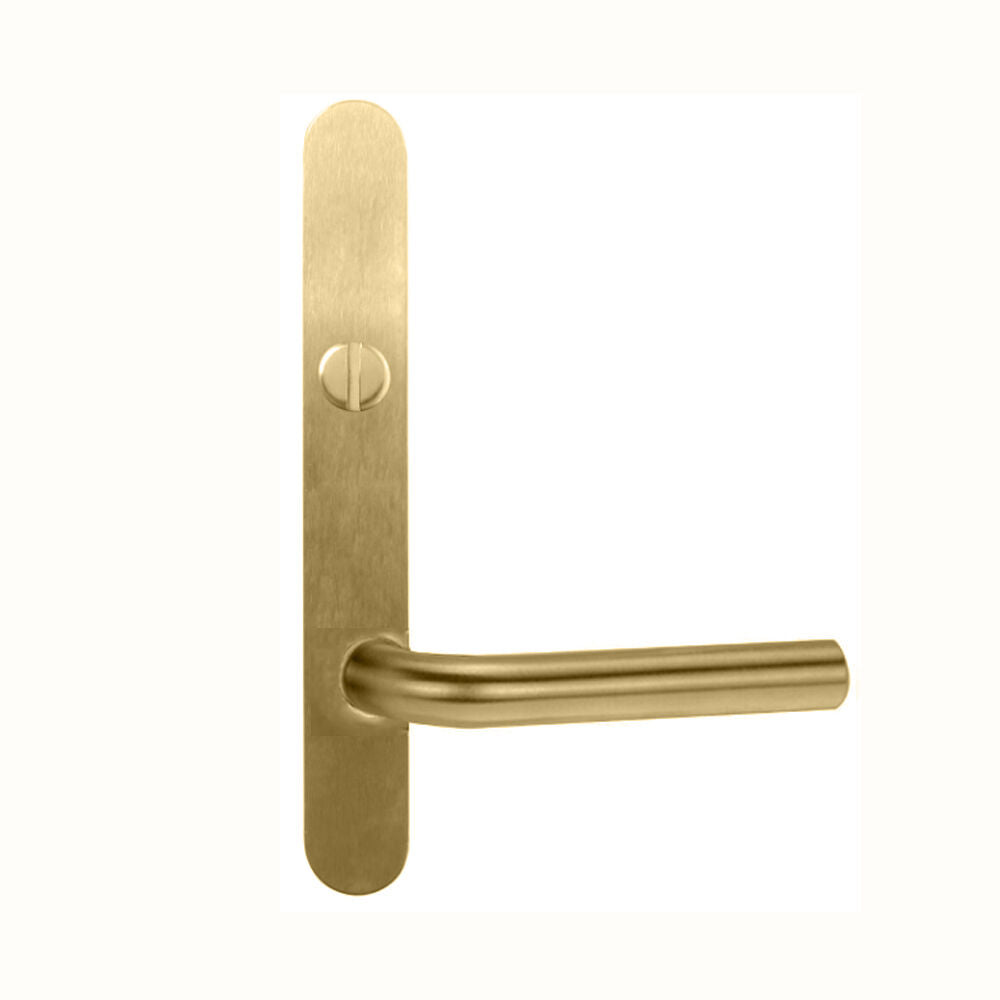

  • Polished Brass Unlacquered

Standard and Compliance:

• Fire Rating: Successfully tested up to 4 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets
• D8: Successfully tested to conform with Level D8 (500,000 cycles) under Australian Standard AS4145.2-2008, Locksets and hardware for doors and windows
• Disabled Compliant: meet the requirements of AS1428.1-2009, Design for access and mobility
