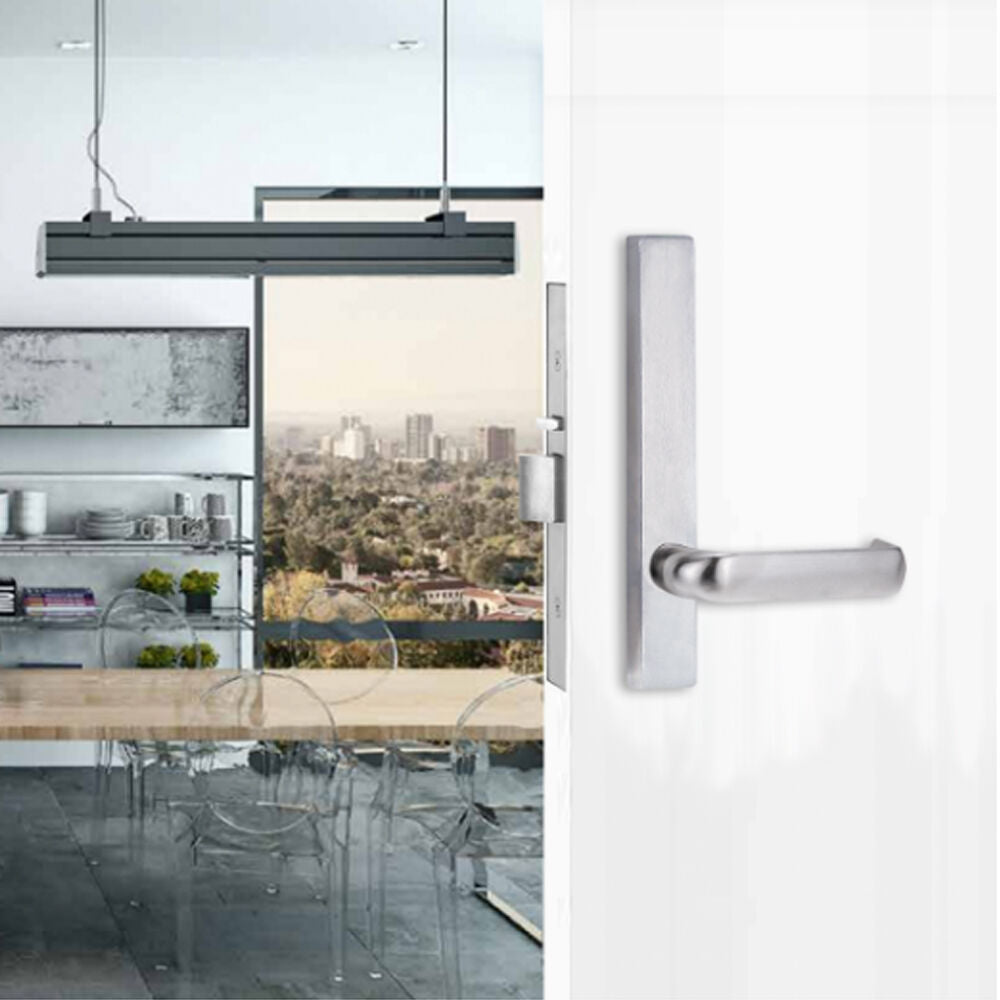

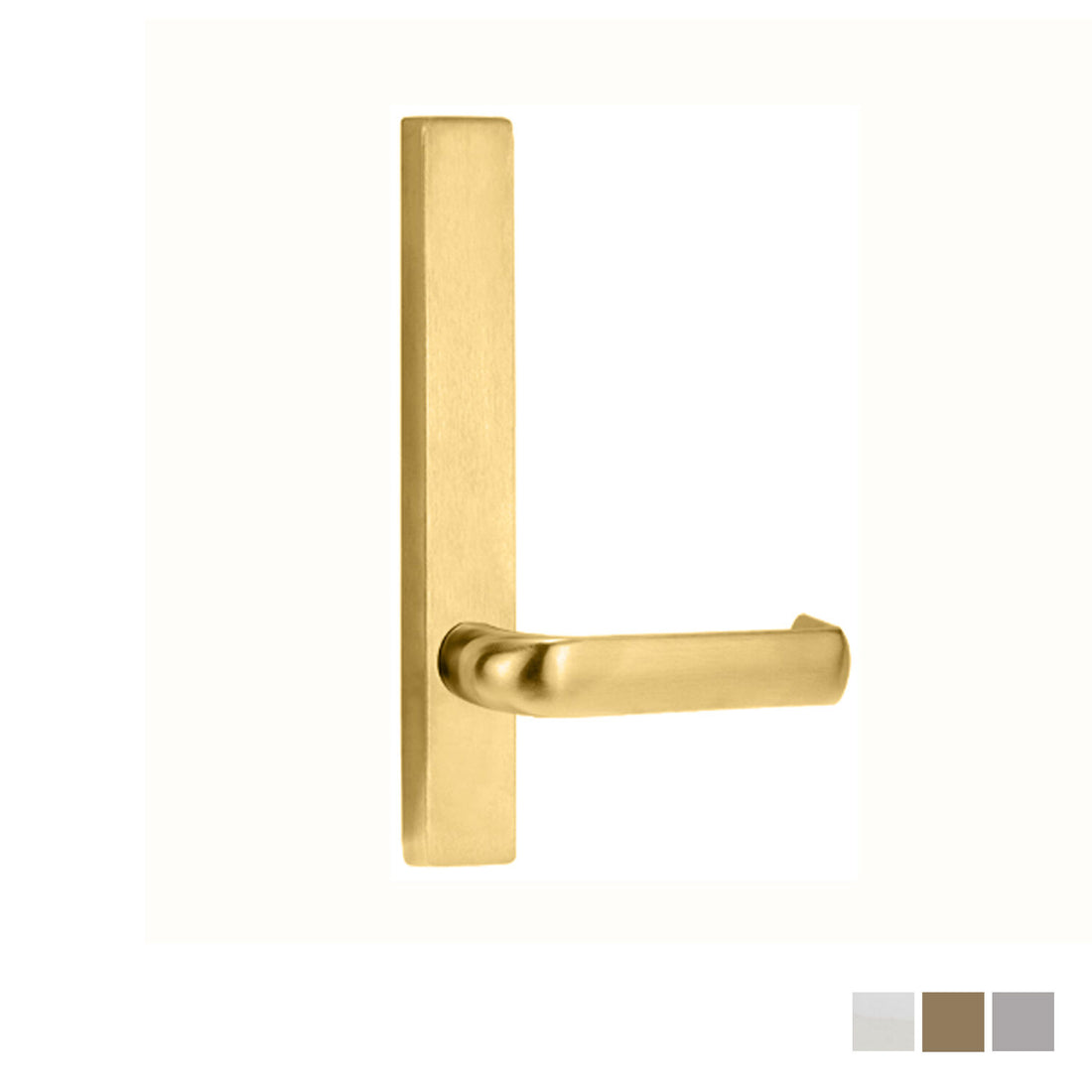

Lockwood Door Handle Square End Plate With 77 Lever - Available in Various Finishes

Lockwood Door Handle Square End Plate With 77 Lever
4805/77OSC

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• External plate with concealed fixing (screws included)
• Lever Only
• Supplied in trade pack
• Non-handed

Specification:

• Lockwood lever: 77
• Cylinder Pitch: 89.9mm
• Fixing Centres: 160mm
• Plate Dimensions
  • Height: 185mm
  • Width: 26mm
  • Depth: 11.5mm

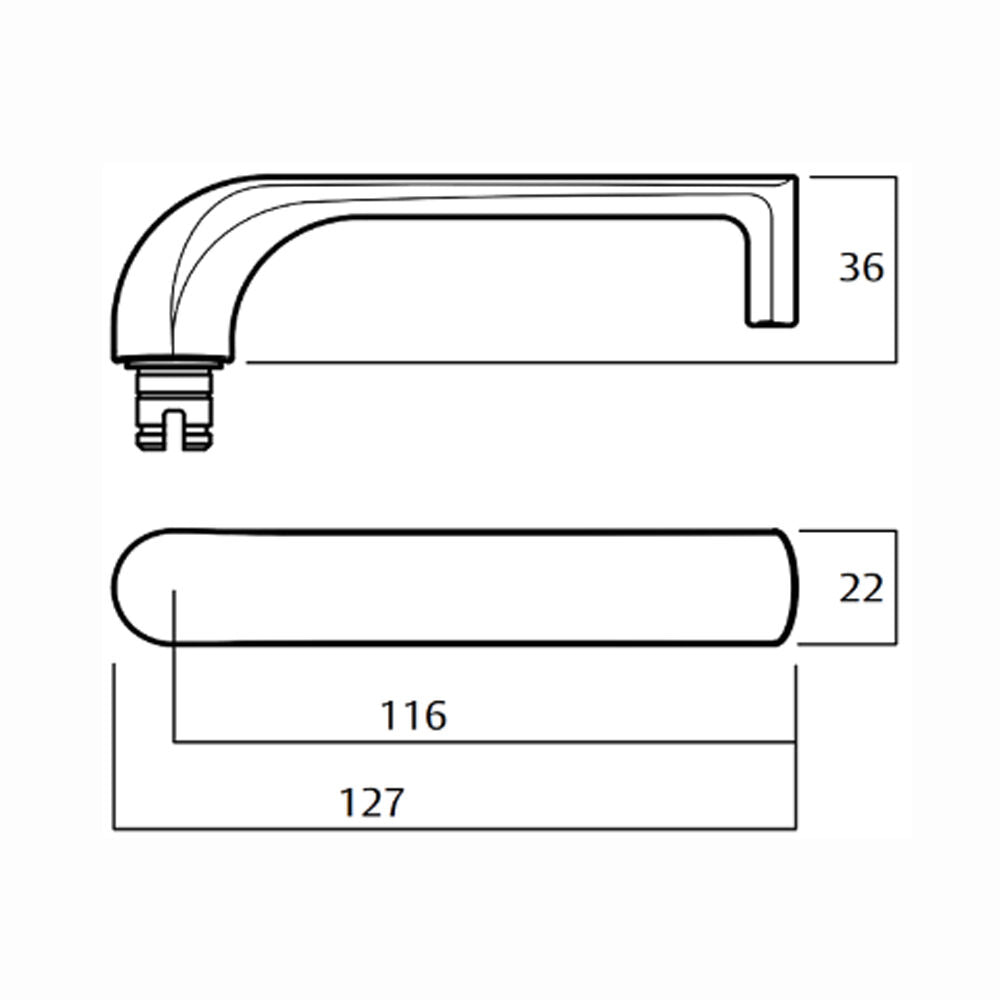

• Lever Dimensions
  • Length: 121mm
  • Projection: 51mm
  • Finger Clearance: 48.3mm
• Available Finishes

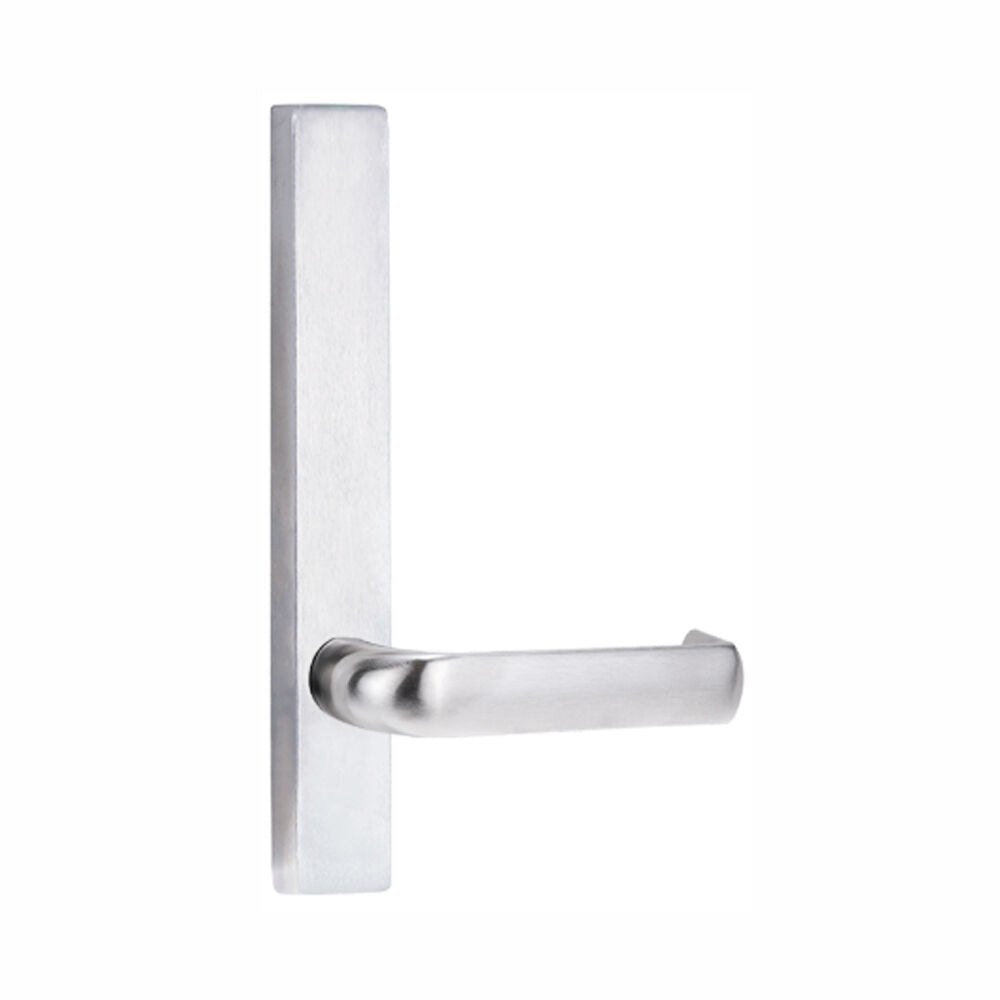

  • Chrome Plate

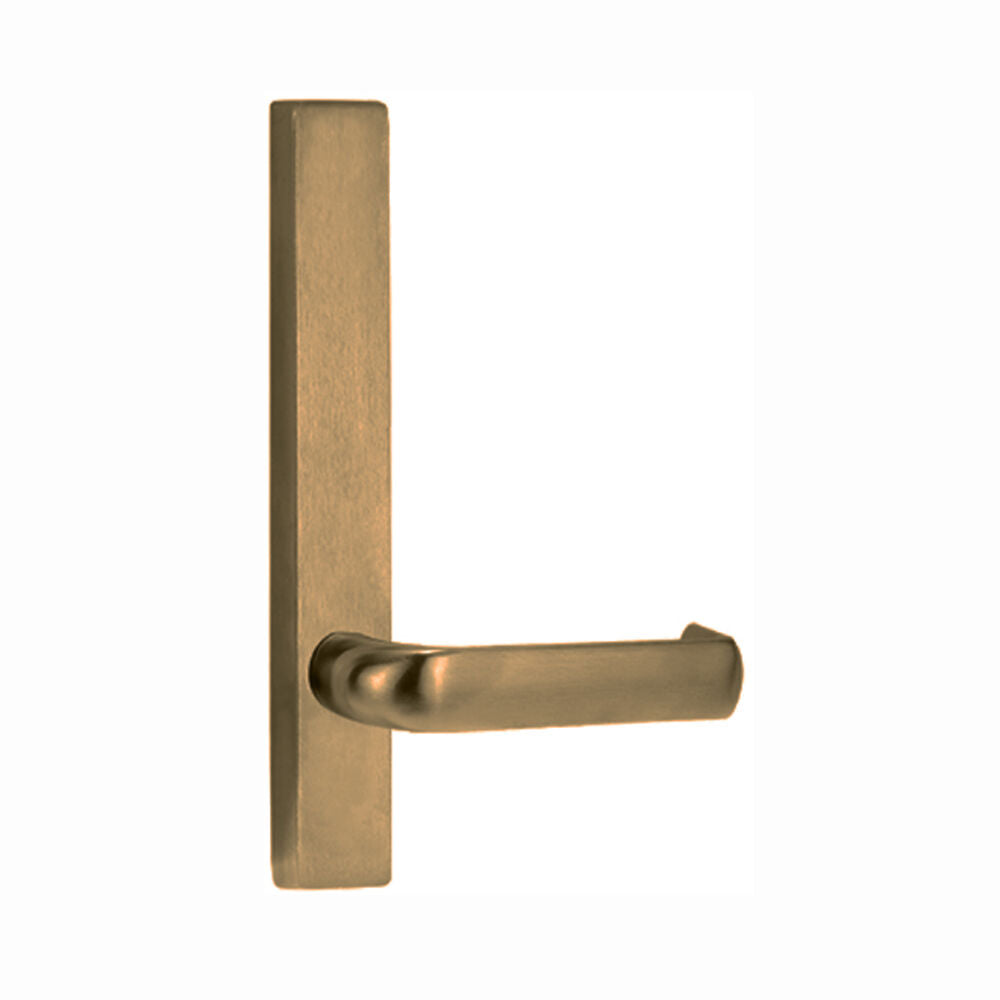

  • Oil Rubbed Bronze

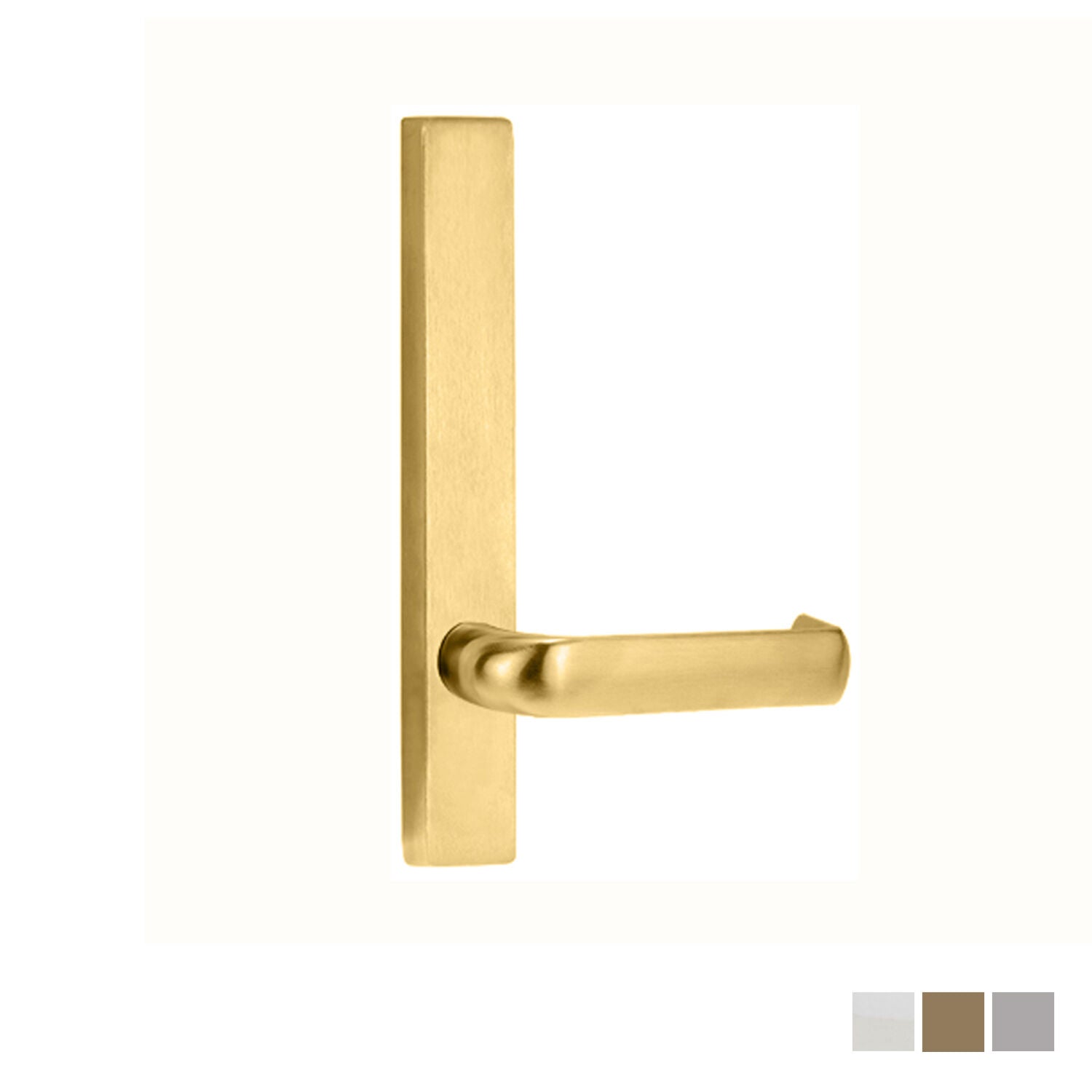

  • Satin Brass Unlacquered

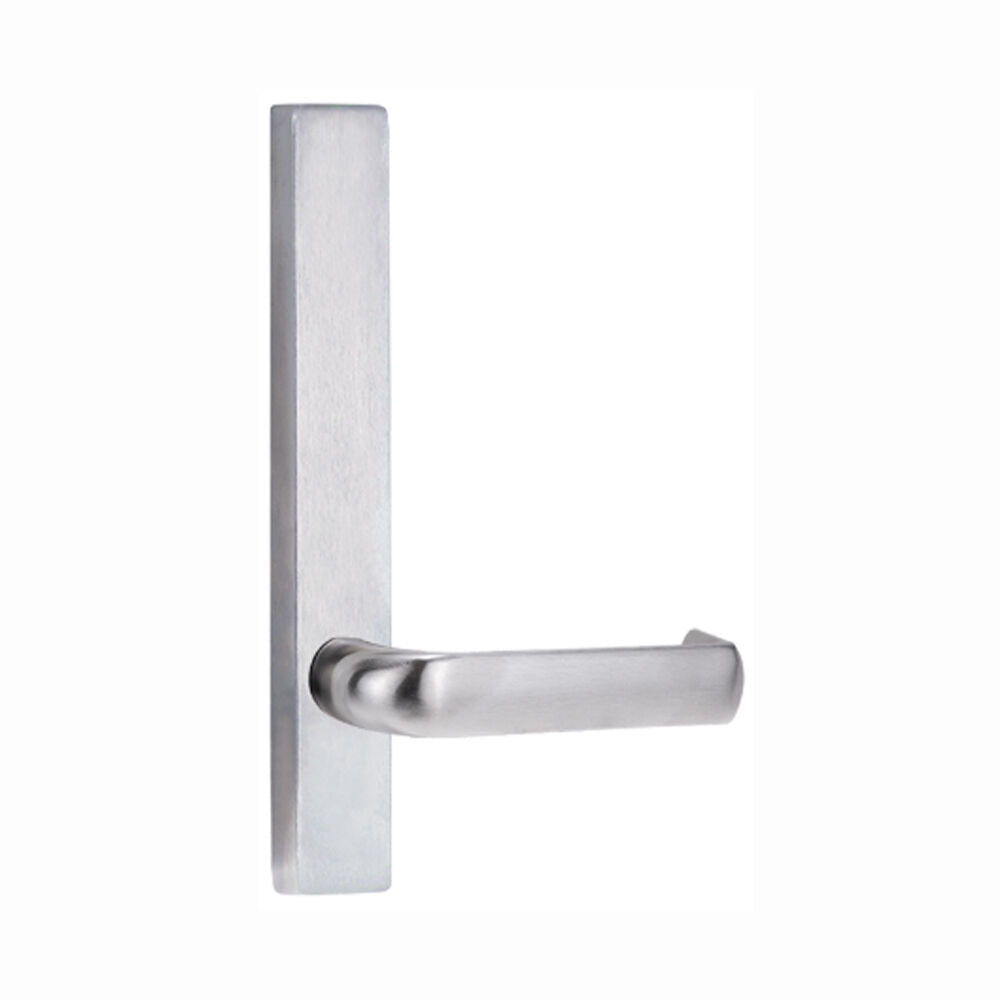

  • Satin Chrome

Note:

• When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.

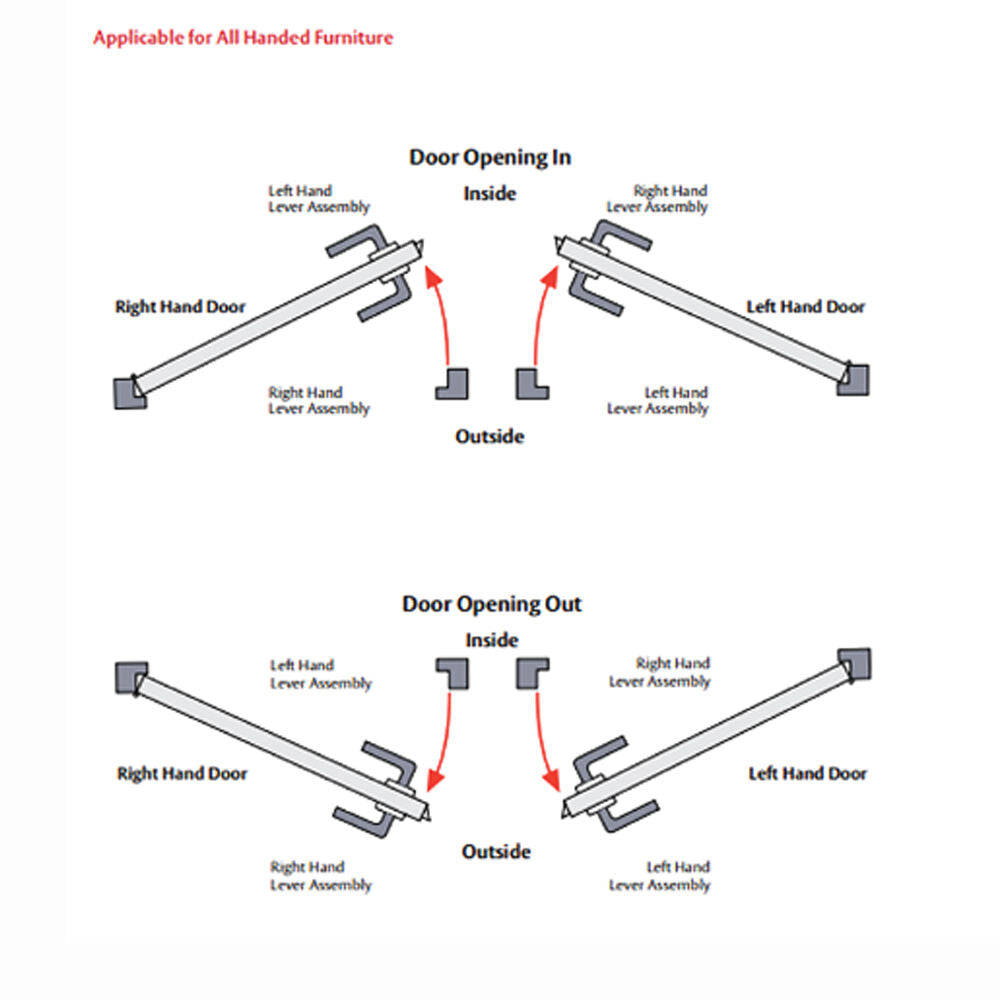

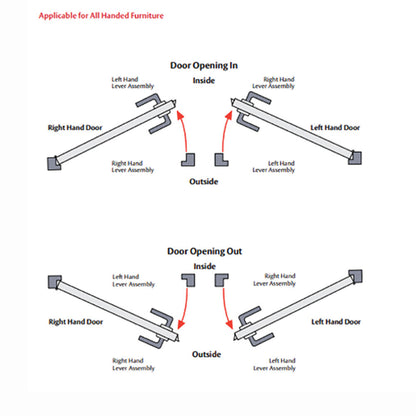

• Handing
  Symmetrical levers may be reversed by removing the stop screw.
• Fixing
  Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
