SKU: ASS1801101PB

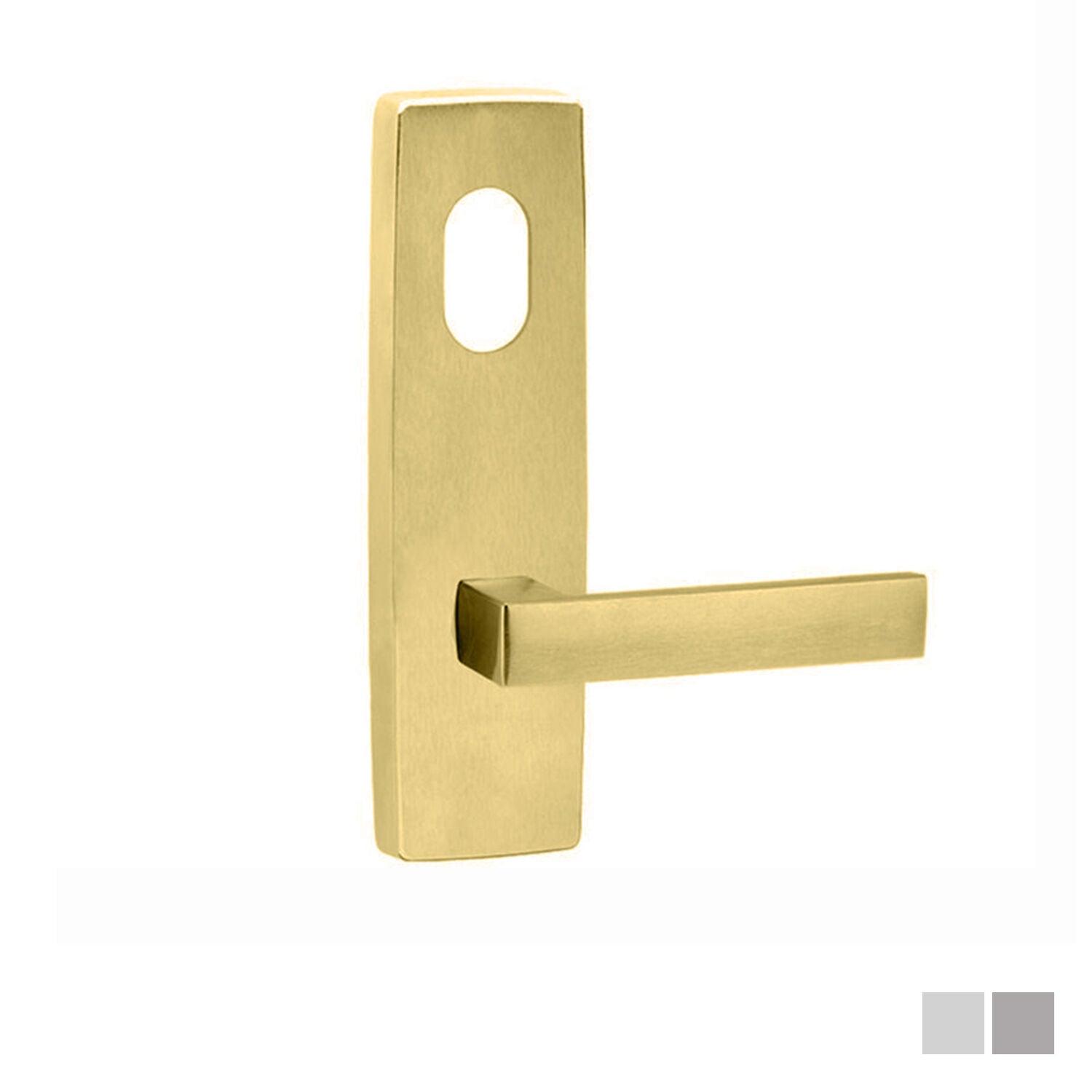

Lockwood Door Handle Square End Plate With Cylinder Hole & 101 Lever - Available in Various Finishes
RRP: $238.21
Payments accepted:
Couldn't load pickup availability
Lockwood Door Handle Square End Plate With Cylinder Hole & 101 Lever
1801
PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.
Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.
Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.
Features:
- Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.Tested to Australian Standard
- External plate with concealed fixing (screws included)
- Cylinder hole (cylinder not included)
- Supplied in trade pack
- Non-handed
Specification:
- Handle Type: Lever 101
- Cylinder Pitch: 64mm
- Fixing Centres: 148mm
-
Plate Dimensions
- Height: 166mm
- Width: 48mm
- Depth: 12mm
-
Lever Dimensions
- Length: 130mm
- Projection: 48.5mm
- Finger clearance: 40mm
-
Available Finishes:

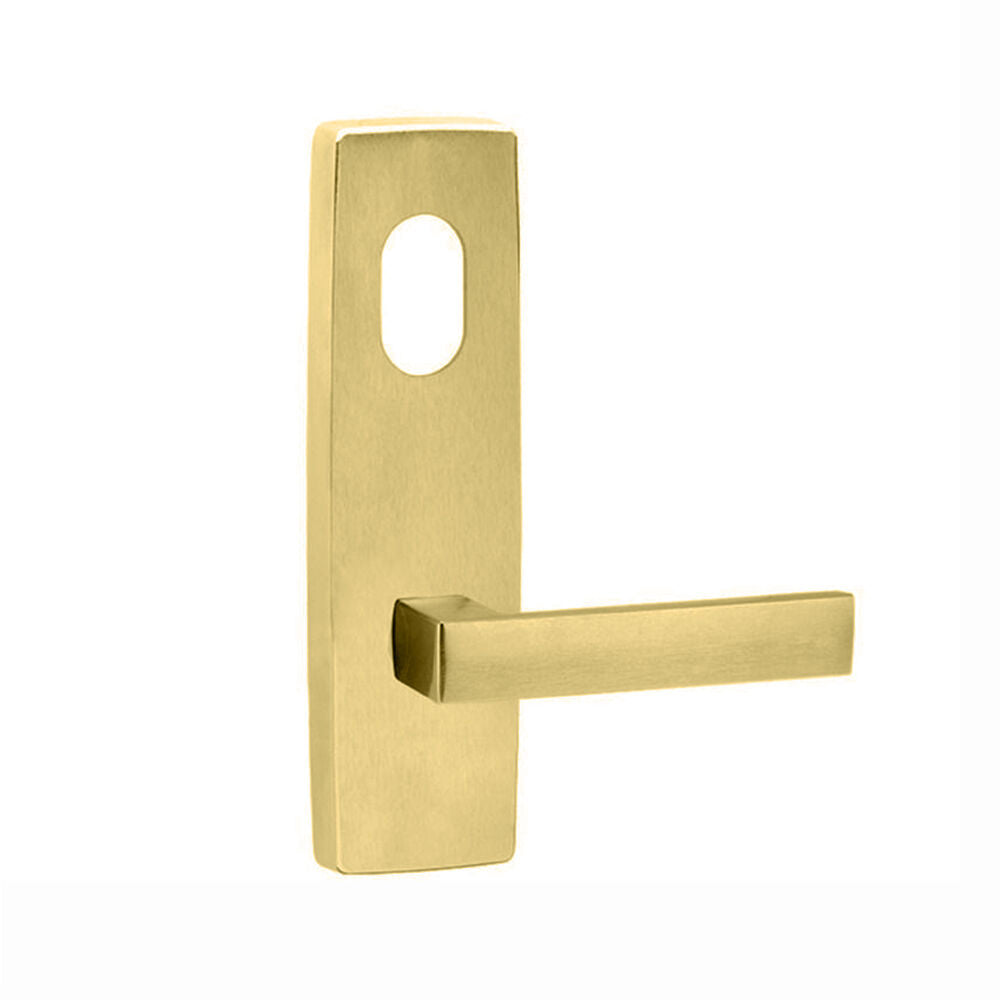

- Polished Brass
- Polyester Powdercoat

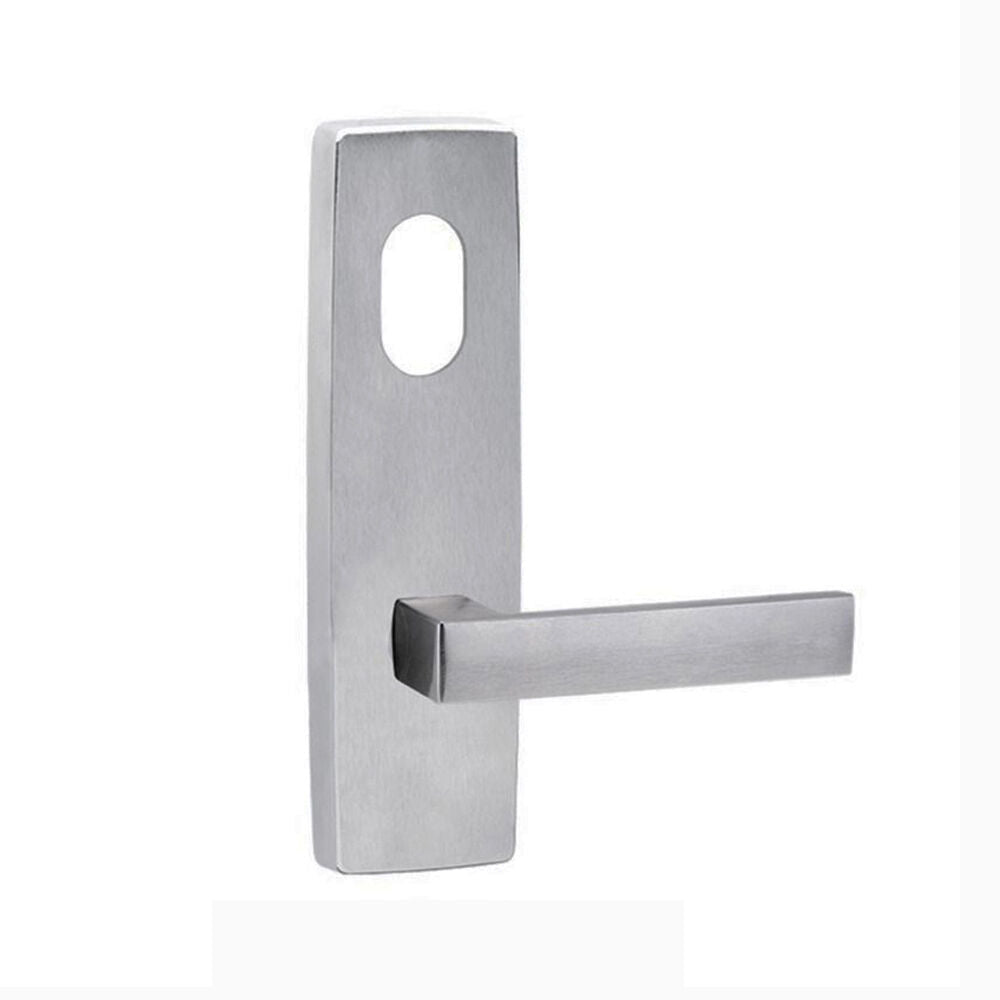

- Satin Chrome
Note:
- When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
-
Handing
Symmetrical levers may be reversed by removing the stop screw. -
Fixing
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
Lockwood Door Handle Square End Plate With Cylinder Hole & 101 Lever
1801/101PB
PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.
Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.
Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.
Features:
- Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.Tested to Australian Standard
- External plate with concealed fixing (screws included)
- Cylinder hole (cylinder not included)
- Supplied in trade pack
- Non-handed
Specification:
- Handle Type: Lever 101
- Cylinder Pitch: 64mm
- Fixing Centres: 148mm
- Finish: Polished Brass
- Plate Dimensions
- Height: 166mm
- Width: 48mm
- Depth: 12mm
- Lever Dimensions
- Length: 130mm
- Projection: 48.5mm
- Finger clearance: 40mm
Note:
- When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
- Handing
Symmetrical levers may be reversed by removing the stop screw. - Fixing
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
