SKU: ASS1904133SC
Lockwood Door Handle Square End Plate With Turn & 133 Lever Satin Chrome 1904/133SC
RRP: $221.70
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

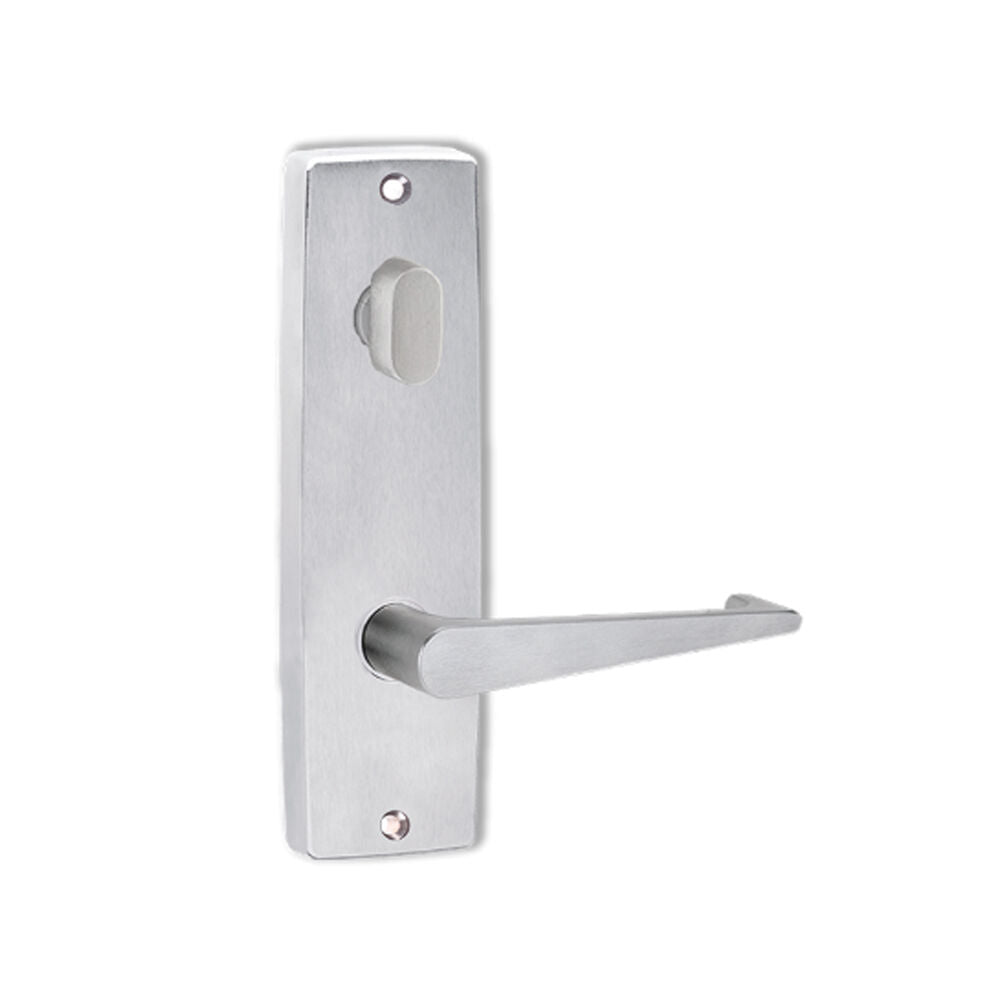

Lockwood Door Handle Square End Plate With Turn
1904/133SC
PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

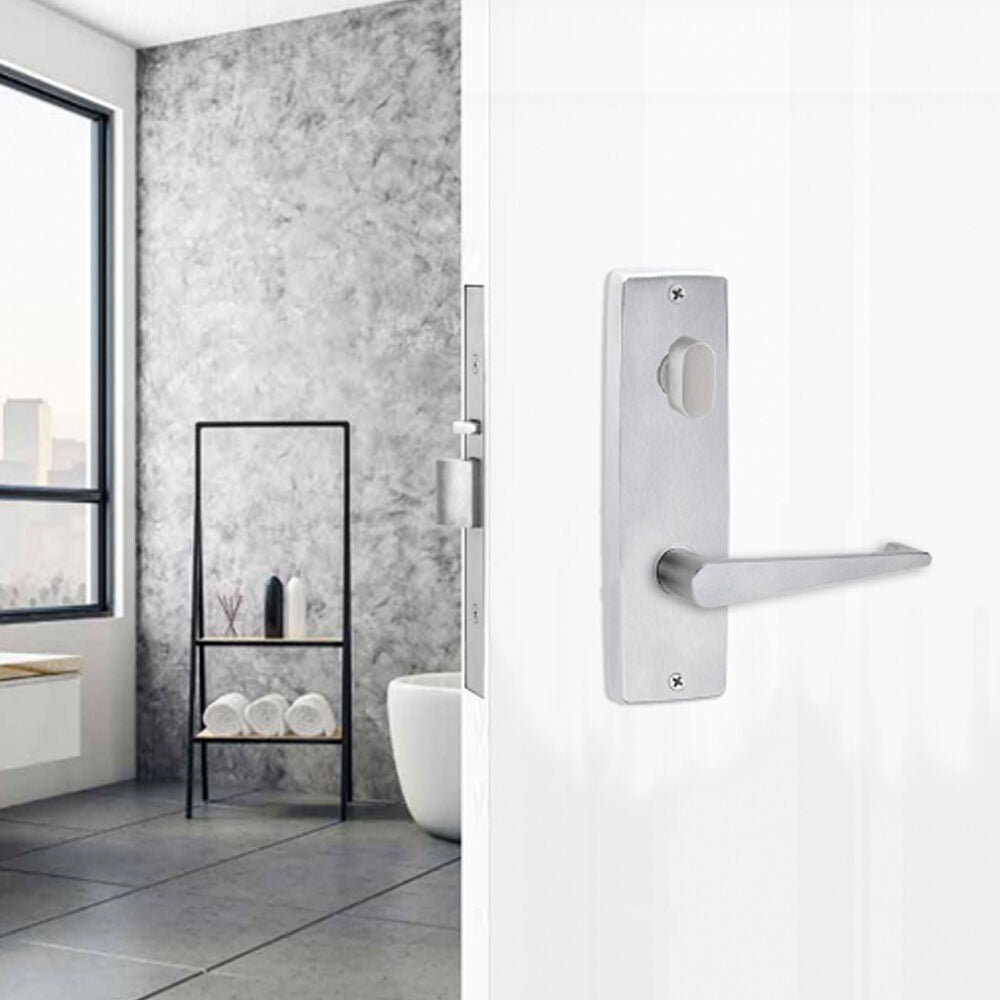

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings
Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping
The 1800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.
Features:
- Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.
- Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.
- The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture.
- Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
- The fine lines and elegant design of the Lockwood Lever 123 creates a simplicity which allows the rose to feature.
- Internal plate with visible fixings (screws not included)
- Oval turn
- Non-handed
- Supplied in trade pack
Specifications:
- Handle Type: Lever 133
- Plate Type: Square End
- Door Thickness: 32mm - 45mm
- Screw Fixing Centres: 148mm
- Cylinder Pitch: 64mm
-

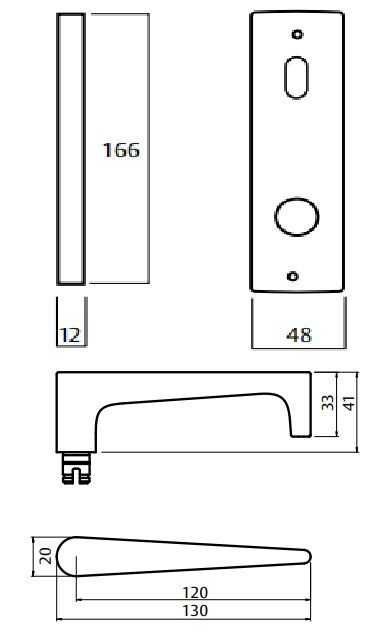

Plate Dimensions
- Height: 166mm
- Width: 48mm
- Depth: 12mm
-
Lever Dimensions
- Length: 130mm
- Projection: 53.5mm
- Finger clearance: 40mm
- Finish: Satin Chrome
Note:
- When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
-
Handing
Symmetrical levers may be reversed by removing the stop screw. -
Fixing
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
