SKU: ASS5570ELN0SC

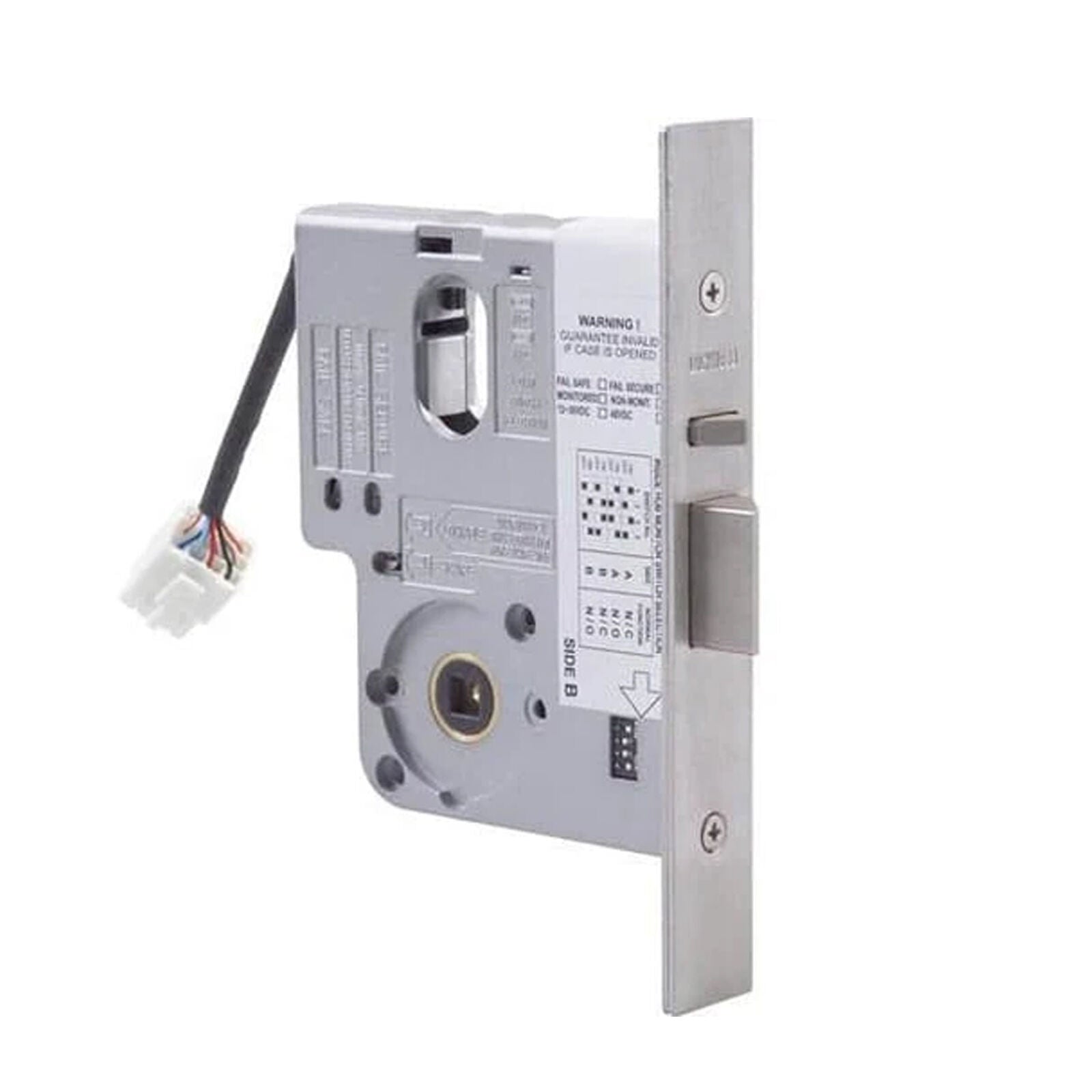

Lockwood Electric Mortice Lock 5570 Primary Lock 127mm Backset Non Monitored No Cylinder 5570ELN0SC
RRP: $1,113.22
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Lockwood Electric Mortice Lock 5570 Primary Lock Non Monitored No Cylinder
5570ELN0SC
Mortice Lock is commonly used in doors. It is known for its durability, security, and classic design. It consist of several components that work together to provide effective locking and unlocking functions.
Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted.
Includes:
- 1 x Lockwood 5570ELM0SC Electric Mortice Lock (Monitored)
- Stainless steel latch bolt and faceplate
- Comprehensive installation hardware
- User manual
Features:
- Premium Construction: The lock is made from high-grade zinc alloy, complemented by a stainless steel latch bolt and faceplate, providing exceptional durability and security.
- Flexible Operation: Operable via push buttons, intercom systems, or key switches, this lock can be seamlessly integrated into existing electronic access control systems for enhanced security. Compatible with higher security devices, including keypads and card readers.
- Versatile Functionality: The design allows for easy on-site configuration, accommodating a variety of applications and user needs.
-
Monitoring Features:
- Dead latched and locked door position monitoring with a reed switch.
- Dual key override monitoring for added security and flexibility.
- Request to exit (REX) functionality with LED indication for user-friendly access.
-
Field Changeable Settings:
- Fail safe/fail secure configuration options.
- Multi-voltage operation (12-24 Vdc) for compatibility with diverse systems.
- Adjustable handing for both left-hand and right-hand doors.
- Options for free lever or locked lever on both sides of the door.
- Key override monitoring available from either side.
- Monitoring Contacts: Available in normally closed and normally open configurations, ensuring adaptability to various security setups.
Specification:
- Material: High-grade zinc alloy, Stainless Steel
- Door Thickness: 32mm to 50mm
- Backset: 127mm
- Finish: Satin Chrome
Standards and Compliance:
- Security Standards: Complies with S3 (Security) and D3 (Durability) Australian Lock Standards (AS4145.2.1993) when used with an equivalent security level keying system.
- Fire Rating: Successfully fire-rated for up to 4 hours on fire door assemblies, adhering to AS1905.1:2005 (Part 1: Fire Resistant Door Sets).
- Certifications: C-Tick Certified and SCEC endorsed for intruder-resistant areas (3570 Series) and secure areas (3579 Series).
