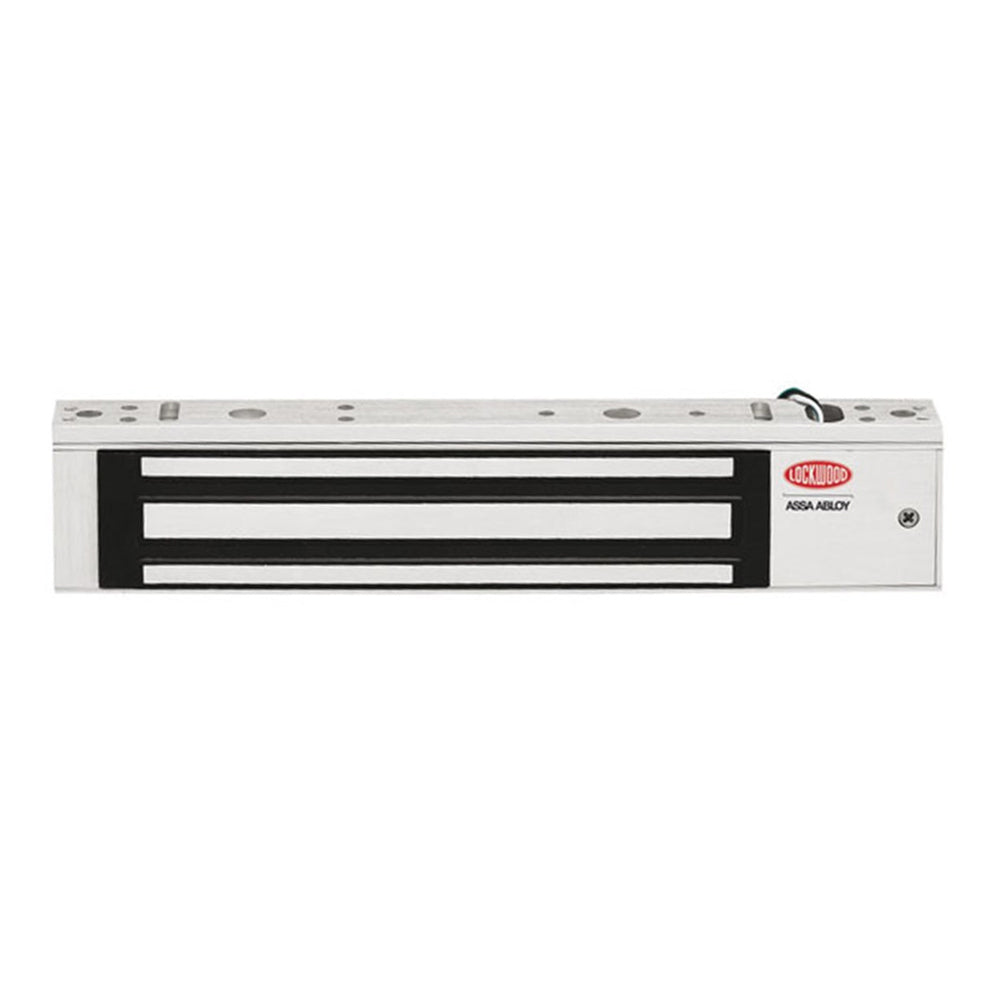

Lockwood EMZ4 280Kg Single Electro Magnetic Lock Fully Monitored Satin Chrome EMZ4-SM

Lockwood EMZ4 Single Electro Magnetic Lock
EMZ4SM

Electromagnetic locks is commonly used for secure access control in commercial, institutional, and industrial environments like offices, airports, hospitals, schools, banks, and data centers.

Electromagnetic Lock Function - by using electromagnetic force to secure a door or gate when energized, providing a strong and reliable locking mechanism for access control applications.

Features:

• Easy installation: suitable for both new and retrofit usage
• Self-alignment: armature plate pivots to accommodate door drop
• Instantaneous release: smart electronics on the Z Series Electromagnets eliminate residual magnetism

Monitoring:

• Hall/Bond Monitoring - This indicates that the lock is powered and that the armature plate is in position and magnetically bonded (it monitors if the magnet is locked)
• Reed Switch Monitoring - An integrated reed switch monitors the door position separately (it monitors the position of the door)

Applications:

• Aluminium doors
• Glass doors
• IT Storage rooms
• Access control
• Surface mount for inswing and outswing doors

Specifications:

• Current: 450 mA @ 12 Vdc, 225 mA @ 24 Vdc
• Holding Strength: 280 Kg.
• Working Voltage: 12/24 Vdc
• Single Or Double Door Maglock: Single
• Monitoring: Monitored
• Fail-safe: Unlocks when power is removed
• Silent Operation: No humming or buzzing
• Finish: Satin Chrome

Standards and Compliance:

• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
• CE Approved
• C-Tick Certified
