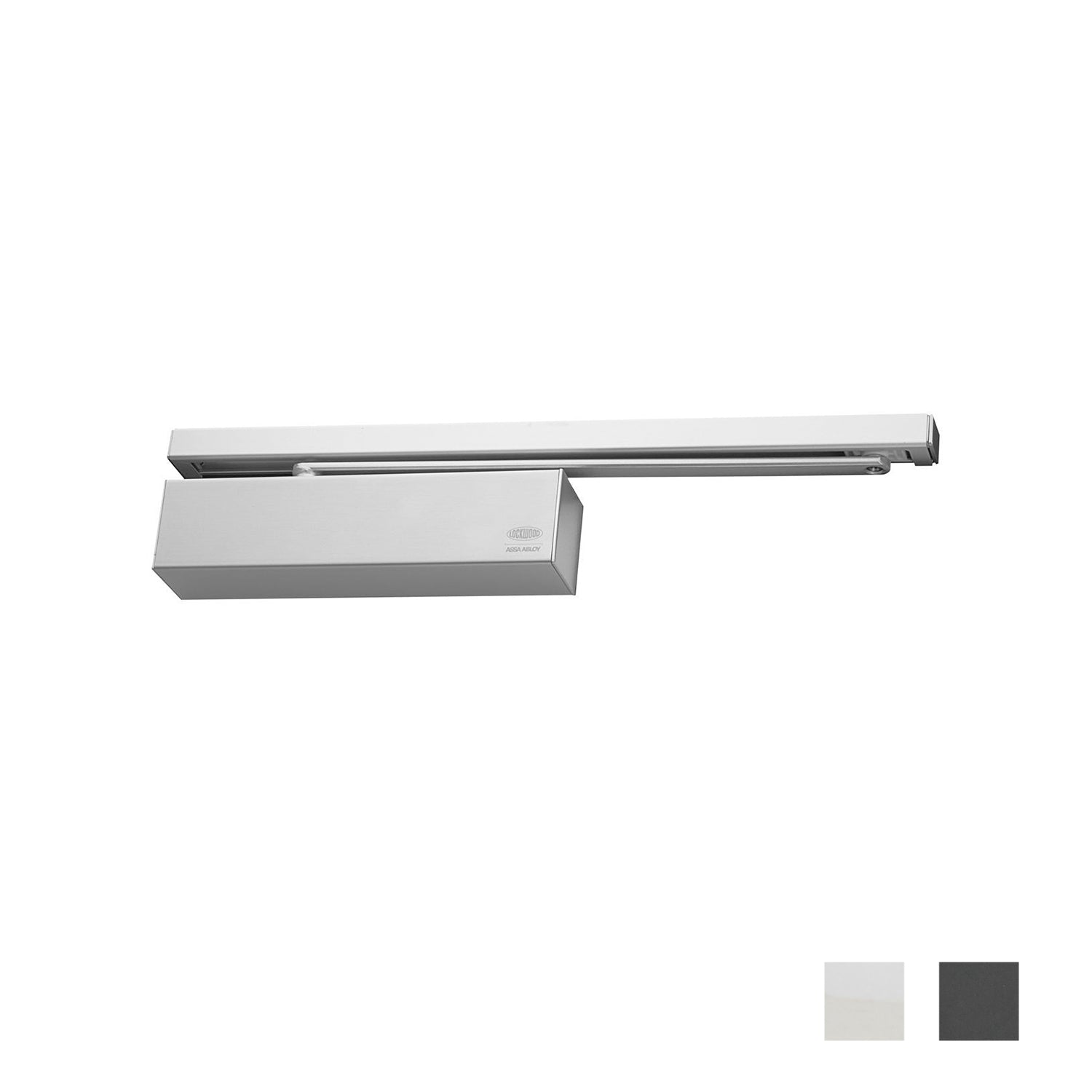

Lockwood EN1-6 Cam Action Door Closer - Available in Various Finishes

Lockwood 2616DA Cam Action Door Closer

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a prevention measure, typically installed on doors, as well as helping to prevent draughts.

Features:

• Premium, high quality door closing device. When opening a door fitted with a Lockwood 2616 CAM Action Door Closer, the force required is less than that of a rack and pinion type door loser and continues to decrease through the opening arc
• Aesthetically appealing, narrow profile CAM Action Door Closer is suited for public and commercial applications where children, the elderly and the disabled are likely to be using the door
• Light to open, but its adjustable closing force is high enough for heavy duty applications. One model (2616) covers right hand and left hand applications, pull side/ push side applications and also features an adjustable arm height

Specifications:

• Power: EN adjustable 1 to 6
• Back Check: Adjustable
• Handing: Non-handed, Suitable for left or right hand doors
• Cover: Formed metal cover
• Materials: Cast aluminium body manufactured from high-performance silicon alloy
• Mechanism: CAM action
• Mounting: Pull side, push side and over-door mounting
• Valves: Two pressure relief valves are a standard feature to protect against abuse
• Delayed Action: Adjustable
• Closing Speed: Adjustable
• Latching Speed: Adjustable
• Available Finish:

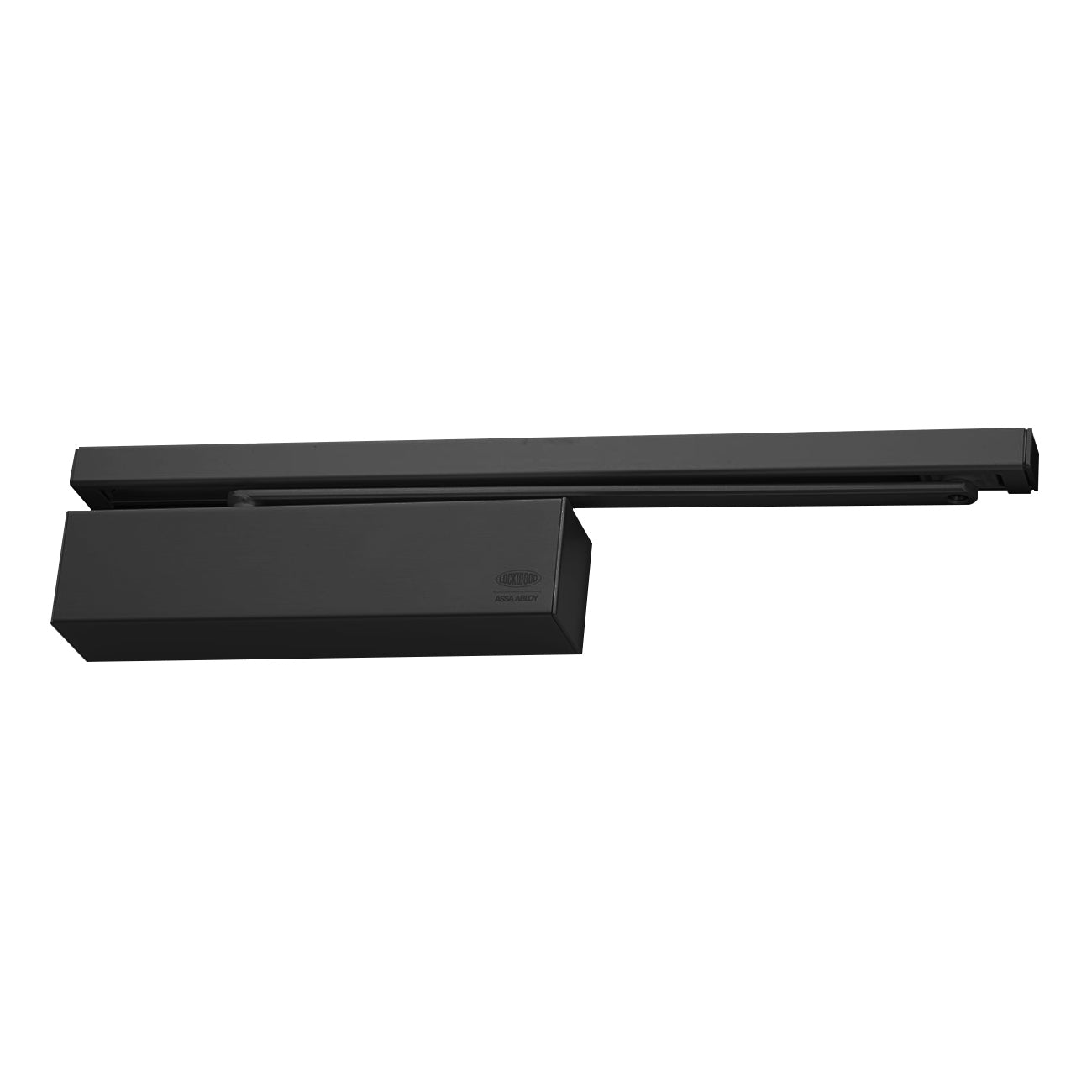

  • Black

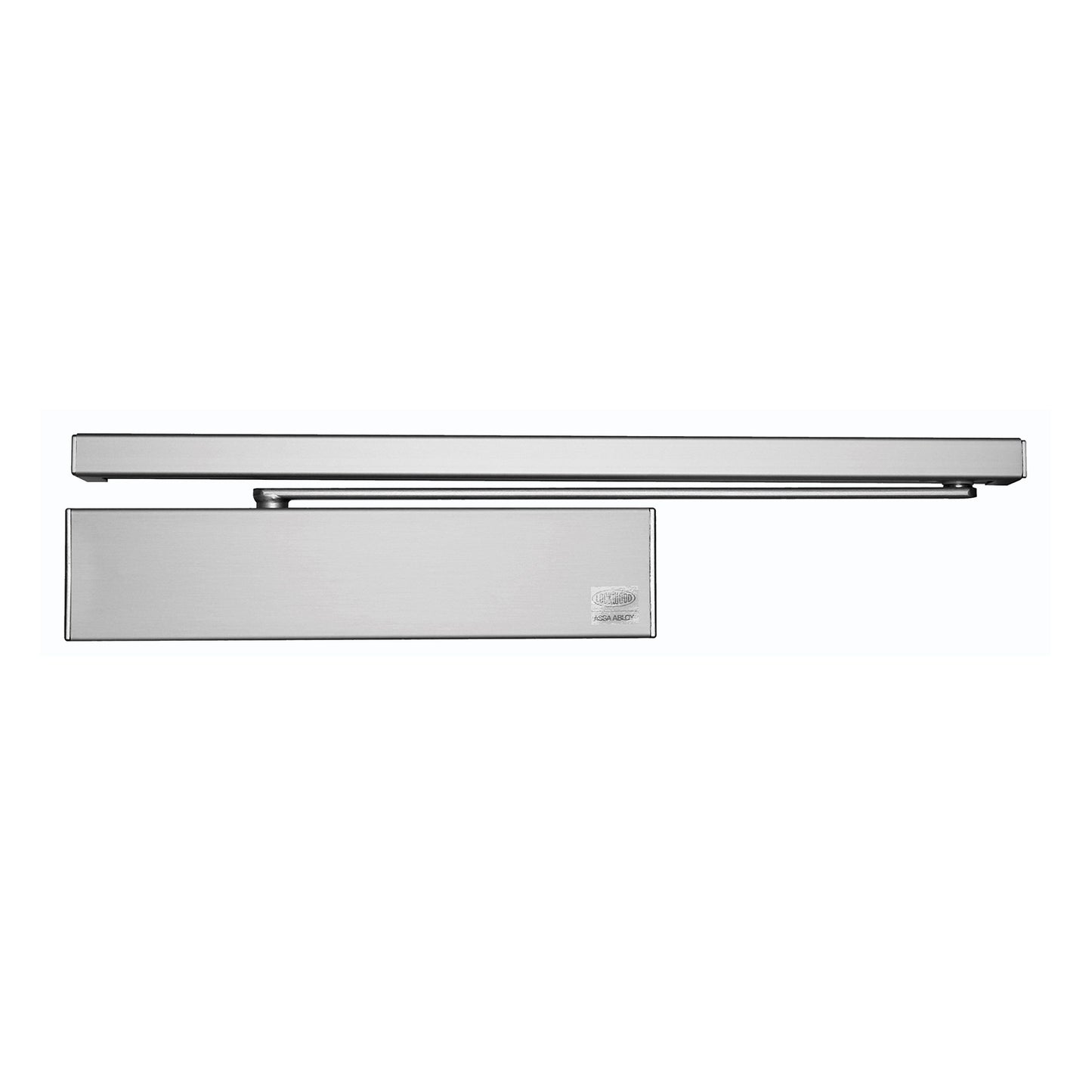

  • Satin Stainless Steel

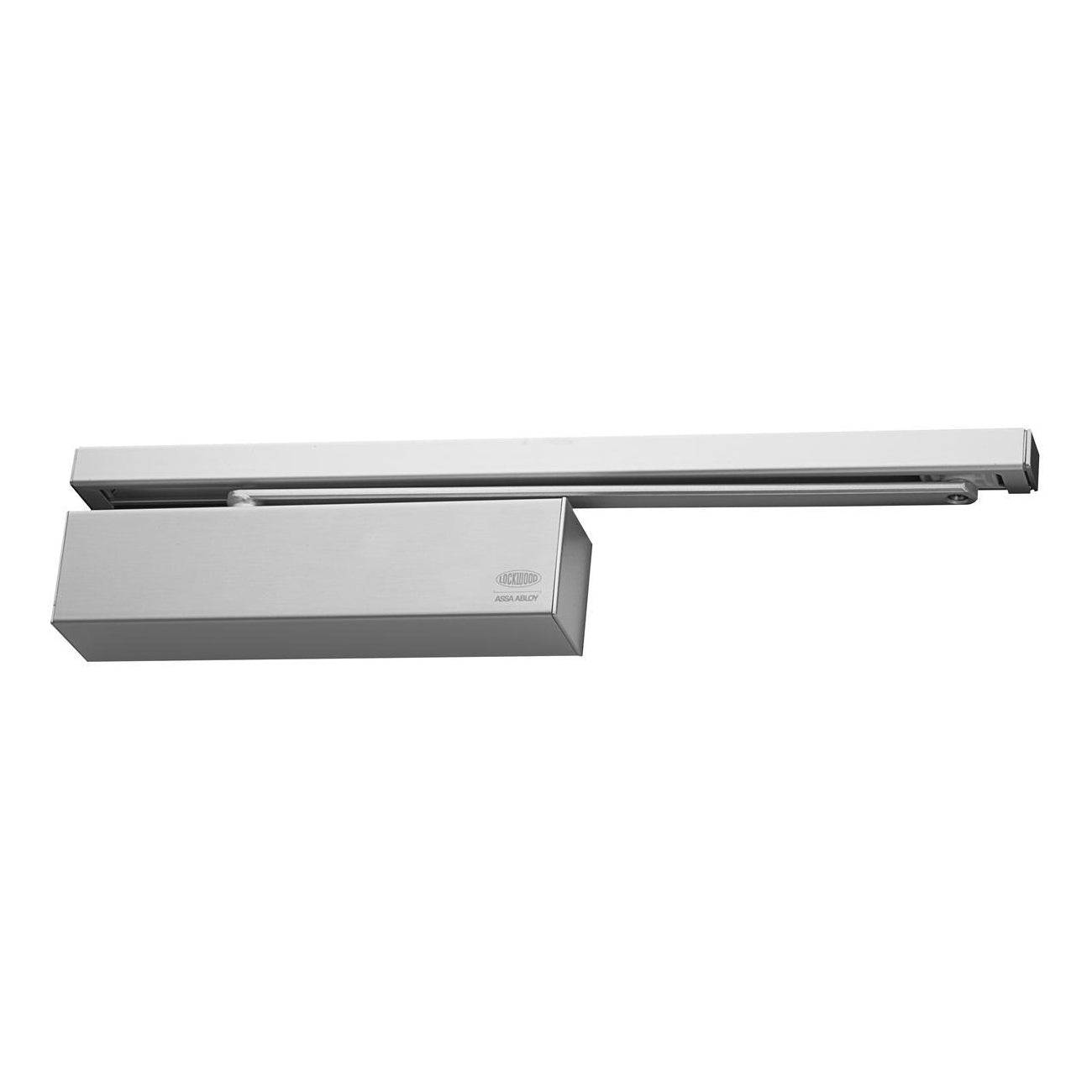

  • Silver

Standards and Compliance:

• Disabled Access Australian Standard (AS1428.1) Design for access and mobility.

Note: Hold open option is not approved on any fire door.
