Lockwood Fast Fix Timber and Aluminium Hinge - Available in Various Finishes

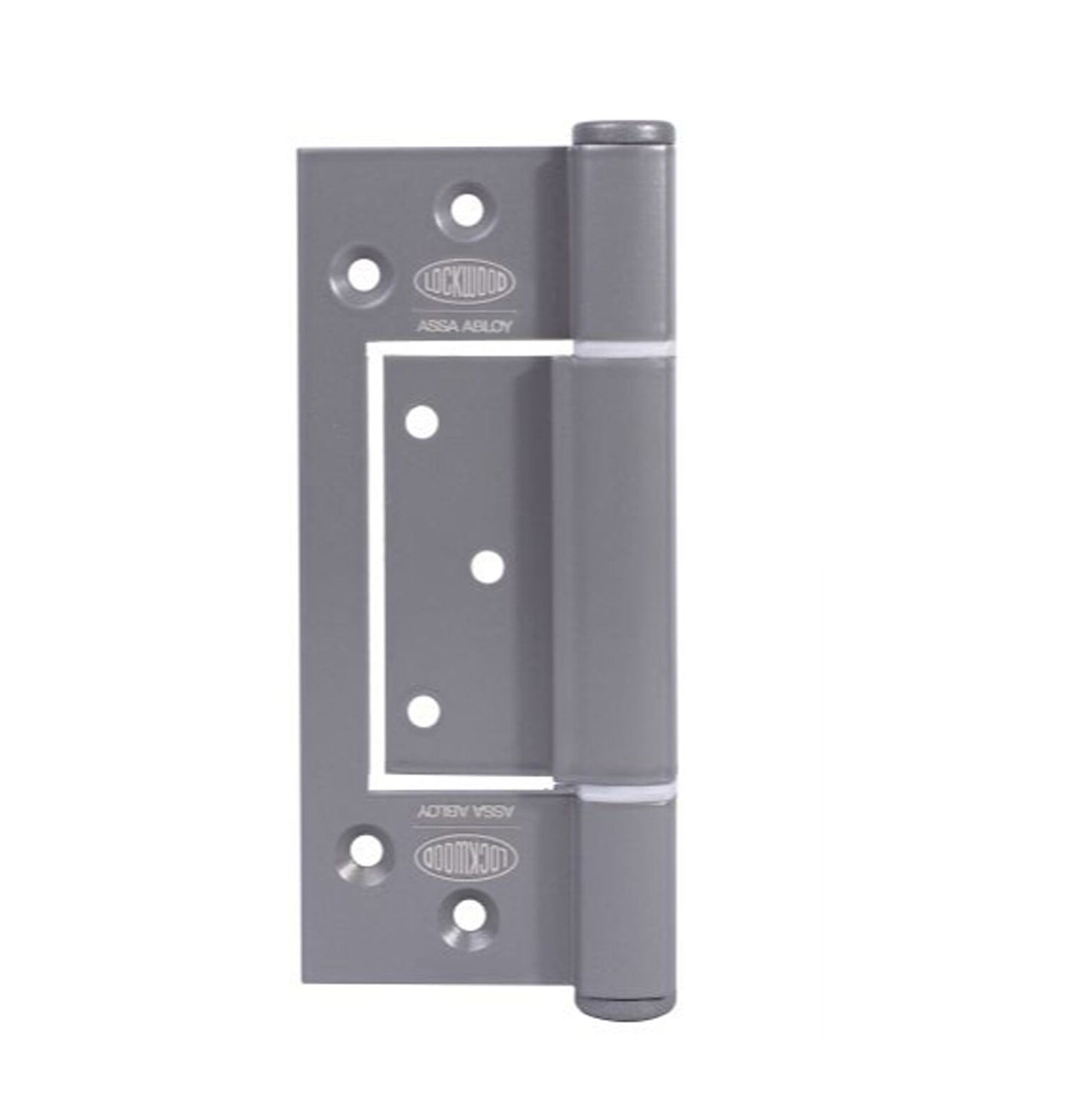

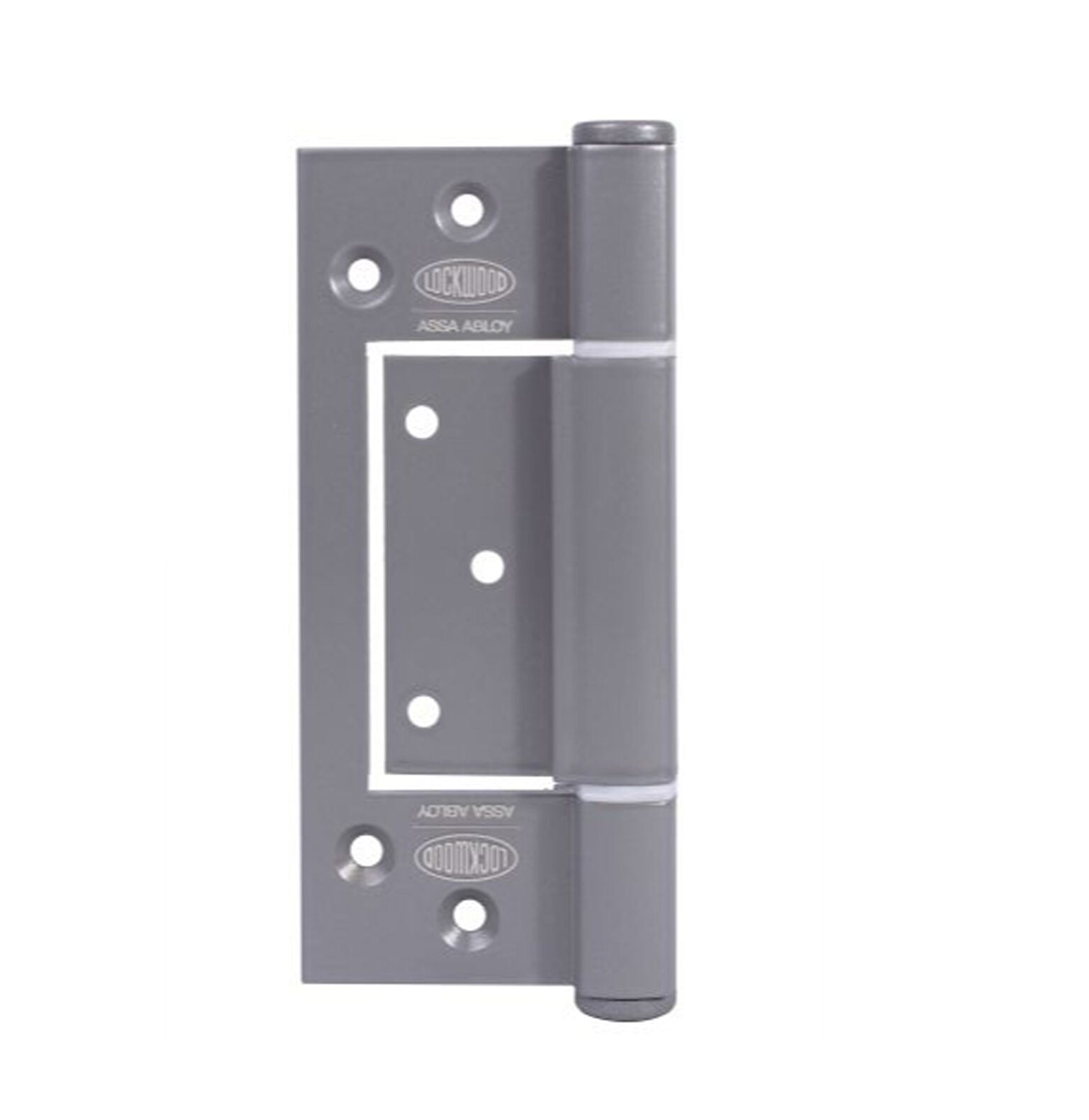

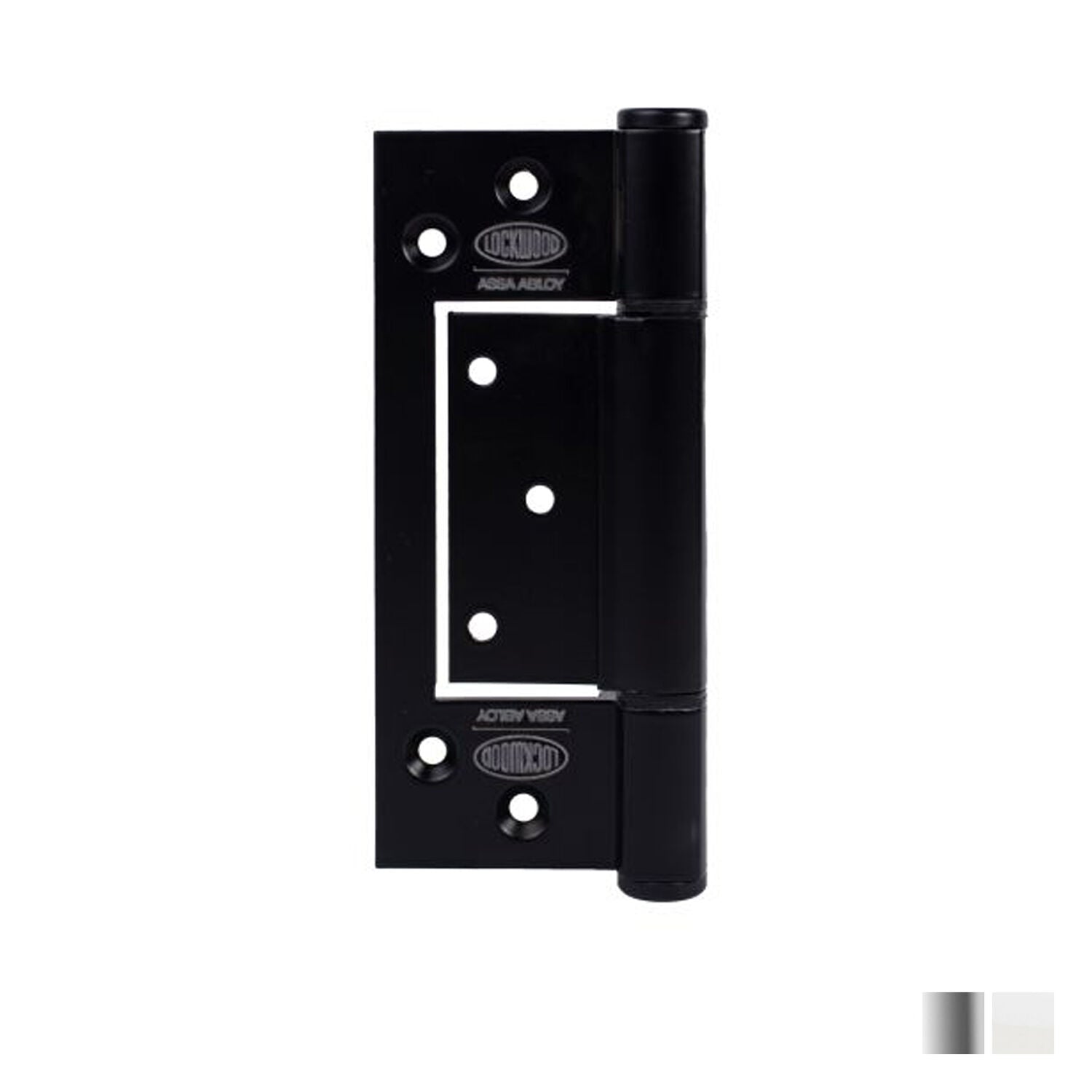

Lockwood Fast Fix Timber and Aluminium Hinge

Door Hinge - enable doors to function properly by allowing controlled movement while ensuring stability and ease of operation.

Door Hinge Function - is a mechanical device that allows a door to swing open and closed. Its primary function is to provide a pivot point for the door, enabling it to rotate smoothly along a fixed axis

Features:

• The Lockwood AH130 is a heavy duty fast fix hinge with face fix flanges to suit aluminium commercial door applications
• Heavy duty, bi-directional face fix locator flanges allows for faster installation
• Nylon bushes
• Squareline heavy duty knuckles
• Interference pressed fit aluminium end caps

Specifications:

• Minimum Door Thickness: 40mm
• Height: 130mm
• Width: 50mm
• Hinge Material: 6063-T6 alloy
• Hinge Pin: 6mm 304 grade Stainless Steel
• Installation Guide
  • Up to 2100 high x 900 x 100kg– 3 hinges
  • Up to 2400 high x 900 x 100kg– 4 hinges
• Supplied with:
  • 7 of 10G x 12mm, 304SS undercut countersunk self tapping (AB) Phillip drive screws
  • 3 of 10G x 32mm, 304SS undercut countersunk self tapping (AB) Phillip drive screws
• Available Finish:

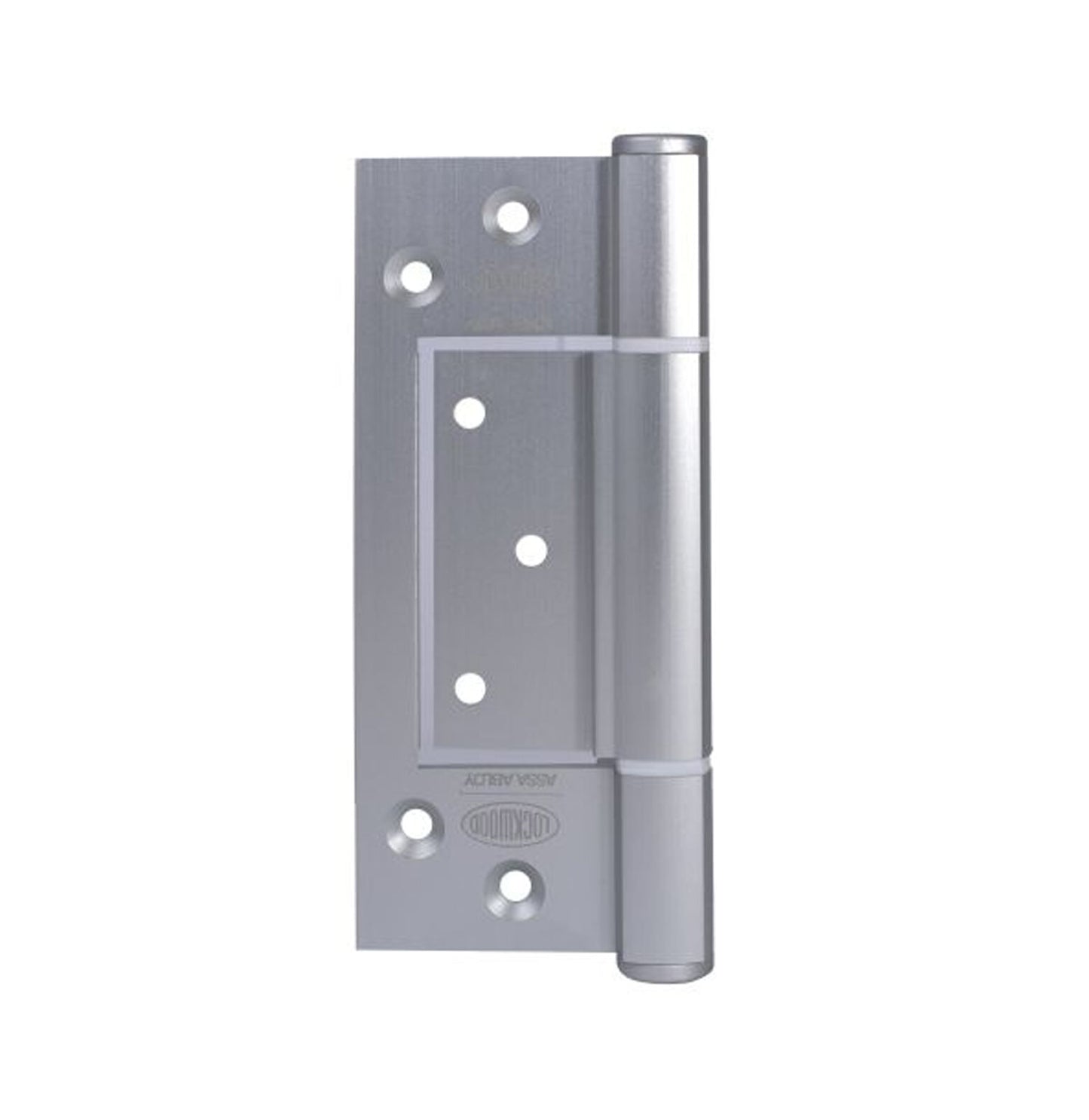

  • Clear Anodised

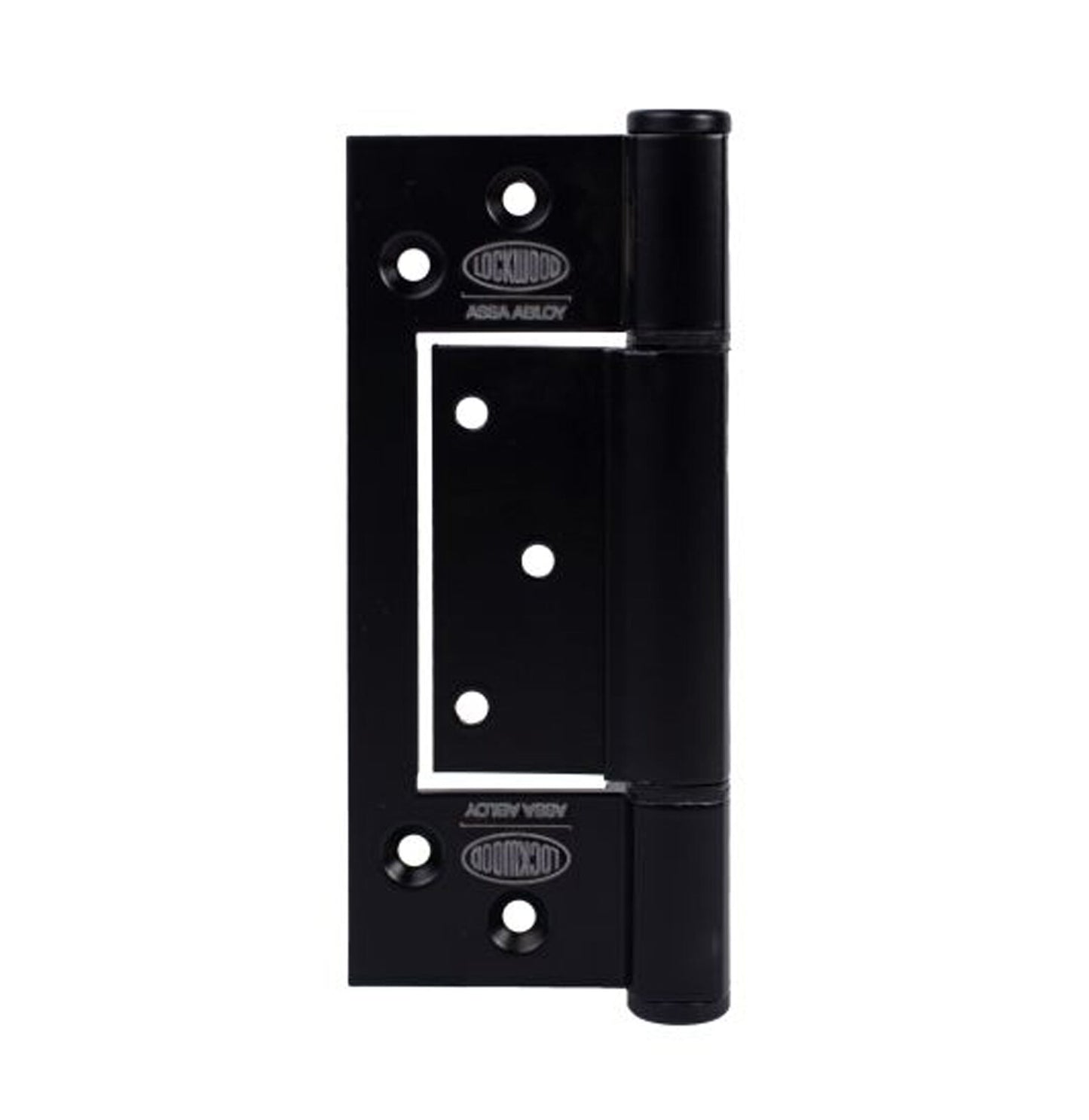

  • Matt Black
  • Silver
