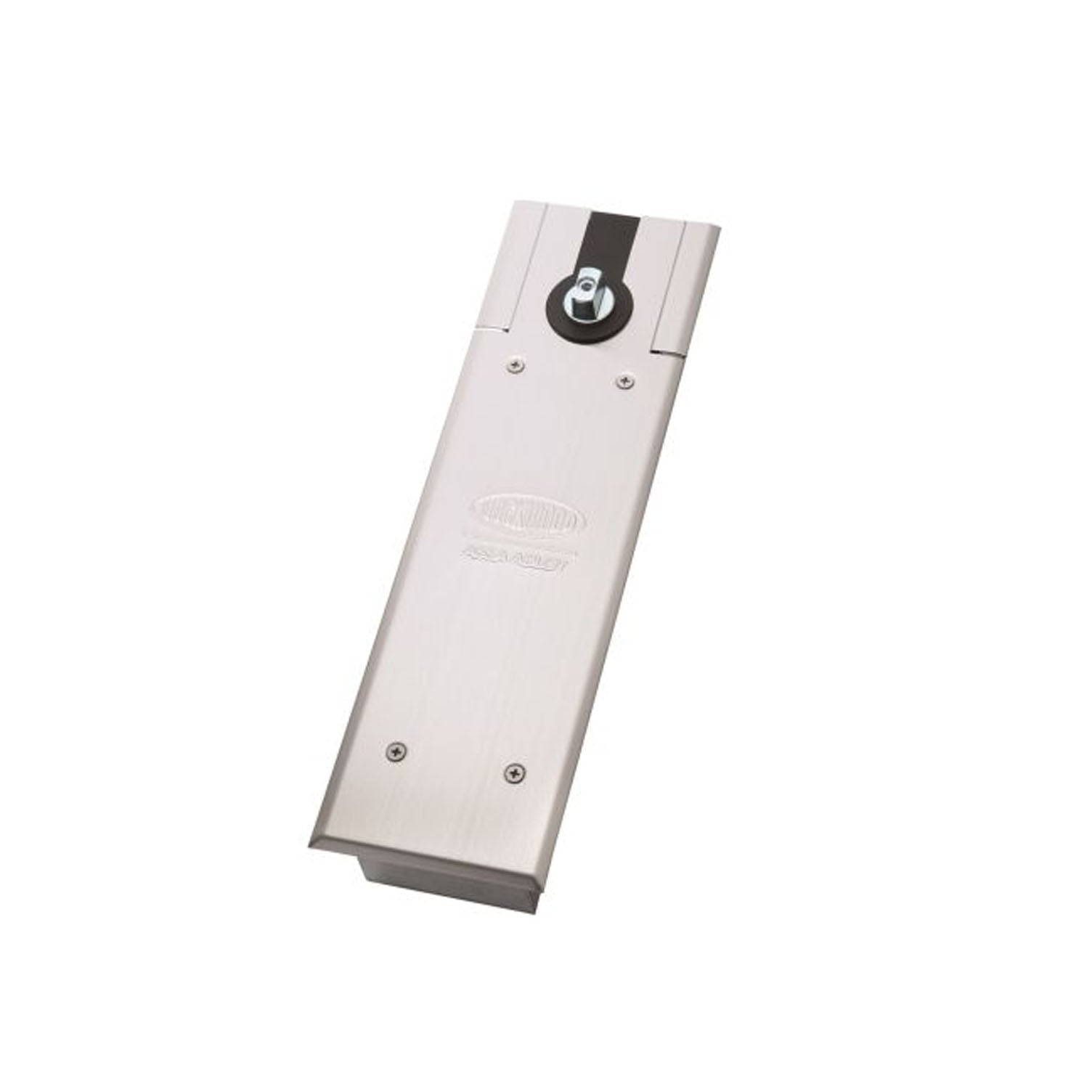

Lockwood HD Floorspring 300Kg with Adjustable Hold Open Satin Stainless Steel ST8011SSS

Lockwood HD Floorspring
ST8011SSS

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 5 business days after payment is made.

Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting. Mostly used where both pull and push movement is required. Floor springs are used is in Interior doors of a Business park, Malls, Hospital building.

Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position, activates the closer and it also commences the closing action of the door.

Features:

• The Lockwood ST8011SSS double action floor closer has been specifically designed to meet the exacting requirements of double or single action pivoted doors with a door leaf weight up to 300kgs
• Innovative design enables onsite flexibility over a wide range of applications. Designed and manufactured to world class standards which enables the highest possible quality, efficient and reliable performance.
• Multi functional designs offer the specifier, stockist or the installer outstanding versatility and low inventory levels.
• Three thermodynamic valves for consistent performance
• Built in pressure relief valve
• Cement box hot zinc plated steel
• Universal cover plate

Specifications:

• EN Size: 3 to 6
• Closing: 175deg to 15deg
• Latching speed: 15deg tp 0deg
• Hold Open: By setting the HO valve the door can be set to hold open the door at any angle from 85deg to 170deg opening, to release door manually pull door closed.
• Delayed Action: Adjusting this valve controls the closing time of the door between 170deg to 85deg
• Back Check: The integrated mechanical back check
• Material: Cast iron body
• Finish: Stainless Steel
