SKU: ASSLW7230SA10

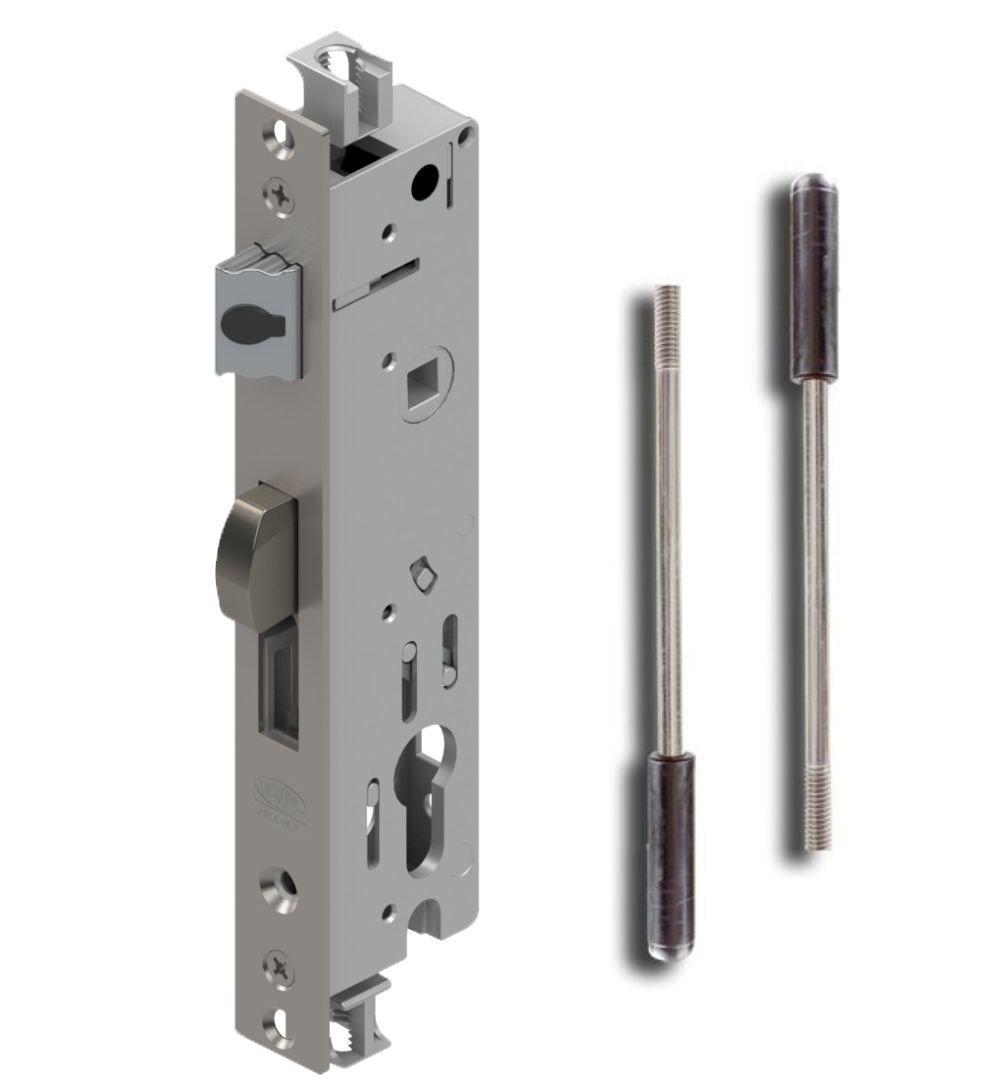

Lockwood Induro 4 Point 30mm Short Throw Satin Stainless Steel LW7230S/A10
RRP: $258.66
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Lockwood Induro 4 Point
LW7230S/A10
PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 17 business days after payment is made.
Mortice Lock is commonly used in doors. It is known for its durability, security, and classic design. It consist of several components that work together to provide effective locking and unlocking functions.
Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted.
Features:
- The Induro 4-point hinged door mortice lock offers a new and improved locking system with added security and sealing compression for increased thermal efficiency.
- With four points of locking, there is increased security compared to a 2-point lock, but with the new Induro 4-point, security has also been increased above any of the 4-point lock predecessors.
- The lift-bolt operation also improves sealing compared to a conventional projection bolt by compression of the door against the stile.
- The Lockwood Induro replaces the Optimum Mortice Lock, with upgraded features and specifications, but maintaining the same installation footprint and methods*, making it an easy change for current Optimum customers and a suitable retrofit replacement for Optimum, LCL and Millton locks.
- Same door-side installation. Strikes and door jamb cut-outs may differ to Optimum due to Lift-bolt compared to previous projection bolt.
- Four points of locking including the latch, lift-bolt and shootbolts/remotes
- When used with the correct strike the lock generates optimum seal compression to provide improved water and air seal performance, especially for large panel doors
- Upgraded furniture option (Palladium (Xtra) Snib) comes with safety snib for home security, enabling easy exit if required
- Sequencing of locking points can be in any order (can be locked with or without shootbolts thrown)
- Easily reversible latch enables field selectable handing
- Durable mechanism and stainless-steel faceplate
- Latch can be deadlocked by key
- A range of strikes are available to provide optimal seal compression (strikes must be ordered separately)
- Achieves Australian Standards AS 4145.2-2008
- Faceplate Supplied
Specifications
- Accepts either: 7.6mm or 8mm spindle
- Backset: 30mm
- Short throw: 13mm deadbolt projection)
- Long throw: (23mm deadbolt projection
- Door thickness: 32mm to 45mm
- Finish: Satin Stainless Steel
Lockwood Induro 4 Point 30mm Short Throw
LW7230S/A10
PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 5 business days after payment is made.
Mortice Lock is commonly used in doors. It is known for its durability, security, and classic design. It consist of several components that work together to provide effective locking and unlocking functions.
Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted.
Features:
- The Induro 4-point hinged door mortice lock offers a new and improved locking system with added security and sealing compression for increased thermal efficiency.
- With four points of locking, there is increased security compared to a 2-point lock, but with the new Induro 4-point, security has also been increased above any of the 4-point lock predecessors.
- The lift-bolt operation also improves sealing compared to a conventional projection bolt by compression of the door against the stile.
- The Lockwood Induro replaces the Optimum Mortice Lock, with upgraded features and specifications, but maintaining the same installation footprint and methods*, making it an easy change for current Optimum customers and a suitable retrofit replacement for Optimum, LCL and Millton locks.
- Same door-side installation. Strikes and door jamb cut-outs may differ to Optimum due to Lift-bolt compared to previous projection bolt.
- Four points of locking including the latch, lift-bolt and shootbolts/remotes
- When used with the correct strike the lock generates optimum seal compression to provide improved water and air seal performance, especially for large panel doors
- Upgraded furniture option (Palladium (Xtra) Snib) comes with safety snib for home security, enabling easy exit if required
- Sequencing of locking points can be in any order (can be locked with or without shootbolts thrown)
- Easily reversible latch enables field selectable handing
- Durable mechanism and stainless-steel faceplate
- Latch can be deadlocked by key
- A range of strikes are available to provide optimal seal compression (strikes must be ordered separately)
- Achieves Australian Standards AS 4145.2-2008
- Faceplate Supplied
Specifications
- Accepts either: 7.6mm or 8mm spindle
- Backset: 30mm
- Short throw: 13mm deadbolt projection)
- Long throw: (23mm deadbolt projection
- Door thickness: 32mm to 45mm
- Finish: Satin Stainless Steel
