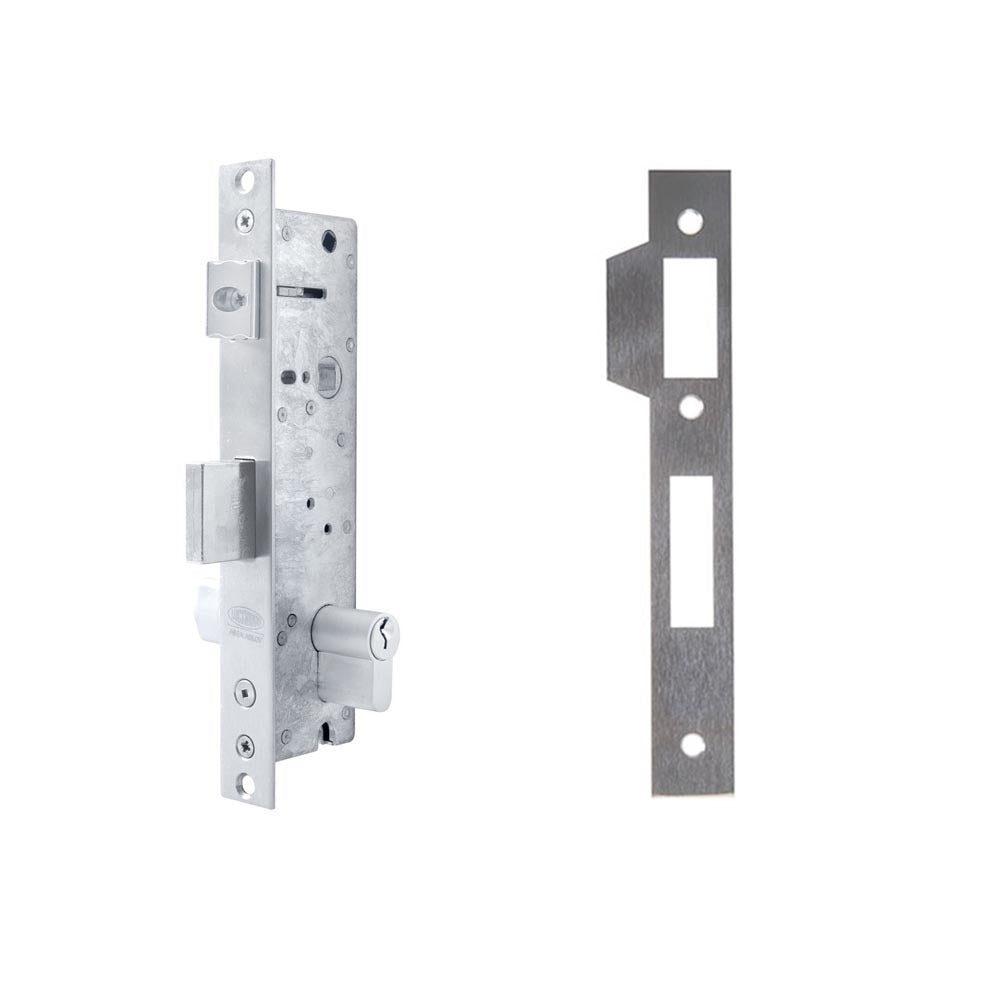

Lockwood Induro Mortice Lock 30mm Stainless Steel LW7130L Including Strike OPS001SS

Lockwood Induro Mortice Lock 30mm Stainless Steel LW7130L
Including Strike OPS001SS

Mortice Lock provides more security on exterior doors that have windows. (e.g. When intruders attempt to break into a building through a window, the key lock on the inside of the door will stop them from entering)

Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted

Includes:

• 1 x  Lockwood Induro Mortice Lock 30mm Adj Throw Stainless Steel (LW7130L )
• 1 x  Lockwood Optimum Strike Double Sided with Tongue (OPS001SS)

Lockwood Induro Mortice Lock
LW7130L

Features:

• The Lockwood Induro hinged door multi-point mortice locks less cylinder.
• 2 point locking
• Supplied with 2 mm latch packer
• Designed for use in residential aluminium hinged or bi-fold doors
• Latch deadlocked with key
• The bolt is now selectable between default setting long throw (24 mm) and short throw (13 mm) with a simple selector feature to switch between settings
• Palladium (Xtra) Snib furniture is required in order to use the snib-lock function
• Passage mode gives convenient access from inside and outside without the need for a key
• Safety mode is activated and deactivated by operating the snib lever from inside and requires the key to unlock from outside.
• Handles locked securely from both inside and outside and requires key to unlock from either side
• Accepts fixed cam euro cylinder (not supplied).
• Supplied less cylinder
• Supplied less strike plate
• Accepts 7.6 mm or 8 mm spindle
• Achieves Australian Standards AS 4145.2-2008 Security Level S7 and Durability Level D7

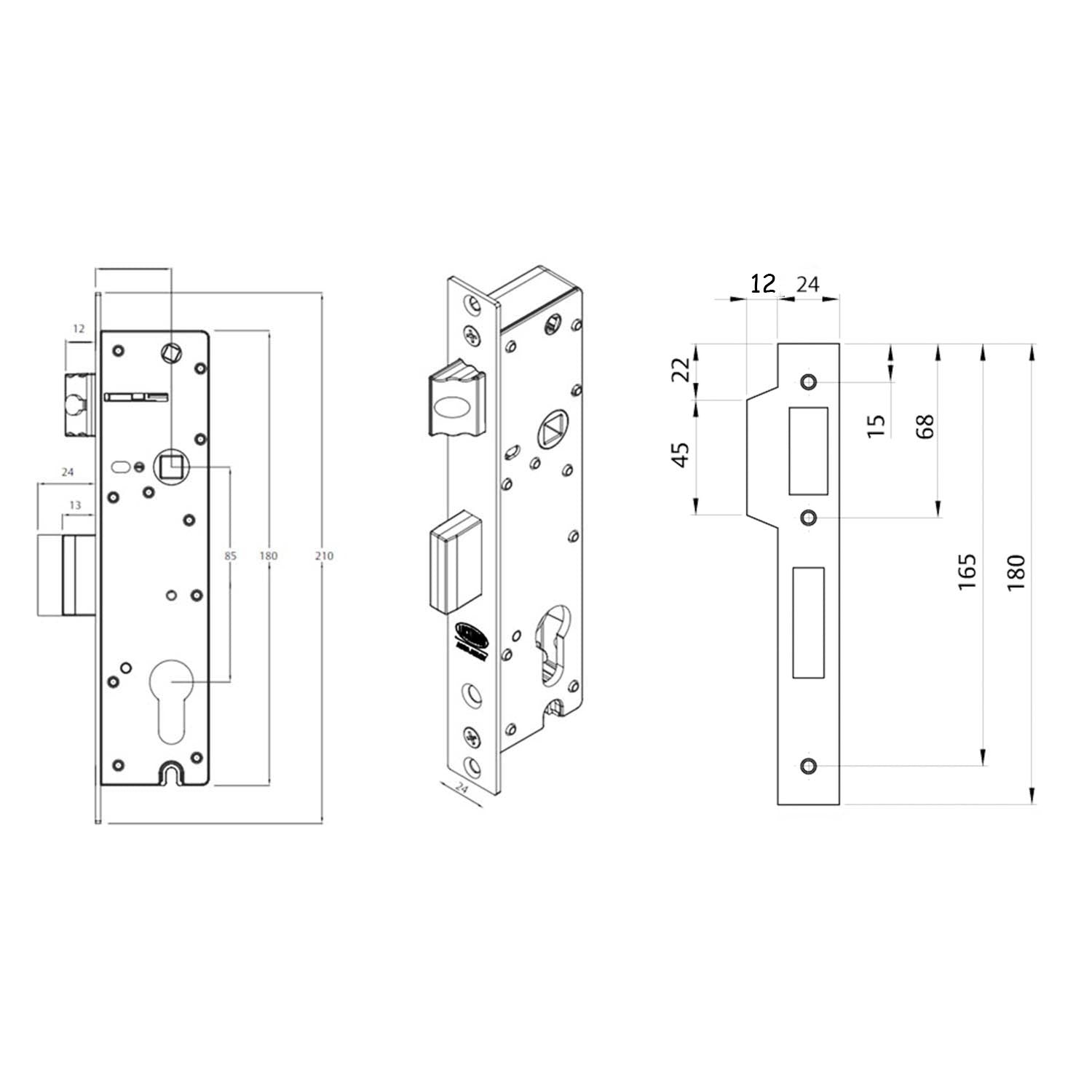

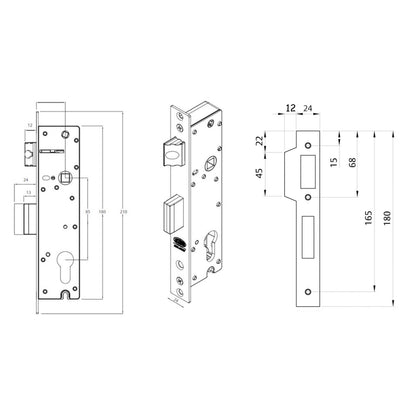

Specifications:

• Backset: 30mm
• Latch Bolt Size: 12mm
• Bolt Throw Size: 24mm (selectable down to 13 mm)
• Door Thickness: 32mm to 45mm
• Face Plate Size: 210mm x 24mm
• Case Size: 180mm x 45mm
• Finish: Brushed Stainless Steel

Lockwood Optimum Strike Double Sided with Tongue
OPS001SS

Strike Plate required for any passage or privacy set to latch.

Strike Plate Function - a plate to which the latch-tongue or deadbolt-tongue will attach. It should sit flush with the door jamb. Deadbolts also require a strike plate to function effectively.

Specifications:

• Length: 180mm
• Width: 24mm
• Thickness: 1.5mm
• Lip Length: 12mm
• Finish: Stainless Steel
