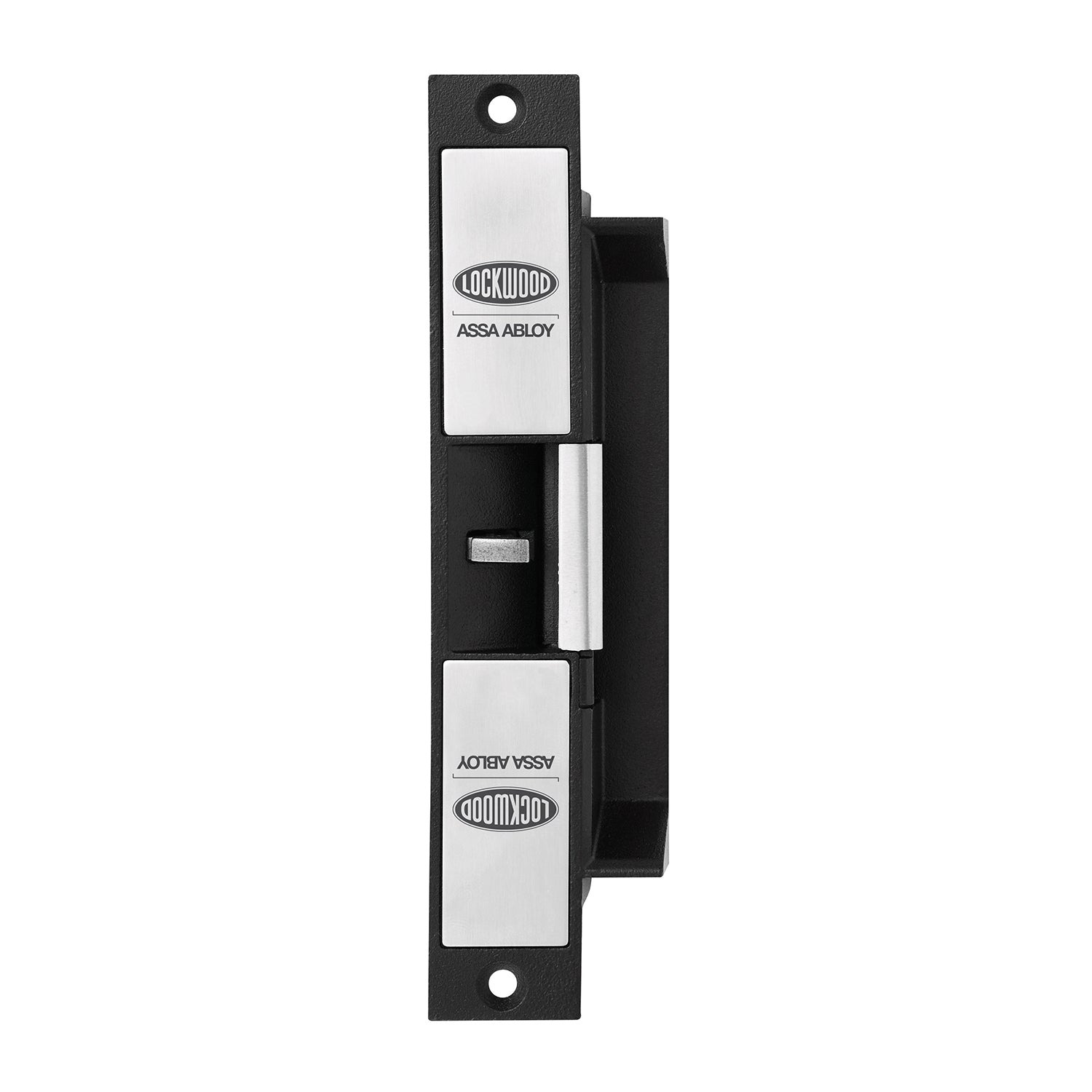

Lockwood Monitored Electric Strike 12V DC Fail Safe Monitored ES2000-1

Lockwood Monitored Electric Strike Fail Safe 12V DC
ES20001

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

• The ES2000 series electric strikes are fully monitored high security products manufactured from stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.
• These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12Vdc.
• They offer a strong, dependable and long-lasting electric strike solution with a 850kg holding force and endurance rating of 1 million cycles.

Features:

• Fully monitored - strike locked and door latched
• Fail safe/fail secure changeable on site
• High security
• 4 Hour fire rating
• 850kg holding force
• 1 million cycles endurance rating
• Cast stainless steel body
• Stainless steel locking pins
• SCEC Endorsed
• Low Current consumption - Max 175ma @12Vdc
• Solenoid rated for continuous use
• Mounting kit supplied as standard
• TRICARE® 5 Year Warranty

Applications:

• High traffic areas
• Fire rated door sets
• Open in/open out doors
• Suitable for use with all access control systems

Standards and Compliance:

• S3 (Security) Australian Lock Standard (AS4145.2.1993)
• D3 (Durability) Australian Lock Standard (AS4145.2.1993)
• BS 5872 Approved
• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1.2005 (Part 1: Fire resistant door sets)
• Approved to UL1034 (highest level)
• CE Approved
• C-Tick Certified
• SCEC endorsed for secure areas

Specifications:

• Voltage: 12Vdc
• Current: 175 mA @ 12Vdc
• Solenoids: Solenoids are rated for continuous use
• Holding Force: 850kg Static Strength Rating
• Endurance: Cycle tested to 1,000,000 operations
• Latch: Suitable for 15mm latch bolt with 3mm door gap
• Environment: Operational temperature range - 20°C to +60°C
• Body: Solid Stainless Steel Construction
• Keeper: Stainless Steel

Monitoring

• Solenoid Monitor - 1 amp NO/NC microswitch
• Door/Latch Monitor - 1 amp NO/NC microswitch

Specification Statement

• The strike should be constructed of solid stainless steel, have a minimum holding force of 850kg and have an endurance rating of 1 million cycles
• Monitoring must include independent door / latch& solenoid monitoring
• The one strike must be changeable from fail safe to fail secure on site where required
• The strike should not consume current greater than 175mA at 12Vdc and have a solenoid rated for continuous use.
• Certifications must include CE, C-Tick and 4 hr fire rating.
