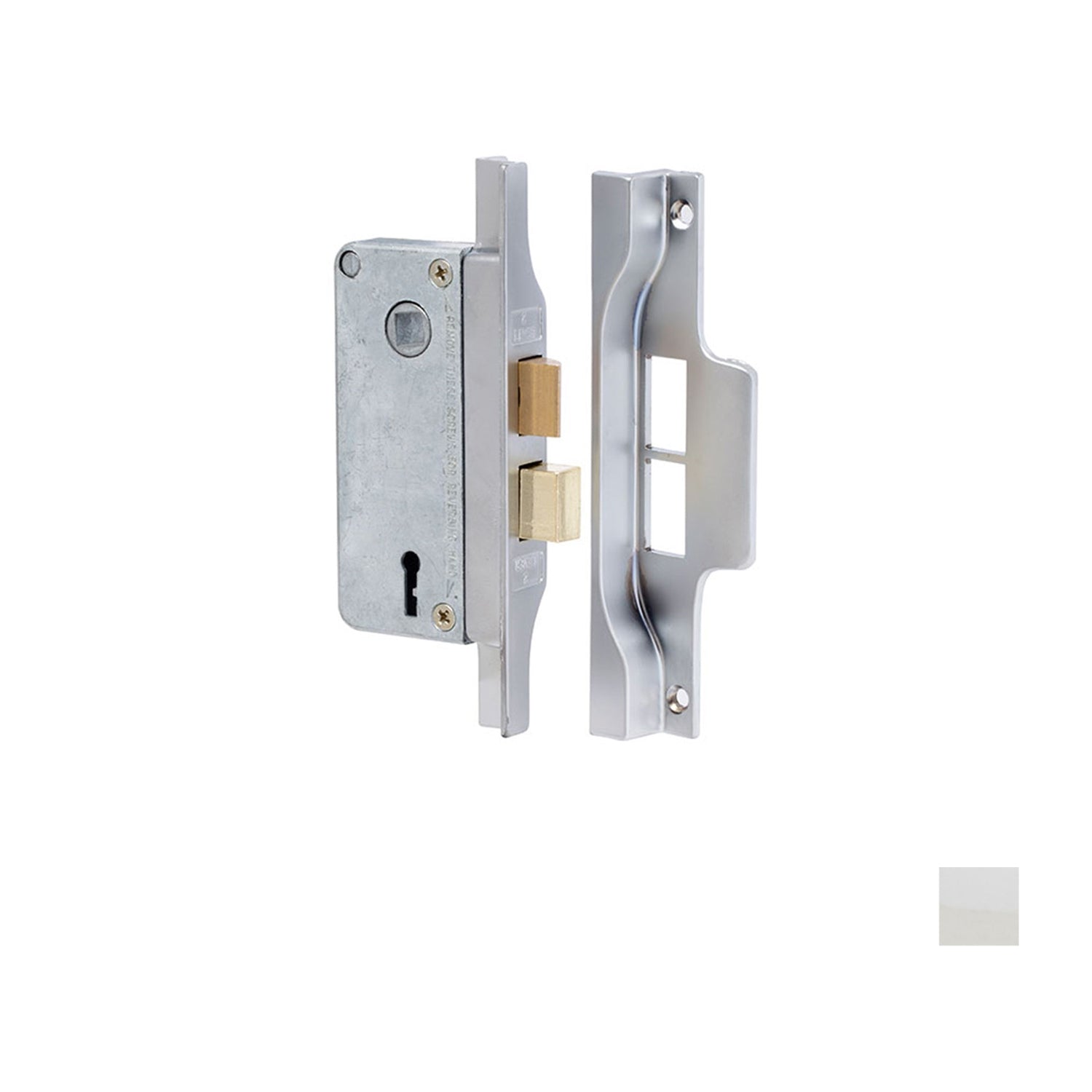

Lockwood Narrow Rebated Mortice Lock 30mm Backset - Available in Various Finishes

Lockwood Narrow Rebated Mortice Lock

Mortice Lock commonly used in doors. It is known for its durability, security, and classic design. It consist of several components that work together to provide effective locking and unlocking functions.

Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted

Features:

• Perfect for use on rebated timber doors with glass where there is little room to fit a lock
• L1700 Narrow rebated mortice lock
• Zinc machine cast lock
• Reversible brass latch bolt
• Efco 1-12 key series (only key numbers 1-6 still available)
• Supplied display packed with 2 keys

Specifications:

• Backset: 30mm
• Rebate: 12mm
• Face plate: 137mm (L) x 22mm (W)
• Case size: 96mm (H) x 43mm (D)
• Pitch: 56mm
• Hole Centres: 117mm
• Lock Case Depth: 43mm from edge of door
• Available Finish:
  • Polished Chrome
  • Satin Chrome Pearl
