SKU: ASSES2002

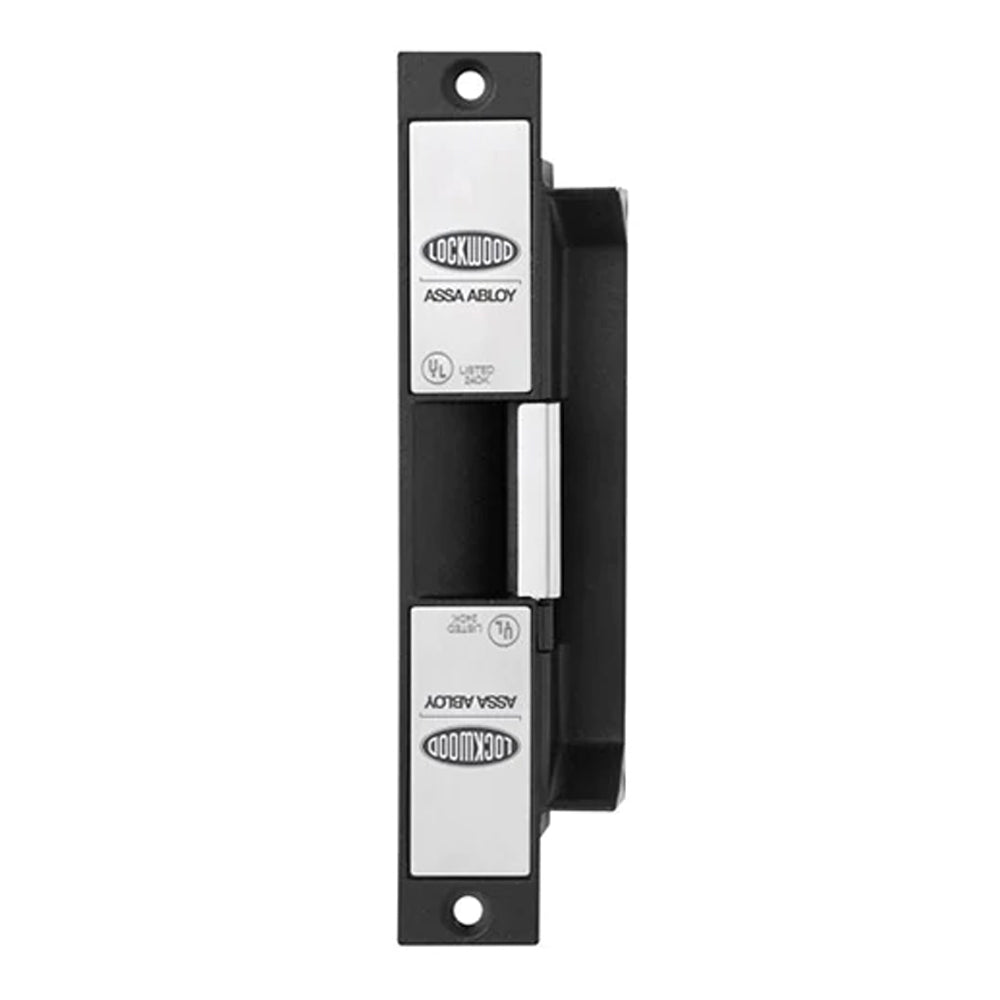

Lockwood Padde Electric Strike 12Vdc Fail Secure Non Monitored ES200-2
RRP: $711.88
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Lockwood Padde Electric Strike Fail Secure Non Monitored
ES200-2
Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.
Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.
- High security products manufactured from stainless steel and designed for use with all access control systems.
- Suitable for use with hinged doors which require either fire or security control as part of a building management system.
- Are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12 or 24Vdc.
- They offer a strong, dependable and long-lasting electric strike solution.
Features:
- Fail Secure
- Non Monitored
- High security
- 4 Hour fire rating
- 850kg holding force
- 1 million cycles endurance rating
- Cast stainless steel body
- Stainless steel locking pins
- Low Current consumption -
- Max 175mA @12Vdc
- Mounting kit supplied as standard
- 5 Year Tricare Warranty
Applications:
- High traffic areas
- Fire rated door sets
- Open in/open out doors
- Suitable for use with all access control systems
Specifications:
- Voltage: 12Vdc
- Current: 175 mA @ 12Vdc - 88mA @ 24Vdc
- Solenoid: Solenoids are rated for continuous use.
- Monitoring: None
- Holding Force: 850kg Static Strength Rating
- Endurance: Cycle tested to 1,000,000 operations
- Latch: Suitable for 15mm latch bolt with 3mm door gap
- Environment: Operational temperature range -20 degree celcius to +60 degree celcius
- Body: Solid Stainless Steel Construction
- Keeper: Stainless Steel
Standards and Compliance:
- High security for maximum protection (AS4145.2:1993).
- High durability for maximum frequency usage.
- Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
- Approved to UL1034 (highest level)
- CE Approved
- C-Tick Certified
