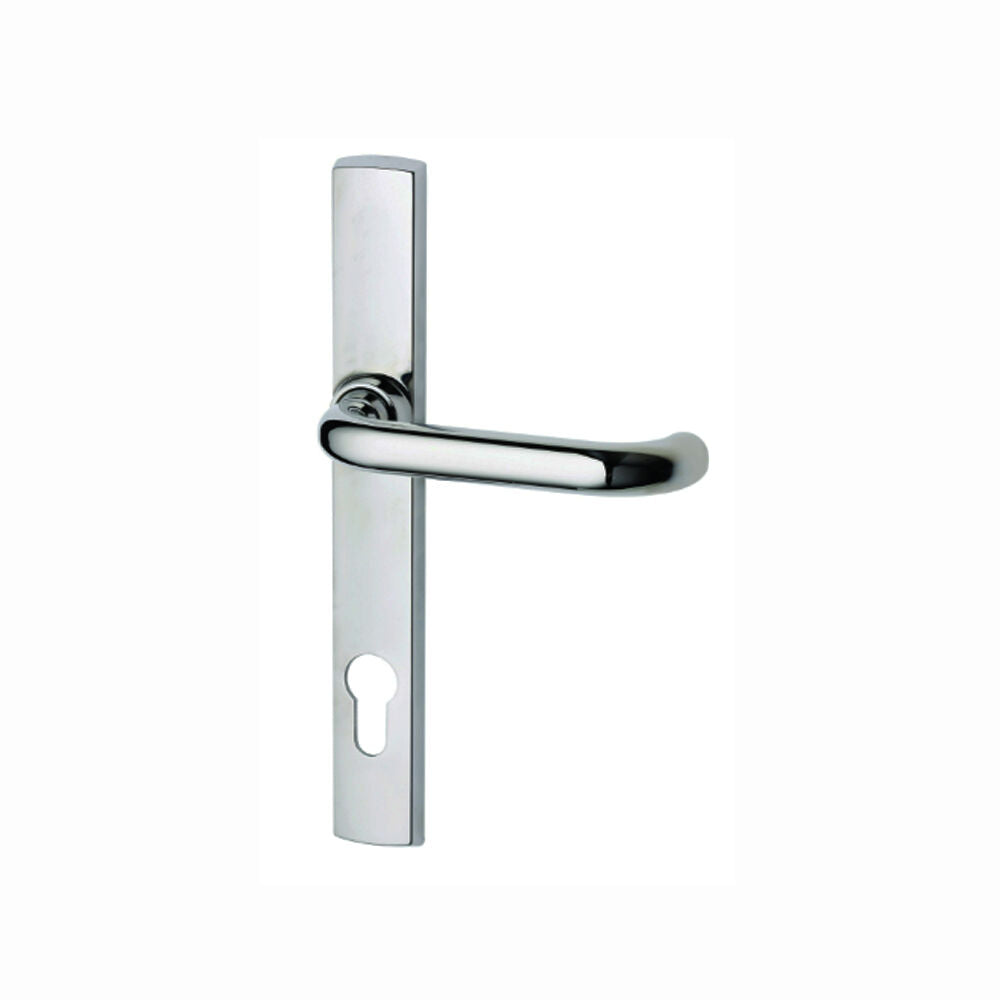

Lockwood Palladium Door Handle Double Cylinder Set 85mm Pitch & 37 Lever PL4/85/37SP

Lockwood Palladium Door Handle Double Cylinder Set Gidgee 37 Lever
PL4/85/37SP

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• These are used on the active door of either single or double doors.
• The outside furniture has no visible screws, a cylinder hole and the handle operates the latch on the lock.
• The inside furniture has visible screw fixings, a cylinder hole and the handle operates the latch on the lock.
• Handles operate bolts when used with a compatible multi point lock.
• Lockwood Palladium door furniture is supplied as a complete set, with both the internal and external plates.
• Suits 85 mm pitch mortice locksets
• Includes 7.6 mm square stepped spindle
• Non-handed
• Supplied in trade pack

Specifications:

• Handle Type: Gidgee 37 Lever
• Material:  Solid Zinc die-cast
• Door Thickness: 32mm to 45mm

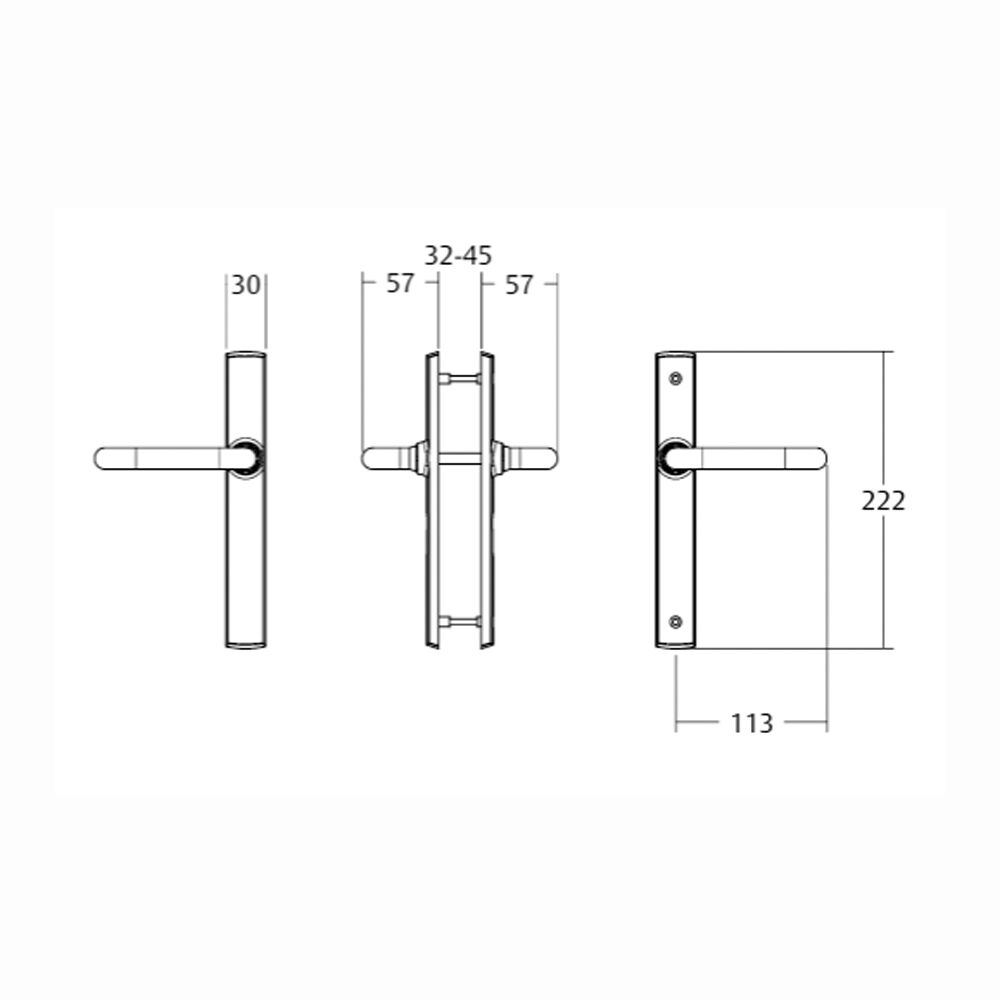

• Plate Dimension:
  • Height: 222mm
  • Width: 30mm
  • Depth: 9mm

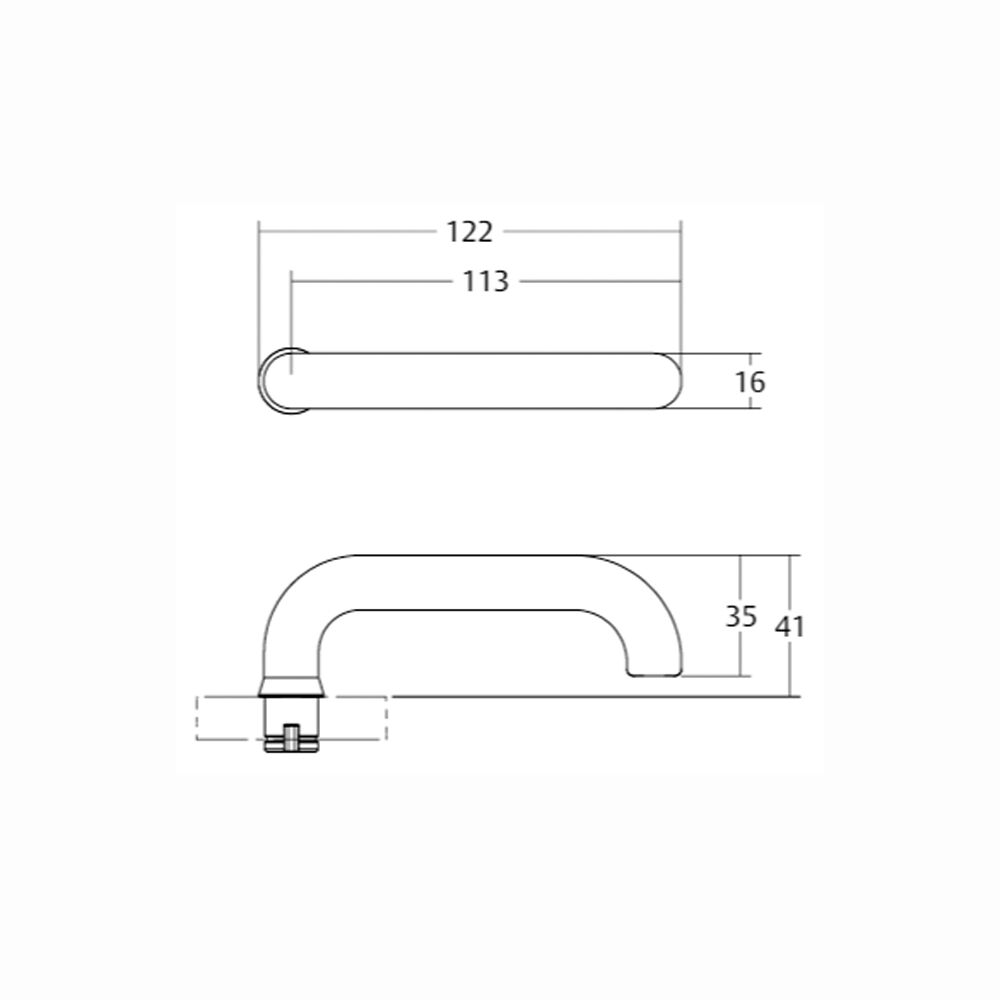

• Lever Dimensions:
  • Length: 122mm
  • Projection: 53mm
  • Finger clearance: 37mm
• Cylinder pitch: 85mm
• Fixing centres: 181mm
• Finish: Satin Chrome Pearl

Standard and Compliance:

• High security for maximum protection (AS4145.2:2008).
• D8: Tested to AS4145.2 2008 for Durability passing D8 - 500,000 cycles.
• Tested to AS4145.2 2008 for Neutral Salt Spray passing C6 Normal Corrosion Resistance - 168 Hours.

The Palladium Series represents the highest standard in residential and semi-commercial door hardware and is brought to you through modern innovative designs, combined with quality manufacturing. A wide range of lever options is available to enable a common style throughout the home.
