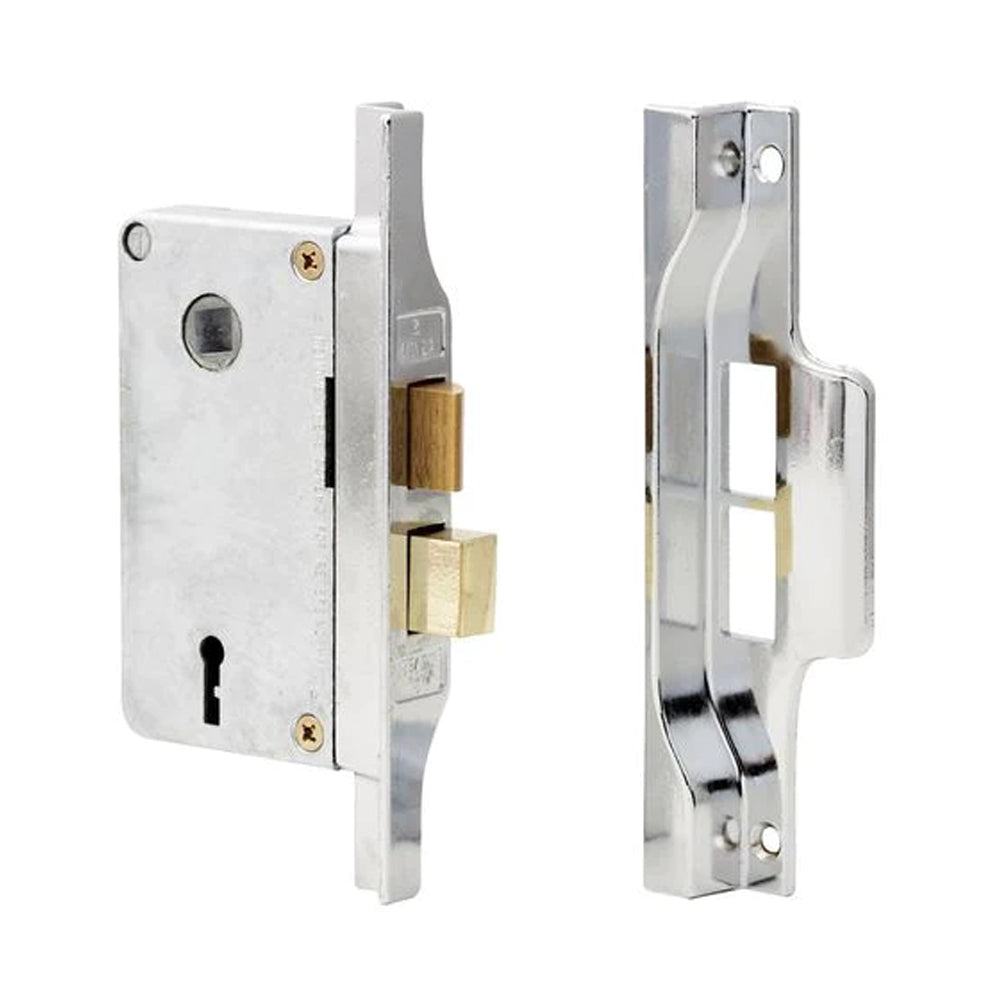

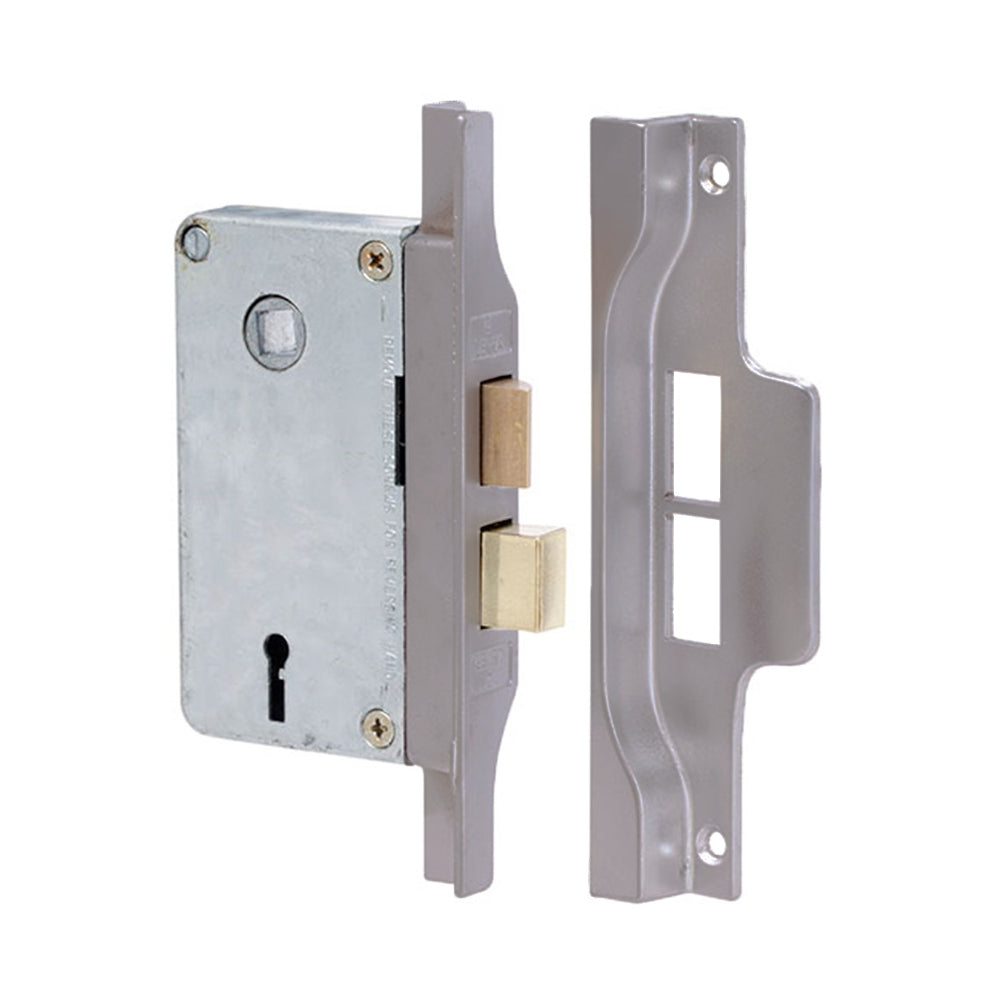

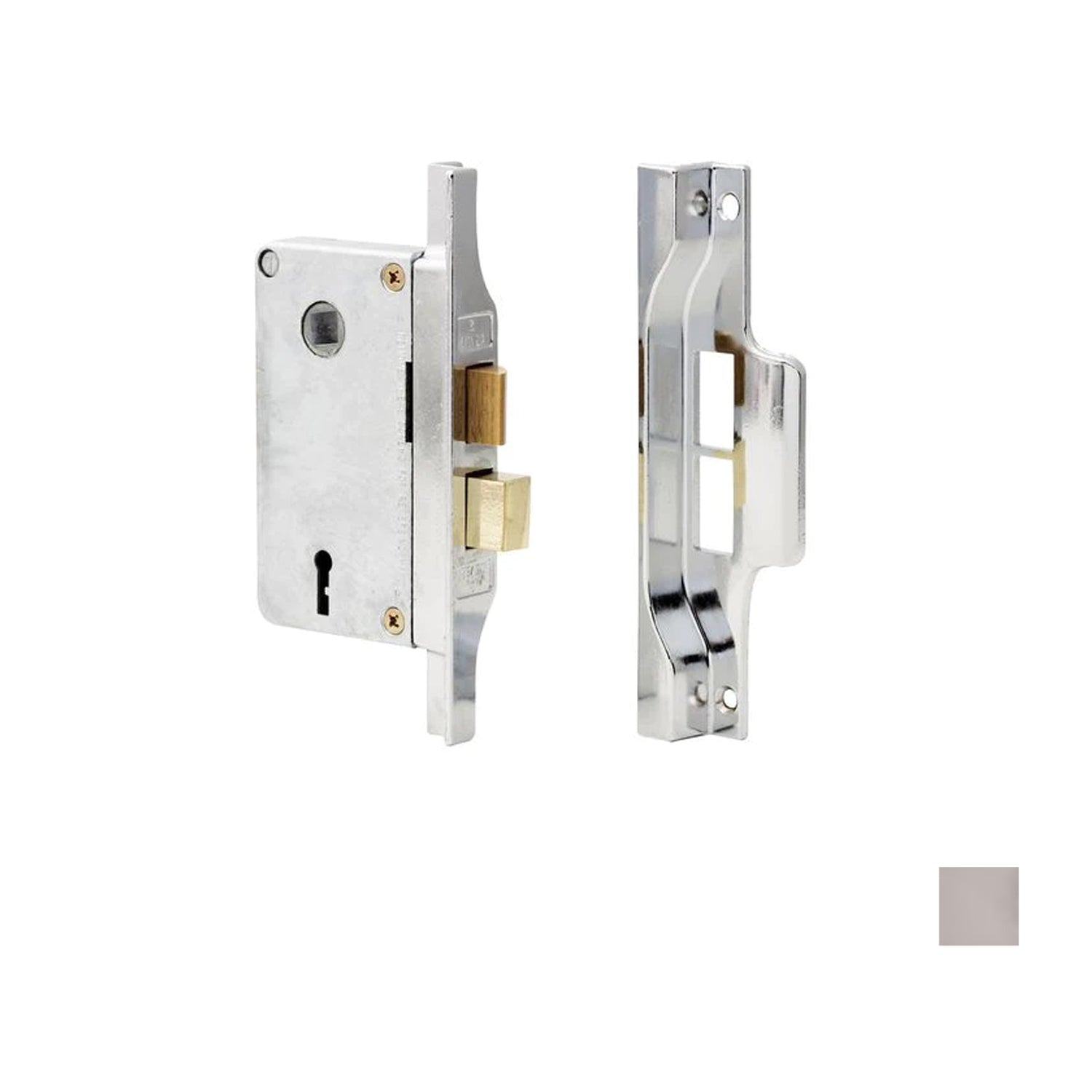

Lockwood Rebated Narrow Mortice Lock 42mm Backset

Lockwood Rebated Narrow Mortice Lock

Mortice Lock is commonly used in doors. It is known for its durability, security, and classic design. It consist of several components that work together to provide effective locking and unlocking functions.

Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted

Features:

• L1702 Narrow rebated mortice lock
• Perfect for use on rebated timber doors with glass where there is little room to fit a lock.
• Zinc machine cast lock body
• Reversible brass latch bolt
• Efco 1-6 key series
• Supplied display packed with 2 keys

Specifications:

• Backset: 42mm
• Rebate: 12mm
• Face Plate: 137mm (L) x 22mm (W)
• Case Size: 96mm (H) x 52mm (D)
• Lock Pitch: 56mm
• Hole centres: 117mm
• Lock Case Depth: 52mm from the edge of the door
• Available Finish:
  • Chrome Plate
  • Satin Chrome Pearl
