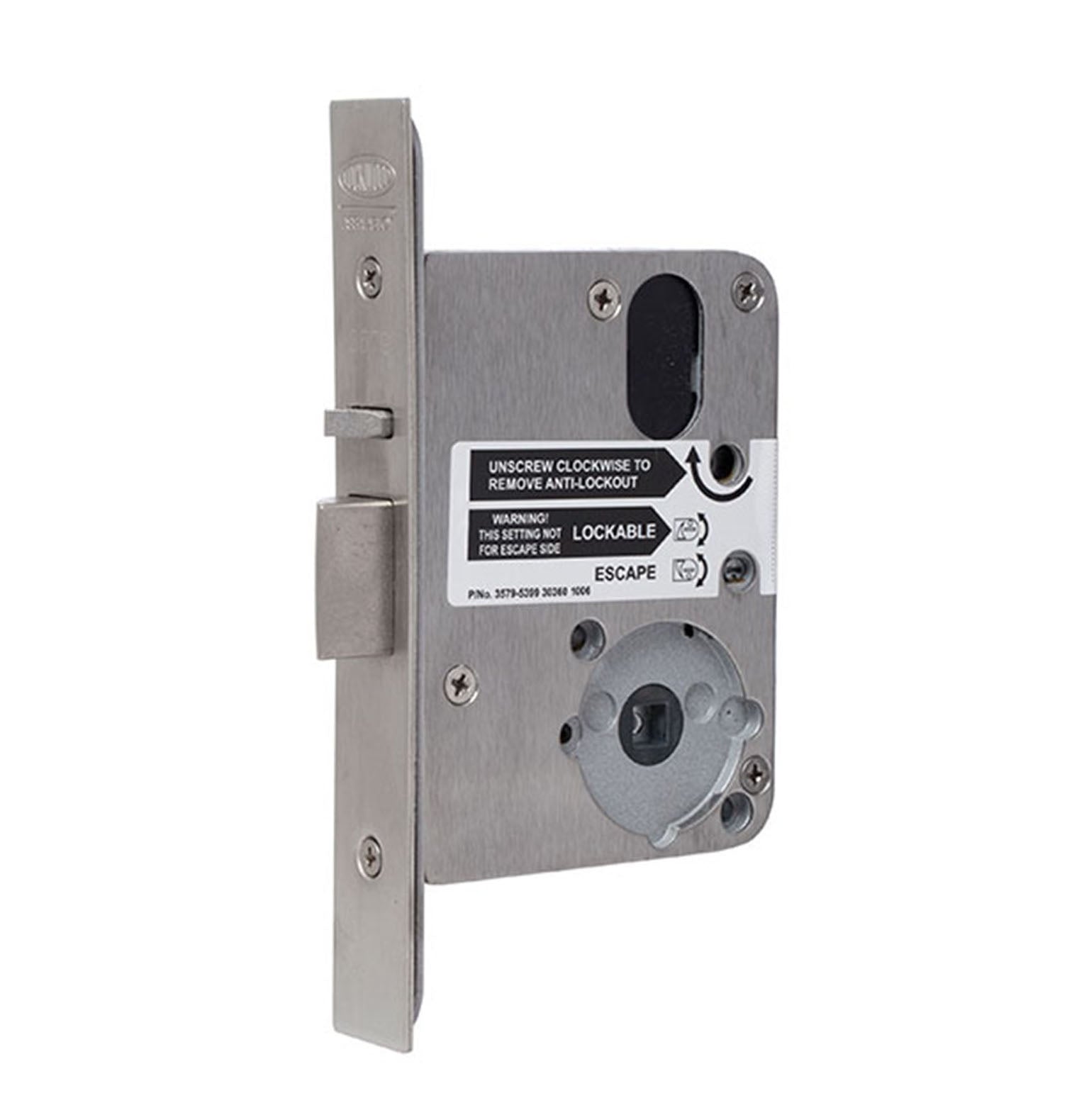

Lockwood Secure Area Universal Primary Lock 60mm Satin Chrome 35792SC

Lockwood Secure Area Universal Primary Lock
35792SC

Mortice Lock is commonly used in doors. It is known for its durability, security, and classic design. It consist of several components that work together to provide effective locking and unlocking functions.

Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted.

Features:

• Secure area primary mortice lock
• Available with all 3570, 3572 and 3574 functions
• Fire rated up to 4 hours.
• All handing type features of the lock including hub selection, anti-lockout screw and reversible latch are accessible without removing the plates.
• SCEC Endorsed SL3 With Approved Keying System Installed

Specifications:

• Door Thickness: 35mm to 50mm
• Backset: 60mm
• Anti-lockout Function: Yes
• Compatible With Most Restricted Keying Systems: Yes
• Holdback Function Built-in: No
• Lock Grade: Commercial
• Lock Pitch: 64mm
• Fire Rated: Yes
• Face Plate Length: 175mm
• Face Plate Thickness: 4mm
• Face Plate Width: 25mm
• Handing: Reversible
• Mortice Lock Case Depth: 84mm
• Mortice Lock Case Height: 117mm
• Mortice Lock Case Thickness: 21.4mm
• Spindle Type: 7.6mm Square Split Spindle
• Uses Cylinder/Plug Type: 570 Oval
• Finish: Satin Chrome
