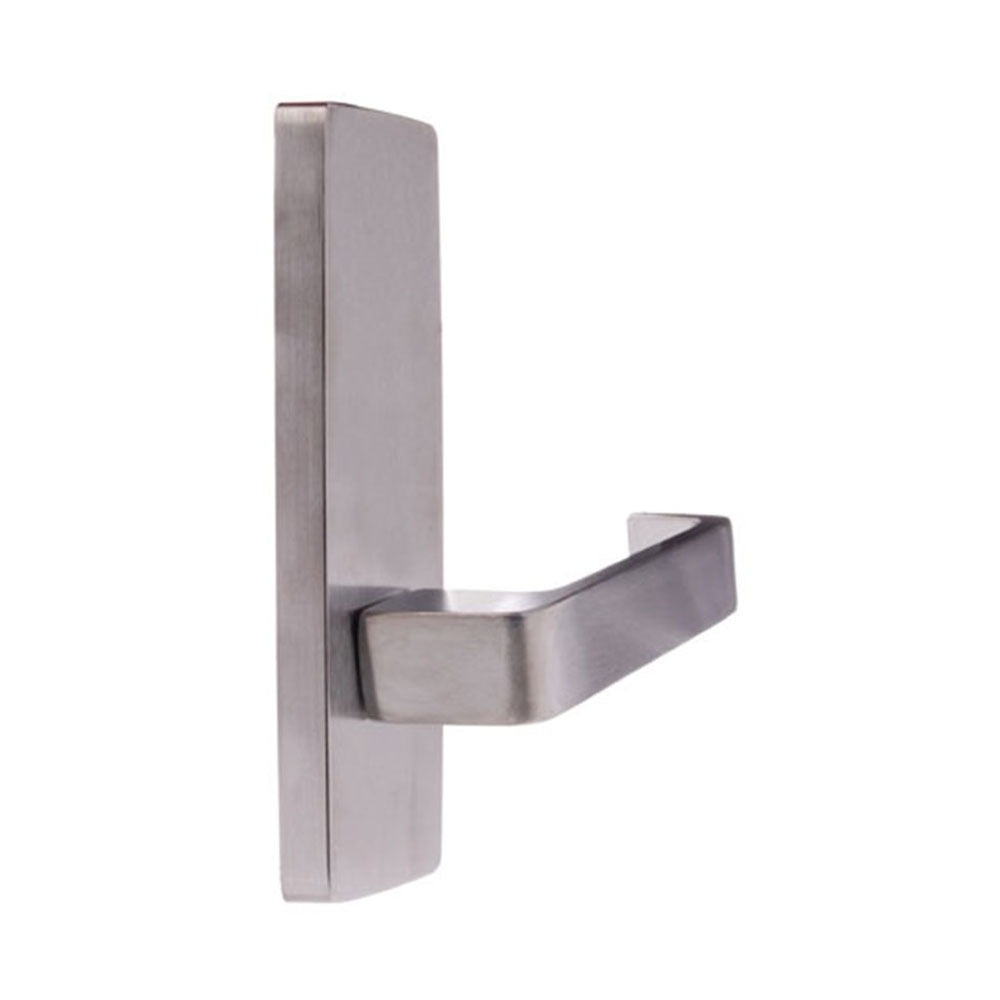

Lockwood Square End Plate Concealed Fix With 90 Lever Satin Chrome 1805/90SC

Lockwood Square End Plate With 90 Lever
1805/90SC

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - External plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

• Lockwood 1800 series exterior square end plate furniture.
• Designed for use with Lockwood 3570 series locks.
• Rectangular exterior square end plate
• Plain plate and 90 series lever
• Concealed fixing
• Plates are designed to fit back to back
• External plates supplied with fixing screws

Specifications:

• Door Thickness: 32mm - 50mm
• Plate Size: 166mm x 48mm x 12mm
• Screw Fixing Centres: 148mm
• Finish: Satin Chrome

Compliance:

• Fire Rated:  Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
• Disabled access: BCA AS1428.1 -2009 compliant leverset.
