SKU: ASS1941180SC
Lockwood Square End Plate Privacy Disabled Turn & 180 Lever Satin Chrome 1941/180SC
RRP: $215.25
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

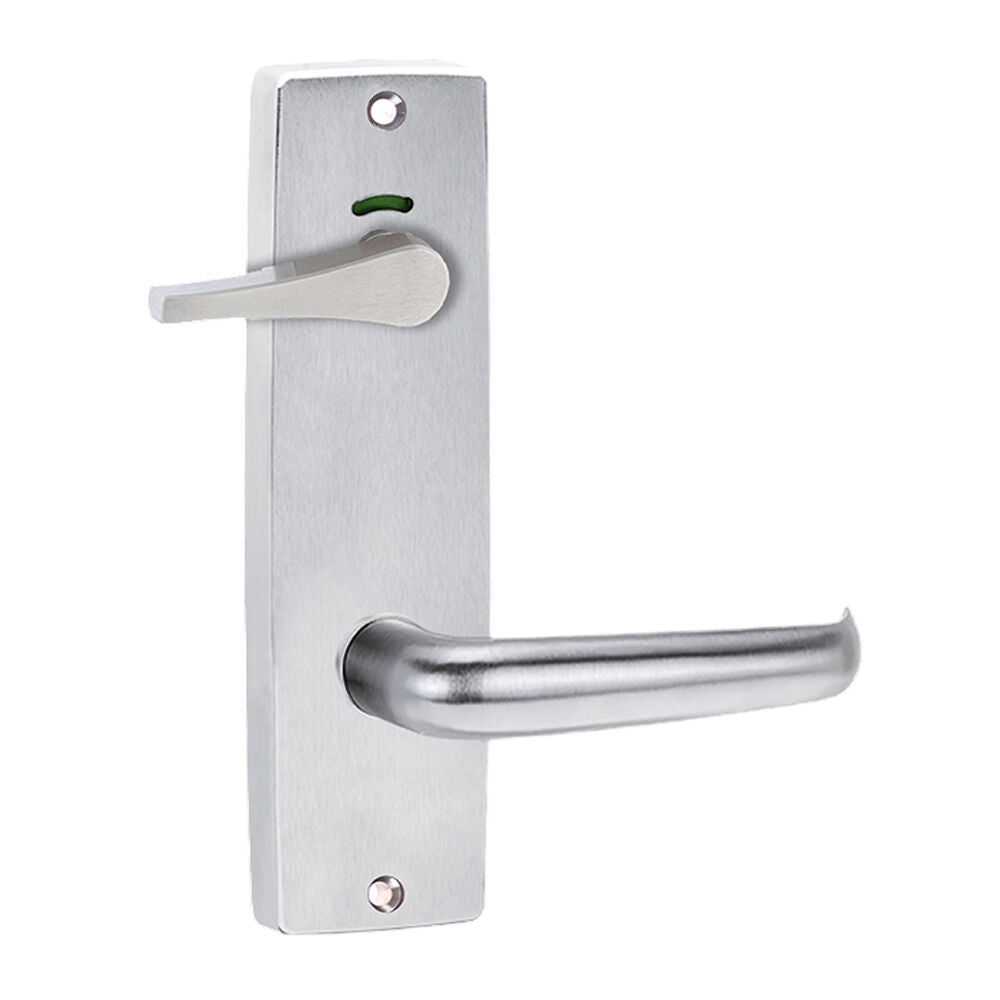

Lockwood Square End Plate Privacy Disabled Turn & 180 Lever
1941/180SC
PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.
Square End Plate with Turn & Lever is commonly used in accessible public or commercial restrooms, such as in offices, healthcare facilities, schools, and public buildings.
Square End Plate with Turn & Lever Function - designed to allow users especially in accessible spaces like public restrooms to easily lock the door from the inside using a turn snib, while the outside displays an occupancy indicator for privacy awareness.
Features:
- Lockwood lever 180
- Internal plate with visible fixings (screws not included)
- Privacy indicating accessibility turn
- Non-handed
Specifications:
-
Plate Dimensions:
- Height: 166mm
- Width: 48mm
- Depth: 12mm
-
Lever Dimensions:
- Length: 123.5mm
- Projection: 52.5mm
- Finger clearance: 40mm
- Cylinder Pitch: 64mm
- Fixing Centres: 148mm
- Handing: Symmetrical levers may be reversed by removing the stop screw.
- Fixing: Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.
- Door Thickness: 32mm - 45mm
- Finish: Satin Chrome
