SKU: ASS5782PCMB
Lockwood 5782 Universal Primary Mortice Lock 30mm Backset Matt Black 5782PCMB
WAS: $315.86
RRP: $607.48
Buy In Bulk & Save!
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

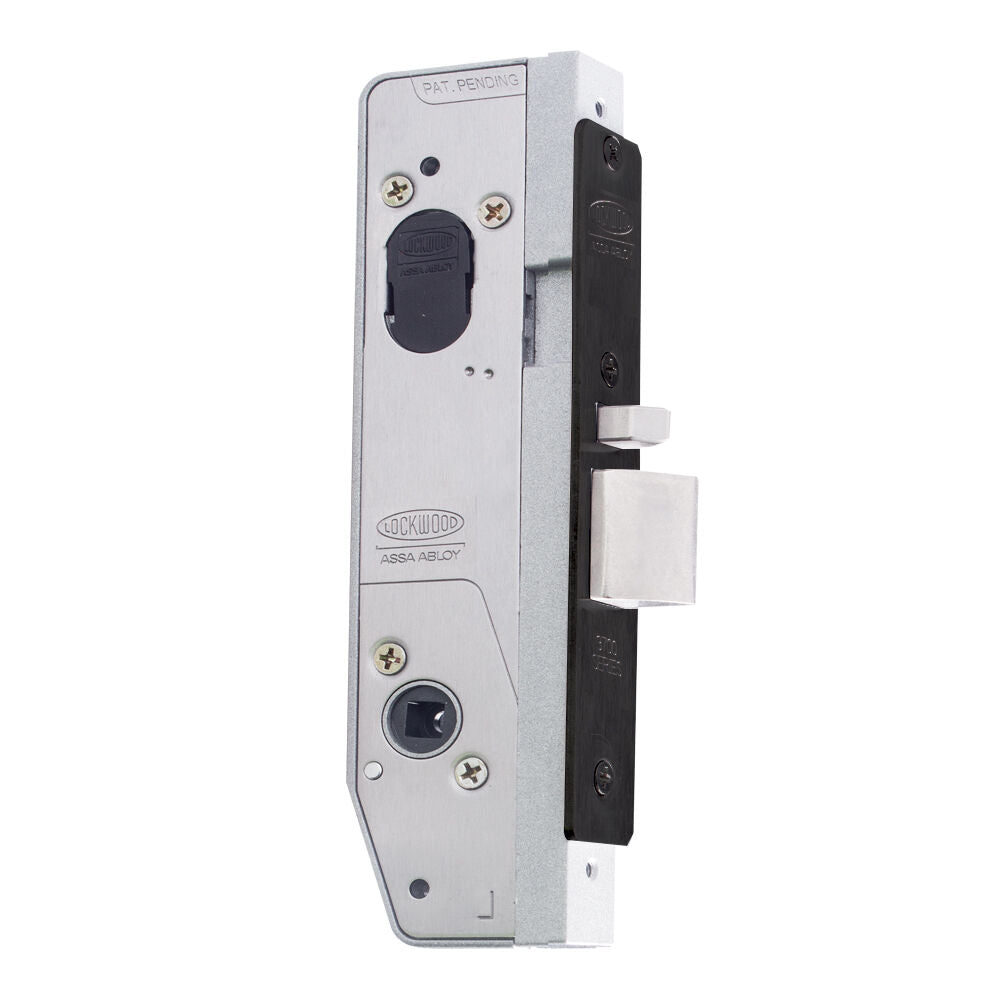

Lockwood Selector 5782 universal 30mm backset mortice lock.
Mortice Lock a pocket cut into the short edge of the door, allows a longer and thicker mortise box to slide into the door itself, providing superior protection.
Mortice Lock Function - latch retracted by knob / lever from either side. Deadbolt extended or retracted by key from outside or turn knob from inside.
- All handing setting (Passage, Combination or Escape) can be adjusted via the hub selector located under the face plate.
Features:
- Short backset universal primary mortice lock.
- Easy Red /Green function setting.
- All lock settings are made from under the faceplate allowing for simple in-door configuration.
- Standard primary locks include holdback and anti-lockout capabilities.
- Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
- Operated by key or handle outside or by turnsnib, key or handle inside.
- Zinc diecast body with stainless steel chassis plates for improved strength.
- Electric Strike compatibility.
- Supplied less cylinder.
- Supplied with Selector 'V' cam.
- Compatible to most restricted keying systems.

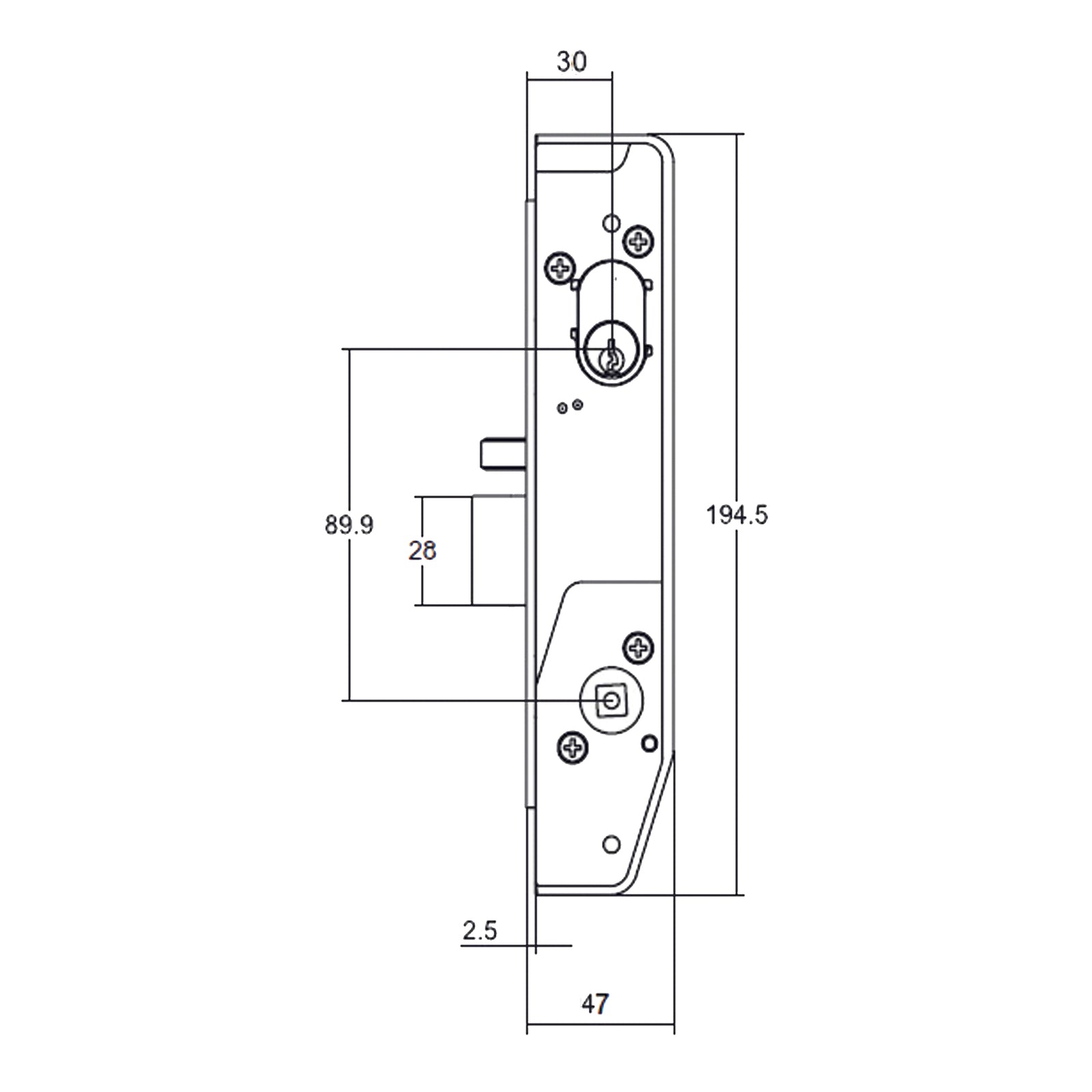

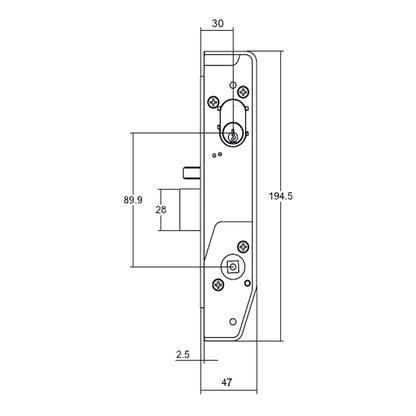

Specifications:
- Anti-lockout Function: Yes
- Door Thickness: 32mm - 50mm
- Lock Pitch: 89.9mm
- Backset: 30mm
- Fire Rated: No
- Face Plate Length: 156mm
- Face Plate Thickness: 2.5mm
- Face Plate Width: 25mm
- Handing: Reversible
- Mortice Lock Case Depth: 47mm
- Mortice Lock Case Height: 194.5mmm
- Mortice Lock Case Thickness: 20mm
- Spindle Type: 7.6mm Square Split Spindle
- Finish: Satin Stainless Steel
Lockwood Selector 5782 universal 30mm backset mortice lock.
Mortice Lock a pocket cut into the short edge of the door, allows a longer and thicker mortise box to slide into the door itself, providing superior protection.
Mortice Lock Function - latch retracted by knob / lever from either side. Deadbolt extended or retracted by key from outside or turn knob from inside.
- All handing setting (Passage, Combination or Escape) can be adjusted via the hub selector located under the face plate.
Features:
- Short backset universal primary mortice lock.
- Easy Red /Green function setting.
- All lock settings are made from under the faceplate allowing for simple in-door configuration.
- Standard primary locks include holdback and anti-lockout capabilities.
- Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
- Operated by key or handle outside or by turnsnib, key or handle inside.
- Zinc diecast body with stainless steel chassis plates for improved strength.
- Electric Strike compatibility.
- Supplied less cylinder.
- Supplied with Selector 'V' cam.
- Compatible to most restricted keying systems.
Specifications:
- Anti-lockout Function: Yes
- Door Thickness: 32mm - 50mm
- Lock Pitch: 89.9mm
- Backset: 30mm
- Fire Rated: No
- Face Plate Length: 156mm
- Face Plate Thickness: 2.5mm
- Face Plate Width: 25mm
- Handing: Reversible
- Mortice Lock Case Depth: 47mm
- Mortice Lock Case Height: 194.5mmm
- Mortice Lock Case Thickness: 20mm
- Spindle Type: 7.6mm Square Split Spindle
- Finish: Satin Stainless Steel
