SKU: SPRFES20M
LOX High Security Electric Strike Monitored Multi Voltage 10-30VDC ES20M
RRP: $310.00
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

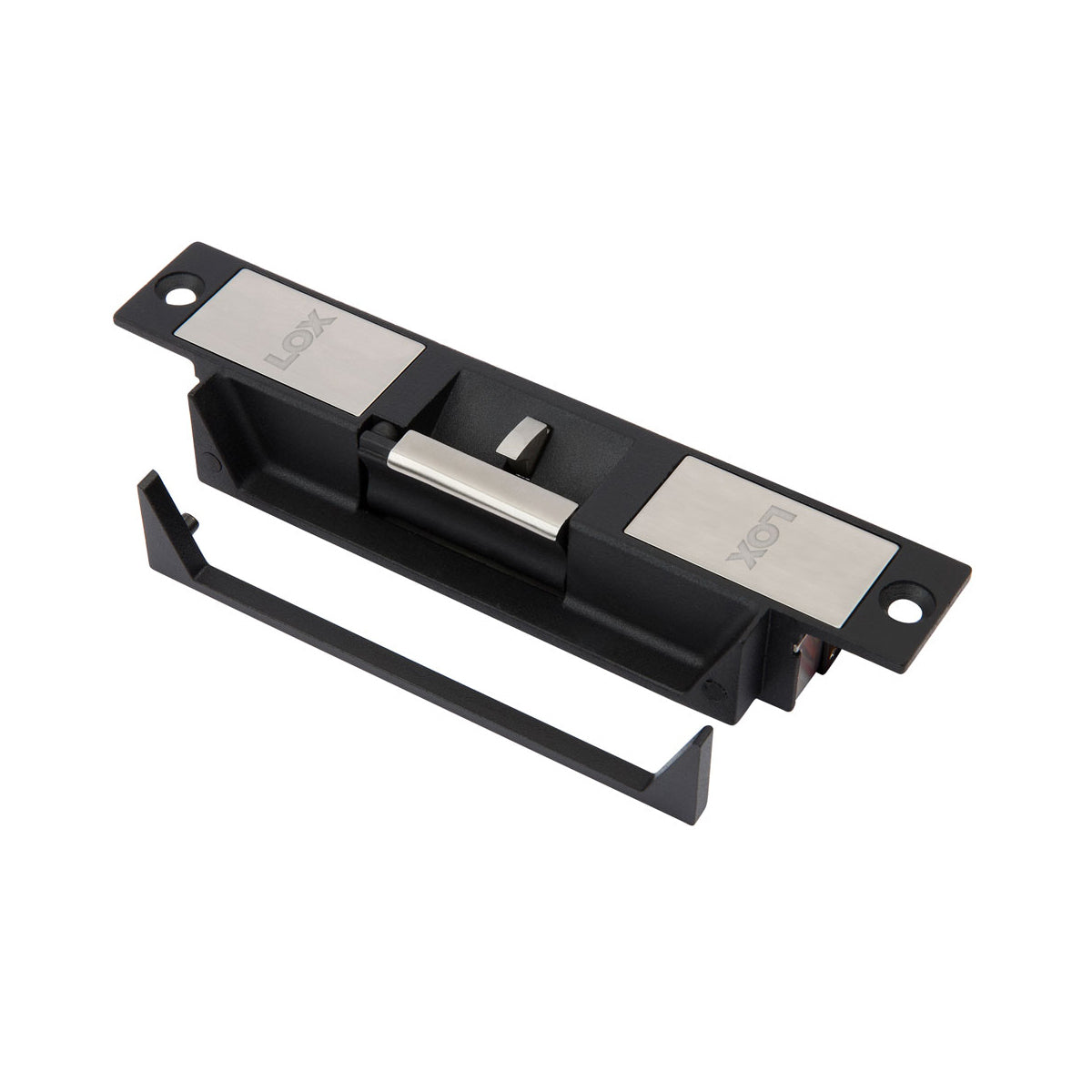

LOX Electric Strike
ES20M
Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.
Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.
- Designed for use with all access control systems.
- Retrofit compatible with FSH and Padde Australian Footprint strikes
- Comes with a 10mm strike lip as standard, to prevent possible personal injury and damage to clothing as with the 15mm lip. A 5mm lip extension is included with the strike if needed.
- Fail safe/fail secure is changeable on site.
- Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 (Fire resistant door sets).
Features:
- Electric strikes are designed for use with all access control systems
- Retrofit compatible with FSH and Padde Australian Footprint strikes
- Comes with a 10mm strike lip as standard, to prevent possible personal injury and damage to clothing as with the 15mm lip. A 5mm lip extension is included with the strike if needed
- Fail safe/fail secure is changeable on site
- Suitable for use on hinged doors to work with an extensive range of locks
- Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 (Fire resistant door sets)
- Monitored - Door latch monitoring (DSS) and Lock status monitoring (LSS)
- Anti-tamper sensor (ATS)
- Fire rated up to 4 hours
- Power to lock/power to open field selectable
- Solenoid can be continuously powered
- Optional extension lips
- Self adhesive installation template
- Includes tab mounting kit
- Pre-drilled for extension lips
- Supplied with silencer rubber buffer
- ES20M is suitable for 18mm latch with a 3mm door gap.
Specifications:
- Voltage: 10 - 30VDC, 250mA at 12VDC, 125mA AT 24VDC
- Current: 12vdc @ 250mA, 24vdc @ 125mA,
- Holding Strength: up to 1000kg Tested to 1.5 Million Cycles
- LSS Monitoring: Status sensor of the internal locking mechanism
- DSS Monitoring: Door latch sensor, door latch engaged within strike keeper
- ATS Monitoring: Door strike removed or repositioned sensor
- Temperature: Range - 20 degress celcius to 60 degrees celcius
- Material: Stainless Steel
