SKU: LSCLCCW30S

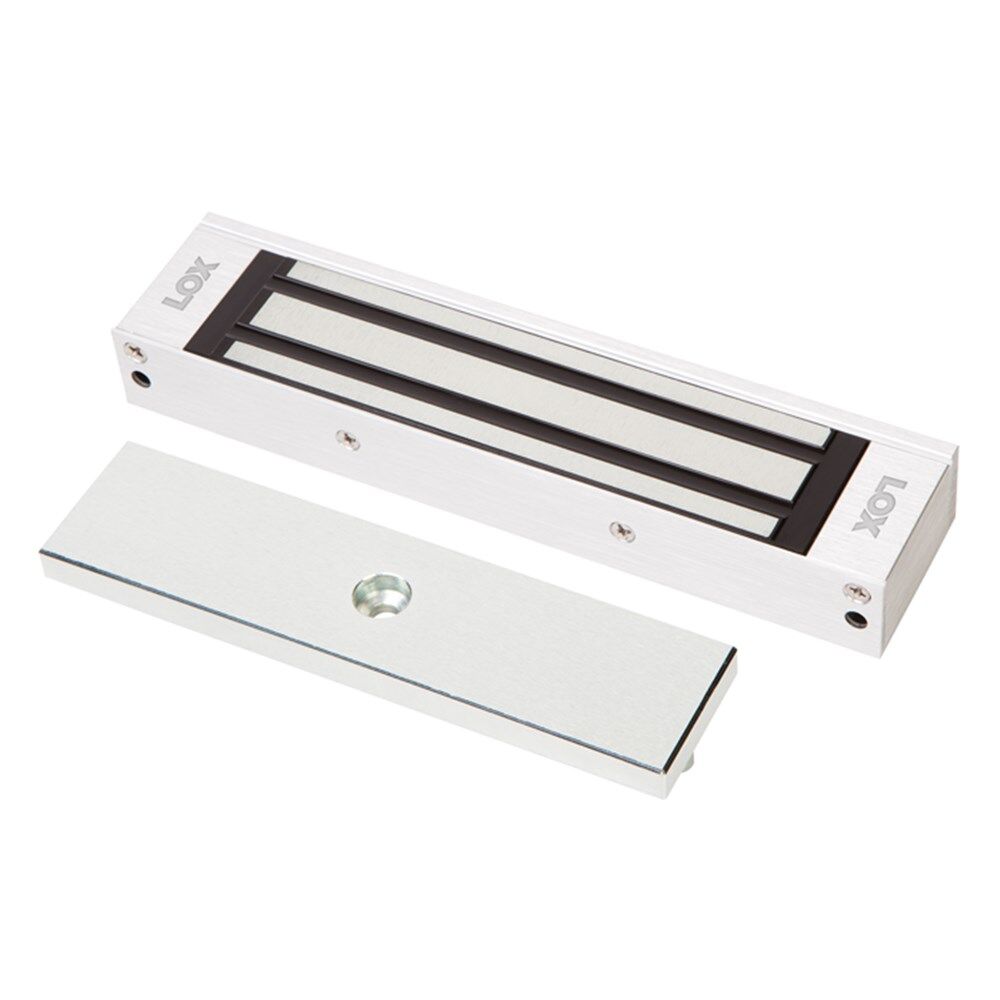

LOX Single Mini Surface Mount Electro Magnetic Lock 180kg CCW30S
RRP: $214.50
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Description
The LOX CCW30S Electro magnetic non-monitored mini lock was designed for securing hinged doors on lockers, cabinets or other kinds of small doors.
The holding force is up to 180kg.
- Micro/min magnetic lock.
- Suit single door cupboard.
- Dual voltage 12V DC/24V DC.
- Current draw 12V DC @ 350mA & 24V DC @ 175mA.
- Surface mounted magnet.
- Non-monitored.
- Satin anodised aluminium housing.
- Zinc plated electromagnetic body.
- Grain orientated silicone steel armature plate.
- Magnet size 166 (L) x 38 (H) x 20 mm (D).
- Armature plate 130 (L) x 32 (H) x 9 mm (D).
- Holding force 180kg.
- Built-in varistor (MOV) surge protection.
- No moving parts.
LOX Single Mini Surface Mount Electro Magnetic Lock
CCW30S
Electro Magnetic Lock is commonly used in access control systems for secure entry and exit points.
Electro Magnetic Lock Function - uses electromagnetic force to securely hold a door closed, ensuring controlled access and enhanced security.
Features:
- Non-monitored mini lock was designed for securing hinged doors on lockers, cabinets or other kinds of small doors
- Micro/min magnetic lock
- Suit single door cupboard
- Surface mounted magnet
- Zinc plated electromagnetic body
- Grain orientated silicone steel armature plate
- Satin anodised aluminium housing
- Built-in varistor (MOV) surge protection.
- No moving parts
Specifications:
- Dual Voltage: 12V DC/24V DC
- Current Draw: 12V DC @ 350mA & 24V DC @ 175mA
- Magnet Size:
- Length: 166mm
- Height: 38mm
- Depth: 20mm
- Armature Plate:
- Length: 130mm
- Height: 3mm
- Depth: 9mm
- Holding Force: 180kg
- Fire Rated: No
- Single Or Double Door Maglock: Single
- Monitoring: Non-Monitored
- Finish: Satin Anodised
.
