McCallum A105 Aluminium Heavy Duty Interfold Hinge 130mm - Available in Various Finishes

McCallum A105 Aluminium Heavy Duty Interfold Hinge

Interfold Hinge commonly used on heavy aluminium and selected timber doors installed within aluminum frames.

Interfold Hinge Function - supports the door and enables smooth pivoting while its offset design provides the required clearance between the door and frame.

Features:

• Heavy-duty interfold hinge
• High-strength T6 aluminum construction
• Heavy-duty squareline knuckle
• 304-grade stainless-steel hinge pin
• Flanged nylon bushes for smooth operation
• Integrated positioning locator
• Suitable for aluminum and selected timber doors
• Supplied with stainless-steel fixing screws

Specifications:

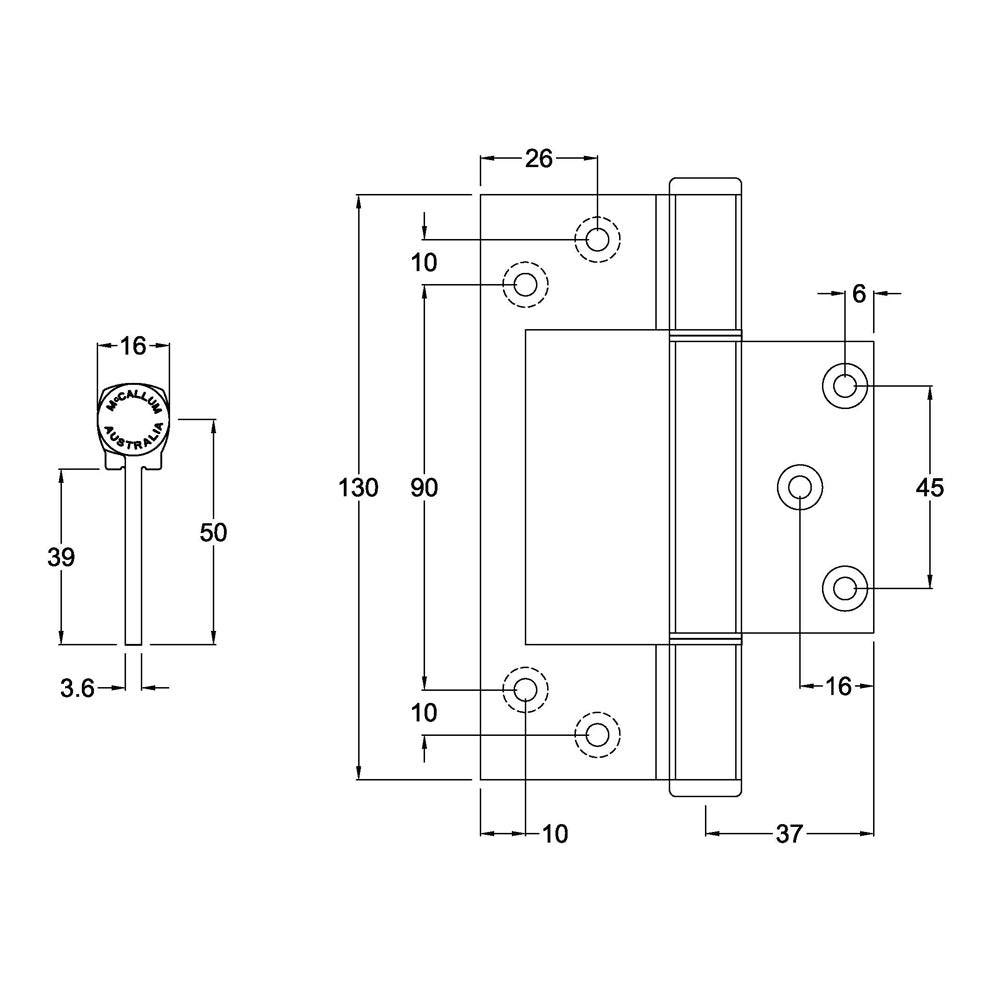

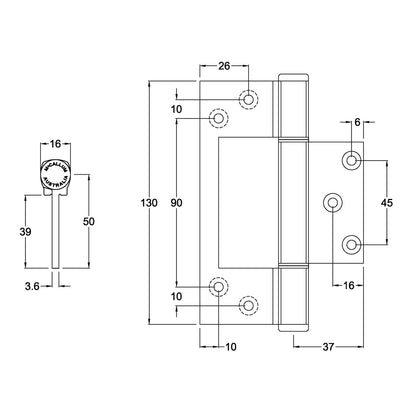

• Length: 130mm
• Hinge Type: Interfold hinge
• Material: T6 aluminum alloy
• Minimum Tensile Strength: 254MPa
• Pin: 6mm-diameter 304 stainless steel
• Knuckle: Heavy-duty squareline
• Minimum Door Thickness: 40mm
• Maximum Capacity: 80kg using three hinges
• Recommended Door Size: Up to 2040mm x 820mm
• Application: Aluminum and selected timber doors in aluminium frames
• Fixings: 10G x 12mm 304 stainless-steel screws supplied
• Installation Note: A fourth hinge may be required for high-traffic doors or doors fitted with closers; pop rivets are not recommended
• Available Finish:

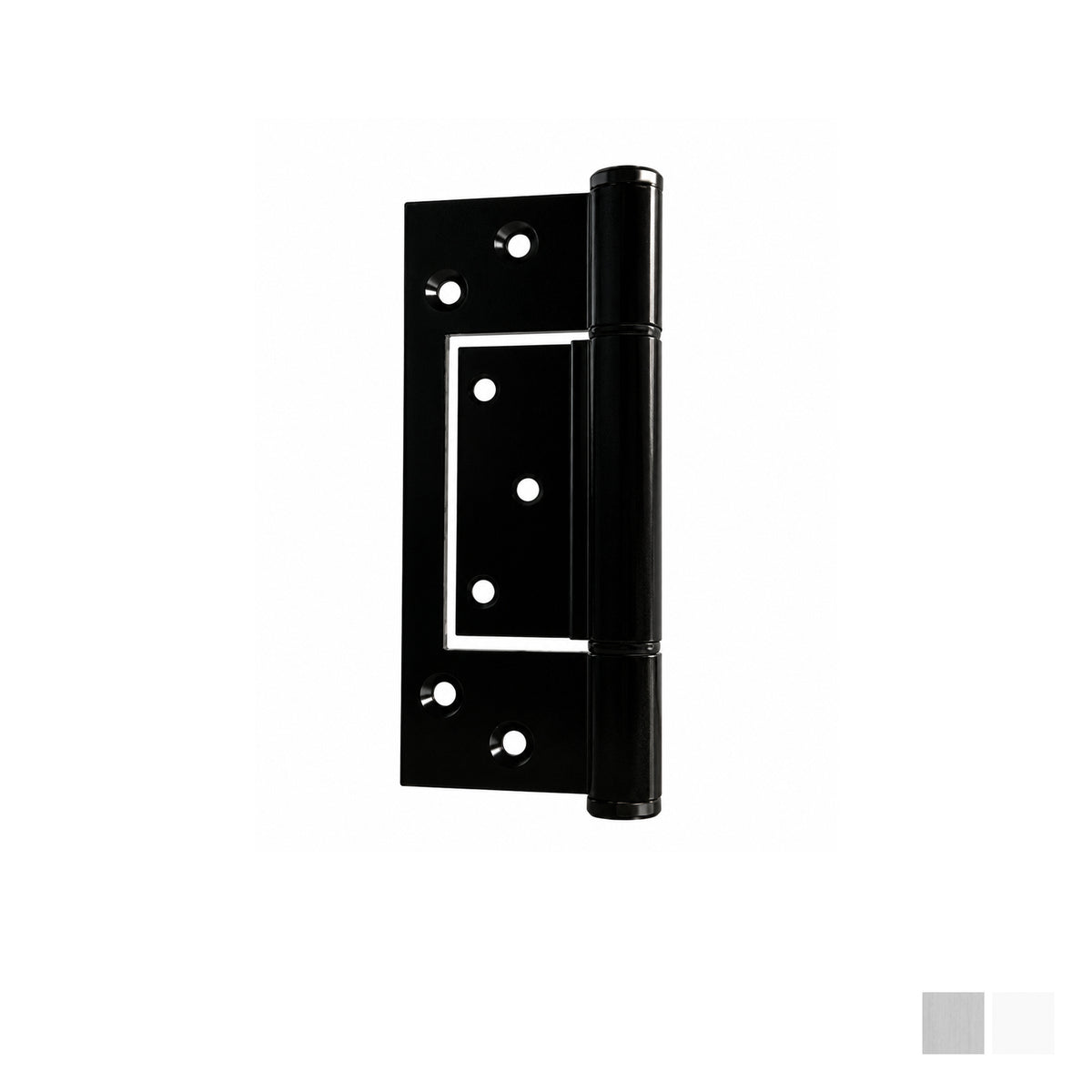

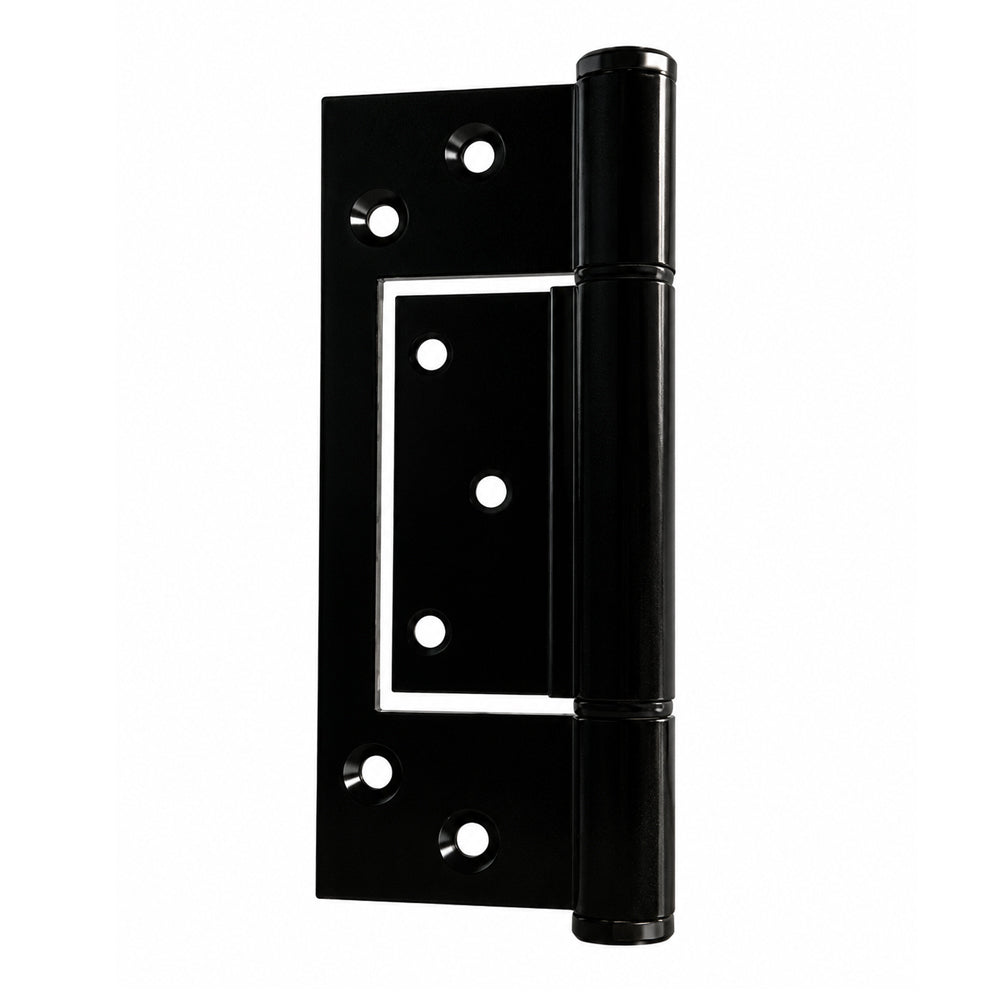

  • Black Powdercoat

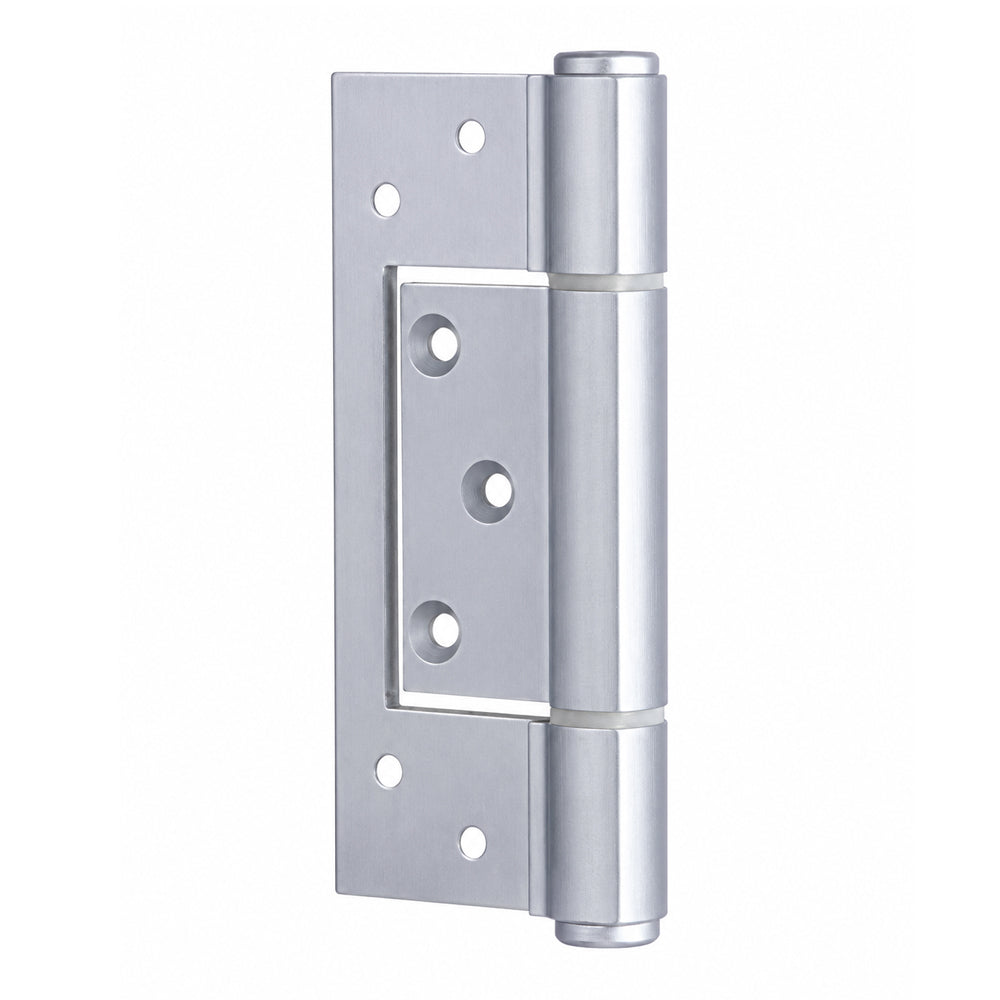

  • Satin Natural Anodised

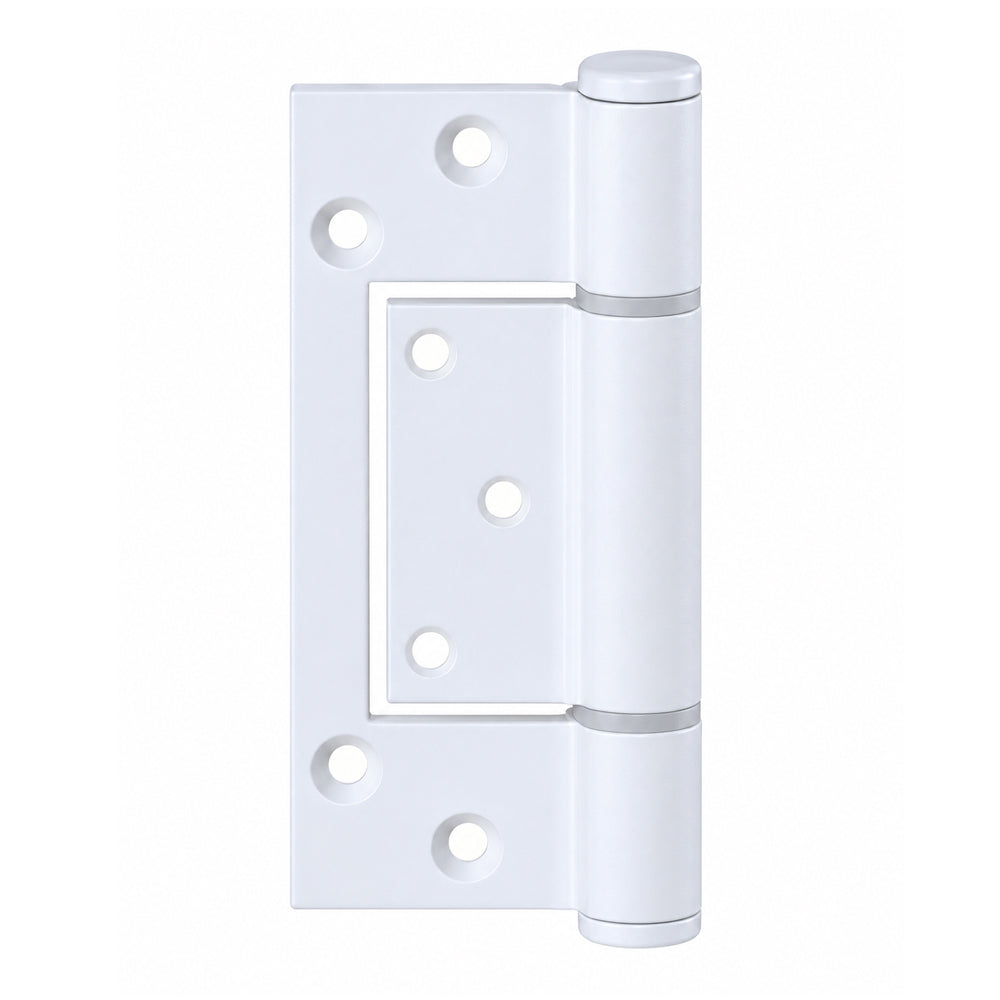

  • White Powdercoat
