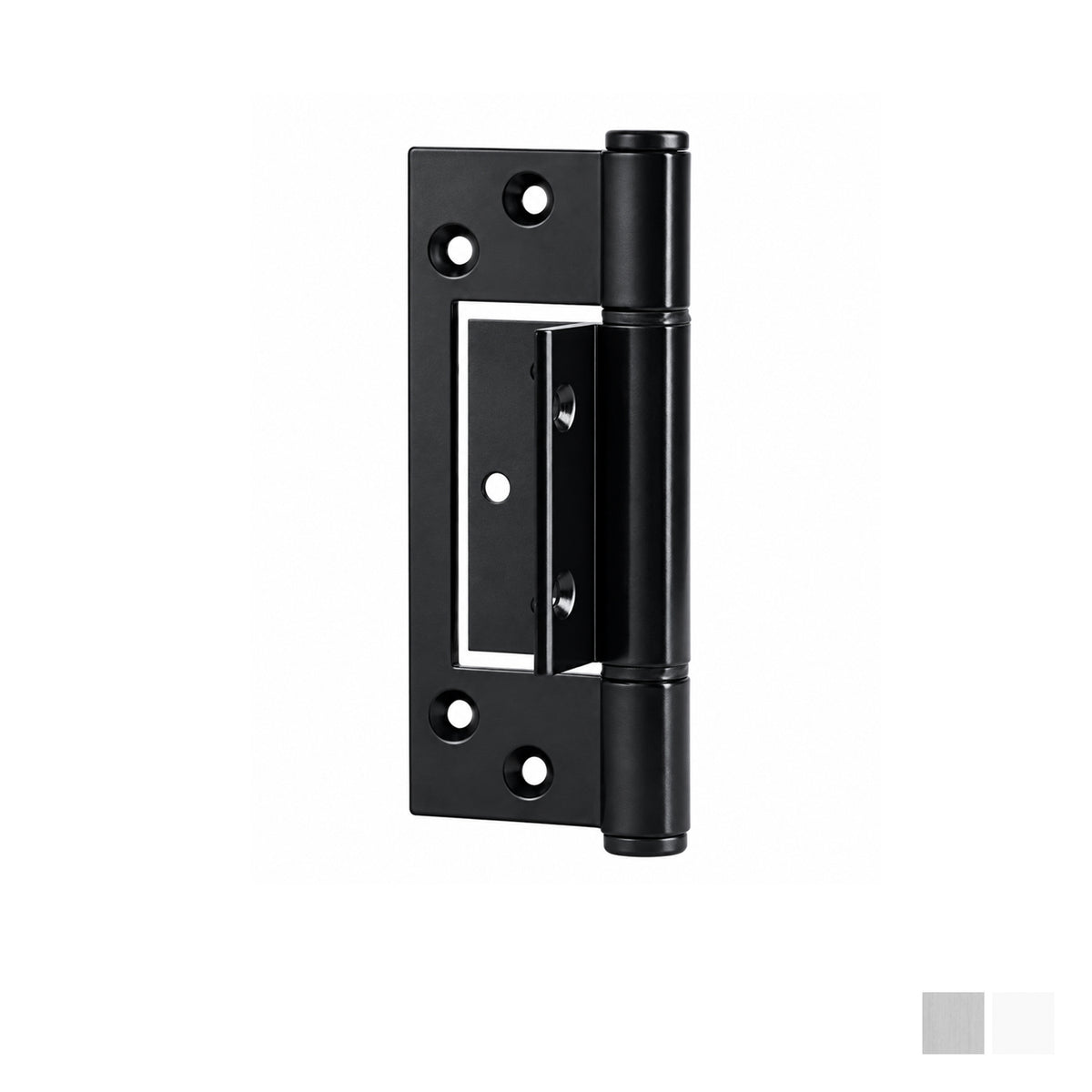

McCallum A154 Aluminum Heavy Duty Interfold Hinge Wrap Around 130mm - Available in Various Finishes

McCallum A154 Aluminum Heavy Duty Interfold Hinge

Interfold Hinge commonly used on heavy aluminium and selected timber doors installed within aluminum frames.

Interfold Hinge Function - supports the door and enables smooth pivoting while its offset design provides the required clearance between the door and frame.

Features:

• Heavy-duty interfold hinge
• Wrap-around face-fix design
• High-strength T6 aluminum construction
• Heavy-duty squareline knuckle
• 304-grade stainless-steel hinge pin
• Flanged nylon bushes for smooth operation
• Integrated hinge-positioning locator
• Supplied with fastening screws

Specifications:

• Length: 130mm
• Hinge Type: Heavy-duty interfold hinge
• Fixing: Wrap-around face fixing to door and frame
• Material: T6 aluminum alloy
• Minimum Tensile Strength: 254MPa
• Hinge Pin: 6mm-diameter 304 stainless steel
• Knuckle: Heavy-duty squareline
• Minimum Door Thickness: 40mm
• Maximum Capacity: 100kg using three hinges
• Recommended Door Size: Up to 2040mm x 820mm
• Application: Aluminum and timber doors in aluminum frames
• Available Finish:

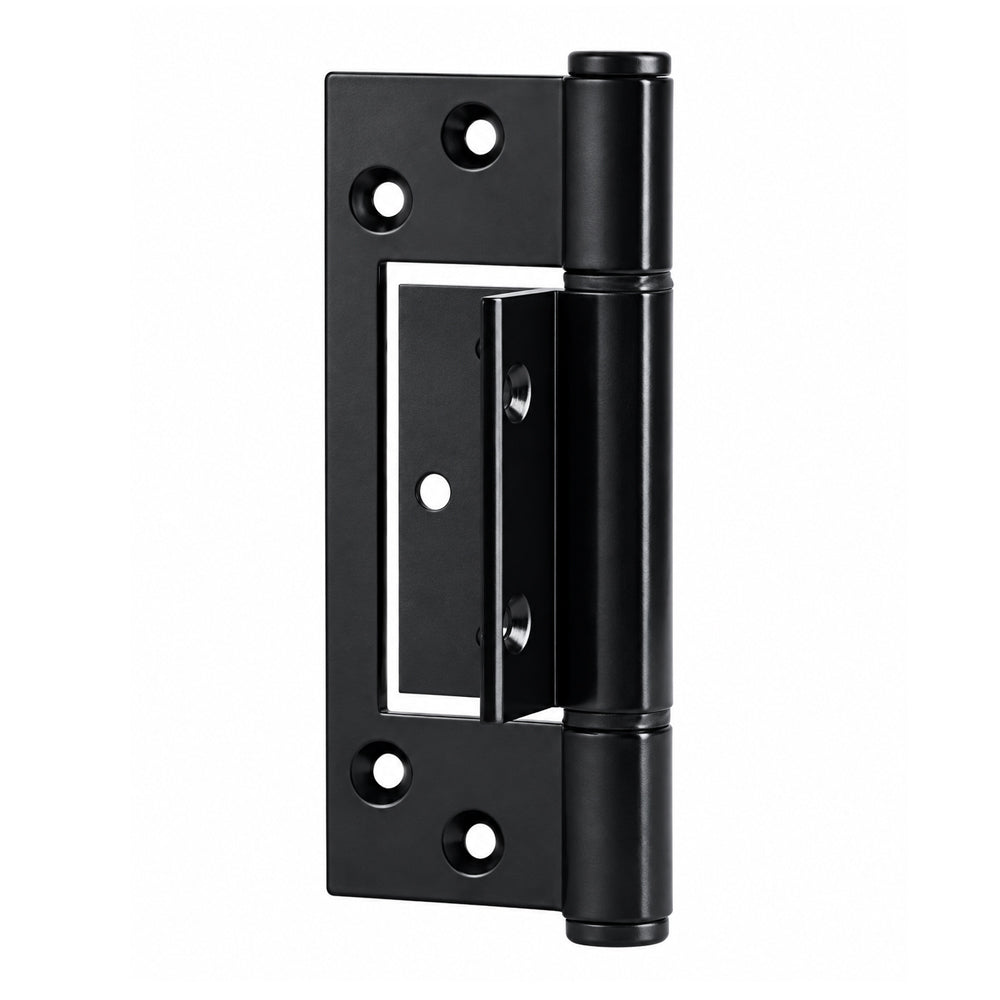

  • Black Powdercoat

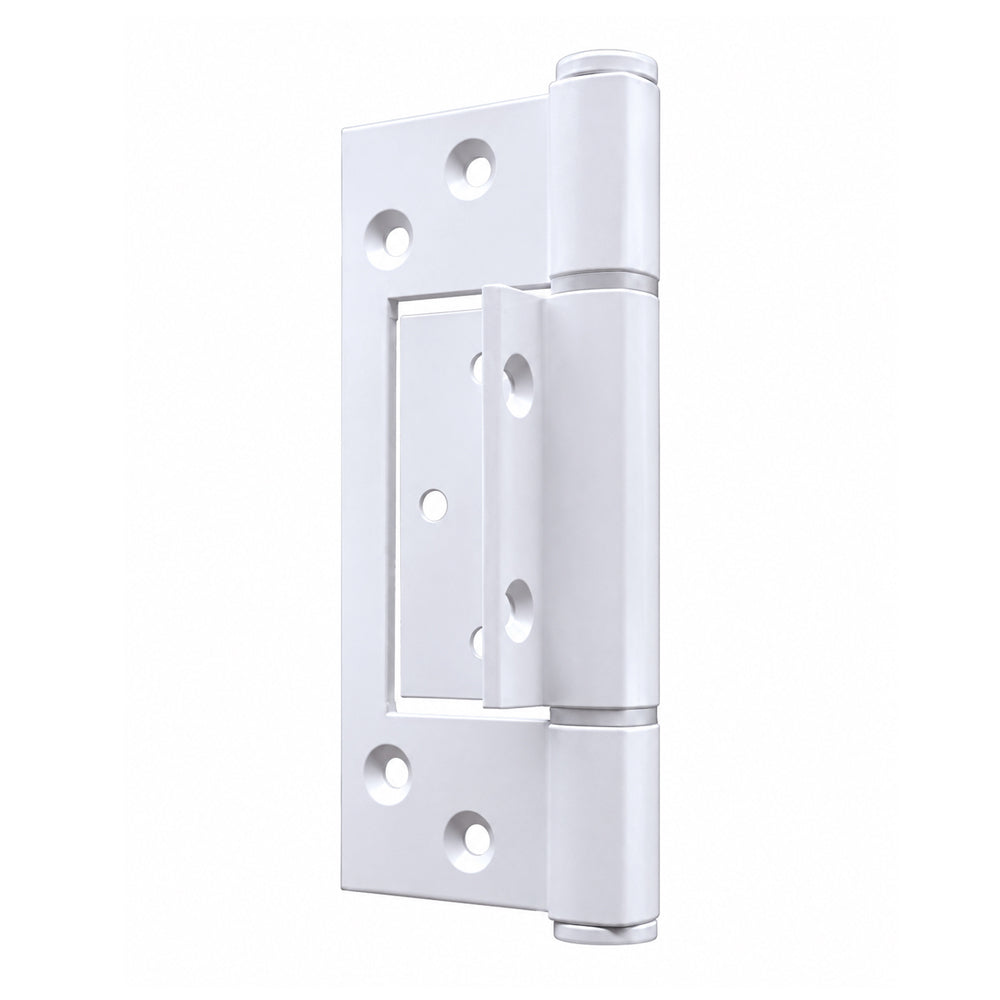

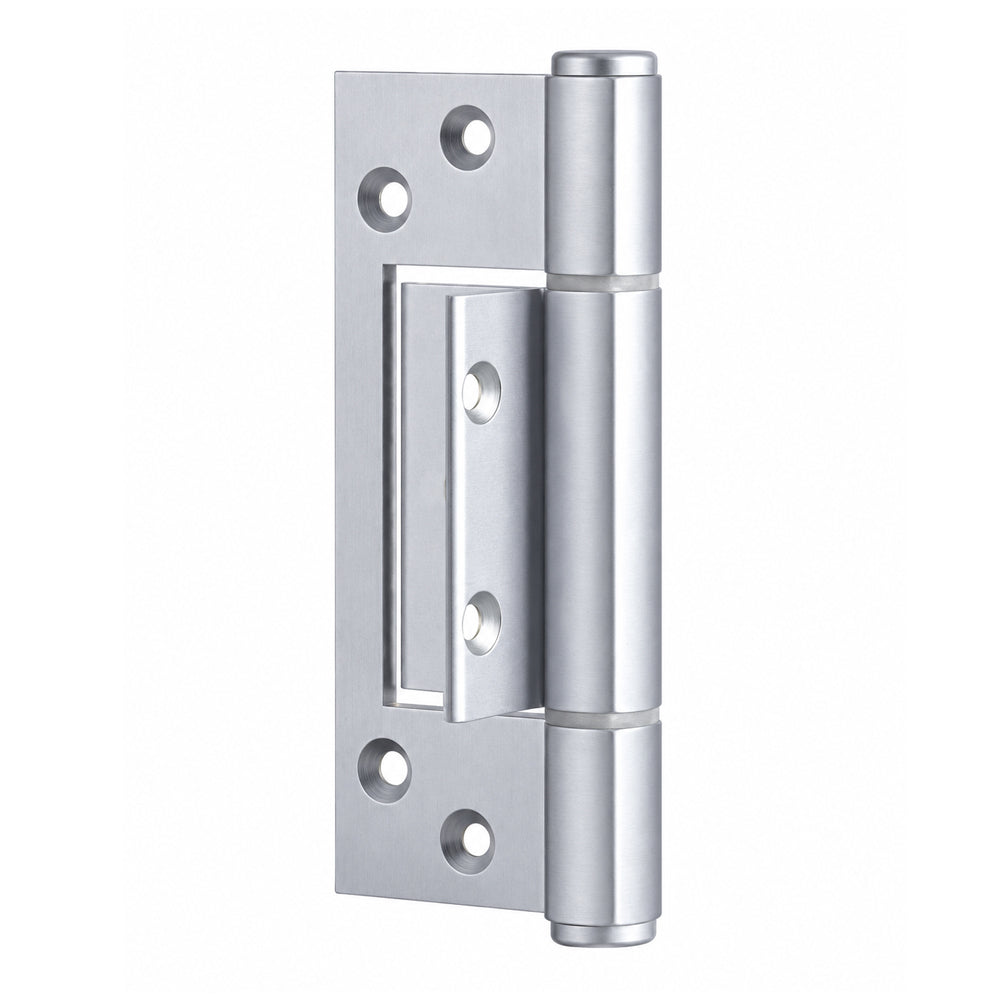

  • Satin Natural Anodised
  • White Powdercoat
