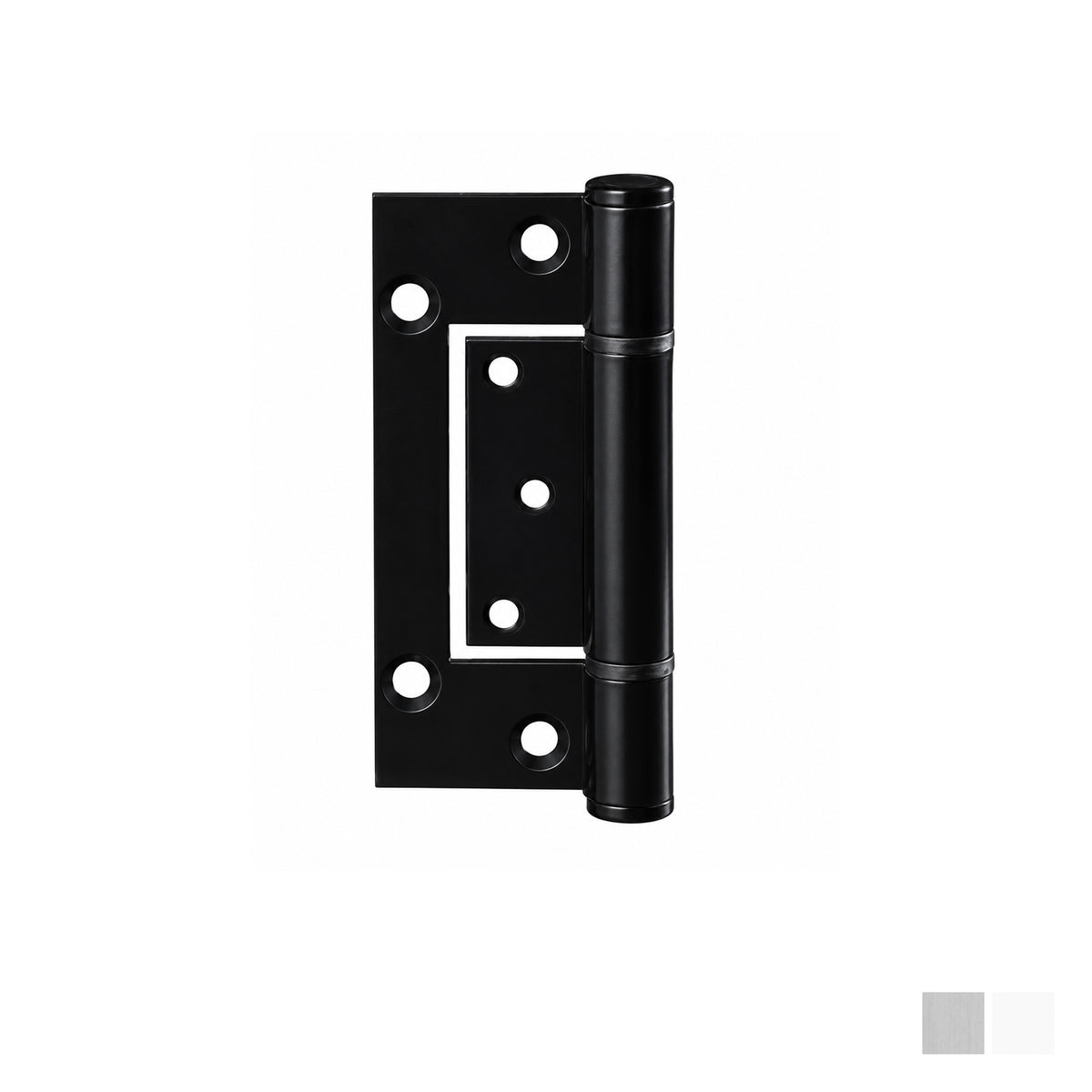

McCallum A166 Aluminum Medium Duty Interfold Hinge 100mm - Available in Various Finishes

McCallum A166 Aluminum Medium Duty Interfold Hinge

Interfold Hinge commonly used on heavy aluminium and selected timber doors installed within aluminum frames.

Interfold Hinge Function - supports the door and enables smooth pivoting while its offset design provides the required clearance between the door and frame.

Features:

• Medium-duty offset interfold design
• High-strength T6 aluminum construction
• Round offset knuckle
• 304-grade stainless-steel hinge pin
• Flanged nylon bushes for smooth operation
• Aluminum pressed endcaps
• Supplied with fastening screws

Specifications:

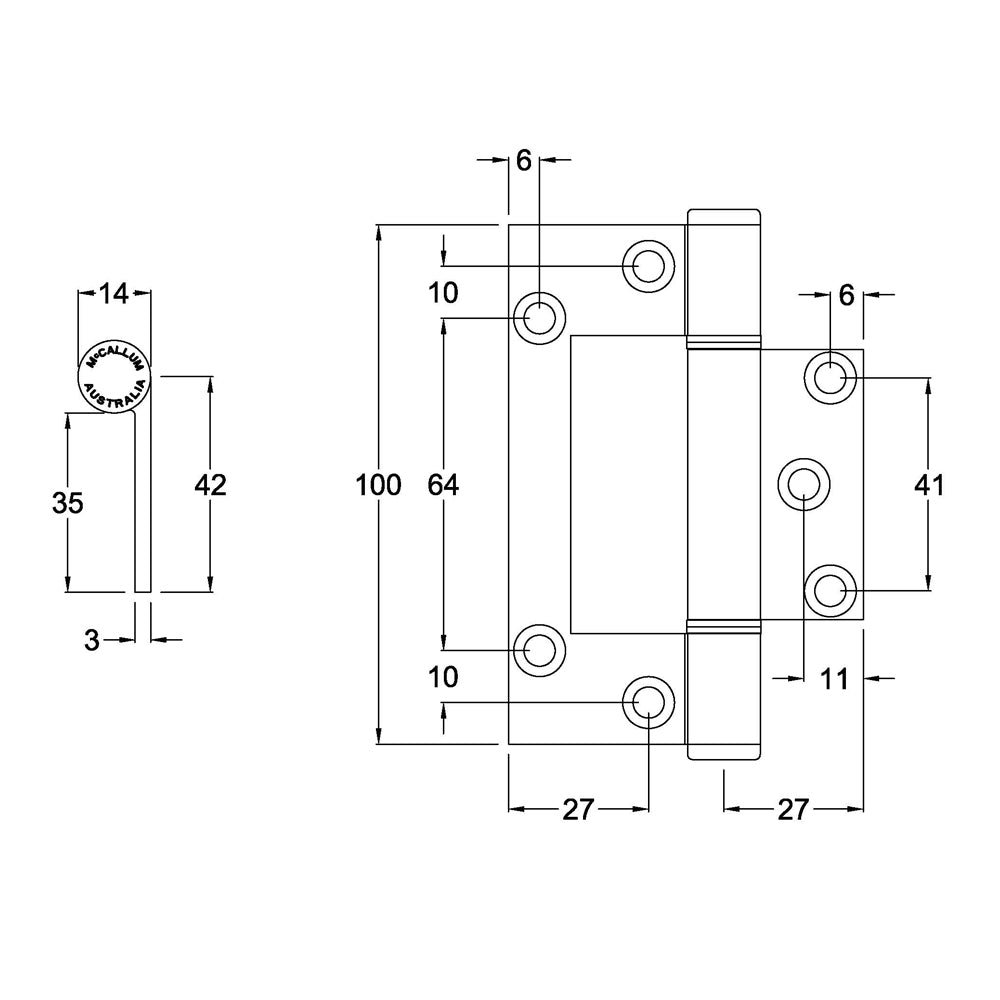

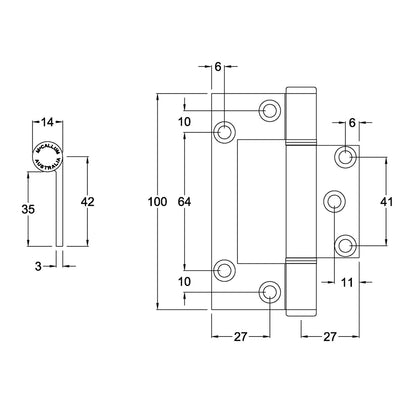

• Length: 100mm
• Hinge Type: Offset interfold hinge
• Material: T6 aluminum alloy
• Minimum Tensile Strength: 254MPa
• Hinge Pin: 4.7mm-diameter 304 stainless steel
• Knuckle: Medium-duty round offset
• Positioning Locator: Not included
• Minimum Door Thickness: 35mm
• Maximum Capacity: 20kg using three hinges
• Recommended Door Size: Up to 2040 x 820mm
• Application: Aluminum and selected timber doors in aluminum frames
• Available Finish:

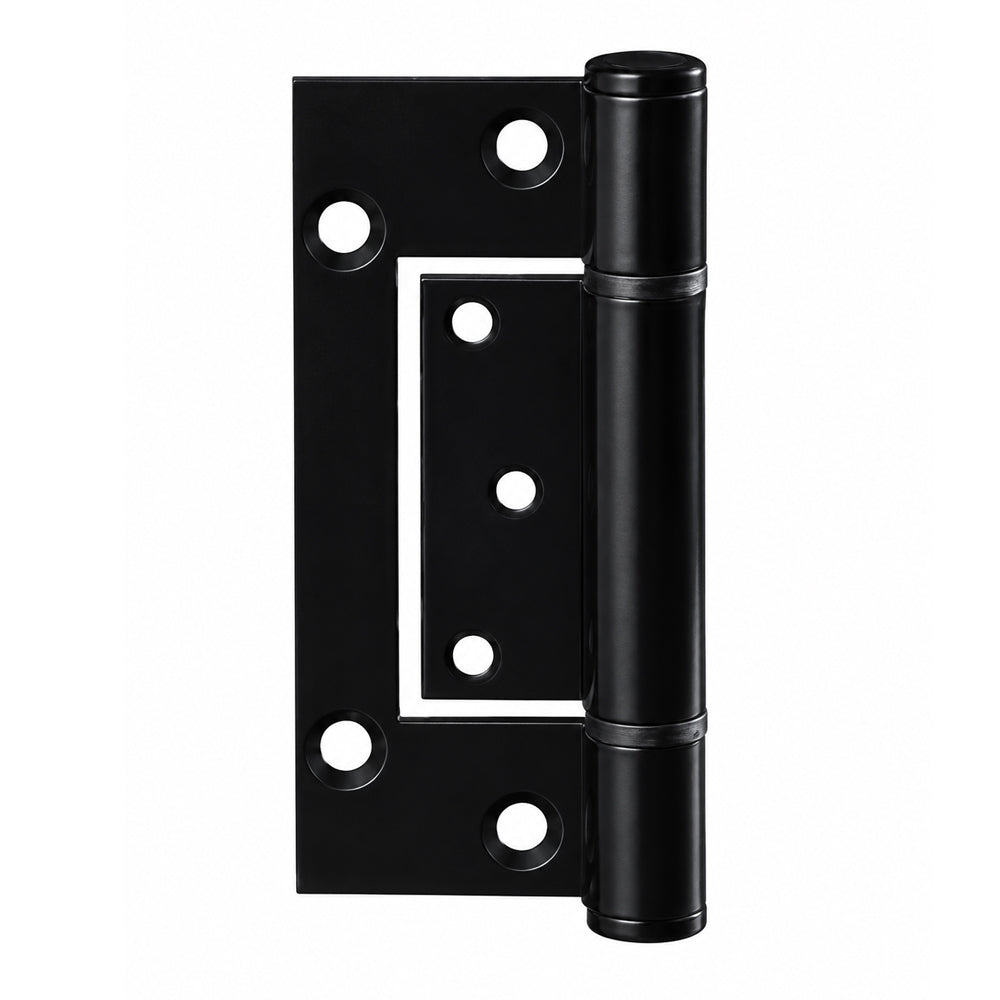

  • Black Powdercoat

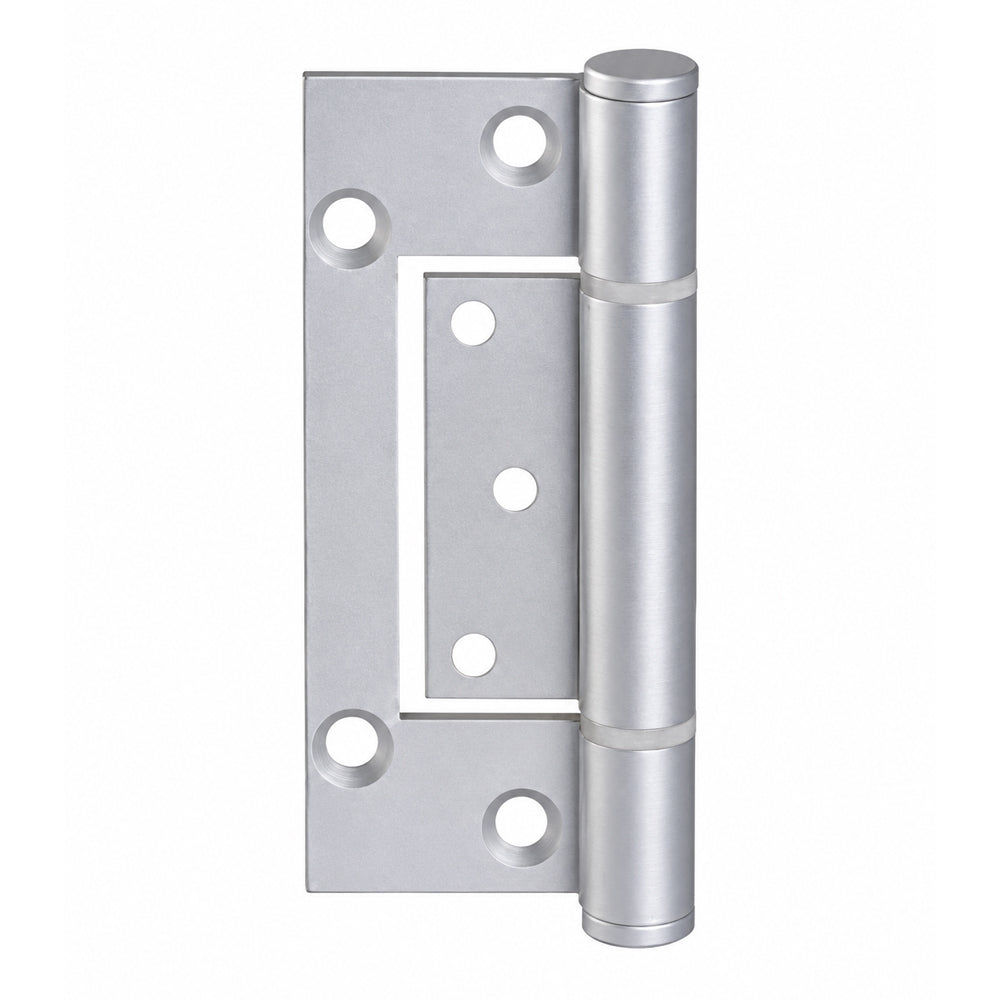

  • Satin Natural Anodised

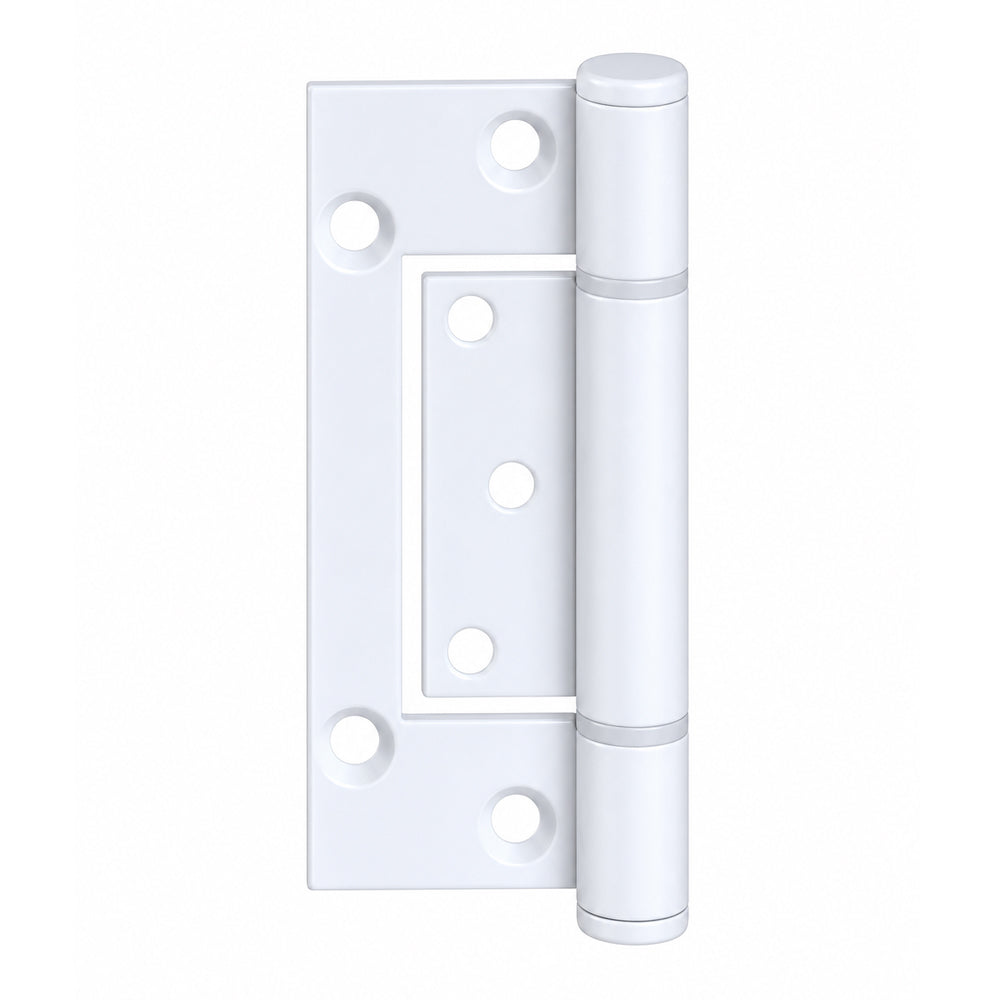

  • White Powdercoat
