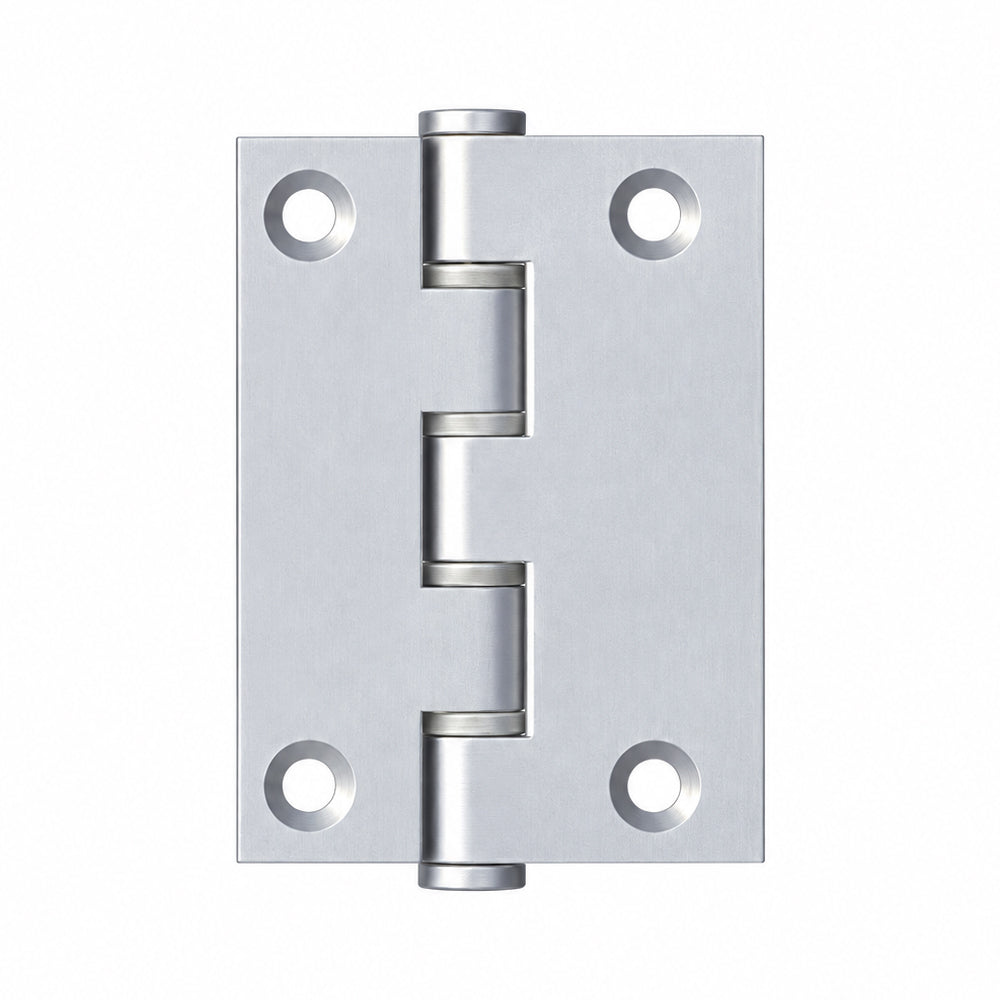

McCallum Aluminium Butt Hinge Fixed Pin 76mm Satin Natural Anodised A146

McCallum Aluminium Butt Hinge Fixed Pin
A146

Butt Hinge used to mount and operate doors on commercial properties and residential homes.

Butt Hinge Function - Also known as a morticed hinge, a butt hinge is a type of hinge with a pair of identical leafs. They typically feature a larger knuckle than other types of hinges. With their wide knuckle, the two leafs will sit flush with each other when the butt hinge is closed.

Features:

• Fixed-pin aluminum butt hinge
• Compact design for aluminum doors and windows
• High-strength T6 aluminum construction
• 304-grade stainless-steel hinge pin
• Flanged nylon bushes for smooth operation
• Round knuckle with pressed aluminum endcaps
• Suitable for aluminum frames

Specifications:

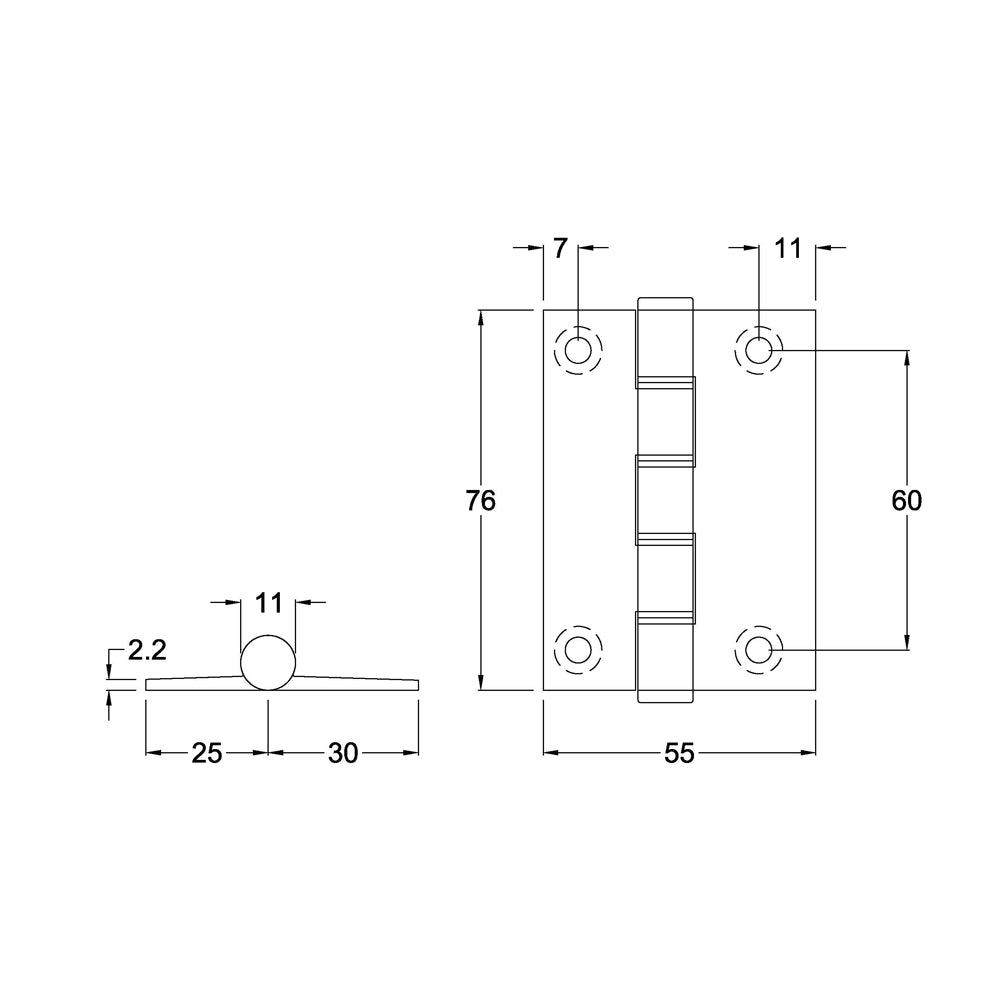

• Dimensions: 76mm x 55mm x 2.2mm
• Hinge Type: Fixed-pin butt hinge
• Material: T6 aluminum alloy
• Minimum Tensile Strength: 254MPa
• Pin: 4mm-diameter 304 stainless steel
• Minimum Door Thickness: 30mm
• Maximum Capacity: 20kg using three hinges
• Recommended Door Size: Up to 2040mm x 820mm
• Application: Aluminum doors and windows in aluminum frames
• Fasteners: Not supplied
• Installation Note: Pop rivets are not recommended
• Finish: Satin Natural Anodised
