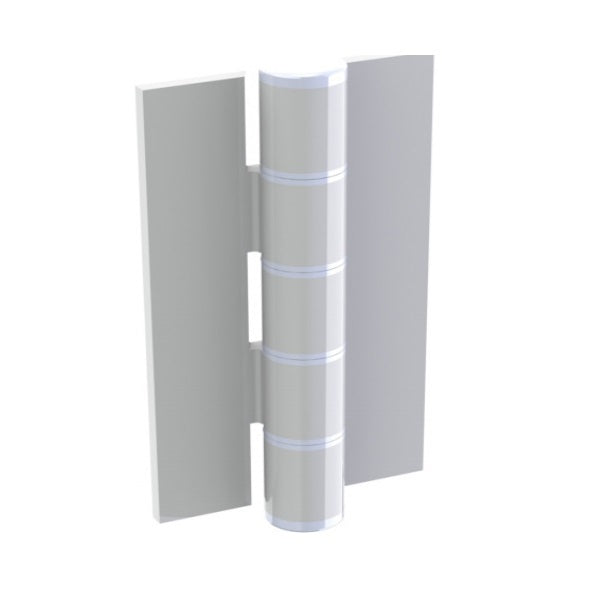

McCallum Aluminum Blank Butt Hinge Undrilled 100mm Satin Natural Anodised A141

McCallum Aluminum Blank Butt Hinge Undrilled
A141

Butt Hinge used to mount and operate doors on commercial properties and residential homes.

Butt Hinge Function - Also known as a morticed hinge, a butt hinge is a type of hinge with a pair of identical leafs. They typically feature a larger knuckle than other types of hinges. With their wide knuckle, the two leafs will sit flush with each other when the butt hinge is closed.

Features:

• Undrilled design allows customised fixing-hole placement
• High-strength T6 aluminum construction
• 304-grade stainless-steel hinge pin
• Flanged nylon bushes for smooth operation
• Round knuckle with pressed aluminum endcaps
• Suitable for aluminum doors and partitions
• Designed for medium-use applications

Specifications:

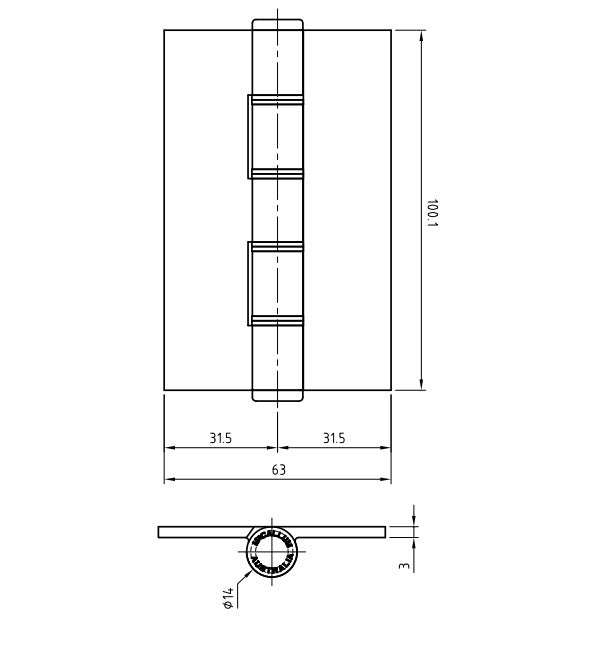

• Dimensions: 100mm x 63mm x 3mm
• Hinge Type: Undrilled butt hinge
• Material: T6 aluminum alloy
• Minimum Tensile Strength: 254MPa
• Pin: 4.7mm-diameter 304 stainless steel
• Minimum Door Thickness: 35mm
• Maximum Capacity: 20kg using three hinges
• Recommended Door Size: Up to 2040mm x 820mm
• Fasteners: Not supplied
• Installation Note: Pop rivets are not recommended
• Finish: Satin Natural Anodised
