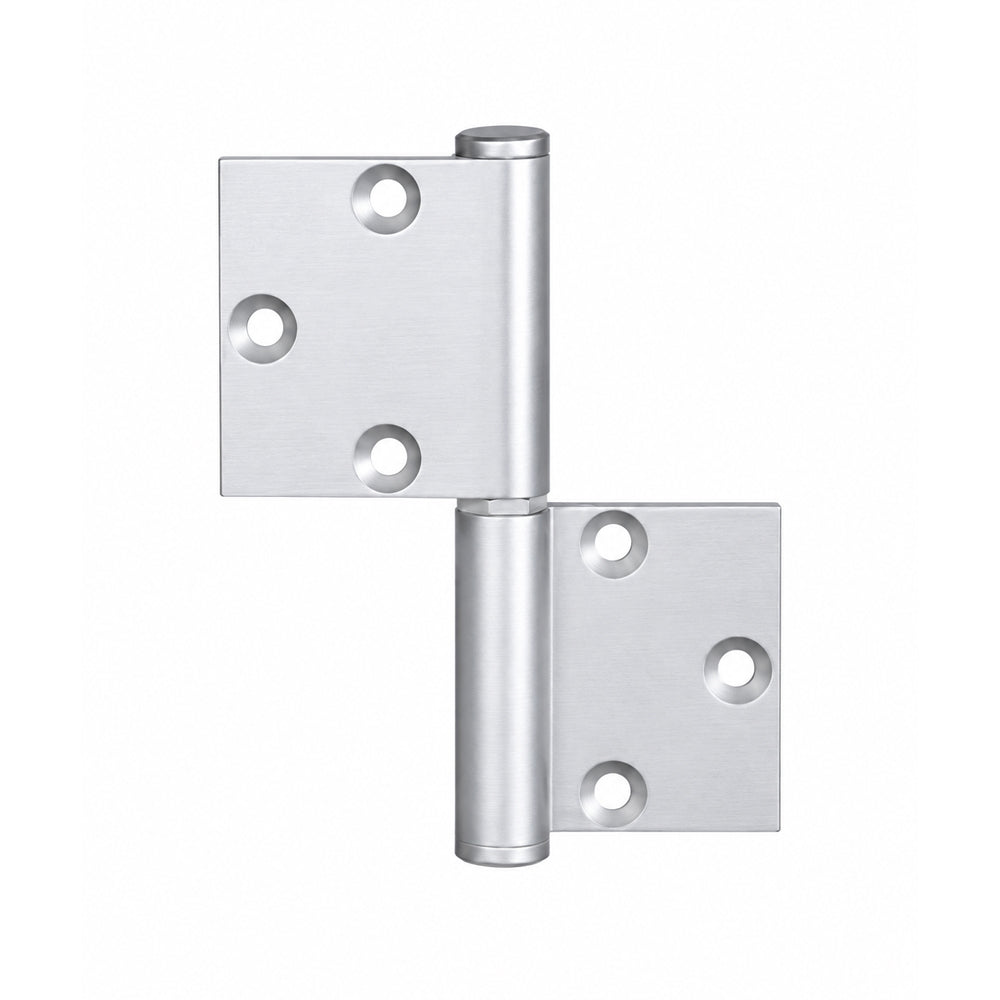

McCallum Aluminum Lift-Off Hinge Left Hand Satin Natural Anodised A101

McCallum Aluminum Lift-Off Hinge Left Hand
A101

Lift Off Hinge can be installed to inward opening doors. Most common building solution used for access into fully enclosed sanitary compartments.

Lift Off Hinge Function - are a type of hinge made up of two parts which allow door removal without the need to open the door.

Features:

• Left-hand lift-off butt hinge
• Allows the door to be removed without unscrewing the hinge
• High-strength T6 aluminum construction
• 304-grade stainless-steel hinge pin
• Flanged nylon bushes for smooth operation
• Round offset knuckle
• Suitable for aluminum and timber doors

Specifications:

• Handing: Left hand

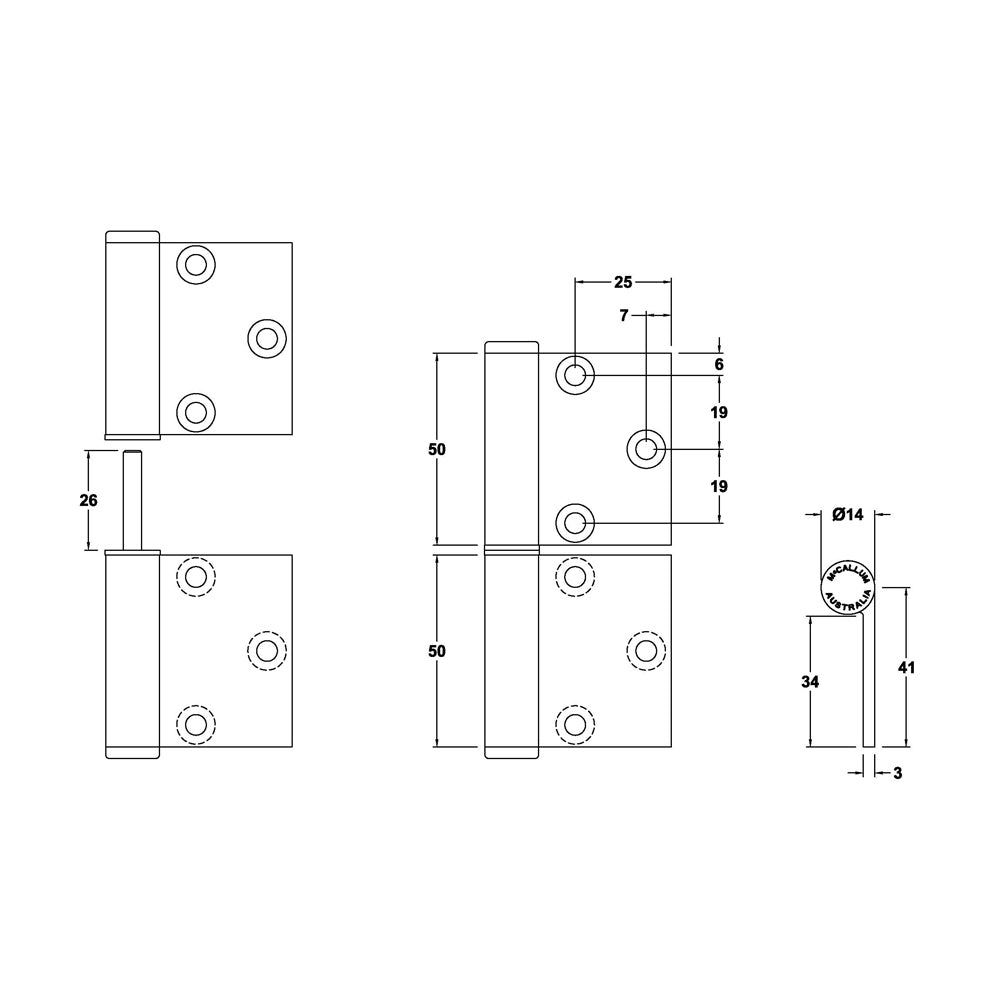

• Dimensions: 103mm x 40mm x 3mm
• Hinge Type: Lift-off butt hinge
• Material: T6 aluminum alloy
• Minimum Tensile Strength: 254MPa
• Pin: 4.7mm-diameter 304 stainless steel
• Pin Length: 26mm
• Minimum Door Thickness: 35mm
• Maximum Capacity: 25kg using three hinges
• Recommended Door Size: Up to 2040mm x 820mm
• Application: Aluminum or timber doors in aluminium or timber frames
• Lift-off Clearance: Minimum 35 - 40mm above the door
• Fasteners: Supplied
• Installation Note: Pop rivets are not recommended
• Finish: Satin Natural Anodised
