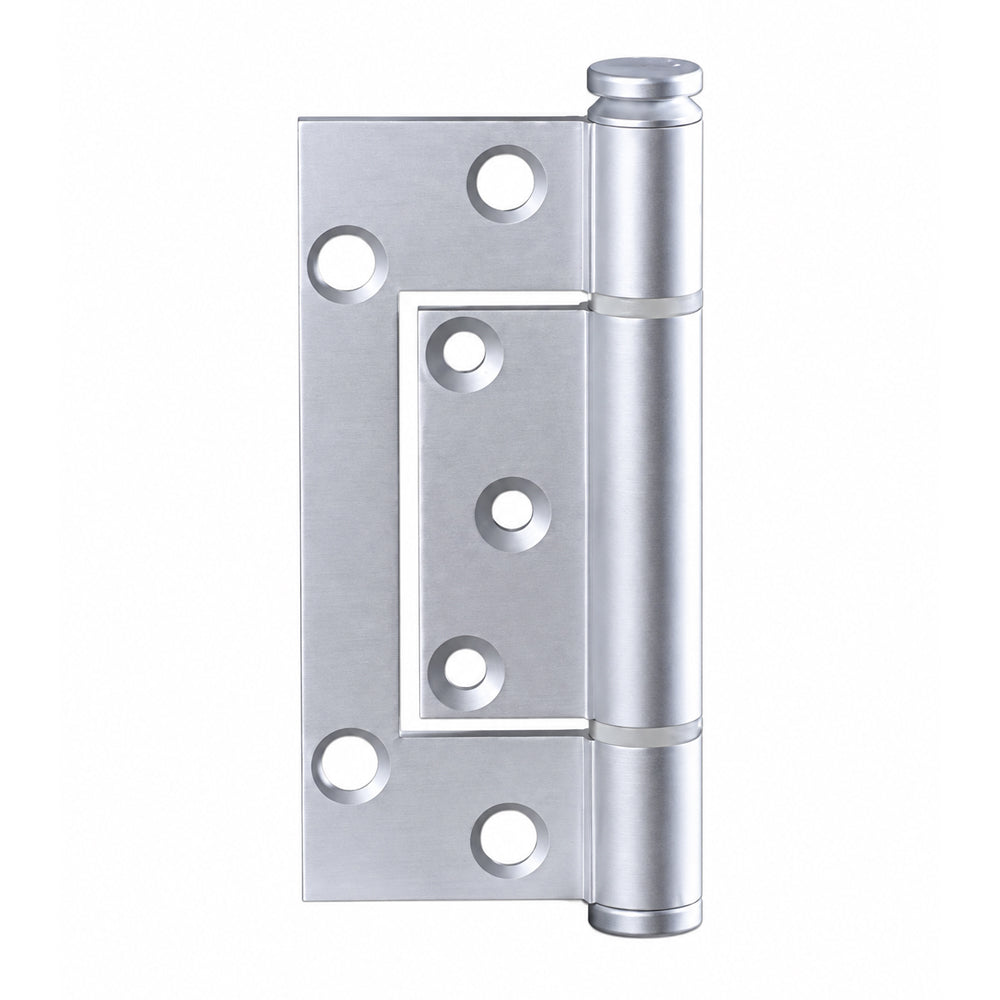

McCallum Aluminum Medium Duty Interfold Hinge Loose Pin 100mm Satin Natural Anodised A173

McCallum Aluminum Medium Duty Interfold Hinge
A173

Interfold Hinge commonly used on heavy aluminium and selected timber doors installed within aluminum frames.

Interfold Hinge Function - supports the door and enables smooth pivoting while its offset design provides the required clearance between the door and frame.

Features:

• Medium-duty interfold hinge
• Loose-pin design allows easier door removal
• High-strength T6 aluminum construction
• Round medium-duty knuckle
• 304-grade stainless-steel hinge pin
• Flanged nylon bushes for smooth operation
• Integrated hinge-positioning locator
• Supplied with fastening screws

Specifications:

• Length: 100mm
• Hinge type: Loose-pin interfold hinge
• Material: T6 aluminum alloy
• Minimum Tensile Strength: 254MPa
• Hinge Pin: 4.7mm-diameter 304 stainless steel
• Knuckle: Medium-duty round
• Minimum Door Thickness: 35mm
• Maximum Capacity: 20kg using three hinges
• Recommended Door Size: Up to 2040 x 820mm
• Application: Aluminum and selected timber doors in aluminum frames
• Finish: Satin Natural Anodised
