SKU: MCCA103

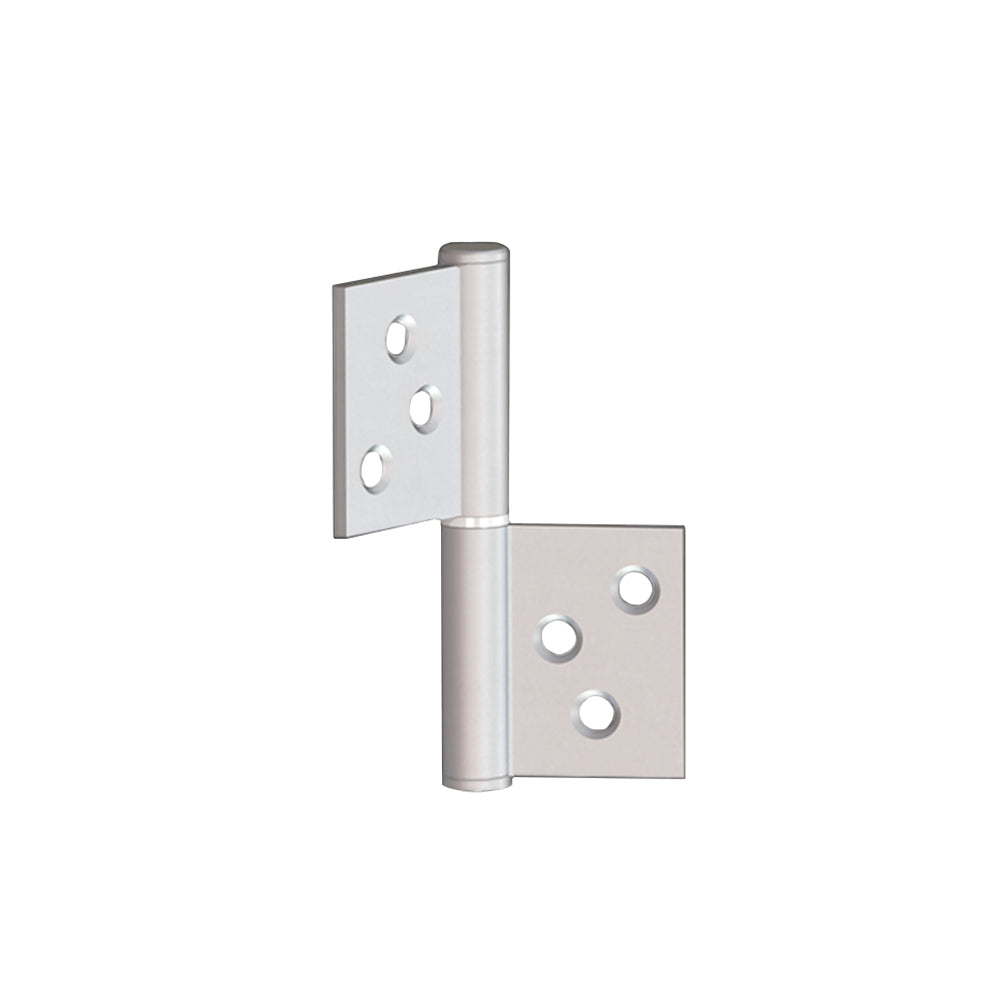

McCallum Door Hinge Aluminium Lift Off Non Handed 109x40mm A103
RRP: $10.20
Regular price
$9.70
Regular price
Sale price
$9.70
Unit price
/
per
Available:
Online: In Stock
LEAVES WAREHOUSE IN 3-5 BUSINESS DAYS
Instore: No Stock
- Please place order instore
*Handling Times May Apply
Express Shipping*
This product qualifies for express shipping
*Enter your postcode for available options*
Buy in Bulk
Price per unit
Buy 10 to 19:
Pay $9.22
SAVE 5%
Buy 20 to 29:
Pay $8.97
SAVE 8%
Buy 30 or more:
Pay $8.73
SAVE 10%
Payments accepted:
Couldn't load pickup availability
McCallum Door Hinge Aluminium Lift Off Non Handed 109x40mm A103
$9.70
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

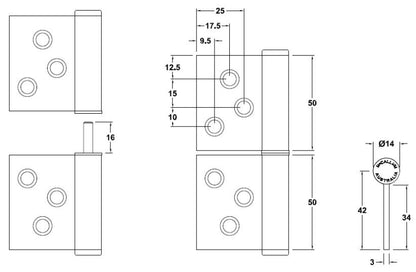

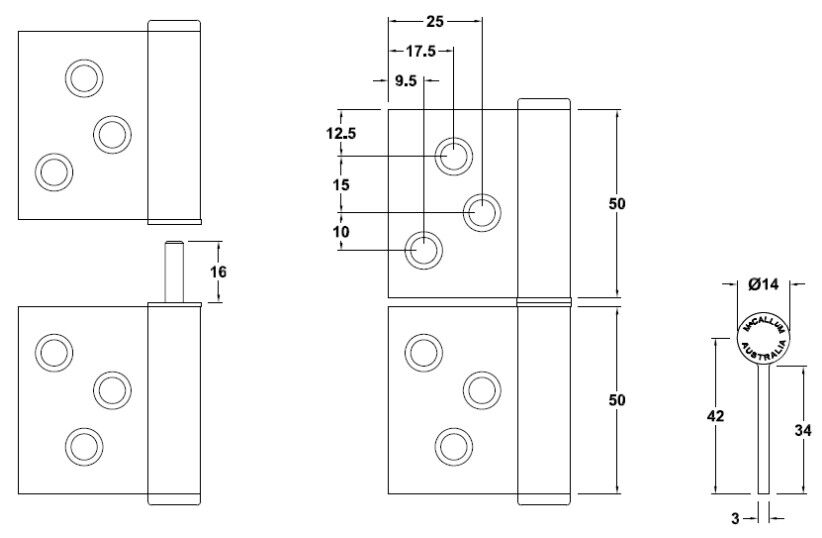

McCallum A103 Door Hinge Aluminium Lift Off Non Handed 109x40mm
A103
Application:
- Lift-off facility for aluminium and timber doors.
Specifications:
- Alloy: High strength T.6 minimum tensile 254 mpa.
- Pin Diameter: 4.7mm 304 stainless steel with machined chamfers.
- Bushes: Flanged nylon.
- Knuckle: Round.
- Aluminium Endcaps: Pressed-in interference fit.
- Pin Length: 15mm.
- Maximum Weight Capacity: 25 kg
- Finish: Satin Natural Anodised
INSTALLATION GUIDE ONLY
- These hinges are designed to suit left and right hand installations making it easier for specifying.
- The leaves are central on the knuckle with double countersinking.
- Two of the screw holes in the leaf align with metal frame pattern.
- The third hole will require drilling and tapping of the frame.
- 3 x 12mm x M5 metal screws are supplied for the metal frame.
- When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.
Standard Door: 2040 (h) x 820 (W)
- For lift-off clearance, we recommend a 30mm gap, minimum at the top of the door.
Fixing
- Fastening screws supplied.
- Pop rivets are not recommended.
