SKU: MCCA114

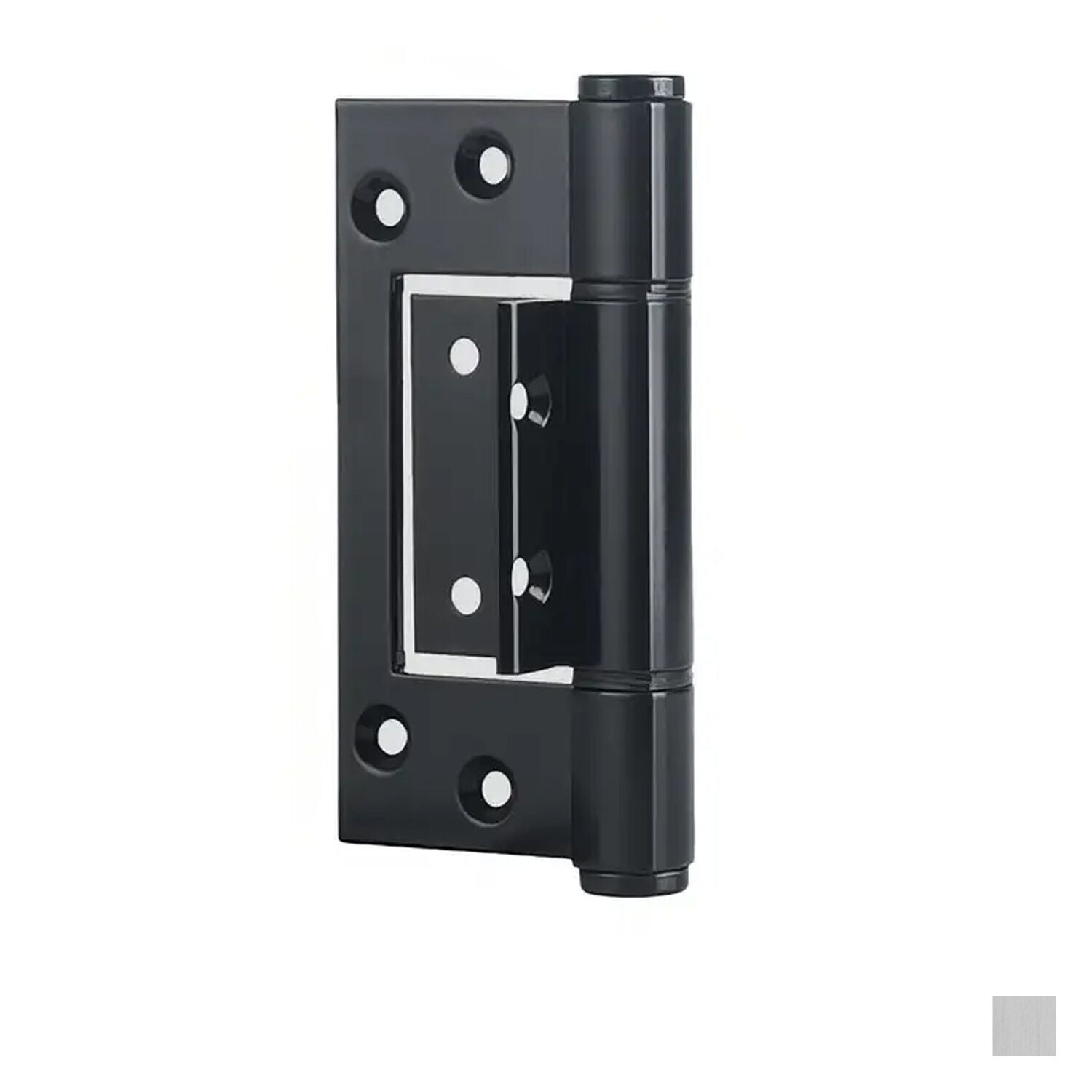

McCallum Heavy Duty Aluminium Interfold Door Hinge - Available in Various Finishes
RRP: $11.07
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
McCallum Heavy Duty Aluminium Interfold Door Hinge
Interfold Hinge is used for concealed, interior, and partial doors, as well as providing sufficient closing force for wood and lightweight metal doors.
Interfold Hinge Function - suitable for either centre pocket or front edged glazing systems.
Features:
- Wrap-around face fixing to door and frame
- Suitable for commercial aluminium and some timber doors
- Suitable for either centre pocket or front edged glazing systems
- Hinge positioning locator allows for faster and easier installation

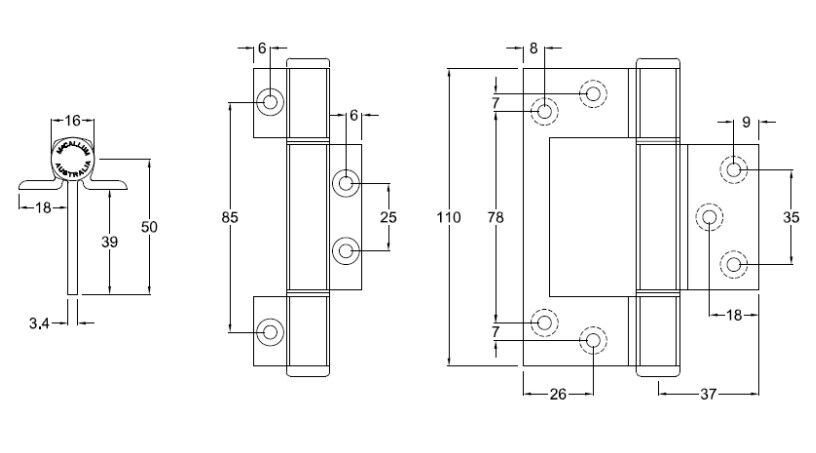

Specifications:
- Material: T6 Aluminium
- Hinge Bearing Type: Flanged Nylon
- Pin: Fixed Pin
- Thickness: 3.4mm
- Height: 110mm
- Width: 39mm
- Max Door weight: up to 60kg
-
Available Finish:

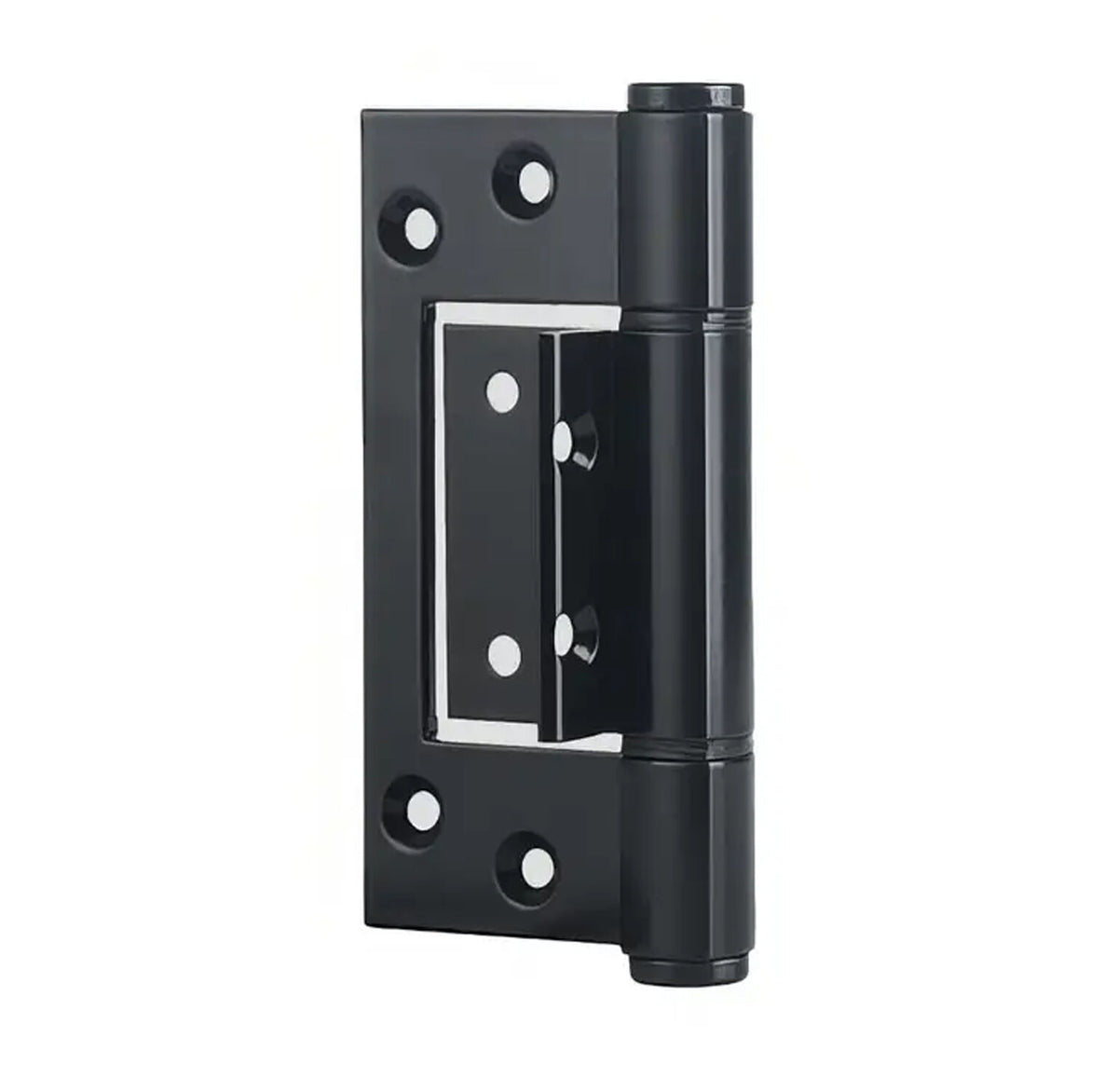

- Black
- Satin Natural Anodised

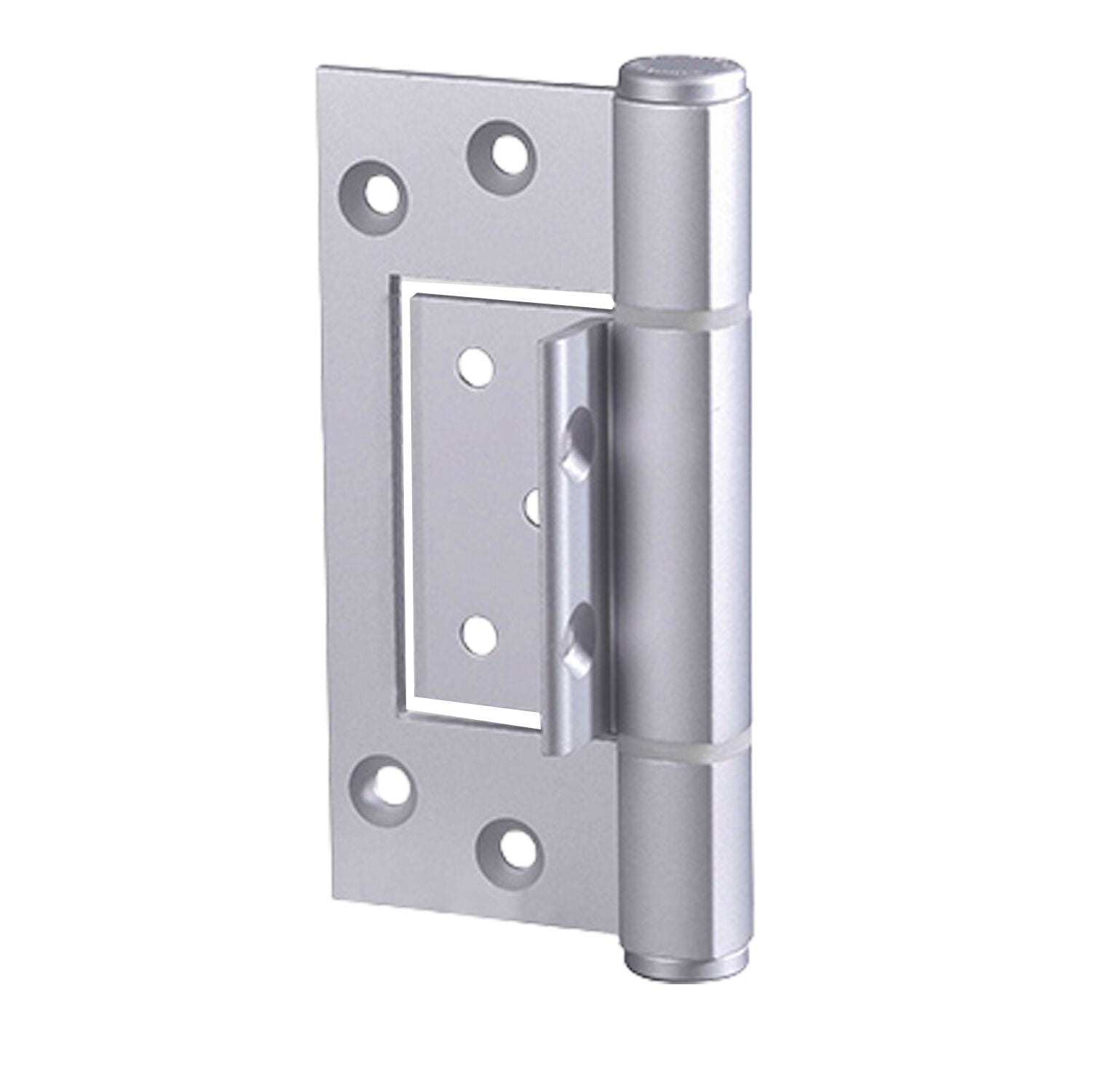

McCallum Heavy Duty Aluminium Interfold Door Hinge
A114
Interfold Hinge is used for concealed, interior, and partial doors, as well as providing sufficient closing force for wood and lightweight metal doors.
Interfold Hinge Function - suitable for either centre pocket or front edged glazing systems.
Features:
- Wrap-around face fixing to door and frame
- Suitable for commercial aluminium and some timber doors
- Suitable for either centre pocket or front edged glazing systems
- Hinge positioning locator allows for faster and easier installation
Specifications:
- Material: T6 Aluminium
- Hinge Bearing Type: Flanged Nylon
- Pin: Fixed Pin
- Thickness: 3.4mm
- Height: 110mm
- Width: 39mm
- Max Door weight: up to 60kg
- Finish: Satin Natural Anodised
