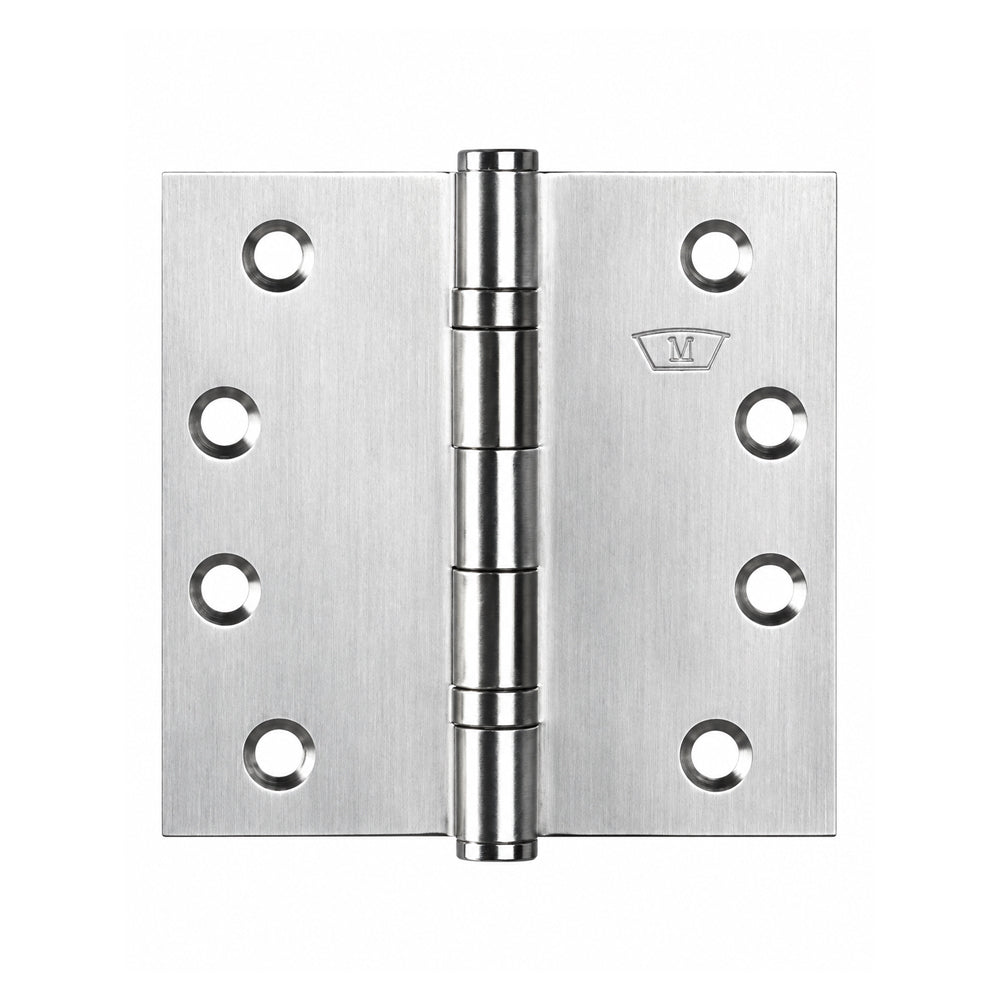

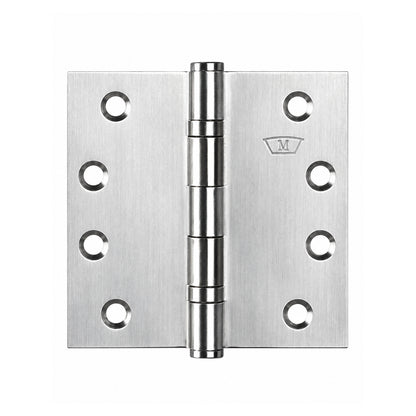

McCallum Heavy Duty Ball Bearing Butt Hinge 100x100x2.5mm Satin Stainless Steel S254

McCallum Heavy Duty Ball Bearing Butt Hinge
S254

Ball Bearing Butt Hinge commonly used on fire-rated timber doors installed in timber or metal frames, including coastal and corrosive environments.

Ball Bearing Butt Hinge Function - Supports the door and provides smooth, durable pivoting through its fixed pin and stainless-steel ball bearings.

Features:

• Heavy-duty ball-bearing butt hinge
• Marine-grade 316 stainless-steel construction
• Fixed-pin design
• Stainless-steel cage and bearings for smooth operation
• Round knuckle with pressed stainless-steel endcaps
• Industry-standard fixing-hole pattern
• Suitable for fire-rated door applications
• Supplied with timber and metal-frame fixing screws

Specifications:

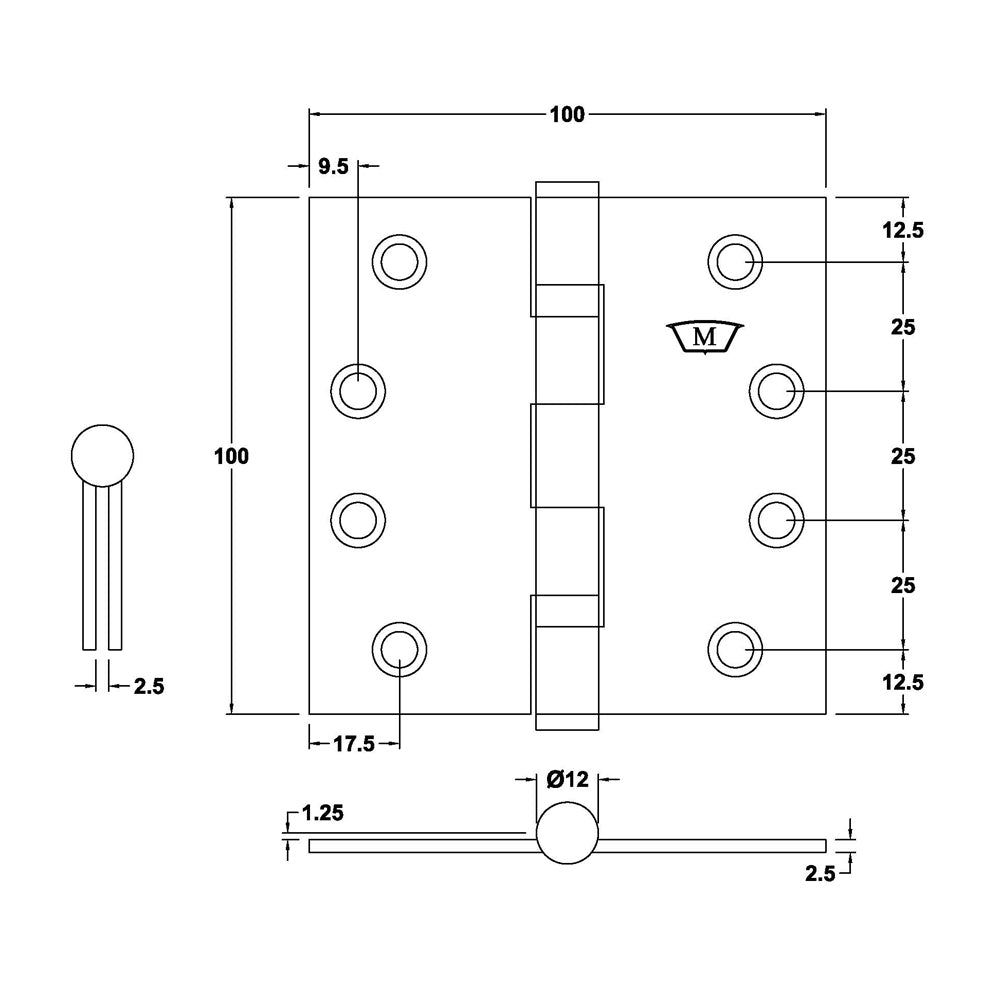

• Dimensions: 100mm x 100mm x 2.5mm
• Material: 316-grade stainless steel
• Hinge Type: Fixed-pin ball-bearing butt hinge
• Hinge Pin: 6.9mm-diameter 316 stainless steel
• Bearing: Stainless-steel cage and bearing
• Knuckle: Round
• Minimum Door Thickness: 35mm
• Fire Rated: Yes
• Recommended Quantity: Minimum of three hinges per door
• Application: Timber doors with timber or metal frames
• Finish: Satin Stainless Steel
