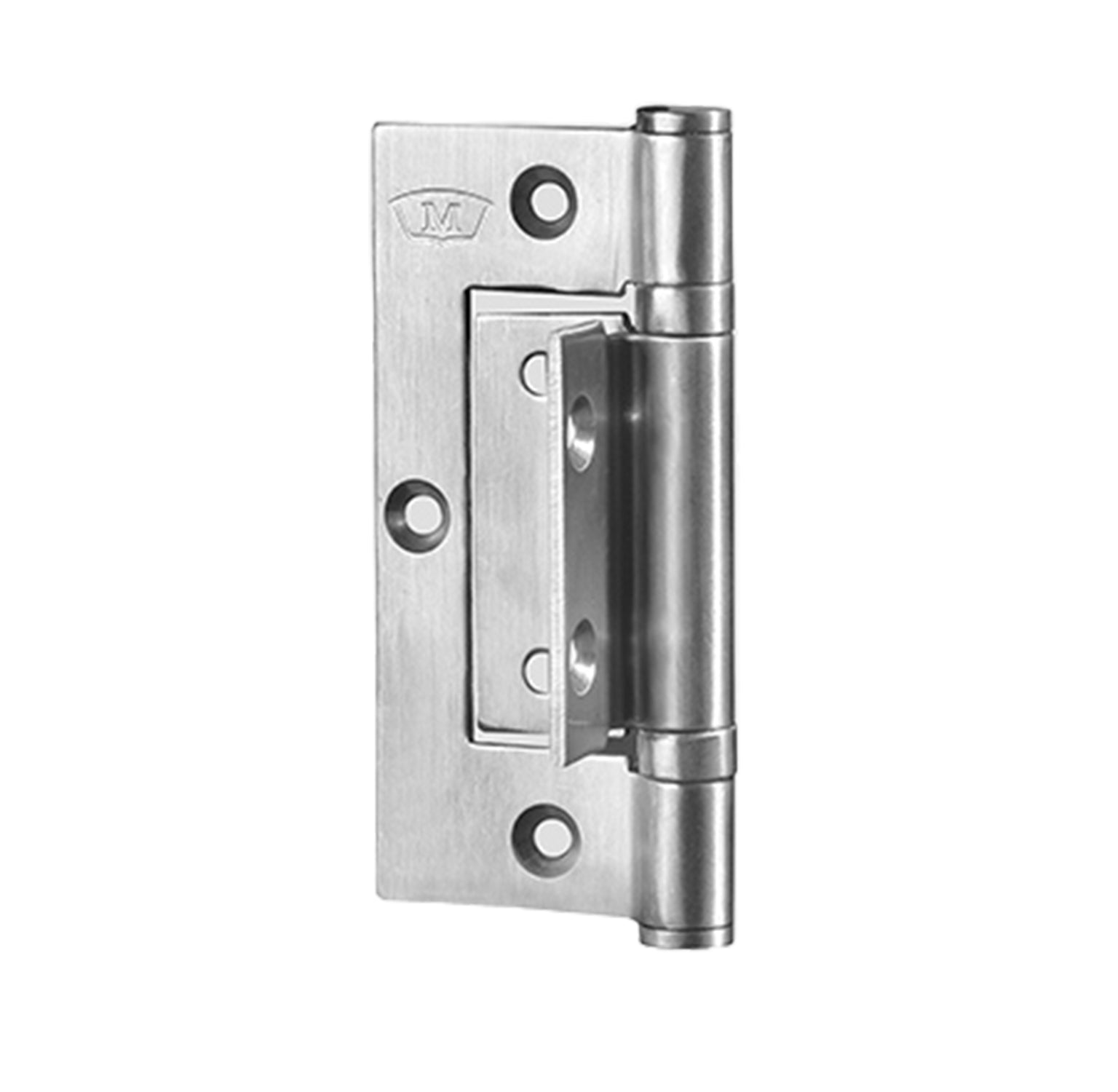

McCallum Medium Duty Interfold Door Hinge 100mm Satin Stainless Steel S263SSS

McCallum Medium Duty Interfold Door Hinge
S263SSS

Interfold Hinge is used for concealed, interior, and partial doors, as well as providing sufficient closing force for wood and lightweight metal doors.

Interfold Hinge Function - is suitable for either centre pocket or front edged glazing systems.

Features:

• Medium Duty Ball Bearing Interfold Hinge
• Wrap-around face fixing to door and frame
• Suitable for Commercial Aluminium & some Timber doors in Aluminium frames
• Suitable for either Centre Pocket or Front Edged Glazing systems
• Hinge positioning locator allows for faster & easier installation
• Fastening screws supplied

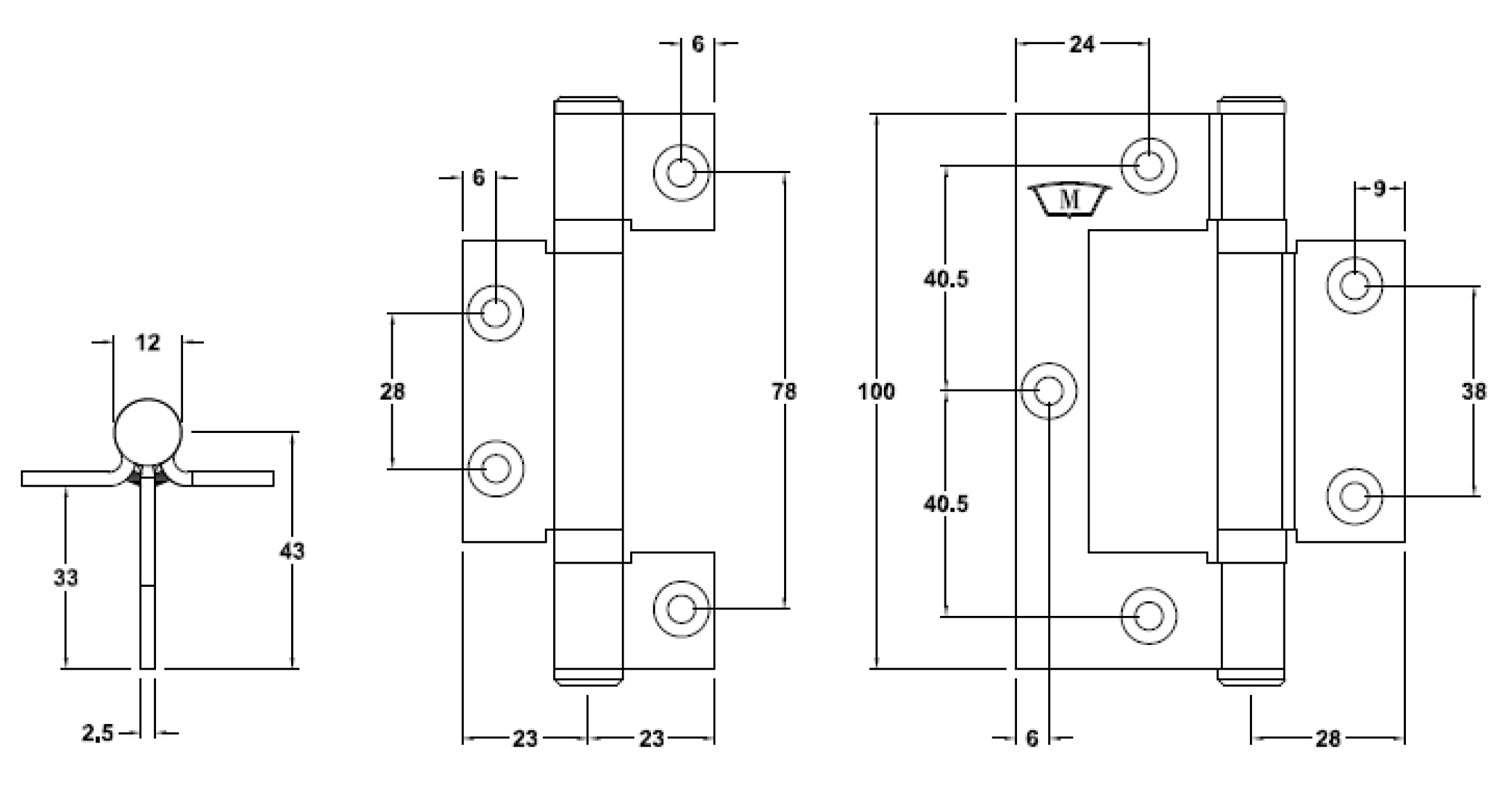

Specifications:

• Door Thicknes: 35mm
• Height: 100mm
• Width: 34mm
• Thickness: 2.5mm
• Hinge Type: Interfold Hinge
• Material: Stainless Steel 304 grade
• Hinge Pin: 6.9mm Diameter Stainless Steel 304 Grade
• Bearing: Stainless Steel – Cage & Bearing
• Knuckle: Round
• Endcaps: Stainless Steel 304 grade Pressed Interference fit
• Face Fix: Wrap Around Face Fixing to Door and Frame
• Hinge Positioning Locator: Yes
• Finish: Satin Stainless Steel

Note:

• Recommended that the minimum of 3 hinges be used with the top hinge located as high as possible
• Pop Rivets are NOT RECOMMENDED
