McCallum VIO Folding 4 Door System One Way Outward Opening Hardware Kit Satin Stainless Steel

McCallum VIO External Folding 4 Door System (4 Panels Folding One Way) Outward Opening Hardware Kit
VIO40DOSSS

Note:

• Tracks and channels are sold separately and we don’t sell doors
• Refer to 50kg track and channel length code: MCCVT50K20SNA
• Refer to 100kg track and channel length code: MCCVT100K20SNA

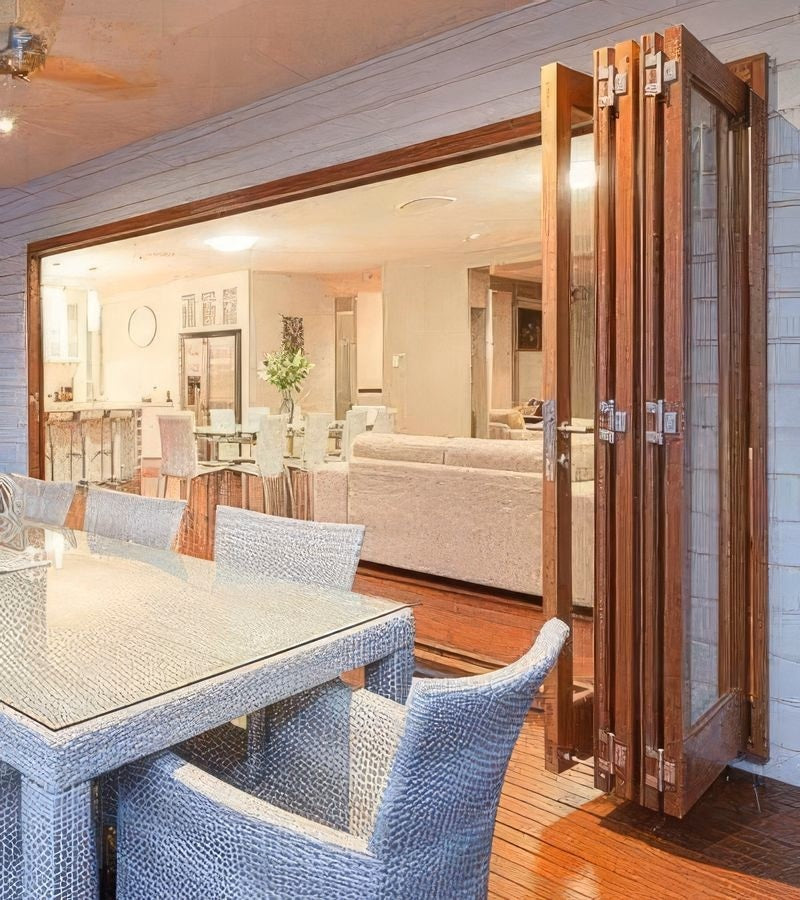

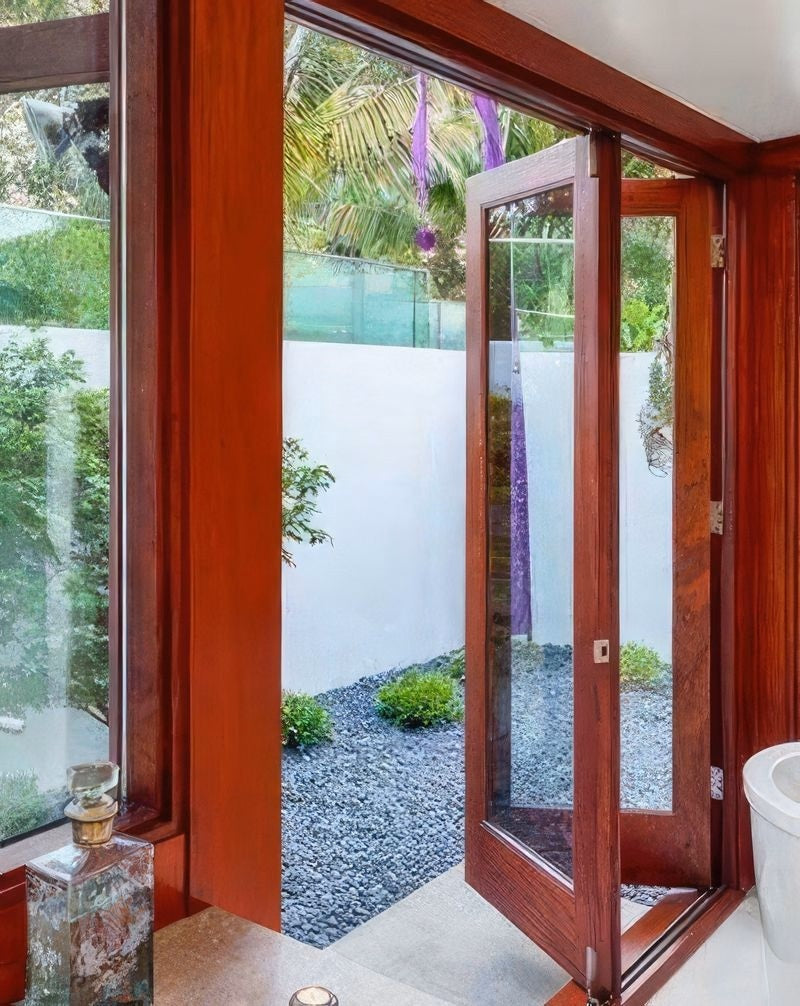

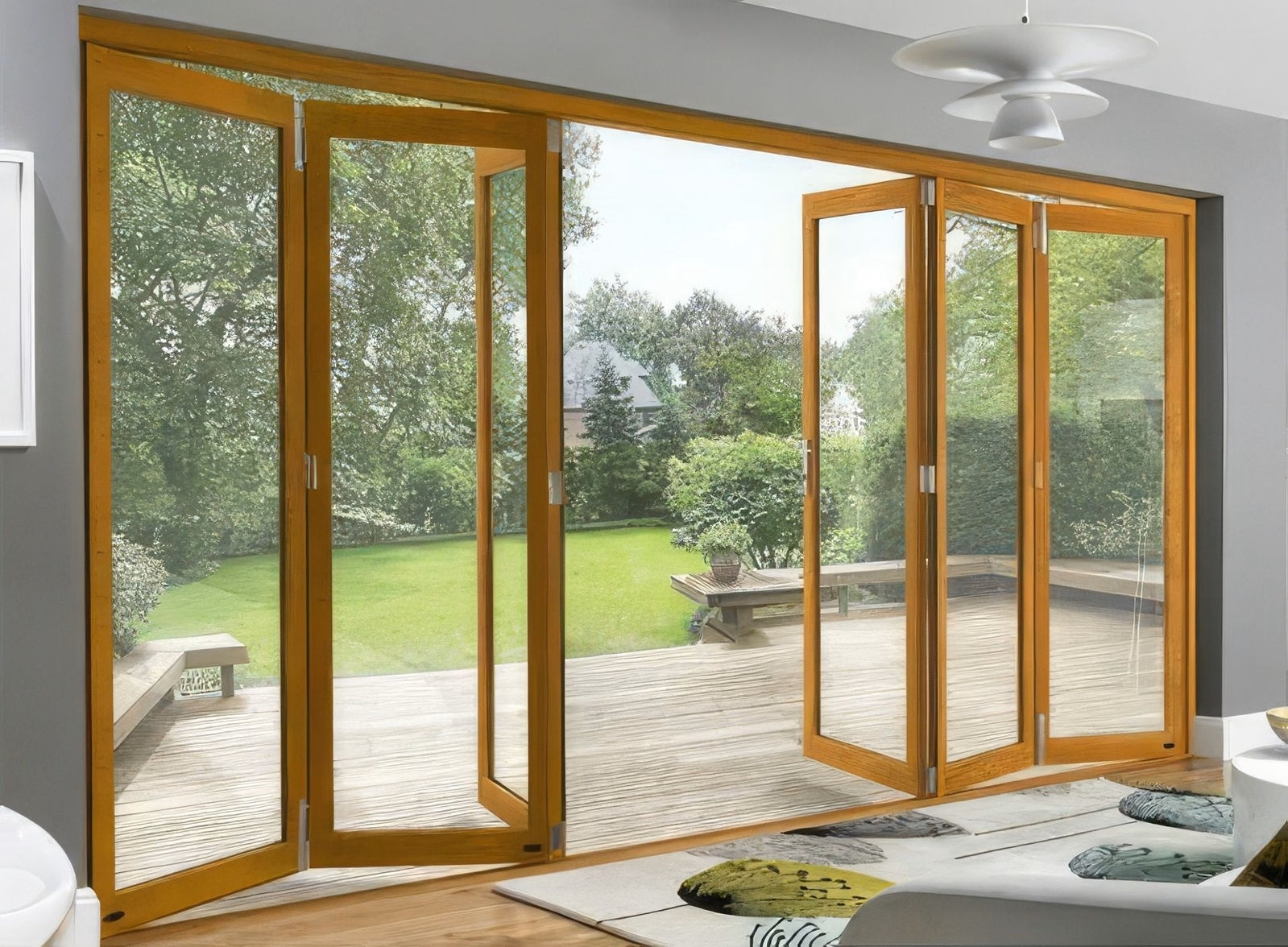

Top Hung Folding Door are incredibly popular because they allow a complete free exposed opening which brings the inside and out as a combined alfresco environment. Great for patio areas, cafés, commercial shop fronts, etc.
Includes:

Top Hung Folding Door Function - doors have rollers attached at the top. The guide on the floor then keeps the door in line as you slide it from one side to the other.

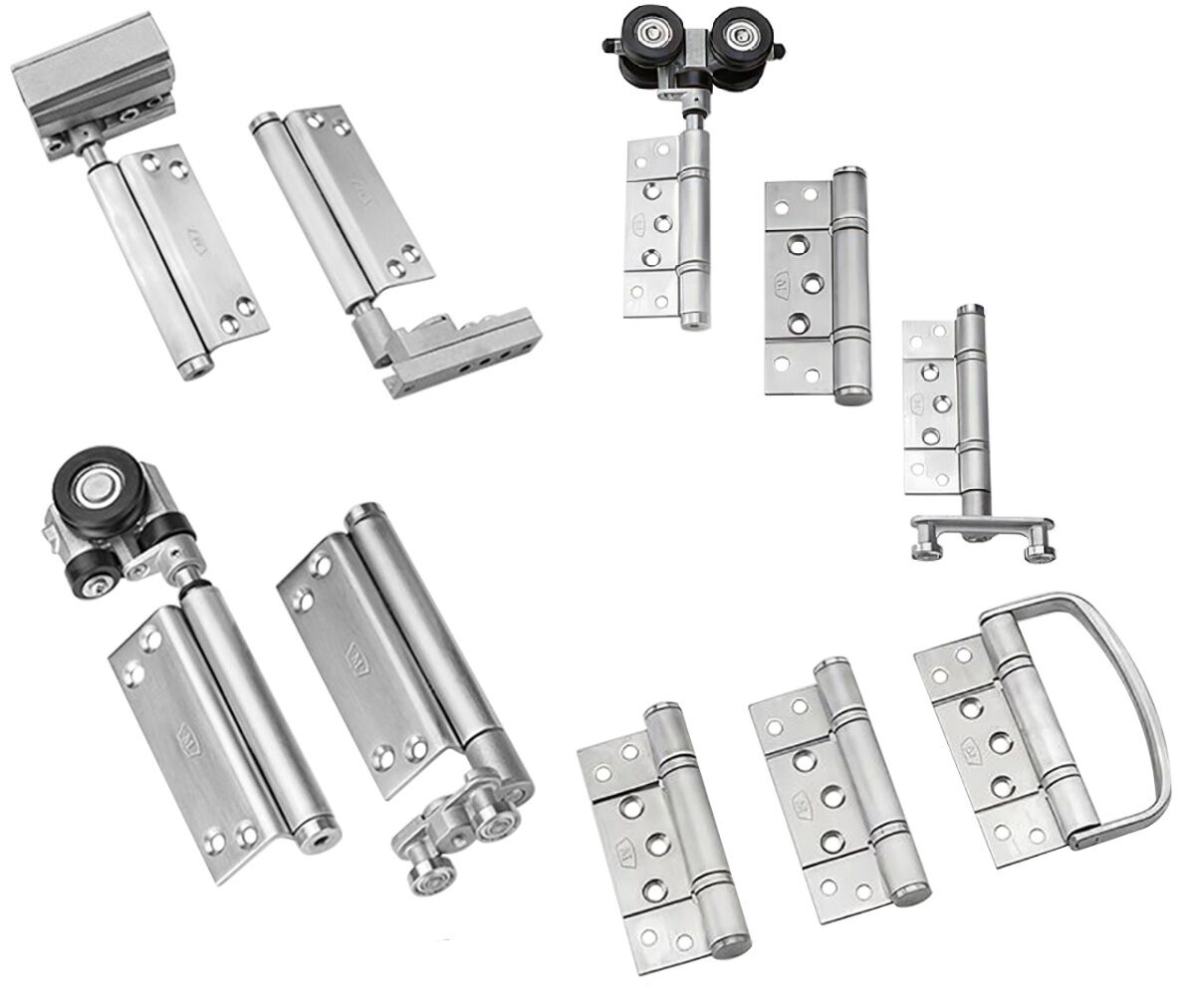

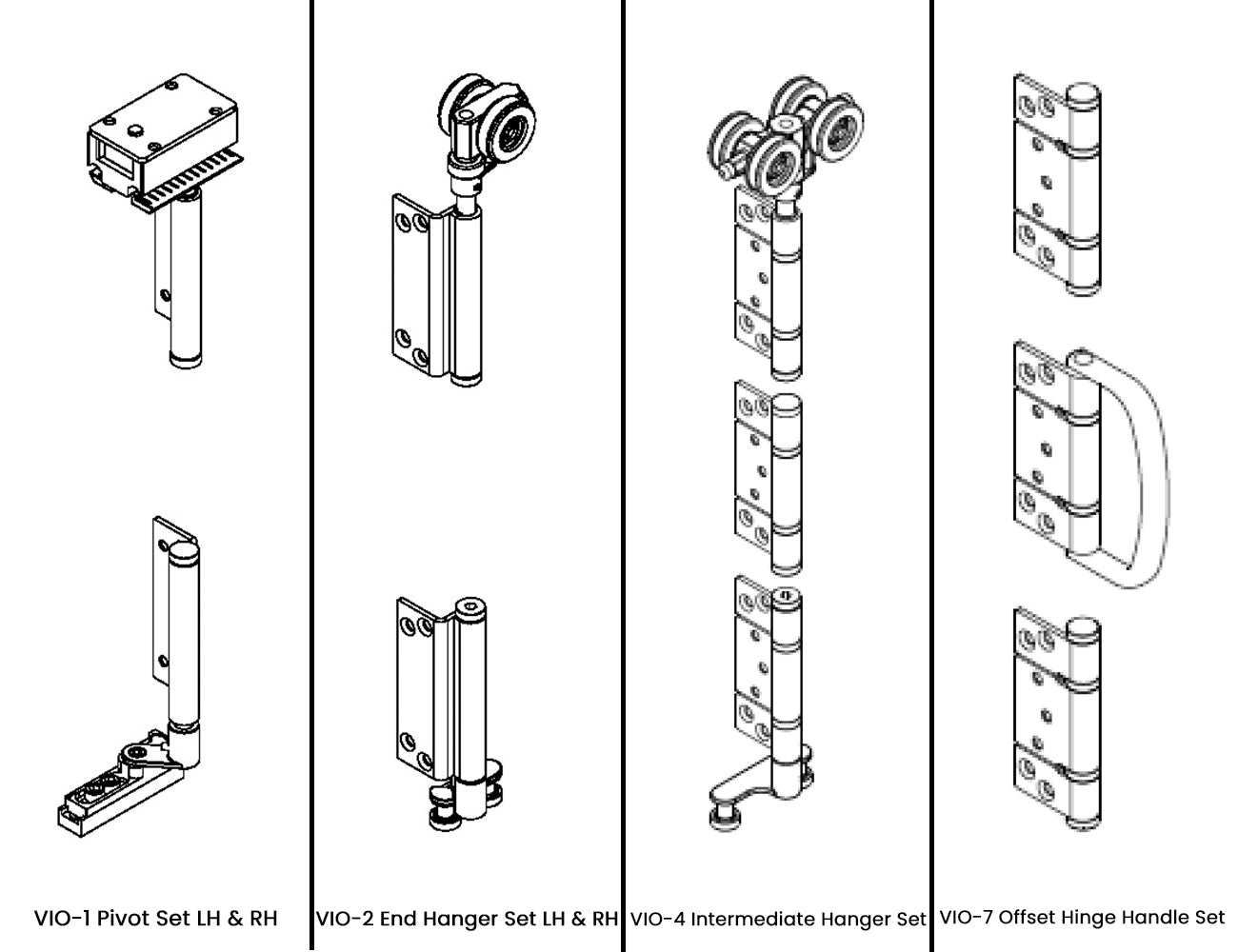

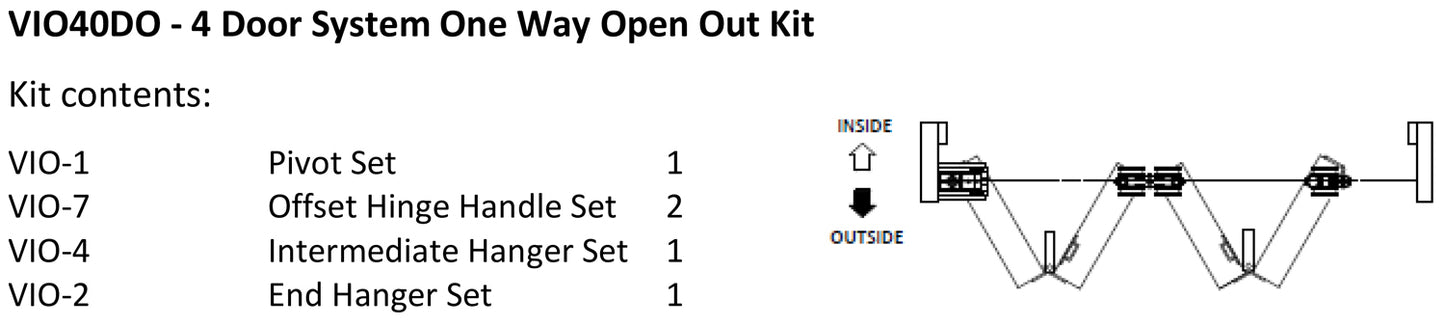

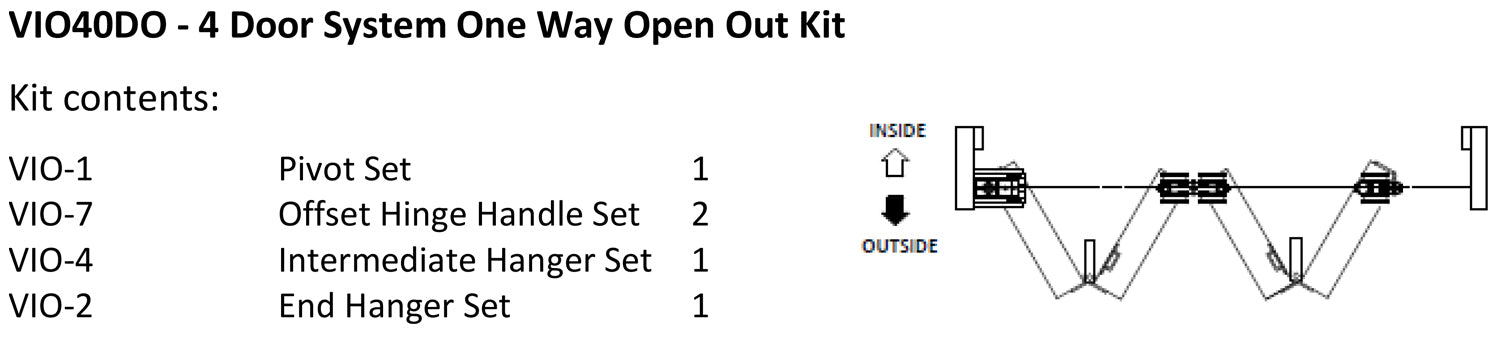

Includes:

• 1 x VIO Pivot Set Left and Right Satin Stainless Steel (VIO-1SSS)
• 2 x VIO Offset Hinge Handle Set Satin Stainless Steel (VIO-7SSS)
• 1 x VIO Intermediate Hanger Set Satin Stainless Steel (VIO-4SSS)
• 1 x VIO End Hanger Set Satin Stainless Steel (VIO-2SSS)

Features:

• Suitable for residential and commercial timber or Aluminum exterior folding door
• Ideal for external applications being manufactured from corrosive-resistant material
• Top hung-end folding system suits door folding in one or both directions.
• Stainless steel hangers, hinges, and precision stainless steel bearings along with engineered polymer components.

Specifications:

• Material: Stainless Steel
• Door Thickness: 35mm - 65mm
• Max Door Weight: 50kg or 100kg per leaf
• Max Door Width: 1000mm
• Max Door Height: 3000mm or 3300mm
• Colour or Finish: Satin Stainless Steel
